36520-0002 datasheet, PDF - EEWORLD Datasheet

36520-0002: DescriptionBoard Euro Connector, 48 Contact(s), 3 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size96KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

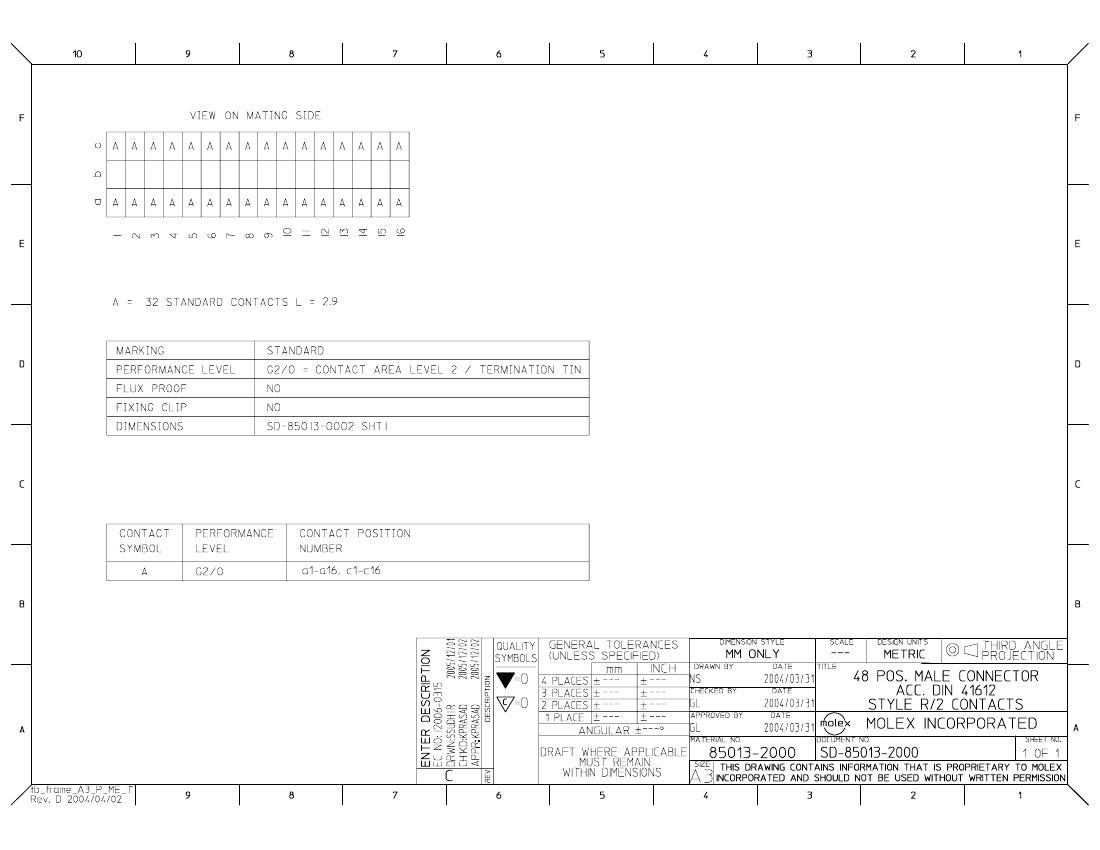

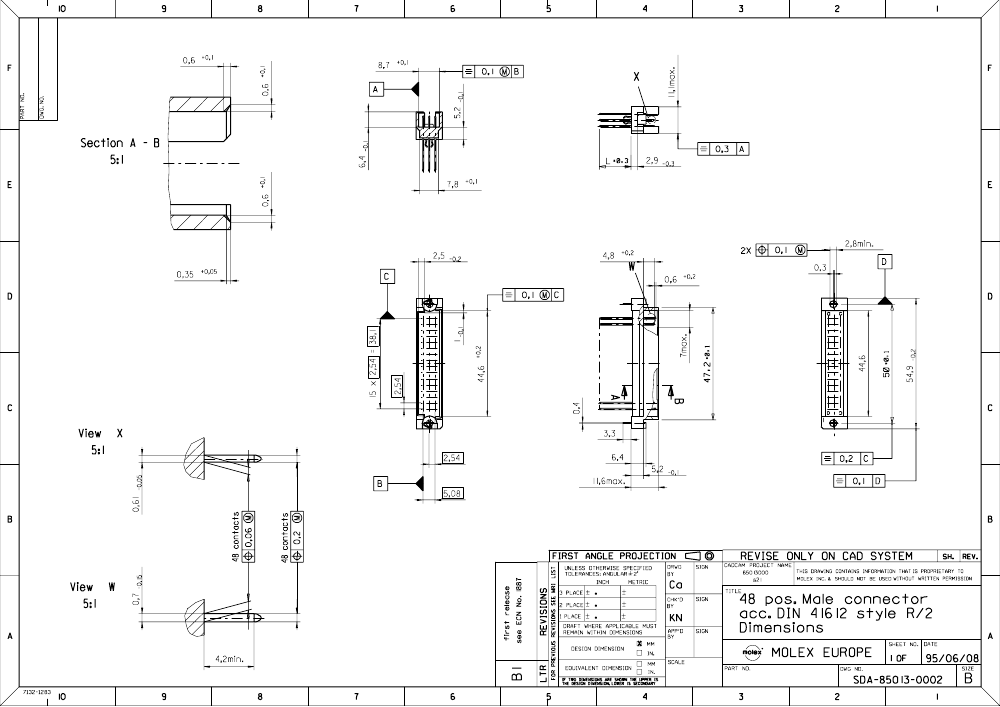

36520-0002 Overview

Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Straight, Solder Terminal,

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	STANDARD: DIN 41612, COMPATIBLE CONTACT: 36527-0005
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	36520
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48
Base Number Matches	1

	36520-0002	0850132000
Description	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Straight, Solder Terminal,	conn din R/2 male 32ckt
Reach Compliance Code	unknow	unknown
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
