5015681107: Description1.00mm (.039") pitch pico-clasp wire-to-board header, surface mount, single row, right angle, with positive lock; CategoryThe connector The connector; File Size432KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

5015681107 Overview

1.00mm (.039") pitch pico-clasp wire-to-board header, surface mount, single row, right angle, with positive lock

5015681107 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	9 weeks
Other features	PICO-CLASP
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	11
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5015680607

Active

picoclasp

1.00mm (.039") Pitch Pico-Clasp™ Wire-to-Board Header, Surface Mount, Single Row,

Right Angle, with Positive Lock, 6 Circuits, Lead-free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-501568-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

PCB Headers

501568

Wire-to-Board

picoclasp

Pico-Clasp™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Natural

Yes

Brass, Phosphor Bronze

Tin

Nylon

Right Angle

Yes

Embossed Tape on Reel

0.039 In

1.00 mm

Yes

-40°C to +85°C

Surface Mount

Search Parts in this Series

501568Series

Mates With

501330 Pico-Clasp™ Wire-to-Board Female

Housing

Electrical

Current - Maximum per Contact

Voltage - Maximum

50V AC (RMS)/DC

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

SPK-501568-001

PS-501568-001, RPS-501331-001, RPS-501568-001,

RPS-501568-002, RPS-501568-003, RPS-501568-004,

RPS-501568-005, RPS-501940-001, RPS-501940-002

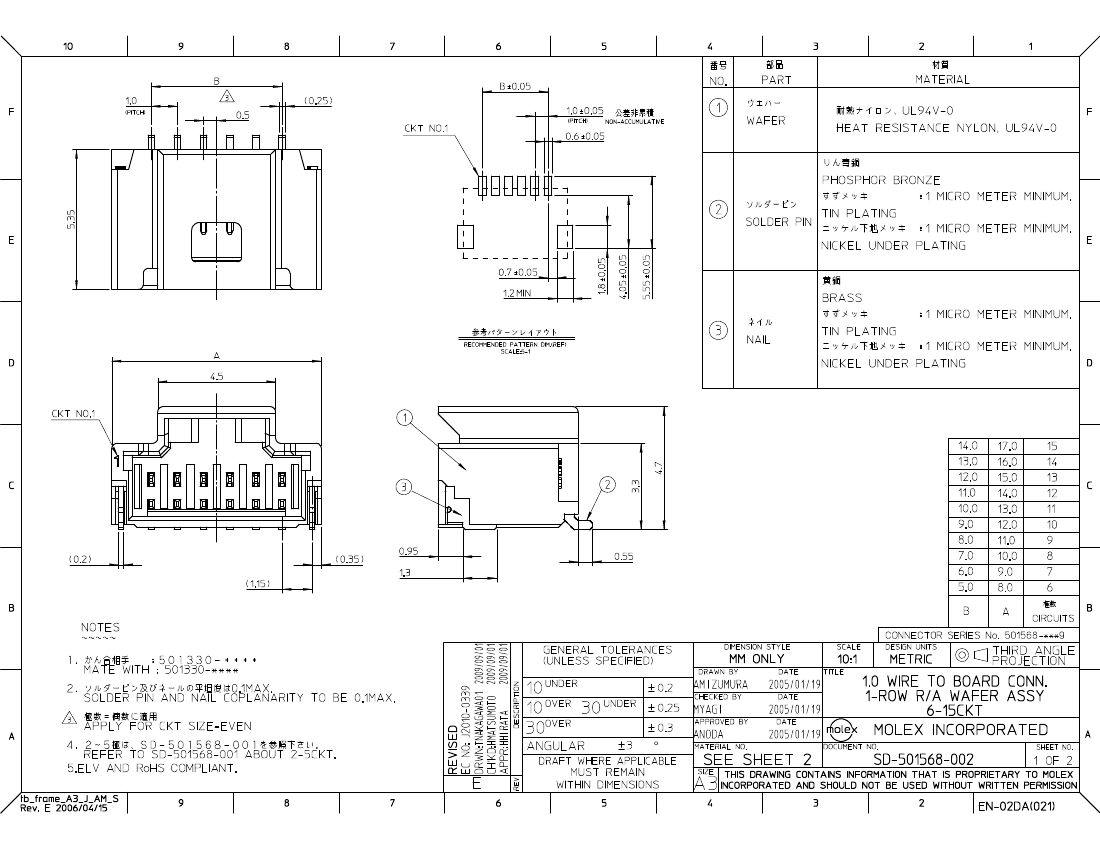

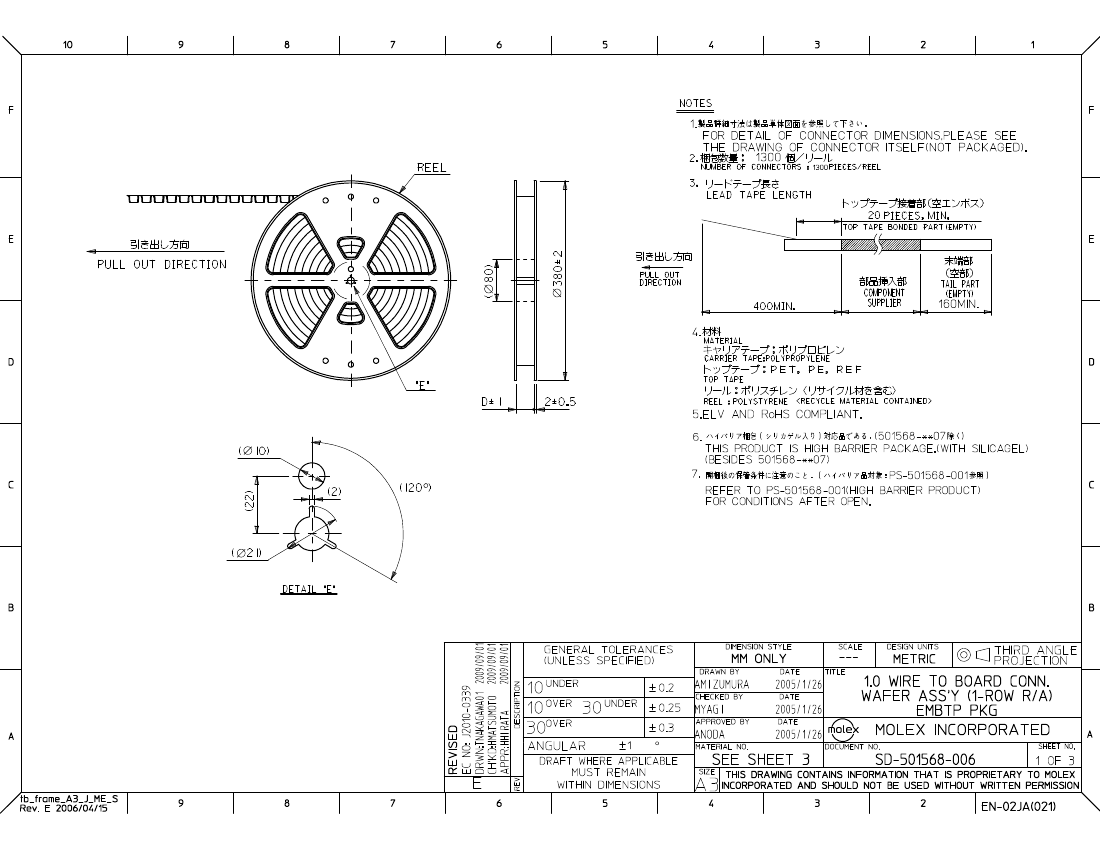

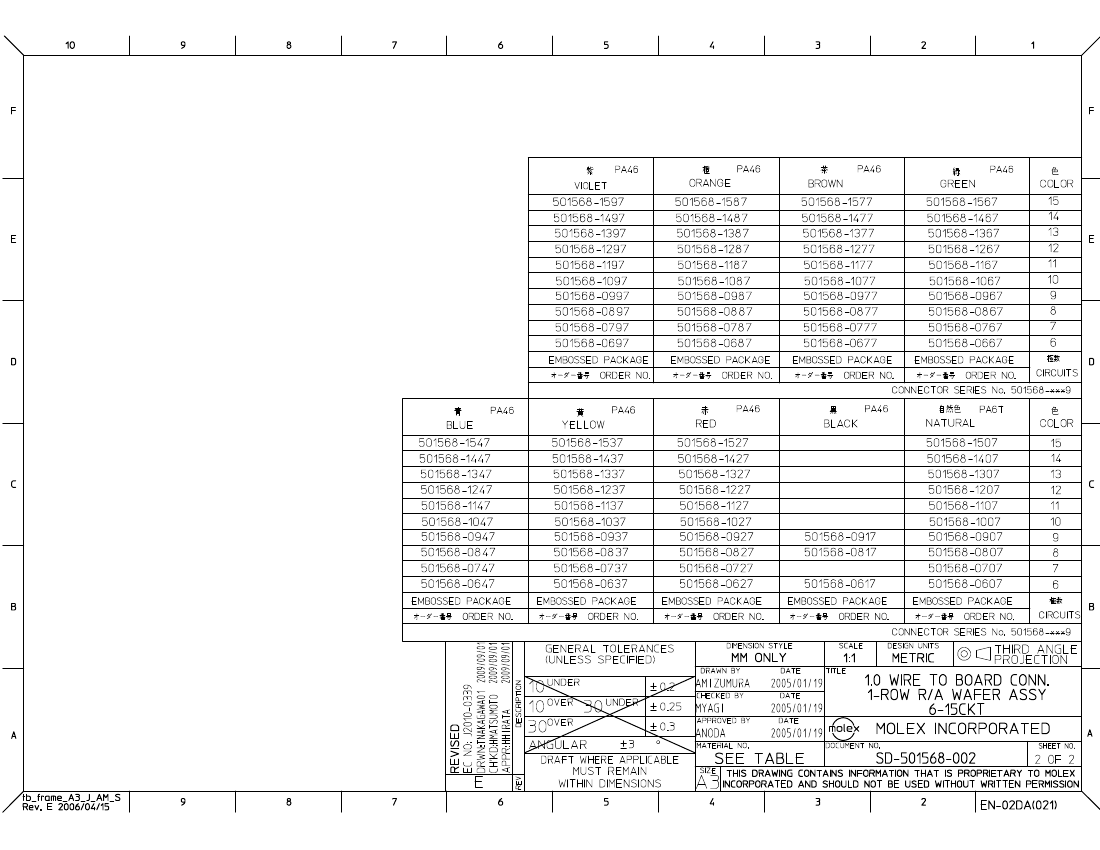

SD-501568-002, SD-501568-006

Sales Drawing

This document was generated on 05/26/2010
