0850133043 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0850133043

0850133043: Description2.54mm (.100") pitch din 41612 header, vertical, 3-row C-pin, press-fit style R male, 32 circuits; CategoryThe connector The connector; File Size155KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0850133043 Overview

2.54mm (.100") pitch din 41612 header, vertical, 3-row C-pin, press-fit style R male, 32 circuits

0850133043 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compli
Other features	STANDARDS: DIN 41612, IEC 603-2, POLARIZED
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	YES
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	32
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 05/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0850133043

Active

din_41612

2.54mm (.100") Pitch DIN 41612 Header, Vertical, 3-Row C-Pin, Press-Fit Style R

Male, 32 Circuits (Row B), Copper Tin (CuSn) Contact, Lead free

Documents:

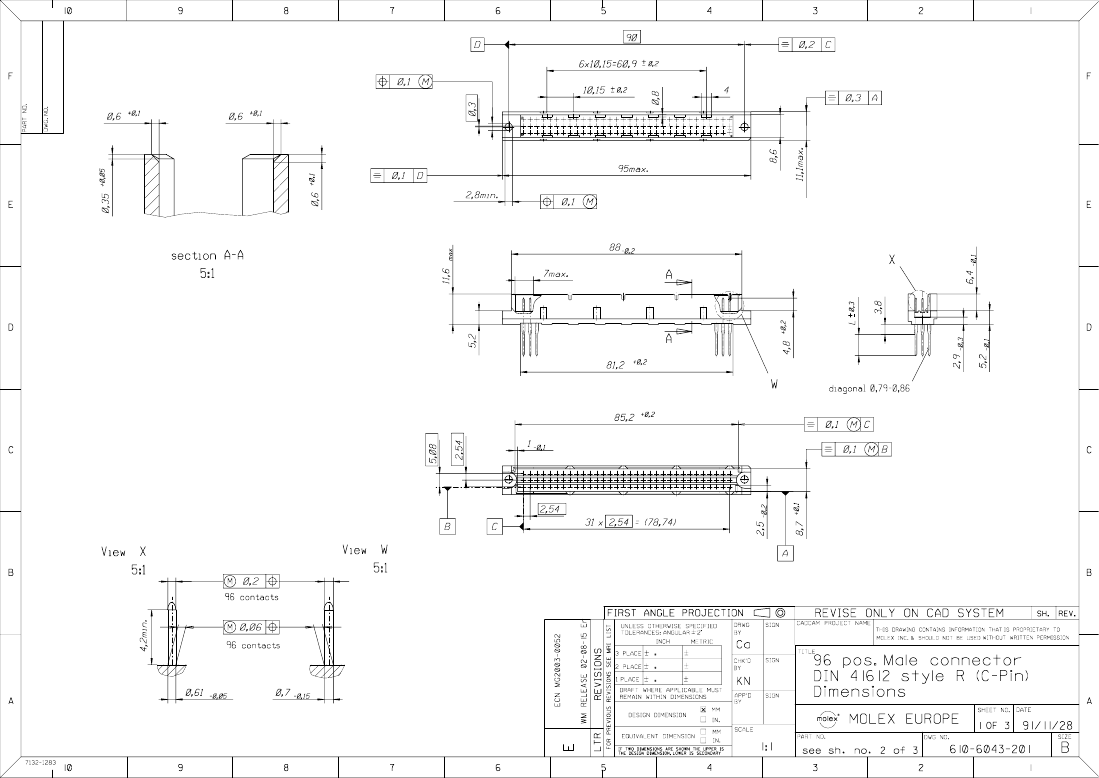

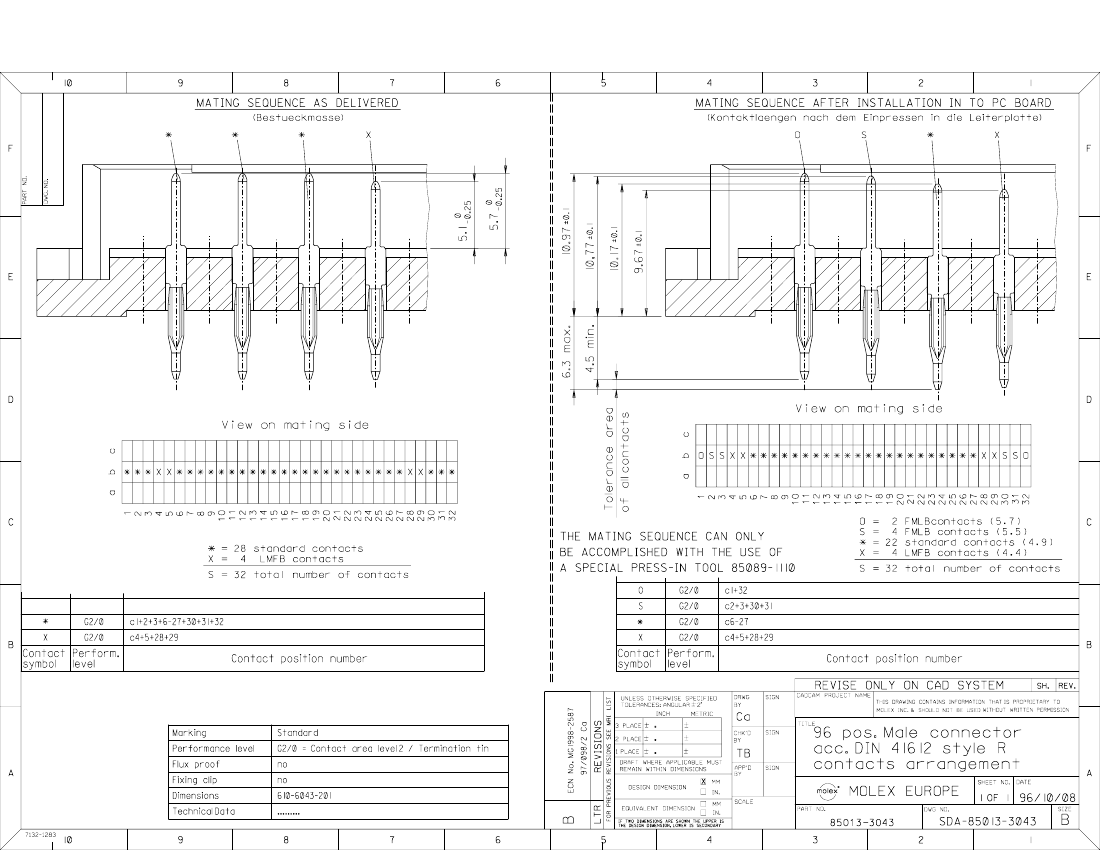

Drawing (PDF)

Product Specification PS-85013-0002 (PDF)

RoHS Certificate of Compliance (PDF)

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Component Type

Overview

Product Name

Style

Backplane Connectors

85013

Backplane

PCB Header

din_41612

IEC 603-2/DIN 41612

Search Parts in this Series

85013Series

Mates With

85052 Receptacle

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Termination

Material - Resin

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

Standard Contacts at b1,b2,b3,b6,b27,b30,b31,b32; .

Last-Mate-First- Break at Contacts X: b4,b5,b28,b29

Gray

500

Yes

94V-0

Yes

Phosphor Bronze

Tin

Polyester

Open Pin Field

Vertical

0.177 In, 0.240 In

4.50 mm, 6.30 mm

Yes

Tray

0.100 In

2.54 mm

0.100 In

2.54 mm

0.6

0.4
