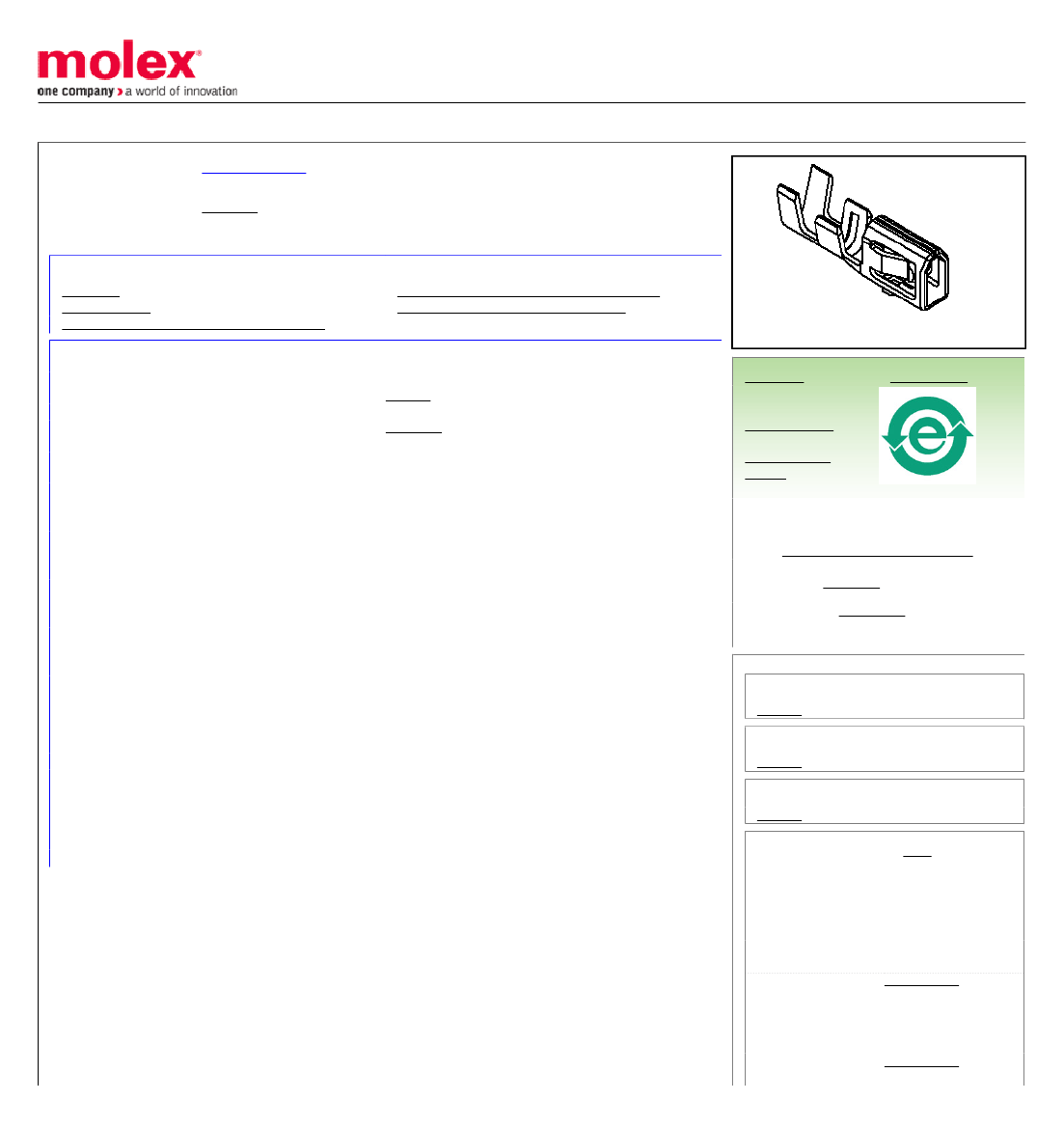

Part Number:
Status:
Overview:
Description:
5013340000
Active
picoclasp
1.00mm (.039") Pitch Pico-Clasp™ Wire-to-Board Crimp Terminal, 28-32 AWG, Lead-
free, Tin Plating, Reel
Documents:
3D Model

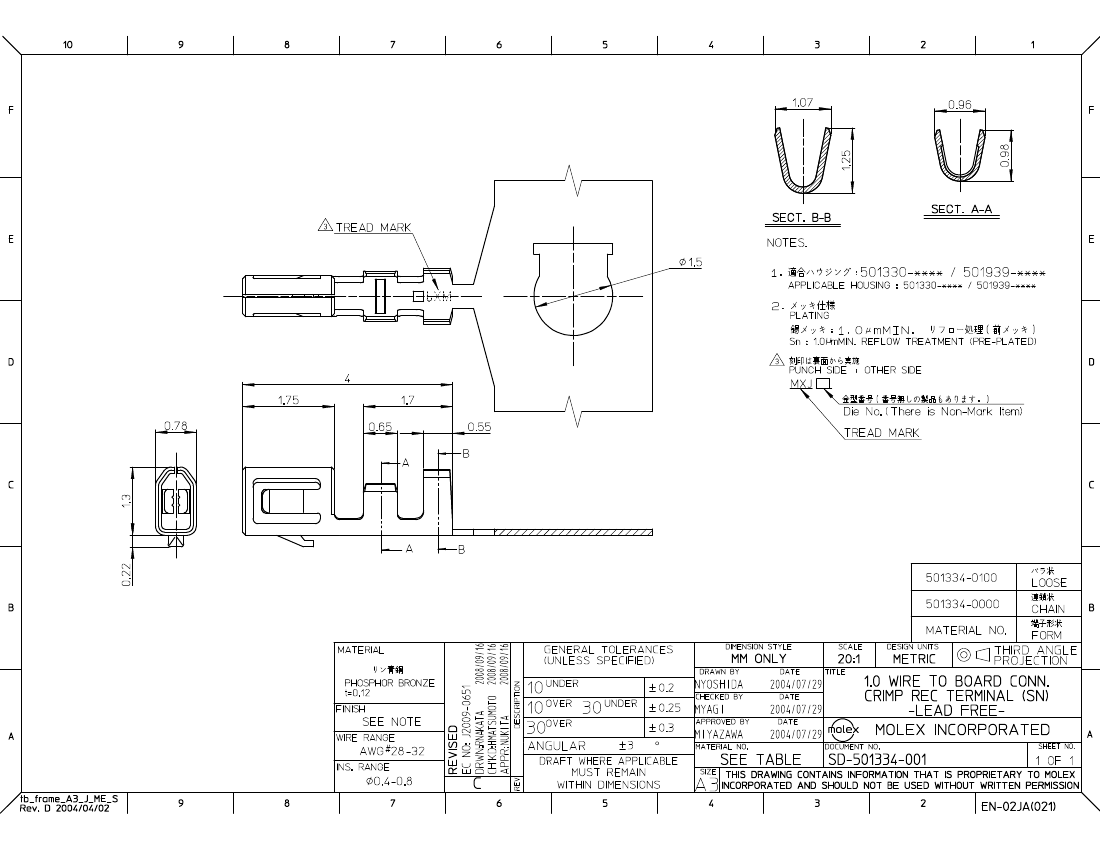

Drawing (PDF)
Product Specification PS-501331-001 (PDF)
Product Specification PS-501940-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
General
Product Family
Series
Crimp Quality Equipment
Overview
Product Name
Crimp Terminals
501334
Yes
picoclasp
Pico-Clasp™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Receptacle
Phosphor Bronze
Tin
Tin
Reel
40.00
1.000
40.00
1.00
Crimp or Compression
0.80mm (.031") max.
28, 30, 32
N/A
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
SPK-501334-001
PS-501331-001, PS-501940-001, RPS-501331-001,
RPS-501331-002, RPS-501331-003, RPS-501331-005,
RPS-501331-006, RPS-501331-007, RPS-501568-002,
RPS-501940-001, RPS-501940-002, RPS-501940-003,
RPS-501940-004
SD-501334-001
Search Parts in this Series
501334Series
Mates With
501331 PCB Header
Use With
501330 Crimp Housing
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Fine Adjust™
0639019400
Applicator for
1.00mm (.039") Pitch
Wire-to-Board Crimp
Terminal
Hand Crimp Tool
0638191500
for 1.00mm (.039")
Sales Drawing
