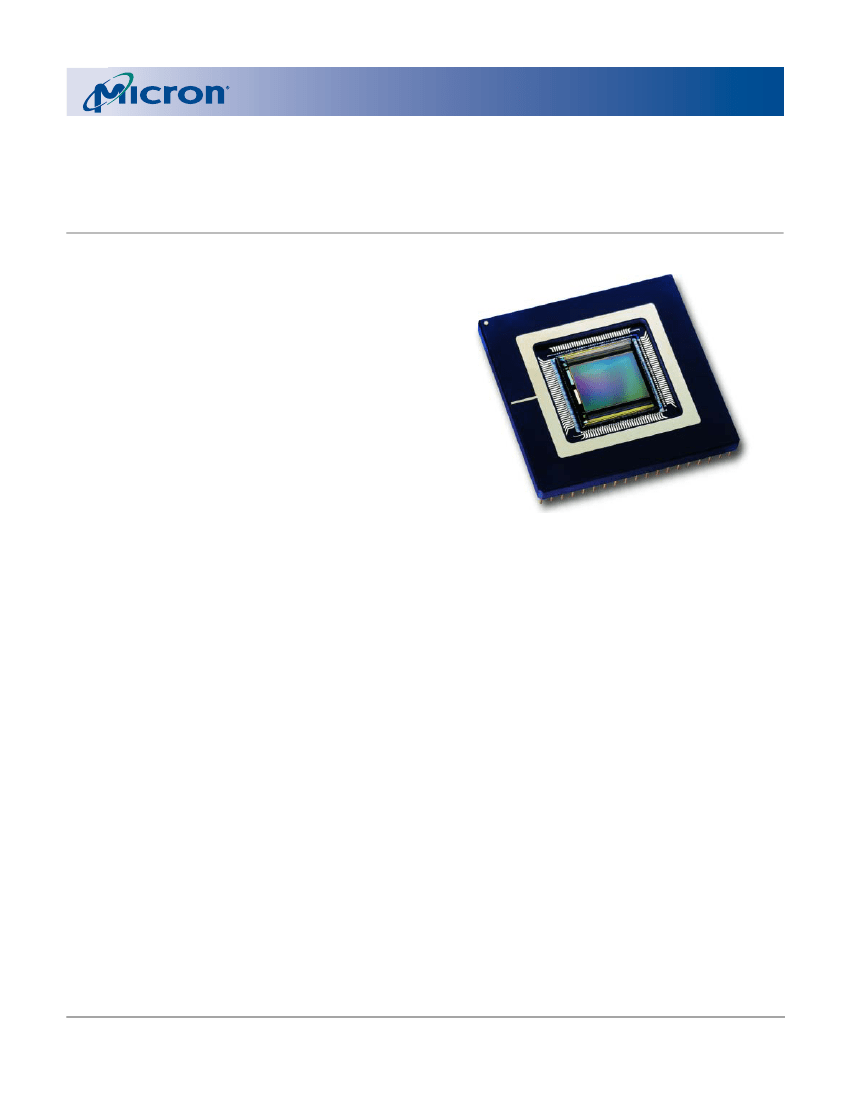

1.3-MEGAPIXEL CMOS ACTIVE-PIXEL

DIGITAL IMAGE SENSOR

1.3-MEGAPIXEL CMOS

ACTIVE-PIXEL DIGITAL

IMAGE SENSOR

Description

The MI-MV13 is a 1,280H x 1,024V (1.3 megapixel)

CMOS digital image sensor capable of 500 frames-per-

second (fps) operation. Its TrueSNAP™ electronic

shutter allows simultaneous exposure of the entire

pixel array. Available in color or monochrome, the sen-

sor has on-chip 10-bit analog-to-digital converters

(ADCs), which are self-calibrating, and a fully digital

interface. The chip's input clock rate is 66 MHz at

approximately 500 fps, providing compatibility with

many off-the-shelf interface components.

The sensor has ten 10-bit-wide digital output ports.

Its open architecture design provides access to internal

operations. ADC timing and pixel-read control are

integrated on-chip. At 60 fps, the sensor dissipates less

than 150mW, and at 500 fps less than 500mW; it oper-

ates on a 3.3V supply. Pixel size is 12 microns square,

and digital responsivity is 1,600 bits per lux-second.

MT9M413

Micron Part Number: MT9M413C36STC

Features/Top Level Specifications

• Array Format: 1,280H x 1,024 V (1,310,720 pixels)

• Pixel Size and Type: 12.0µm x 12.0µm TrueSNAP

(shuttered-node active pixel)

• Sensor Imaging Area: H: 15.36mm, V: 12.29mm,

Diagonal: 19.67mm

• Frame Rate: 0–500+ fps @ (1,280 x 1,024), >10,000

fps with partial scan, [e.g. 0–4000 fps @ (1,280 x 128)]

• Output Data Rate: 660 Mbs (master clock 66 MHz,

~500 fps)

• Power Consumption: < 500 mW @ 500 fps; <150 mW

@ 60 fps

• Digital Responsivity: Monochrome: 1,600 bits per

lux-second @ 550nm; ADC reference @ 1V

• Internal Intra-Scene Dynamic Range: 59dB

• Supply Voltage: +3.3V

• Operating Temperature: -5°C to +60°C

• Output: 10-bit digital through 10 parallel ports

• Conversion Gain = 13µV/e

•

Color: Monochrome or color RGB

Shutter: TrueSNAP freeze-frame electronic shutter

Shutter Efficiency: >99.9%

Shutter Exposure Time: 2µs to > 33 msec

ADC: On-chip, 10-bit column-parallel

Package: 280-pin ceramic PGA

Programmable Controls: Open architecture

On-chip:

•ADC controls

•Output multiplexing

•ADC calibration

Off-chip:

•Window size and location

•Frame rate and data rate

•Shutter exposure time (integration time)

•ADC reference

09005aef806807ca

MT9M413C36STC.fm - Ver. 3.0 1/04 EN
