EEGBA1V274GPE

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35V, 270000uF, CHASSIS MOUNT, CAN
CategoryPassive components    capacitor
File Size353KB，4 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Download Datasheet Parametric View All

EEGBA1V274GPE Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35V, 270000uF, CHASSIS MOUNT, CAN

EEGBA1V274GPE Parametric

Parameter NameAttribute value
Objectid1937273887
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance270000 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
ESR5 mΩ
Manufacturer's serial numberG-BA
Installation featuresCHASSIS MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)35 V
ripple current24030 mA
surface mountNO
Terminal shapeBINDING POST

Preview

Download Datasheet

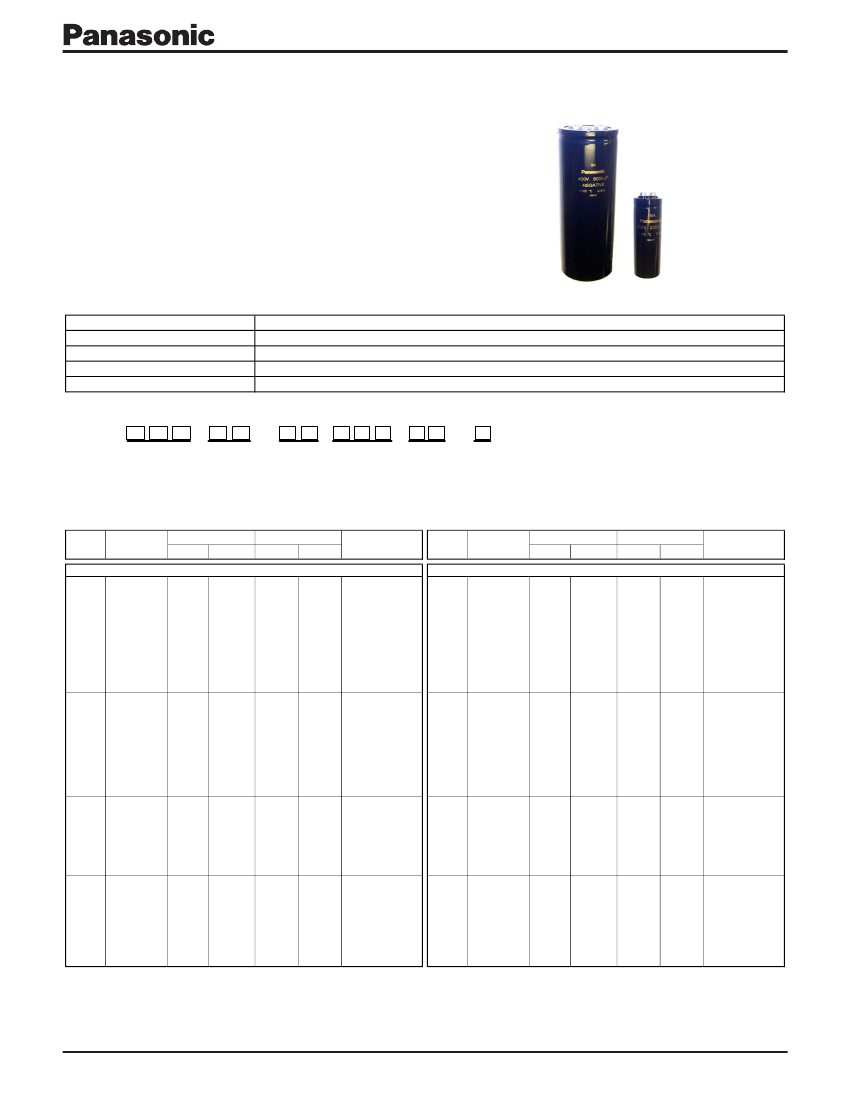

Large Can Aluminum Electrolytic Capacitors
G-BA Series
screw terminal style
Long life for industrial applications
2000 hour life @ 105°C with ripple current applied
High CV design
Customized designs available
Rated Working Voltage:
Operating Temperature:
Nominal Capacitance:
Capacitance Tolerance:
Endurance:
10 ~ 450 VDC
-40 ~ +105ºC
220 ~ 1200000µF
± 20%
2000 hours at +105ºC with maximum specified ripple current (see page 4)
Part Number System
E
E
G
B
A
Voltage
Code
Capacitance
Code
Case Size
Code
Terminal Code
"E" type, high post, 10-32 NF-2B thread is standard
Please see page 34 for other terminal options and dimensions
Common Code/
Terminal Style
Series
Code
Please see page 34 for temperature and frequency ripple current multipliers
G-BA Typical Ratings
Cap.
(µF)
Nominal Size
D x L (inches)
Max 105°C R.C. (A
rms
)
120Hz
10k~100kHz
20°C ESR (Ω, max.)
120Hz
20kHz
Panasonic
Part Number
Cap.
(µF)
Nominal Size
D x L (inches)
Max 105°C R.C. (A
rms
)
120Hz
10k~100kHz
20°C ESR (Ω, max.)
120Hz
20kHz
Panasonic
Part Number
10 VDC Working, 13 VDC Surge
33000
39000
56000
75000
82000
100000
120000
130000
150000
82000
100000
120000
150000
180000
220000
270000
330000
270000
330000
390000
470000
510000
560000
390000
470000
560000
680000
750000
820000
1200000
1.375 x 1.625
1.375 x 2.125
1.375 x 2.625
1.375 x 3.125
1.375 x 3.625
1.375 x 4.125
1.375 x 4.625
1.375 x 5.125
1.375 x 5.625
2.000 x 1.875
2.000 x 2.125
2.000 x 2.625
2.000 x 3.125
2.000 x 3.625
2.000 x 4.125
2.000 x 5.125
2.000 x 5.625
2.500 x 3.125
2.500 x 3.625
2.500 x 4.125
2.500 x 4.625
2.500 x 5.125
2.500 x 5.625
3.000 x 3.125
3.000 x 3.625
3.000 x 4.125
3.000 x 4.625
3.000 x 5.125
3.000 x 5.625
3.000 x 8.625
4.67
5.31
6.62
7.86
8.52
9.56
10.64
11.32
12.28
9.10
10.03
11.32
12.77
14.11
15.53
17.54
19.00
17.74
19.36
20.76
22.29
23.27
24.29
21.95
23.58
25.08
26.68
27.76
28.79
34.30
5.37
6.11
7.61
9.04
9.80
10.99
12.24
13.02
14.12
10.47
11.53
13.02
14.69
16.23
17.86
20.17
21.85
20.40
22.26
23.87
25.63
26.76
27.93
25.24
27.12
28.84
30.68
31.92
33.11
39.45
0.0402
0.0345
0.0249
0.0194
0.0180
0.0153
0.0132
0.0125
0.0112
0.0180
0.0153
0.0132
0.0112
0.0098
0.0086
0.0076
0.0067
0.0076
0.0067
0.0062
0.0056
0.0054
0.0052
0.0062
0.0056
0.0052
0.0048
0.0047
0.0045
0.0041
0.0362
0.0310
0.0224
0.0174
0.0162
0.0138
0.0119
0.0112
0.0101
0.0162
0.0138
0.0119
0.0101
0.0089
0.0077
0.0068
0.0061
0.0068
0.0061
0.0056
0.0051
0.0049
0.0047
0.0056
0.0051
0.0047
0.0044
0.0042
0.0041
0.0036
16 VDC Working, 20 VDC Surge
EEGBA1A333CA
E
EEGBA1A393CC
E
EEGBA1A563CE
E
EEGBA1A753CG
E
EEGBA1A823CH
E
EEGBA1A104CK
E
EEGBA1A124CL
E
EEGBA1A134CN
E
EEGBA1A154CP
E
EEGBA1A823FB
E
EEGBA1A104FC
E
EEGBA1A124FE
E
EEGBA1A154FG
E
EEGBA1A184FH
E
EEGBA1A224FK
E
EEGBA1A274FN
E
EEGBA1A334FP
E
EEGBA1A274GG
E
EEGBA1A334GH
E
EEGBA1A394GK
E
EEGBA1A474GL
E
EEGBA1A514GN
E
EEGBA1A564GP
E
EEGBA1A394HG
E
EEGBA1A474HH
E
EEGBA1A564HK
E
EEGBA1A684HL
E
EEGBA1A754HN
E
EEGBA1A824HP
E
EEGBA1A125HW
E
22000
33000
47000
56000
68000
82000
91000
100000
120000
56000
75000
100000
120000
150000
180000
220000
270000
180000
220000
270000
330000
390000
470000
330000
390000
470000
510000
560000
620000
1000000
1.375 x 1.625
1.375 x 2.125
1.375 x 2.625
1.375 x 3.125
1.375 x 3.625
1.375 x 4.125
1.375 x 4.625
1.375 x 5.125
1.375 x 5.625
2.000 x 1.875
2.000 x 2.125
2.000 x 2.625
2.000 x 3.125
2.000 x 3.625
2.000 x 4.125
2.000 x 5.125
2.000 x 5.625
2.500 x 3.125
2.500 x 3.625
2.500 x 4.125
2.500 x 4.625
2.500 x 5.125
2.500 x 5.625
3.000 x 3.125
3.000 x 3.625
3.000 x 4.125
3.000 x 4.625
3.000 x 5.125
3.000 x 5.625
3.000 x 8.625
4.47
5.65
6.99
7.89
8.91
9.93
10.71
11.44
12.55
8.81
10.07
11.78
13.06
14.56
15.87
17.83
19.26
17.09
18.67
20.21
21.76
23.08
24.46
22.32
23.79
25.25
26.29
27.32
28.36
34.01
5.14
6.50
8.04
9.07
10.25
11.42
12.32
13.16
14.43
10.13
11.58
13.55
15.02
16.74
18.25
20.50
22.15
19.65
21.47
23.24
25.02
26.54
28.13
25.67
27.36
29.04
30.23
31.42
32.61
39.11
0.0435
0.0301
0.0221
0.0191
0.0163
0.0141
0.0130
0.0121
0.0106
0.0191
0.0151
0.0121
0.0106
0.0092
0.0082
0.0073
0.0065
0.0082
0.0073
0.0065
0.0059
0.0055
0.0051
0.0059
0.0055
0.0051
0.0050
0.0048
0.0047
0.0041
0.0392
0.0271
0.0199
0.0172
0.0146
0.0126
0.0117
0.0109
0.0096
0.0172
0.0136
0.0109
0.0096
0.0082
0.0073
0.0065
0.0059
0.0073
0.0065
0.0059
0.0053
0.0050
0.0046
0.0053
0.0050
0.0046
0.0045
0.0043
0.0042
0.0037
EEGBA1C223CAE
EEGBA1C333CCE
EEGBA1C473CEE
EEGBA1C563CGE
EEGBA1C683CHE
EEGBA1C823CKE
EEGBA1C913CLE
EEGBA1C104CNE
EEGBA1C124CPE
EEGBA1C563FBE
EEGBA1C753FCE
EEGBA1C104FEE
EEGBA1C124FGE
EEGBA1C154FHE
EEGBA1C184FKE
EEGBA1C224FNE
EEGBA1C274FPE
EEGBA1C184GGE
EEGBA1C224GHE
EEGBA1C274GKE
EEGBA1C334GLE
EEGBA1C394GNE
EEGBA1C474GPE
EEGBA1C334HGE
EEGBA1C394HHE
EEGBA1C474HKE
EEGBA1C514HLE
EEGBA1C564HNE
EEGBA1C624HPE
EEGBA1C105HWE
