Part Number:
Status:
Overview:
Description:
0366330021
Active
minifit_jr

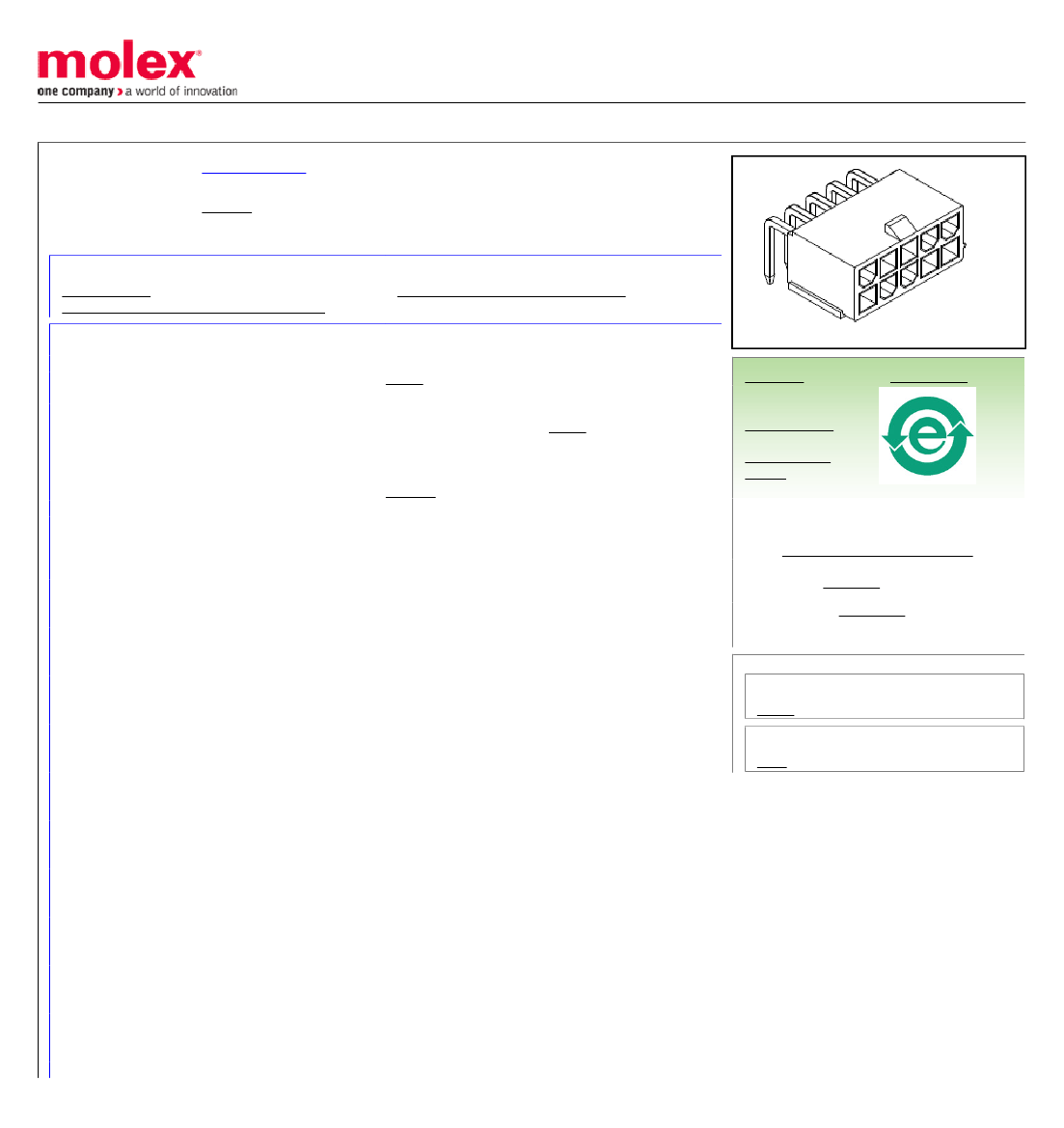

4.20mm (.165") Mini-Fit Jr.™ Header, Right Angle, Nylon, without Mounting Flange, 10
Circuits, Tin (Sn) over Nickel (Ni) Plating, Lead free
Documents:

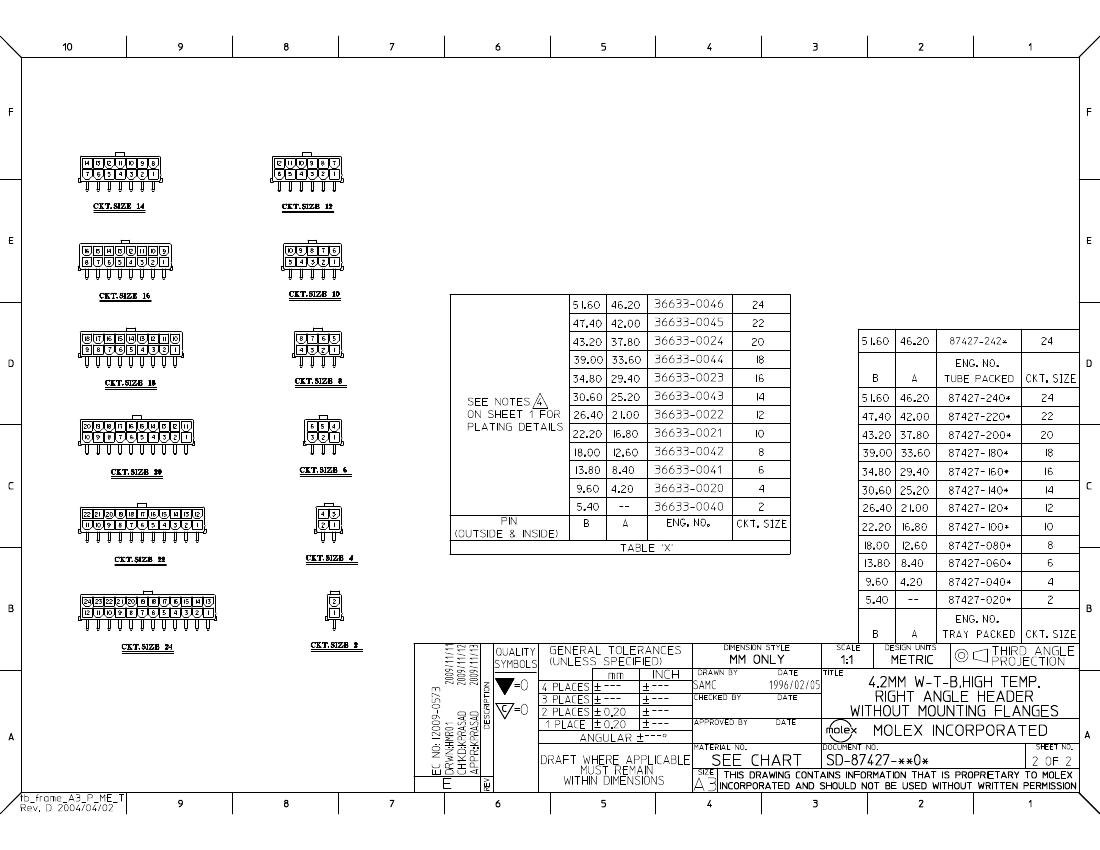

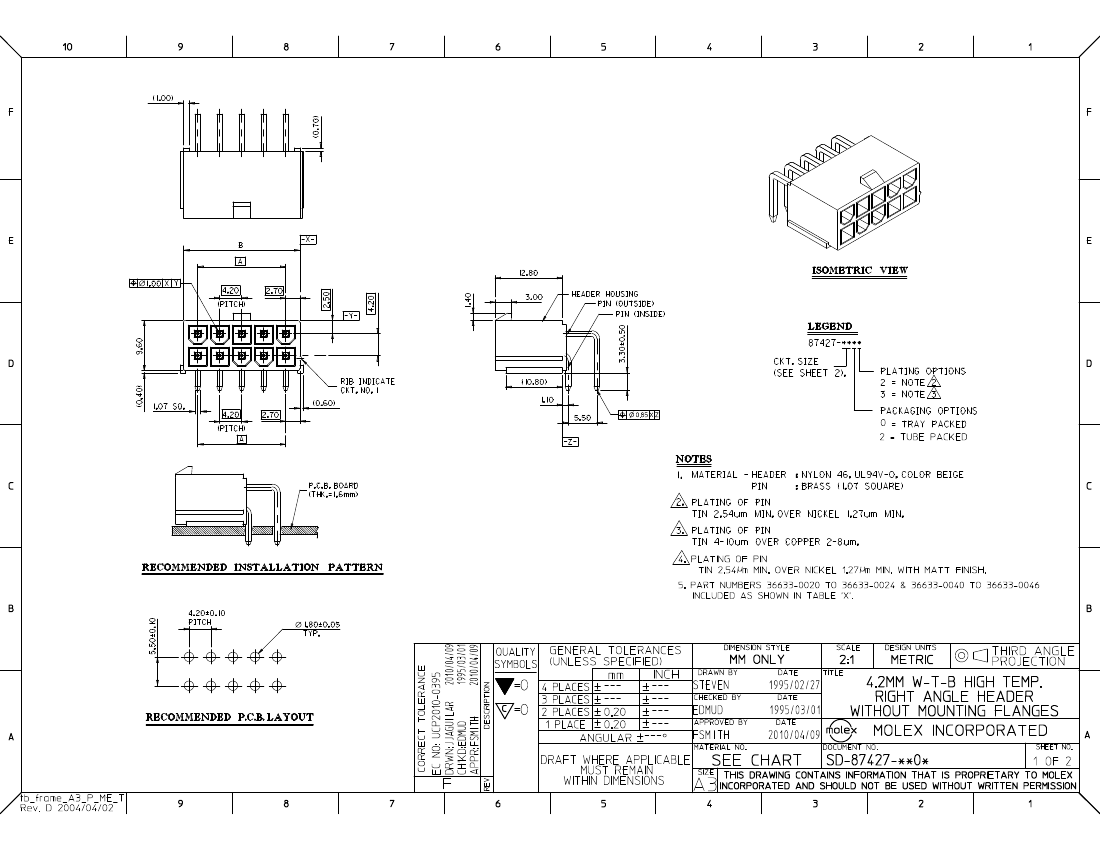

Drawing (PDF)
Product Specification PS-87427-0001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Application
Comments
PCB Headers
87427
Wire-to-Board
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 Mini-Fit Plus HCS™
Crimp Terminal Crimpted to to 16 AWG wire. . See
Molex product specification PS-45750-001 for additional
current de-rating information.
minifit_jr
Mini-Fit Jr.™
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Overview
Product Name
Physical
Breakaway
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
No
10
Beige
30
No
No
Yes
Brass
Tin
Tin
Nylon
2
Right Angle
0.130 In
3.30 mm
No
None
0.062 In
1.60 mm
Tray
0.165 In
4.20 mm
0.165 In
4.20 mm
100
2.54
100
2.54
Yes
No
Fully
No
-40°C to +105°C
Search Parts in this Series
87427Series
Mates With
5557 Mini-Fit Jr.™ Receptacle Housing
