TC55257DPL-85V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> TC55257DPL-85V

TC55257DPL-85V: Description32,768-word BY 8-bit static ram; Categorystorage storage; File Size498KB，13 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC55257DPL-85V Overview

32,768-word BY 8-bit static ram

TC55257DPL-85V Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	DIP, DIP28,.6
Contacts	28
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	150 ns
Other features	USER SELECTABLE 5V VCC
I/O type	COMMON
JESD-30 code	R-PDIP-T28
length	37 mm
memory density	262144 bi
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	3/5 V
Certification status	Not Qualified
Maximum seat height	5.3 mm
Maximum standby current	0.00001 A
Minimum standby current	2 V
Maximum slew rate	0.07 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

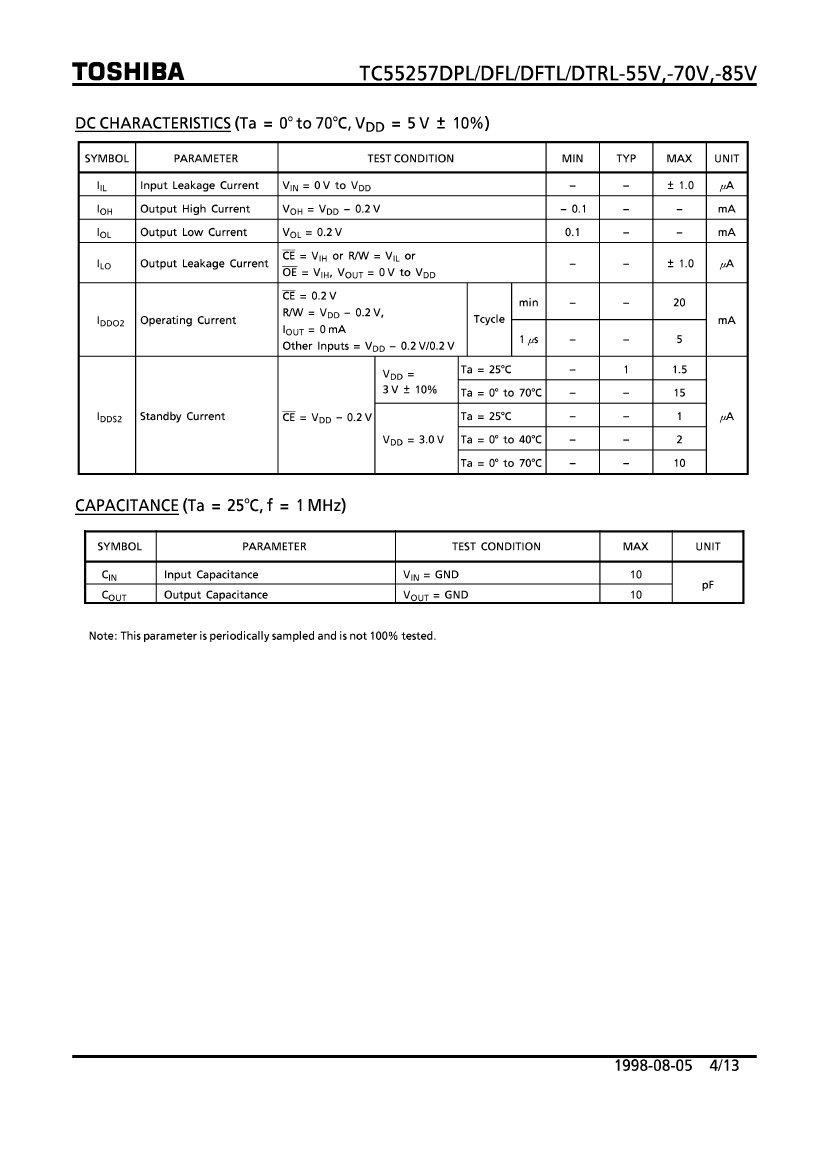

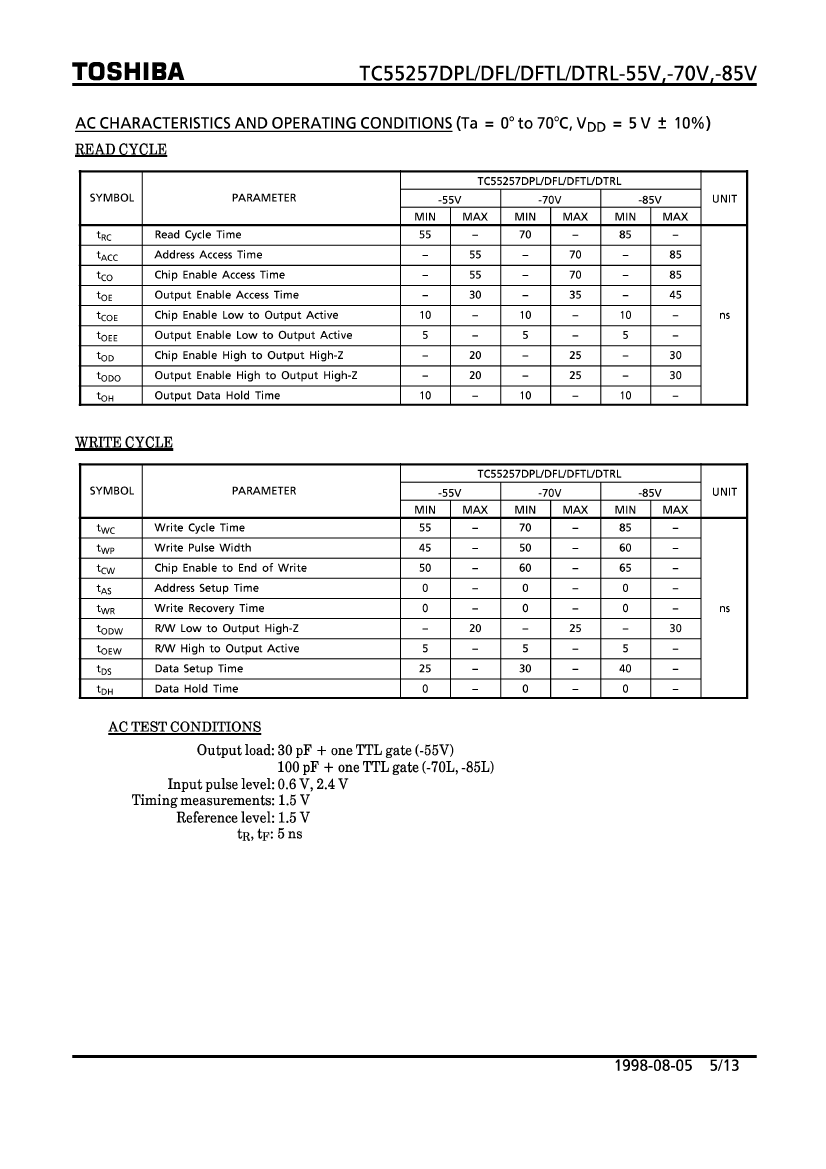

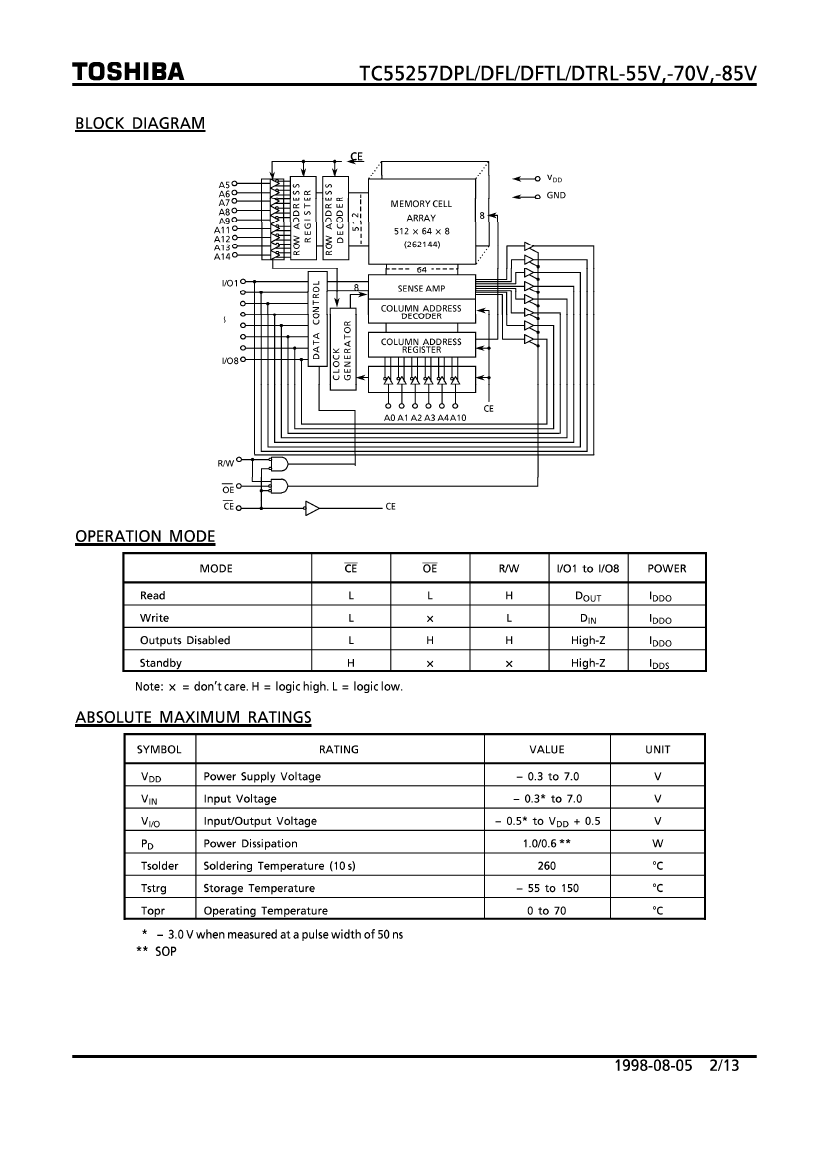

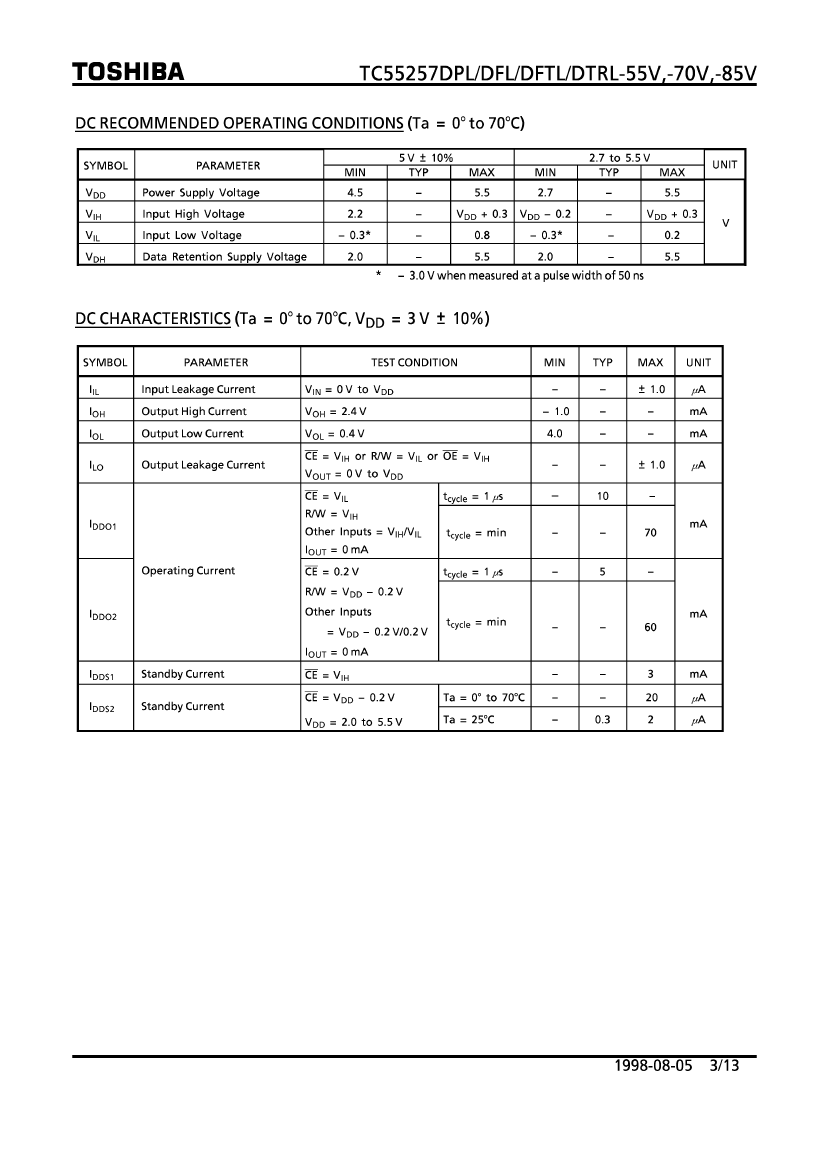

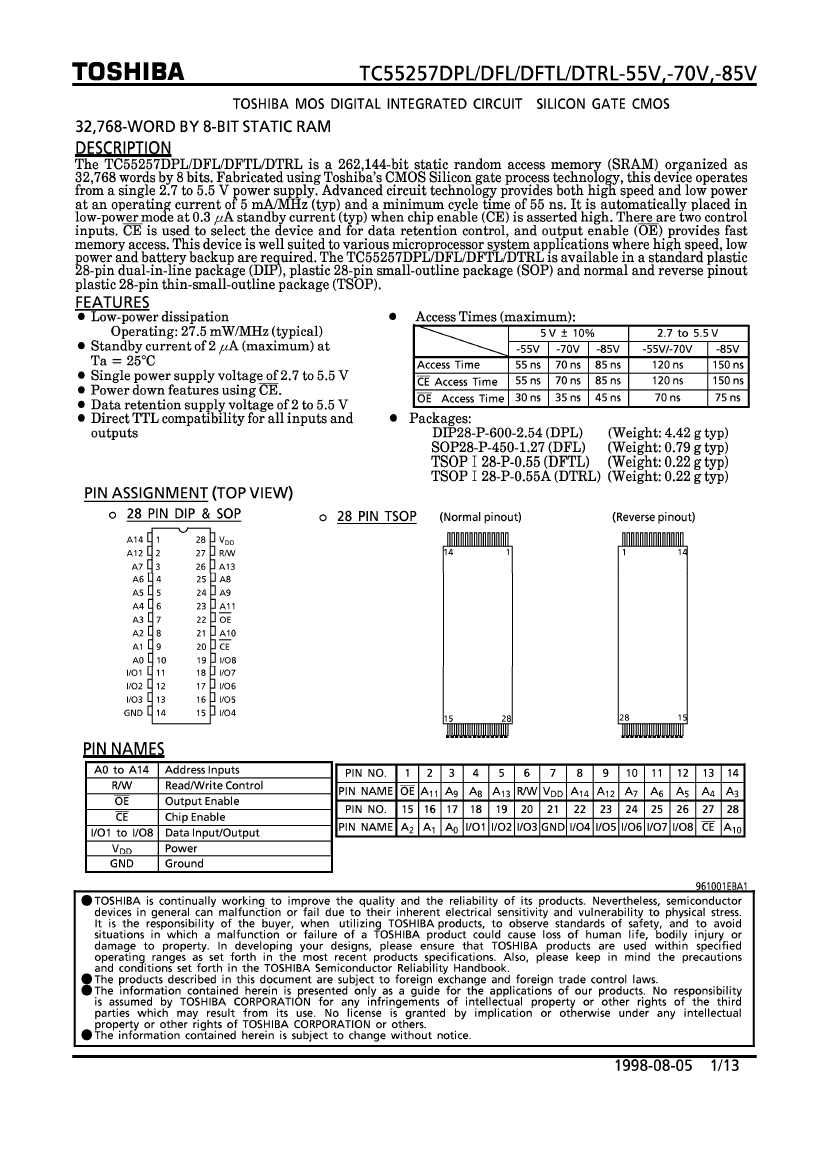

Preview

Download Datasheet

View All

TC55257DPL-85V Related Products

	TC55257DPL-85V	TC55257DTRL-70V	TC55257DPL-55V	TC55257PFL-55V	TC55257DTRL-85V	TC55257PFL-70V	TC55257PFL-85V	TC55257DFTL-85V	TC55257DPL-70V
Description	32,768-word BY 8-bit static ram	32,768-word BY 8-bit static ram	32,768-word BY 8-bit static ram	32,768-word BY 8-bit static ram	32,768-word BY 8-bit static ram	32,768-word BY 8-bit static ram	32,768-word BY 8-bit static ram	32,768-word BY 8-bit static ram	32,768-word BY 8-bit static ram
Parts packaging code	DIP	TSOP	DIP	-	TSOP	-	-	TSOP	DIP
package instruction	DIP, DIP28,.6	TSOP1-R, TSSOP28,.53,22	0.600 INCH, 2.54 MM PITCH, PLASTIC, DIP-28	-	TSOP1-R, TSSOP28,.53,22	-	-	0.55 MM PITCH, PLASTIC, TSOP1-28	0.600 INCH, 2.54 MM PITCH, PLASTIC, DIP-28
Contacts	28	28	28	-	28	-	-	28	28
Reach Compliance Code	unknow	unknow	unknow	-	unknow	-	-	unknow	unknow
Maximum access time	150 ns	120 ns	55 ns	-	150 ns	-	-	85 ns	70 ns
JESD-30 code	R-PDIP-T28	R-PDSO-G28	R-PDIP-T28	-	R-PDSO-G28	-	-	R-PDSO-G28	R-PDIP-T28
length	37 mm	11.8 mm	37 mm	-	11.8 mm	-	-	11.8 mm	37 mm
memory density	262144 bi	262144 bi	262144 bi	-	262144 bi	-	-	262144 bi	262144 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	-	STANDARD SRAM	-	-	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	-	8	-	-	8	8
Number of functions	1	1	1	-	1	-	-	1	1
Number of ports	1	1	1	-	1	-	-	1	1
Number of terminals	28	28	28	-	28	-	-	28	28
word count	32768 words	32768 words	32768 words	-	32768 words	-	-	32768 words	32768 words
character code	32000	32000	32000	-	32000	-	-	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	-	-	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	-	70 °C	-	-	70 °C	70 °C
organize	32KX8	32KX8	32KX8	-	32KX8	-	-	32KX8	32KX8
Output characteristics	3-STATE	3-STATE	3-STATE	-	3-STATE	-	-	3-STATE	3-STATE
Exportable	YES	YES	YES	-	YES	-	-	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	TSOP1-R	DIP	-	TSOP1-R	-	-	TSOP1	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE, THIN PROFILE	IN-LINE	-	SMALL OUTLINE, THIN PROFILE	-	-	SMALL OUTLINE, THIN PROFILE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	-	PARALLEL	-	-	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	-	-	Not Qualified	Not Qualified
Maximum seat height	5.3 mm	1.2 mm	5.3 mm	-	1.2 mm	-	-	1.2 mm	5.3 mm
Minimum standby current	2 V	2 V	2 V	-	2 V	-	-	2 V	2 V
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	-	5.5 V	-	-	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	-	2.7 V	-	-	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	5 V	-	3.3 V	-	-	5 V	5 V
surface mount	NO	YES	NO	-	YES	-	-	YES	NO
technology	CMOS	CMOS	CMOS	-	CMOS	-	-	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	-	GULL WING	-	-	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	0.55 mm	2.54 mm	-	0.55 mm	-	-	0.55 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	-	DUAL	-	-	DUAL	DUAL
width	15.24 mm	8 mm	15.24 mm	-	8 mm	-	-	8 mm	15.24 mm
