50322-7112 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 50322-7112

50322-7112: Descriptionspade tongue terminal for 16-22 awg, closed uninsulated brazed barrel, stud size5 (M3), oxygen-free copper, length 15.00mm (.591"); CategoryThe connector terminals; File Size147KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

50322-7112 Overview

spade tongue terminal for 16-22 awg, closed uninsulated brazed barrel, stud size5 (M3), oxygen-free copper, length 15.00mm (.591")

50322-7112 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Manufacturer's serial number	50322
Terminal and terminal strip types	FORK TERMINAL
Conductor cross section	1.65 mm2
Wire gauge	16 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 03/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0503227112

Active

Spade Tongue Terminal for 16-22 AWG, Closed Uninsulated Brazed Barrel, Stud Size

5 (M3), Oxygen-Free Copper, Length 15.00mm (.591")

Documents:

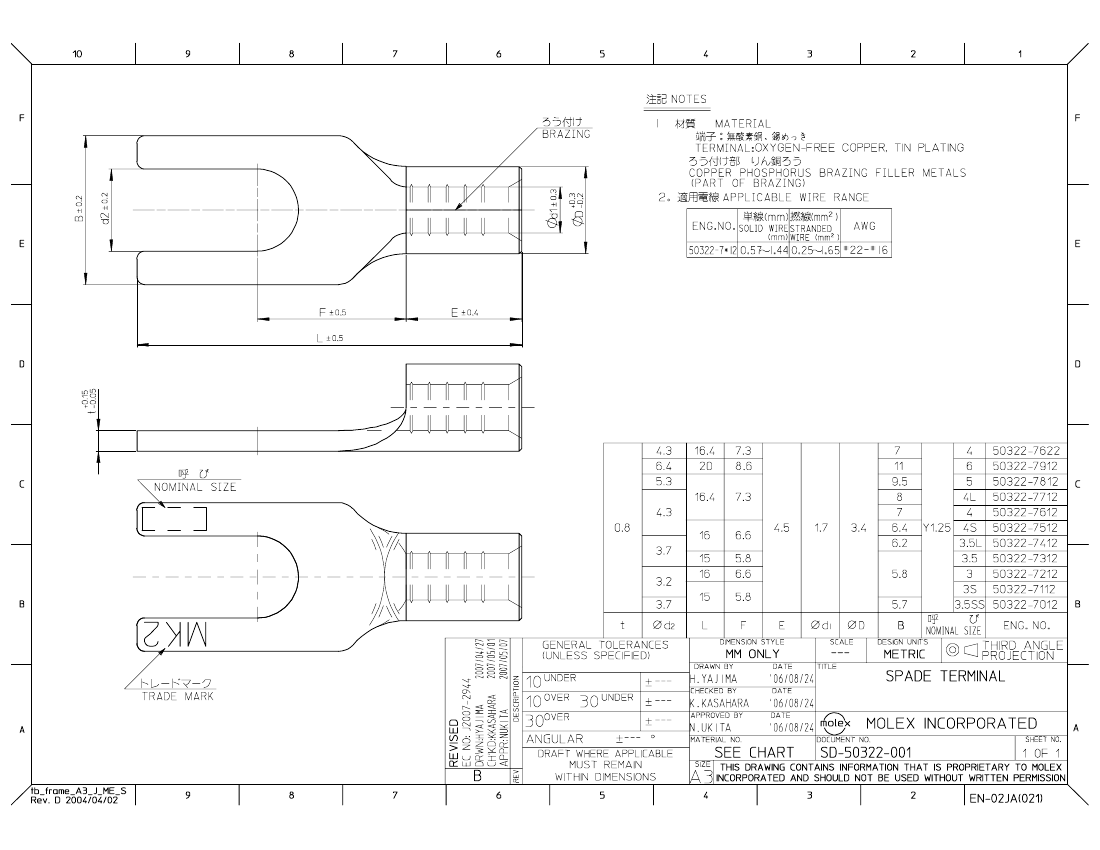

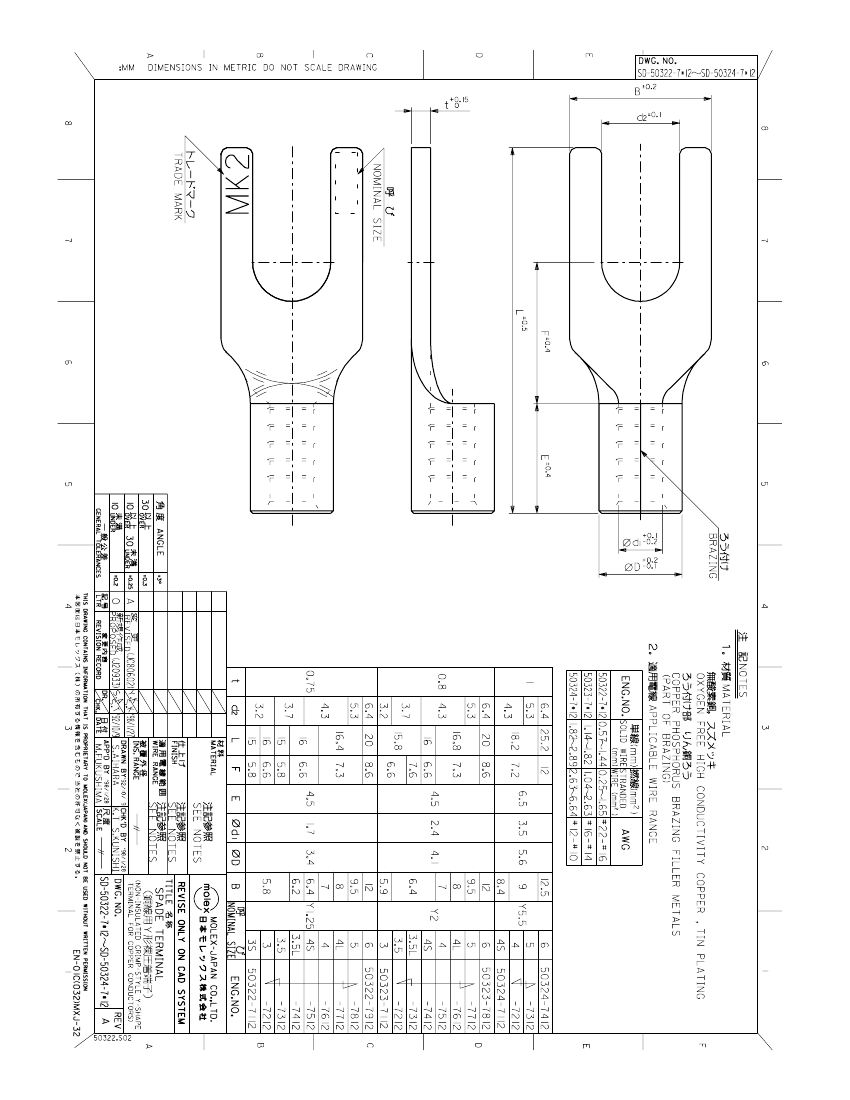

Drawing (PDF)

Product Specification PS-50322-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Crimp Quality Equipment

Mil-Spec

Product Name

Type

Ring and Spade Terminals

50322

Yes

N/A

Y (Spade)

Spade

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Barrel Type

Insulation

Material - Plating Mating

Packaging Type

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Stud Size

Termination Interface: Style

Wire Size AWG

Wire Size mm²

Closed - Brazed

None

Tin

Bag

5 (M3)

Crimp or Compression

16, 18, 20, 22

0.25 - 1.65

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-50322-001

SD-50322-001

Search Parts in this Series

50322Series

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Japan

Description

Product #

Hand Crimper For

0572575000

JIS Terminal

Hand Crimper For

0573435002

JIS Terminal

Air Type Hand

0573439005

Crimper For JIS

Terminal

This document was generated on 03/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
