50-00423: Descriptionconn plug mono 6.3mm R/A; CategoryThe connector; File Size188KB，1 Pages; ManufacturerTensility International Corporation; Websitehttp://tensility.com/; Environmental Compliance

Download Datasheet Parametric View All

50-00423 Overview

conn plug mono 6.3mm R/A

50-00423 Parametric

Parameter Name	Attribute value
Datasheets

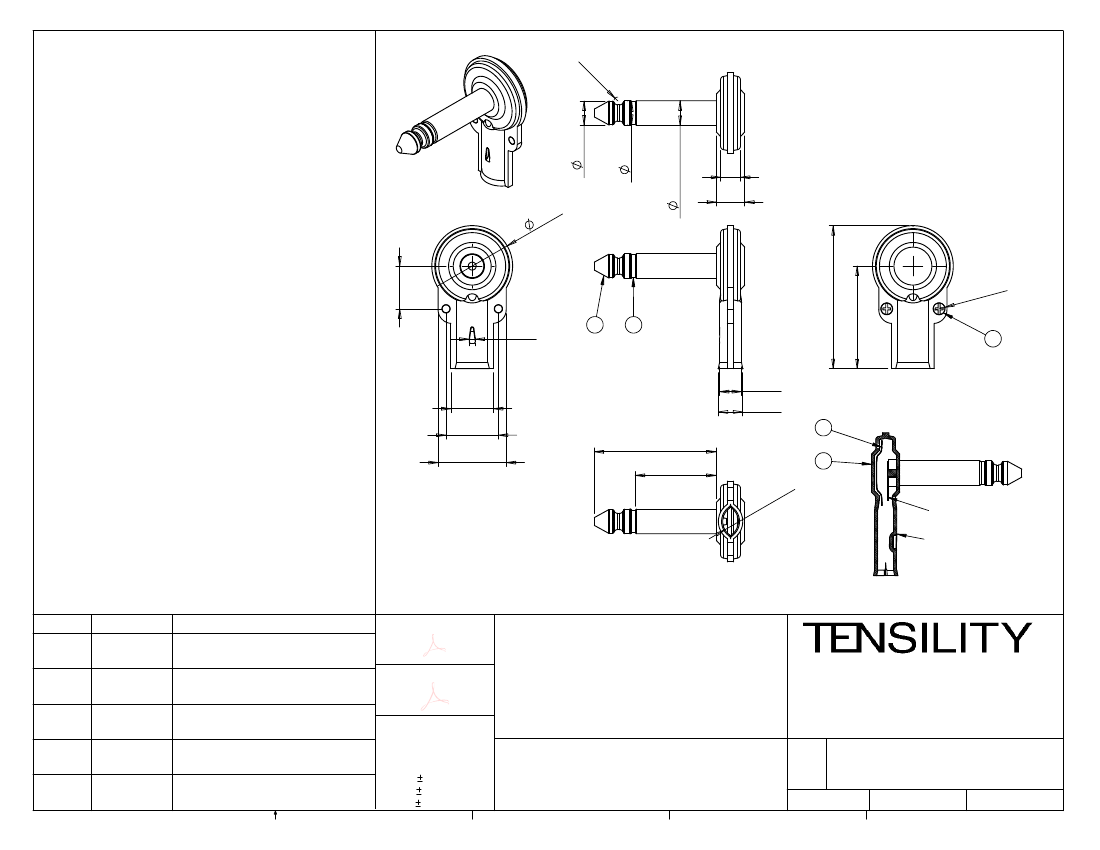

50-00423 Drawing
Product Photos
50-00423
Standard Package	1,000
Category	Connectors, Interconnects
Family	Barrel - Audio Connectors
Packaging	Bulk
Connector Type	Phone Plug
Gende	Male
Signal Lines	M
Plug/Mating Plug Diamete	6.35mm (0.250", 1/4") - Headphone
Number of Positions/Contacts	2 Conductors, 2 Contacts
Internal Switch(s)	Does Not Contain Switch
Mounting Type	Free Hanging (In-Line), Right Angle
Terminati	Solde
Shielding	Shielded
Features	-
Color - Contac	Silve
Contact Material	Zinc
Contact Material - Plating	Nickel
Housing Material	Stainless Steel
Housing Col	Silve
Operating Temperature	-30°C ~ 60°C
Voltage - Rated	250VAC, 500VDC
Current Rating	10A
Dynamic Catalog	Tensility International C
Other Names	839-1237

Preview

Download Datasheet

View All

Materials

1. Contact: zinc, 1-1.5

μm

nickel plated

2. Shell: stainless steel, 1-2

μm

nickel plated

3. Insulator: POM, black

4. Insulation paper: micarex, natural color

5. Screw: stainless steel

Ratings

Operating temperature: -30°C ~60°C

Current rating: 10 A @ 250 Vac, 10 A @ 500 Vdc

Electrical requirements

Withstand voltage: 500 - 2000 Vac, 800 Vdc

Insulation resistance:

≥

100 MΩ

Contact resistance:

≤

20 mΩ

Mechanical requirements

Insertion force: 1.0 - 2.0 kgf

Withdrawal force: 1.0 - 2.0 kgf

R1

+0.05

6.25 - 0.02

5.7

6

5

7.2

20

.5

10.85

36.3

M 2. 5

1.5

1

3

26.05

5

5.6

10.8

13.3

17.3

31

20.6

R4

.2

6.2

4

2

Tip

Shell

Cross section

REVISION DATE

A

3/12/14

DESCRIPTION

Initial release

PREPARED:

JM

2014.03.13 10:29:56 -07'00'

NOTES

RoHS compliant

Function test: no open, no short circuit, no INT

20802 Sockeye Place #130

Bend, OR 97701 USA

tel

541.323.3228

fax

541.323.4202

800

877.670.7118 www.tensility.com

SIZE

PART NUMBER

A

LA

VERIFIED:

Digitally signed by LA

DN: cn=LA, o=Tensility, ou,

email=QA0001@tensility.com, c=US

Date: 2014.03.13 12:08:50 -07'00'

DIMENSIONS ARE IN

MILLIMETERS

TOLERANCES:

0.5 mm

X:

X.X:

0.3 mm

X.XX: 0.05 mm

5

4

Tip and ring solder contact orientation may vary.

This doesn't affect the function or performance of

the connector.

DESCRIPTION:

Connector, mono plug, 6.3 mm, right angle,

shielded handle, assembly type

50-00423

WEIGHT:

1

SHEET 1 OF 1

SCALE: 1:1

3

2
