Materials
1. C3604 brass, nickel plated
2. C2680 brass, nickel plated
3. C3604 brass, nickel plated
4. POM, black
Electrical requirements
Dielectric strength: 1 min @ 500 Vac and 2mA
Insulation resistance: 100 MΩ @ 100 Vdc
Contact resistance: 50 mΩ or less
2.5 ±0.05
2.3 ±0.05
0.7
0.7
3.8
11 ±0.30
19.6 ±0.50
A
SCALE: 3:1
3
2
Mechanical requirements
Durability: 5000 mating cycles while maintaining normal
operation and < 50mΩ
Bending strength:
≥
1.5 kg
Breaking strength:
≥
3.0 kg
Environmental tests
Salt spray test: 5% NaCl spray at 1ml/80cm2/h, chamber
temp 46.5°C, spray temp 35°C, 87% humidity, 48 hours.
No oxidation.
Cold resistance: -25°C±3 for 2 hours with no degradation.
Heat resistance: 85°C±3 for 2 hours with no degradation.
Operating range
-30 to 85 °C
1
4
2
2
3
1.8 ±0.10
±
4. 5
0. 03
1. 2
1.7
3.2
1 4 ±0.10
6.5 ±0.20
REVISION DATE
A
3/6/14
DESCRIPTION
Initial release
PREPARED:
JM
2014.03.06 11:17:12 -08'00'
NOTES
RoHS and REACH compliant
Function test: no open, no short circuit, no INT
20802 Sockeye Place #130
Bend, OR 97701 USA
tel
541.323.3228
fax
541.323.4202
800
877.670.7118 www.tensility.com
SIZE
PART NUMBER
LA
VERIFIED:
Digitally signed by LA
DN: cn=LA, o=Tensility, ou,
email=QA0001@tensility.com, c=US
Date: 2014.03.06 12:24:06 -08'00'
DIMENSIONS ARE IN
MILLIMETERS
TOLERANCES:
0.5 mm
X:
0.3 mm
X.X:
X.XX: 0.05 mm
5
4

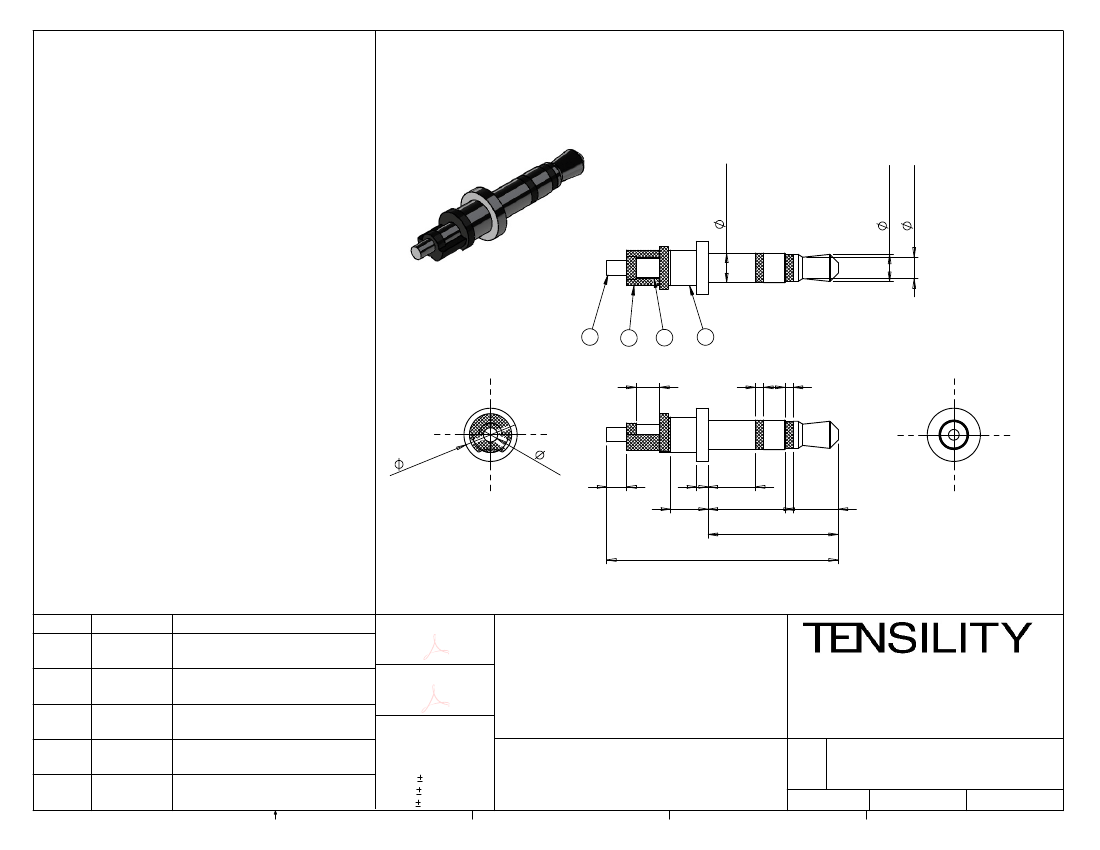

DESCRIPTION:
Connector, stereo plug, 2.5xL19.6 mm, brass, nickel
plated, molding style
50-00400
WEIGHT:
1
SHEET 1 OF 1
