ZML-125-53-S-D-650-SM: DescriptionBoard Stacking Connector, 50 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size812KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

ZML-125-53-S-D-650-SM Overview

Board Stacking Connector, 50 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

ZML-125-53-S-D-650-SM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1619265697
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
YTEOL	8.76
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	ZML
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	50

Preview

Download Datasheet

View All

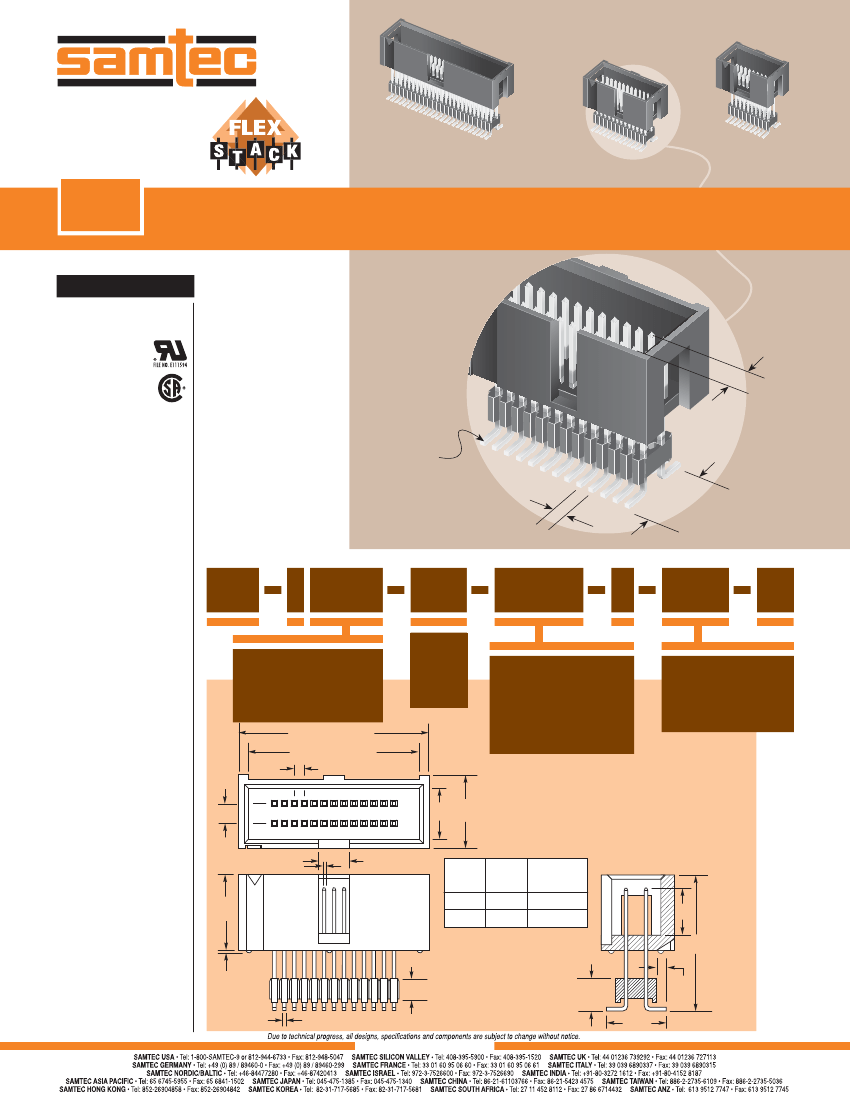

F-209-1

ZML–110–53–G–D–795–SM

ZML–125–53–G–D–795–SM

ZML–113–54–G–D–650–SM

Surface

SMT

Mount

(1,27

mm

) .050" STACKER

Mates with:

SMS, RSM

ZML

SERIES

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?ZML

Insulator Material:

Black LCP

Terminal Material:

Phosphor Bronze

Plating:

Au over 50µ"

(1,27µm) Ni

Current Rating:

1A

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

RoHS Compliant:

Yes

(2,54mm)

.100"

Surface

Mount

(1,27mm)

.050"

(7,62mm)

.300"

Processing:

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 3x

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max (05-20)

(0,15mm) .006" max (25-40)

ZML

1

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

D

BODY

HEIGHT

SM

05, 08, 10,

13, 17, 20, 25,

30, 32, 36, 40

(Call Samtec for other sizes)

(1,27) .050 x No. of

Positions + (3,18) .125

(1,27) .050 x No. of

Positions + (0,64) .025

(1,27) .050

–G

= 10µ" (0,25µm) Gold on post,

Gold ﬂash on tail

–“XXX”

= Body Height

(Specify board space “B”

in inches from lead

style charts.)

–S

= 30µ" (0,76µm) Gold on post,

Matte Tin on tail

80

02

(2,54)

.100

(6,60) (9,40)

.260 .370

01

(0,46) .018 SQ TYP

79

(3,56) .140

(9,65)

.380

POST

LEAD

STYLE HEIGHT

(A)

(3,05)

–53

.120

–54

(5,84)

.230

BODY

HEIGHT

(B)

(13,46) (20,19)

.530 to .795

(13,46) (17,40)

.530 to .685

A

B

Note:

Other Gold plating

options available.

Contact Samtec.

Note:

This Series is

non-standard, non-returnable.

(0,38)

.015

(2,54)

.100

(0,51) .020 DIA TYP

(3,81)

.150

(7,62)

.300

(1,25)

.050

TYP

WWW.SAMTEC.COM
