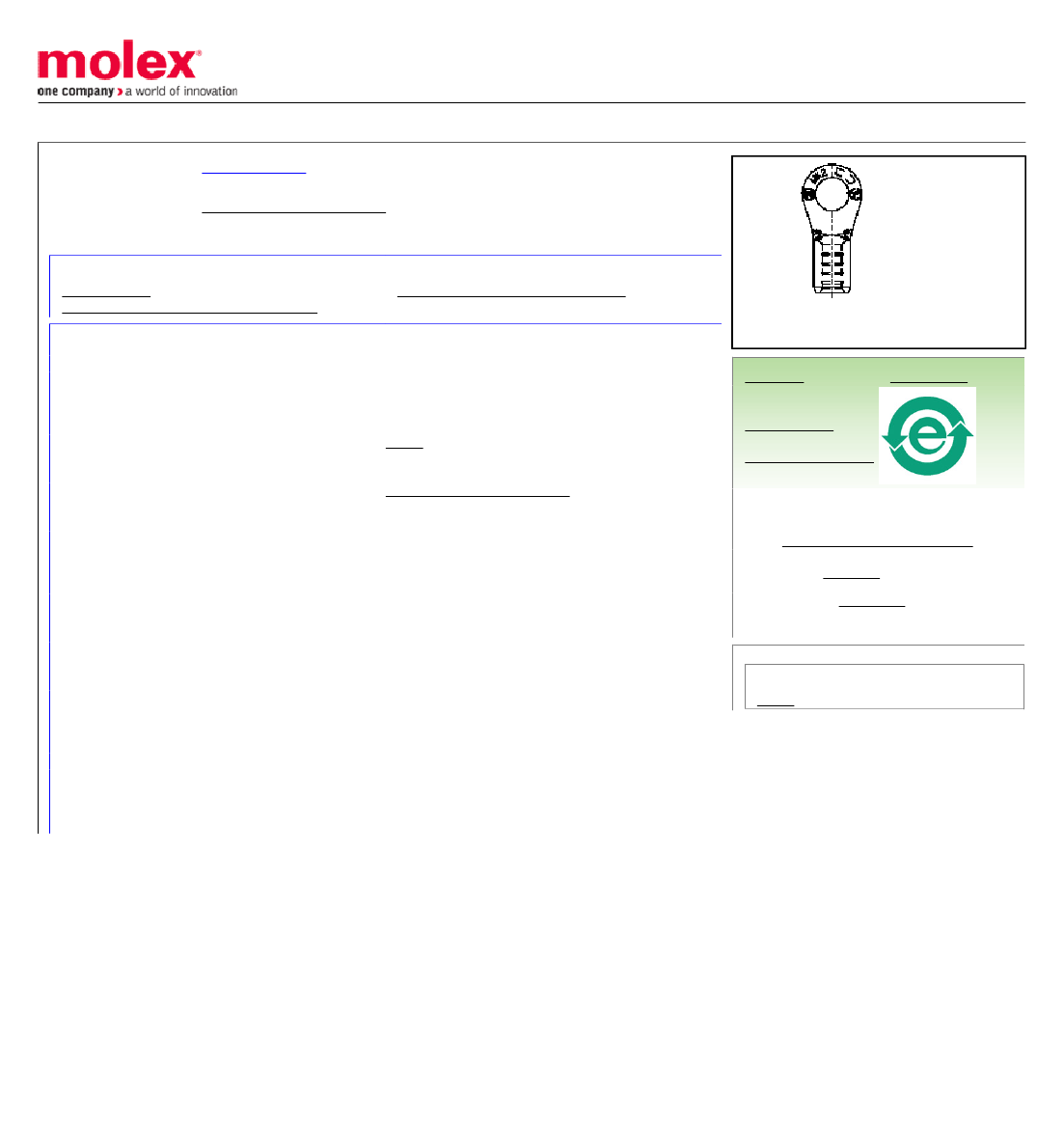

Part Number:
Status:
Overview:
Description:
0505197725
Contact Molex
ring_tongue__spade_terminals
Ring Tongue Terminal for 16-22 AWG, Closed Uninsulated Brazed Barrel, Stud Size 8
(M4), Oxygen-Free Copper, Length 20.20mm (.795")
Documents:
Drawing (PDF)
Product Specification PS-50519-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
CSA
UL
LR95446
E134962
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Overview
Product Name
Type
Ring and Spade Terminals
50519
Yes
N/A
ring_tongue__spade_terminals
R (Ring)
Ring
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Barrel Type
Insulation
Material - Plating Mating
Packaging Type
Plating min - Mating
Plating min - Termination
Stud Size
Termination Interface: Style
Wire Size AWG
Wire Size mm²
Closed - Brazed
None
Tin
Bag
1.016µm (40µ")
1.016µm (40µ")
8 (M4)
Crimp or Compression
16, 18, 20, 22
0.25 - 1.65
Search Parts in this Series
50519Series
Material Info
Country of Origin
JP, KR
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-50519-002
SD-50519-001
