5962R9579201VRC: DescriptionBus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20,; Categorylogic logic; File Size254KB，10 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9579201VRC Overview

Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20,

5962R9579201VRC Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
series	HC/UH
JESD-30 code	R-CDIP-T20
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	29 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
total dose	100k Rad(Si) V
Base Number Matches	1

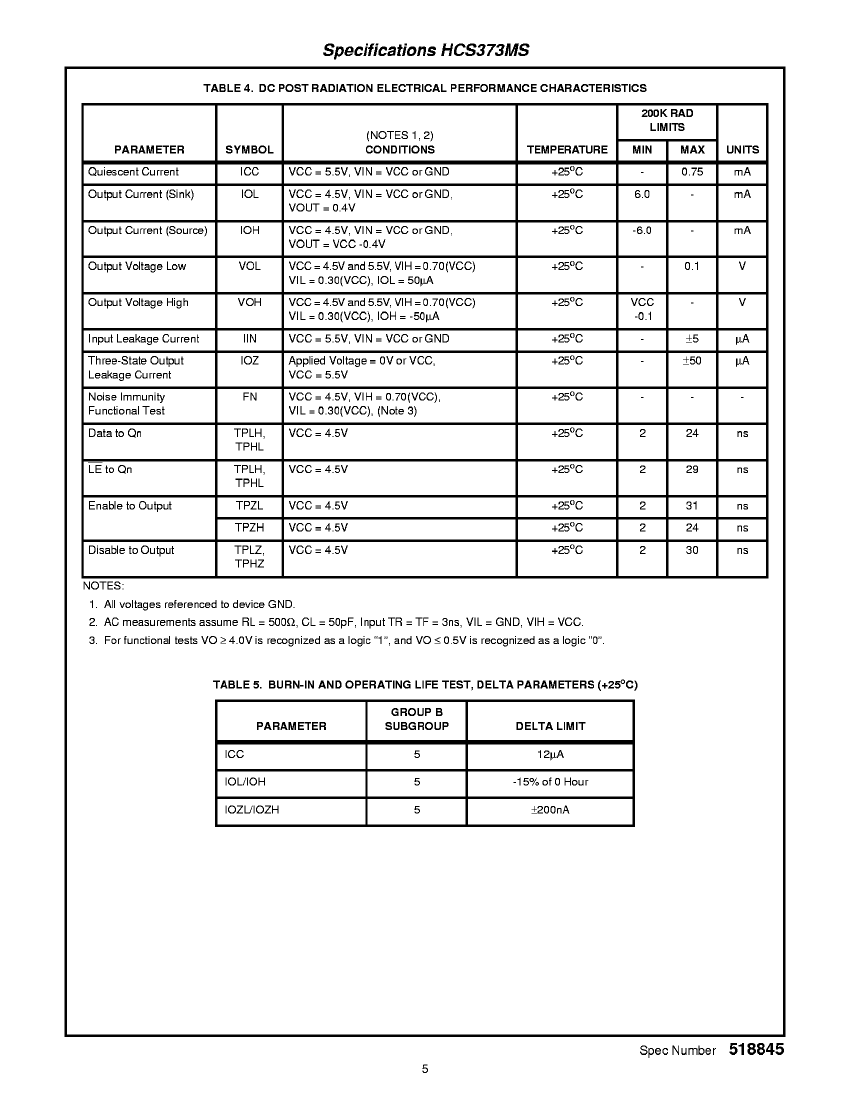

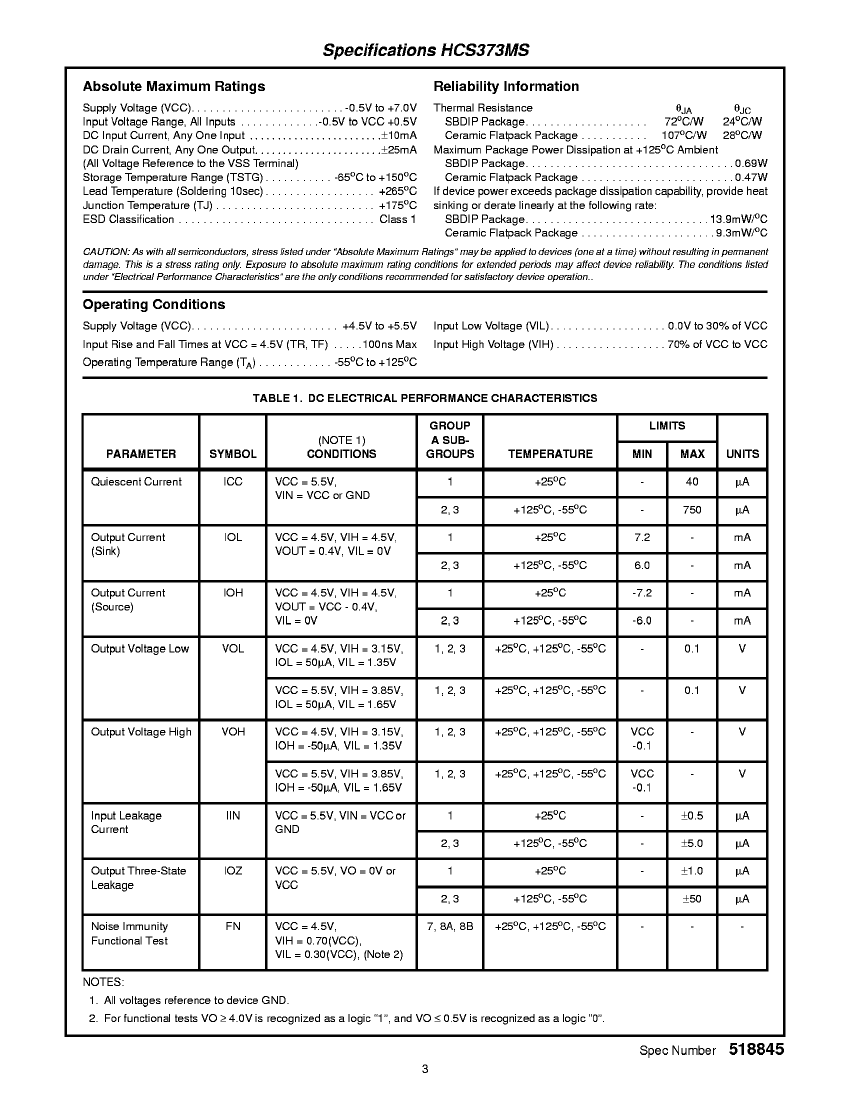

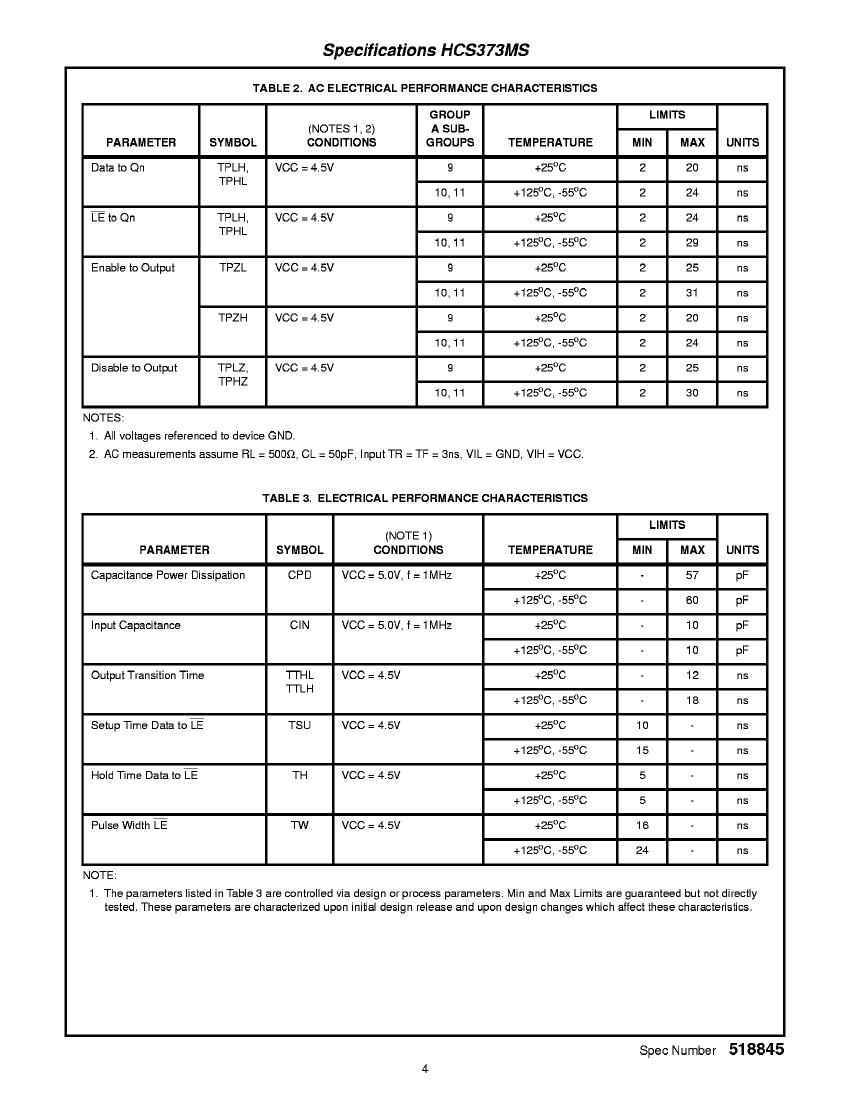

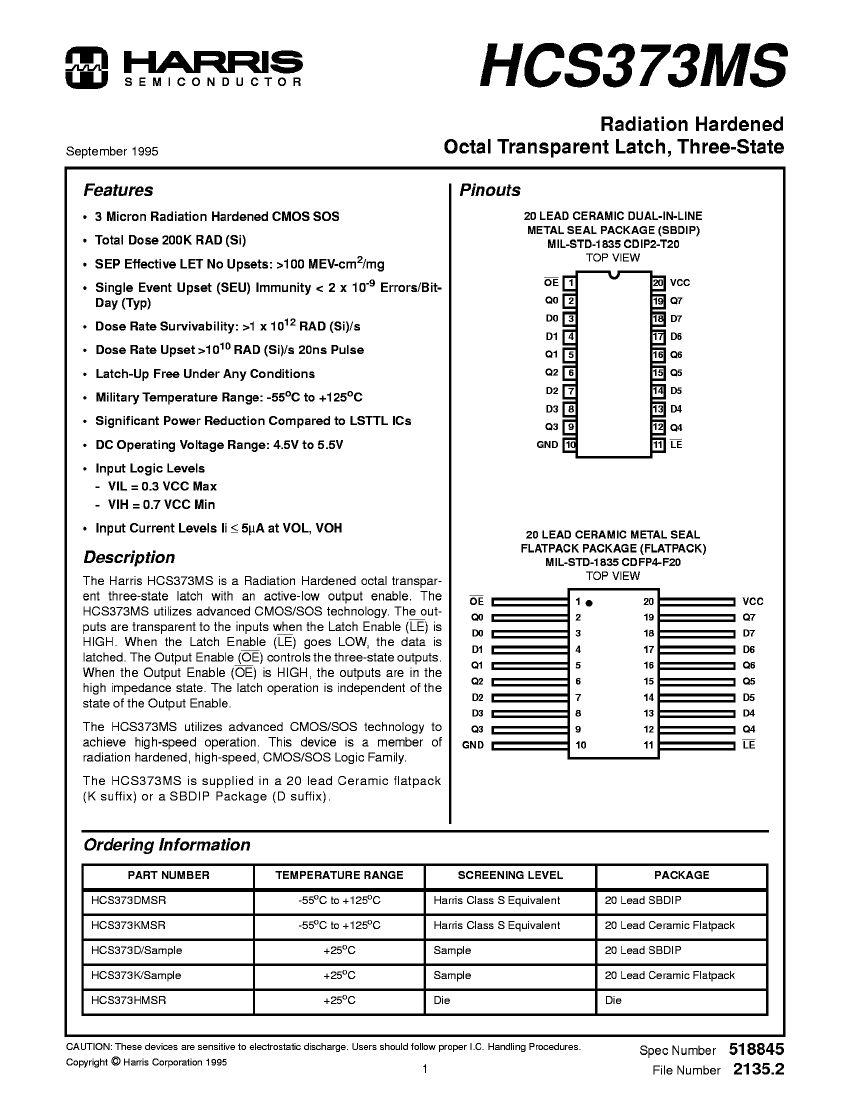

Preview

Download Datasheet

View All

5962R9579201VRC Related Products

	5962R9579201VRC	5962R9579201V9A	5962R9579201VXC	HCS373KMSR	HCS373DMSR	HCS373HMSR
Description	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20,	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20,	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS
package instruction	,	DIE,	,	DFP, FL20,.3	DIP, DIP20,.3	DIE,
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknow
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-CDIP-T20	X-XUUC-N20	R-CDFP-F20	R-CDFP-F20	R-CDIP-T20	X-XUUC-N20
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
Package shape	RECTANGULAR	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	IN-LINE	UNCASED CHIP	FLATPACK	FLATPACK	IN-LINE	UNCASED CHIP
propagation delay (tpd)	29 ns	29 ns	29 ns	29 ns	29 ns	29 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	FLAT	FLAT	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	UPPER	DUAL	DUAL	DUAL	UPPER
JESD-609 code	e4	e0	e4	e0	e0	-
Terminal surface	GOLD	TIN LEAD	GOLD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	200k Rad(Si) V	200k Rad(Si) V	-
Base Number Matches	1	1	1	1	-	-
encapsulated code	-	DIE	-	DFP	DIP	DIE
