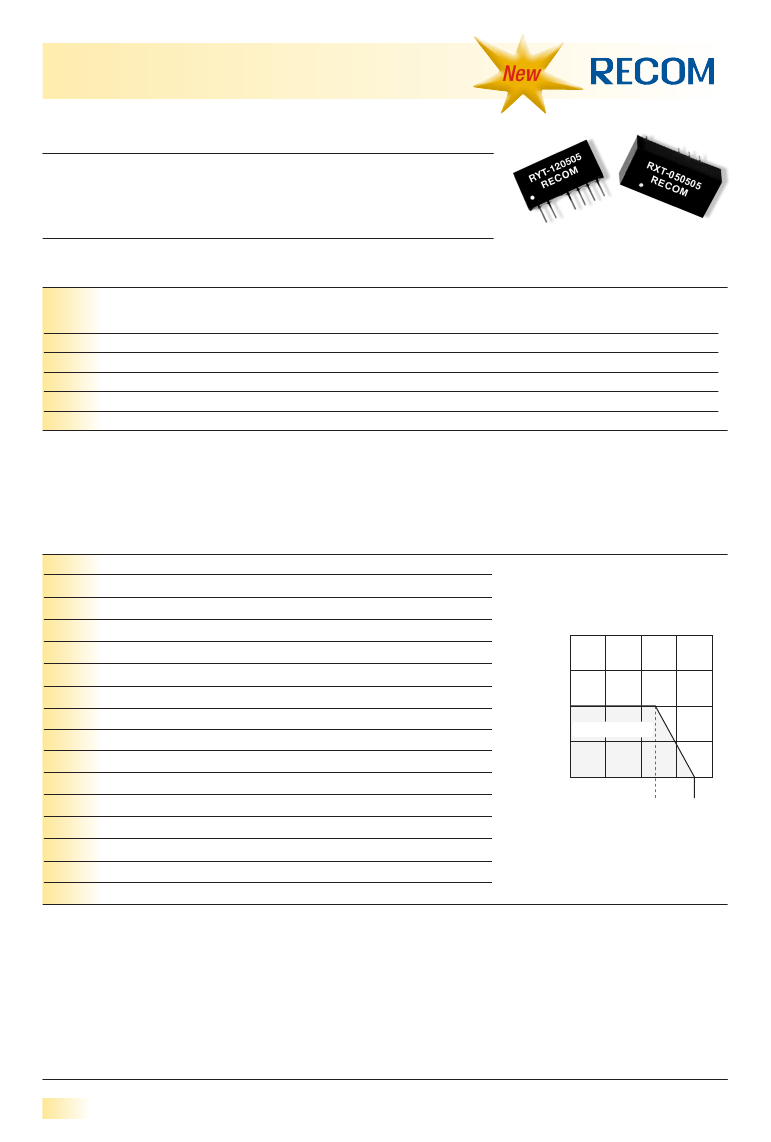

ECONOLINE - DC/DC-Converter
RXT & RYT Series, 1W, DIP14, Regulated, Isolated Outputs (Dual Output)
Features
●
●
●
●
Isolated
Outputs
Output/Output Isolation 1kVDC
Power Sharing on Outputs
UL 94V-0 Package Material
●
●
●
●
No Heatsink Required
Toroidal Magnetics
No Extern. Components Required
Input/Output Isolation 1kVDC
Selection Guide
Part
Number
DIP 14
RXT-XX0505
RXT-XX0909
RXT-XX1212
RXT-XX1515
RXT-XX0524
Part
Number
SIP 7
RYT-XX0505
RYT-XX0909
RYT-XX1212
RYT-XX1515
RYT-XX0524
Input
Voltage
(VDC)
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
Output
Voltage
(V1VDC)
5
9
12
15
24
Output
Voltage
(V2VDC)
5
9
12
15
24
Ouput
Current
(mA)
100/100
55/55
42/42
33/33
21/21
Efficiency
(%)
53
58
62
65
65
Specifications (Core Operating Area) and Operating Temperature / Derating-Graph
Input Voltage
Input Filter
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation (20% to 100% full load)
Ripple and Noise (20MHz limited)
Efficiency at Full Load
Isolation Voltage
Isolation Resistance (Viso = 500VDC)
Isolation Capacitance
Outputs Isolation Voltage
Short Circuit Protection
Switching Frequency at Full Load
Operating Temperature
Storage Temperature
Package Weight
±5%
Capacitor Type
±5%
±0.5% - ±1%
±0.5% - ±1.0%
100mV p-p max.
Output Power (Watts)
1.5
1.0
Safe Operating Area
0,5
0
-25
0
50
100
125
150
70
Operating Temperature ˚C
2.0
50% min.
1.000VDC min.
10 GΩ min.
40pF min./72pF max.
1.000VDC min.
1 Second
38kHz min. / 85kHz max.
-25°C to +70°C (see Graph)
-55°C to +125°C
2.9g
EC 42
August 2002
www.recom-international.com
ECONOLINE - DC/DC-Converter
RXT & RYT Series, 1W, DIP14, Regulated, Isolated Outputs (Dual Output)
Package Style and Pinning (mm)
14 PIN DIP Package
7 PIN SIP Package
d angle
ojection
1
Bottom View
6 7
19.65
7.05
14
9 8
19.90
10.20
RXT-050505
RECOM
****
RYT-051212
RECOM
****
0.51 typ.
RYT-051212
RECOM
****
10.00
7.62
4.10
0.51 typ.
1 2
4 5 6 7
7.10
1.27
2.0
1 2
4 5 6 7
0.25
15.24
2.0
3.05
15.24
Recommended Footprint Details
1.00 ø+0.15/–0
1.00 ø+0.15/–0
2.54
2.54
2.54
2.54
Pin Connections RXT
Pin #
1
6
7
8
9
14
Dual
–Vin
+Vout 1
–Vout 1
–Vout 2
+Vout 2
+Vin
Pin Connections RYT
Pin #
1
2
4
5
6
7
Dual
+Vin
–Vout
+Vout 1
–Vout 1
+Vout 2
–Vout 2
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
www.recom-international.com
August 2002
EC 43
