7575-76421

Description
3.50mm (.138") pitch, mx150? header, breakaway, vertical, 4 circuits, 1.5??m (60??")tin (Sn) Plating, 27.77mm (1.093") Mating pin length, 3.05mm (.120") PC tail length
File Size167KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

7575-76421 Overview

3.50mm (.138") pitch, mx150? header, breakaway, vertical, 4 circuits, 1.5??m (60??")tin (Sn) Plating, 27.77mm (1.093") Mating pin length, 3.05mm (.120") PC tail length

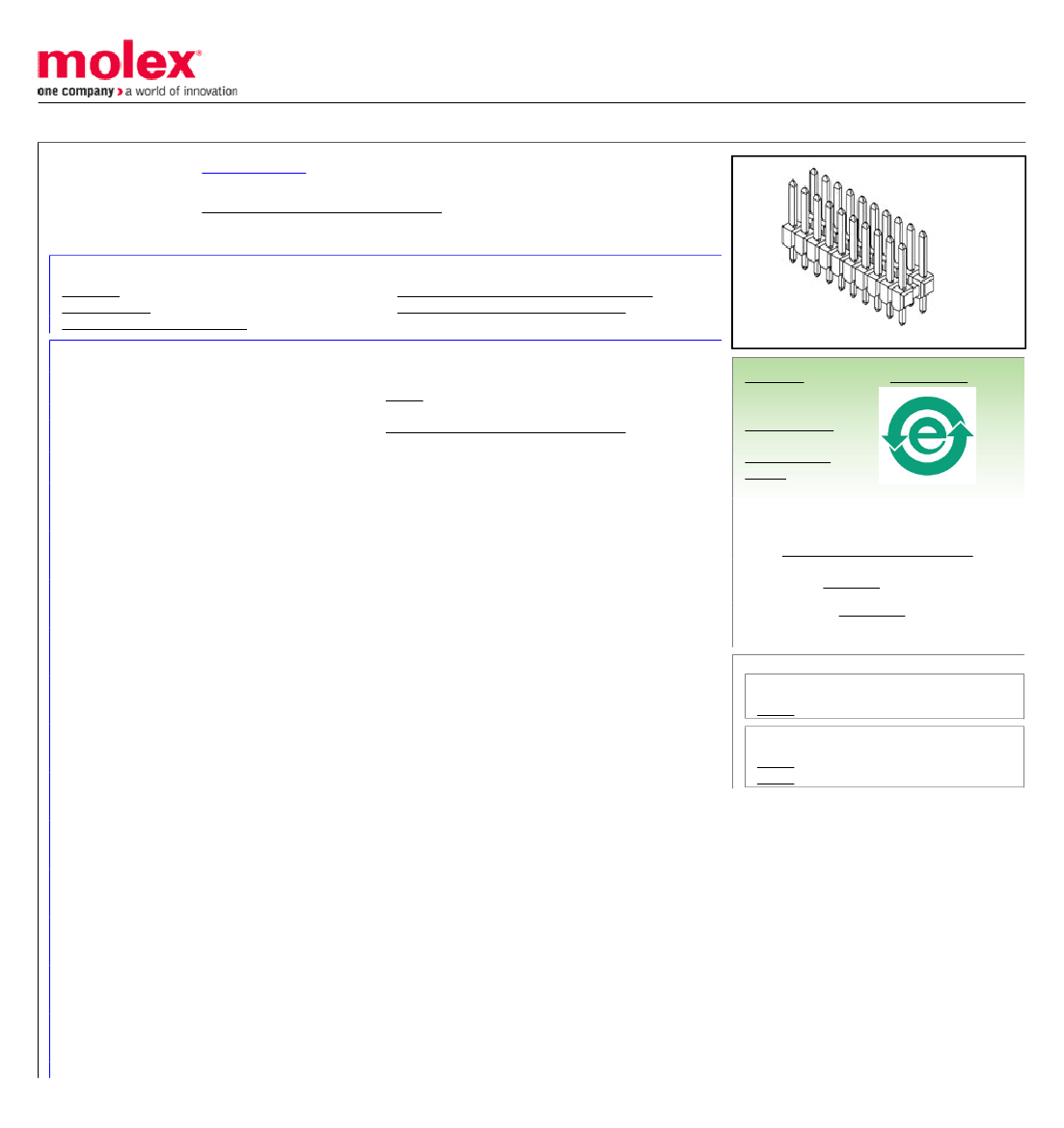

This document was generated on 05/31/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0757576421
Active
mx150_unshrouded_breakaway_header
3.50mm (.138") Pitch, MX150™ Header, Breakaway, Vertical, 4 Circuits, 1.5µm (60µ")
Tin (Sn) Plating, 27.77mm (1.093") Mating Pin Length, 3.05mm (.120") PC Tail Length
Documents:
3D Model

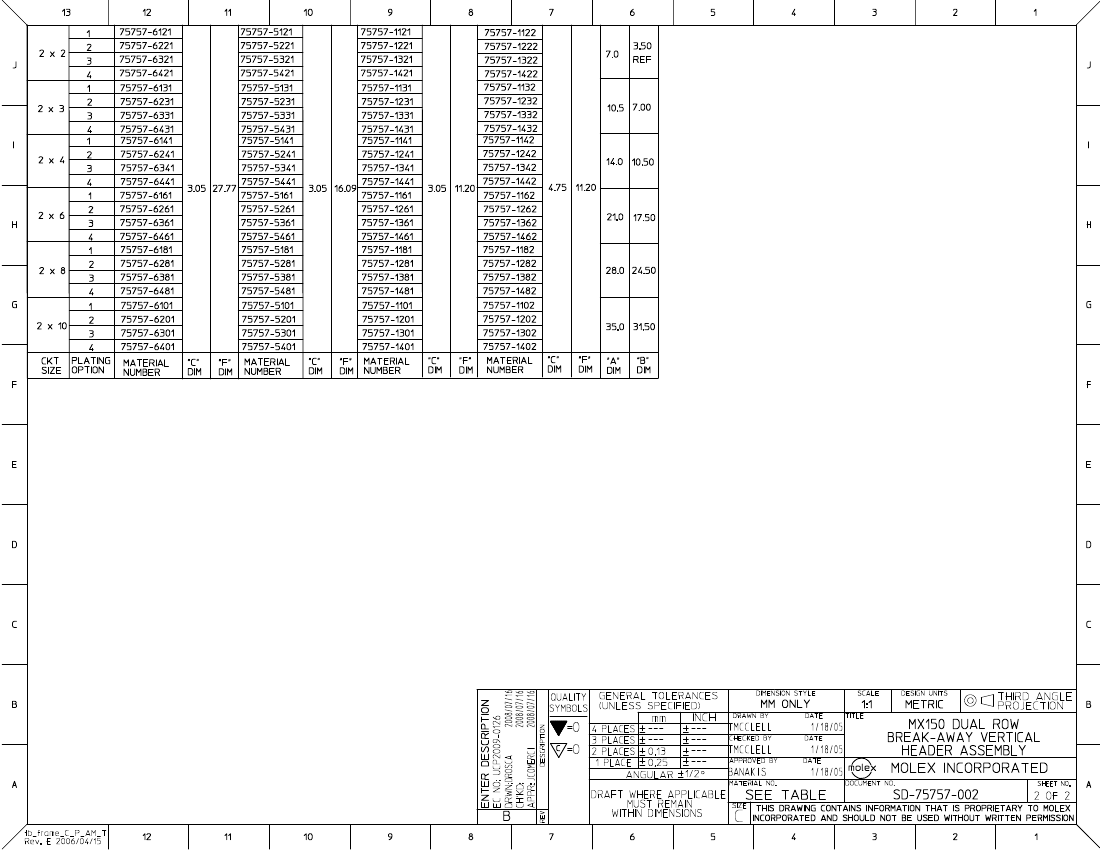

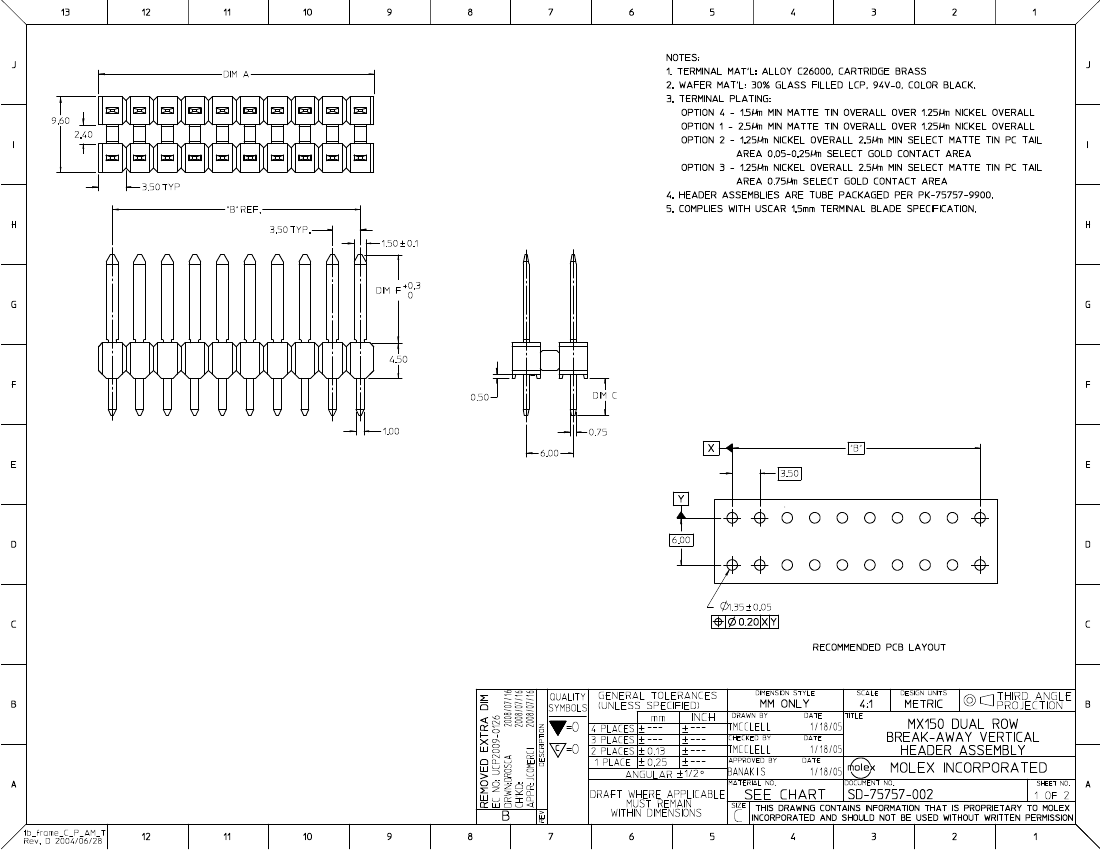

Drawing (PDF)
Application Specification (PDF)
Product Specification PS-75757-000 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
75757
Wire-to-Board
mx150_unshrouded_breakaway_header
MX150™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Yes
4
4
4
Black
25
No
No
No
None
None
Brass
Tin
Tin
High Temperature Thermoplastic
2
Vertical
0.120 In
3.05 mm
No
None
0.062 In
1.57 mm
Tube
0.138 In
3.50 mm
0.138 In
3.50 mm
50
1.25
50
1.25
No
No
No
Yes
Yes
Search Parts in this Series
75757Series
Mates With
33471 Single Row MX150™ Receptacles,
33472 Dual Row MX150™ Receptacles
