022-55-2342: Description2.54mm (.100") pitch SL? crimp housing, dual row, version B, polarized, 34 circuits; CategoryThe connector The connector; File Size125KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

022-55-2342 Overview

2.54mm (.100") pitch SL? crimp housing, dual row, version B, polarized, 34 circuits

022-55-2342 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
ECCN code	EAR99
body width	0.199 inch
subject depth	0.6 inch
body length	1.699 inch
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	70450
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	34
Base Number Matches	1

Preview

Download Datasheet

View All

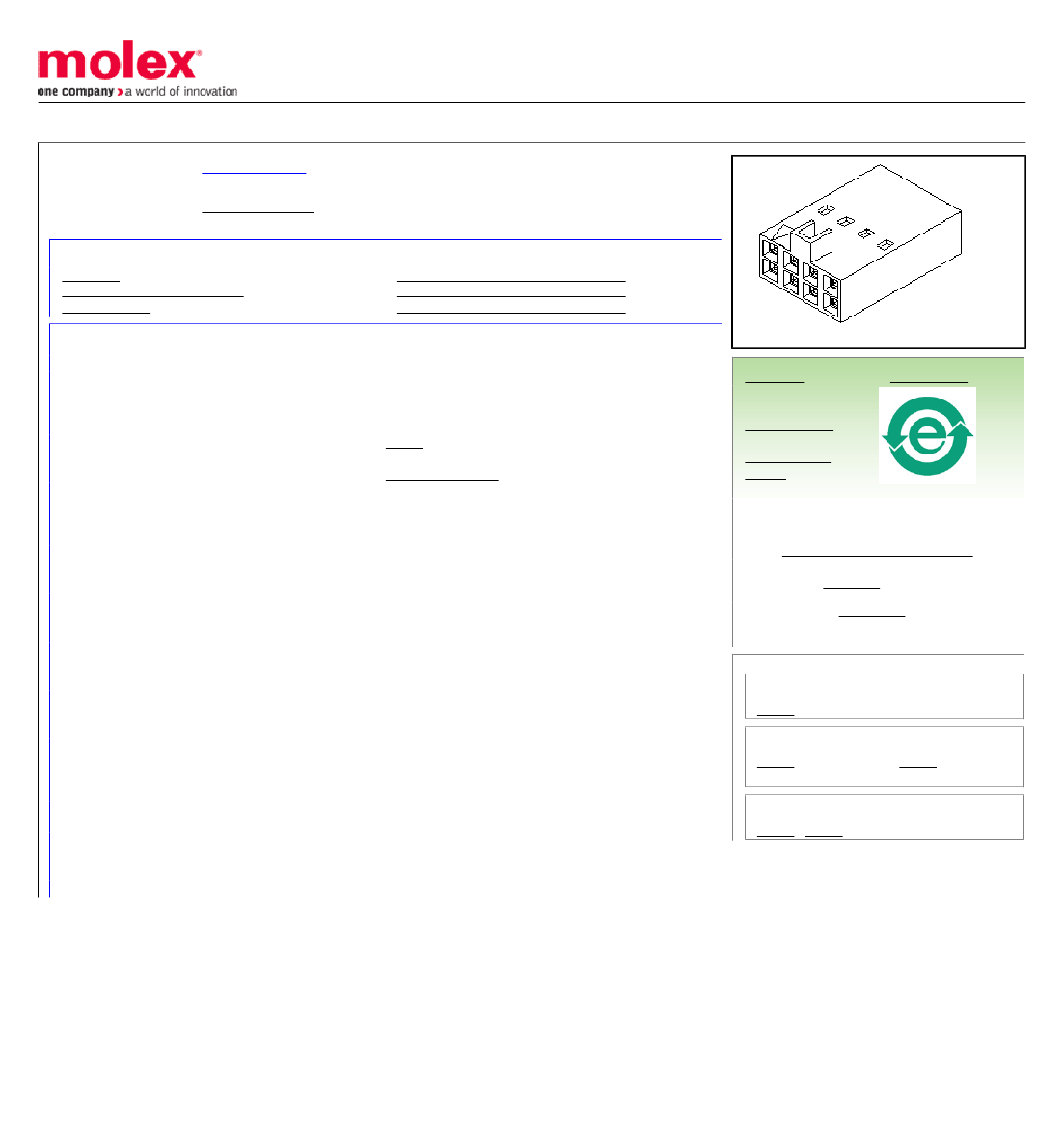

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0022552042

Active

cgrid__sl_products

2.54mm (.100") Pitch SL™ Crimp Housing, Dual Row, Version B, Polarized, 4 Circuits

Documents:

3D Model

Packaging Specification (PDF)

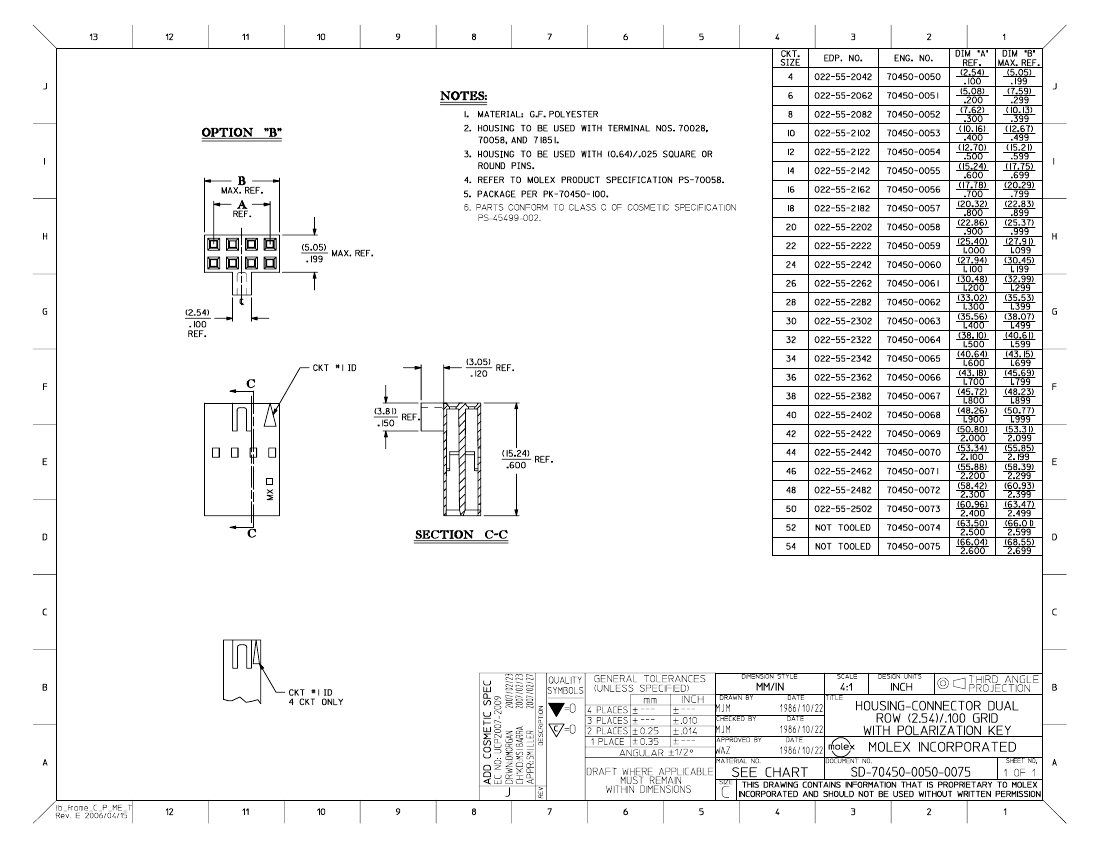

Drawing (PDF)

Product Specification PS-70058 (PDF)

Product Specification PS-70400 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

UL

General

Product Family

Series

Comments

Overview

Product Name

Crimp Housings

70450

Version B

cgrid__sl_products

SL™

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Stackable

Temperature Range - Operating

No

4

Black

94V-0

Female

No

Polyester

2

Bag

No

0.100 In

2.54 mm

No

-40°C to +105°C

Search Parts in this Series

70450Series

Mates With

70246 Straight Header, 70247 Right Angle

Header, 87256, 87257

Use With

70058 , 71851

Material Info

Old Part Number

704500050

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Test Summary

PK-70450-100

PS-70058, PS-70400

SD-70450-0050-0075

TS-70058-001

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

022-55-2342 Related Products

	022-55-2342	022-55-2042	704500050	022-55-2282	022-55-2442	022-55-2382	022-55-2462
Description	2.54mm (.100") pitch SL? crimp housing, dual row, version B, polarized, 34 circuits	4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP	4 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP	2.54mm (.100") pitch SL? crimp housing, dual row, version B, polarized, 28 circuits	2.54mm (.100") pitch SL crimp housing, dual row, version B, polarized, 44 circuits	2.54mm (.100") pitch SL? crimp housing, dual row, version B, polarized, 38 circuits	2.54mm (.100") pitch SL? crimp housing, dual row, version B, polarized, 46 circuits
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	conform to	conform to
Maker	Molex	-	-	Molex	-	Molex	Molex
Reach Compliance Code	compli	compli	-	compli	compli	compli	compli
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99
body width	0.199 inch	0.199 inch	-	0.199 inch	0.199 inch	0.199 inch	0.199 inch
subject depth	0.6 inch	0.6 inch	-	0.6 inch	0.6 inch	0.6 inch	0.6 inch
body length	1.699 inch	0.199 inch	-	1.399 inch	2.199 inch	1.899 inch	2.299 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	-	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V	-	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Insulation resistance	10000000000 Ω	10000000000 Ω	-	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
Insulator color	BLACK	BLACK	-	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	70450	70450	-	70450	70450	70450	70450
Plug contact pitch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	-	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	-	2	2	2	2
Maximum operating temperature	105 °C	105 °C	-	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL, CSA	UL, CSA	-	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	-	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	34	4	-	28	44	38	46
Base Number Matches	1	1	-	-	1	1	1
