Last Update:
6-9-05
Dimensions: mm (In.)
Ref. #:
MS-100027
17.40
(.685)
4.85
(.19)
7.50
(.295)
PT
6
(.236)
2.30
(.09)
ø2.60
(ø.102)
ø2.30
(ø.09)
6.65
7.45
(.261)6.90 (.293)
(.271)
FP
OP
8.50
(.334)
COM: BLACK
NO: CYAN
5.20
(.204)
9.50
(.374)
19.80
(.779)
4.10
(.161)
Min 5
(.196)
NC: GRAY
6.40
(.252)

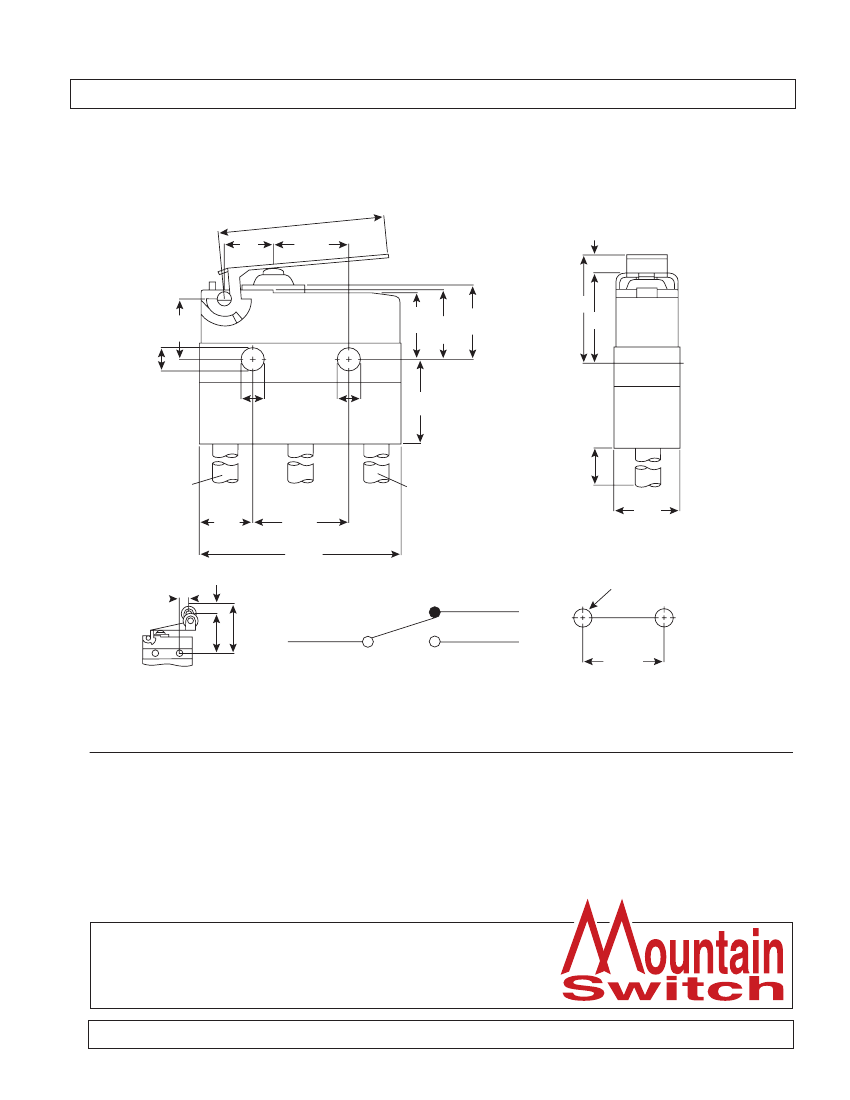

2-ø2.4 (ø.09) mounting holes
or M2.3 screw holes.
PT
COM
Contact Configuration
N.C.
FP
N.O.
9.50±.10
(.374±.004)
OP
Mechanical Specifications:
•
Operating Frequency: 120 operations/min
•
Mechanical Life: 2,000,000 operation Min.
Electrical Specifications:
•
Operating Frequency: 10~30 operations/min
•
Electrical Life: 6,000~50,000 operations
•
Rating: 6A/125VAC/250VAC
•
Contact Resistance: 100mΩ max.
•
Insulation Resistance: 100mΩ min. at 500VDC
•
Dielectric Strength: 1,000VAC RMS (50-60HZ)
Operating Characteristics:
•
OF Max. (g): 100
•
Op (mm): 14.5 ±1.1
•
PT Max. (mm): 4.3
•
OT Min. (mm): 0.9
•
MD Max. (mm): 0.6
•
FP Max. (mm): 17.7
•
RF Max. (g): 20
Sealed Snap Switch
SNS71-06-100RR-W01
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
