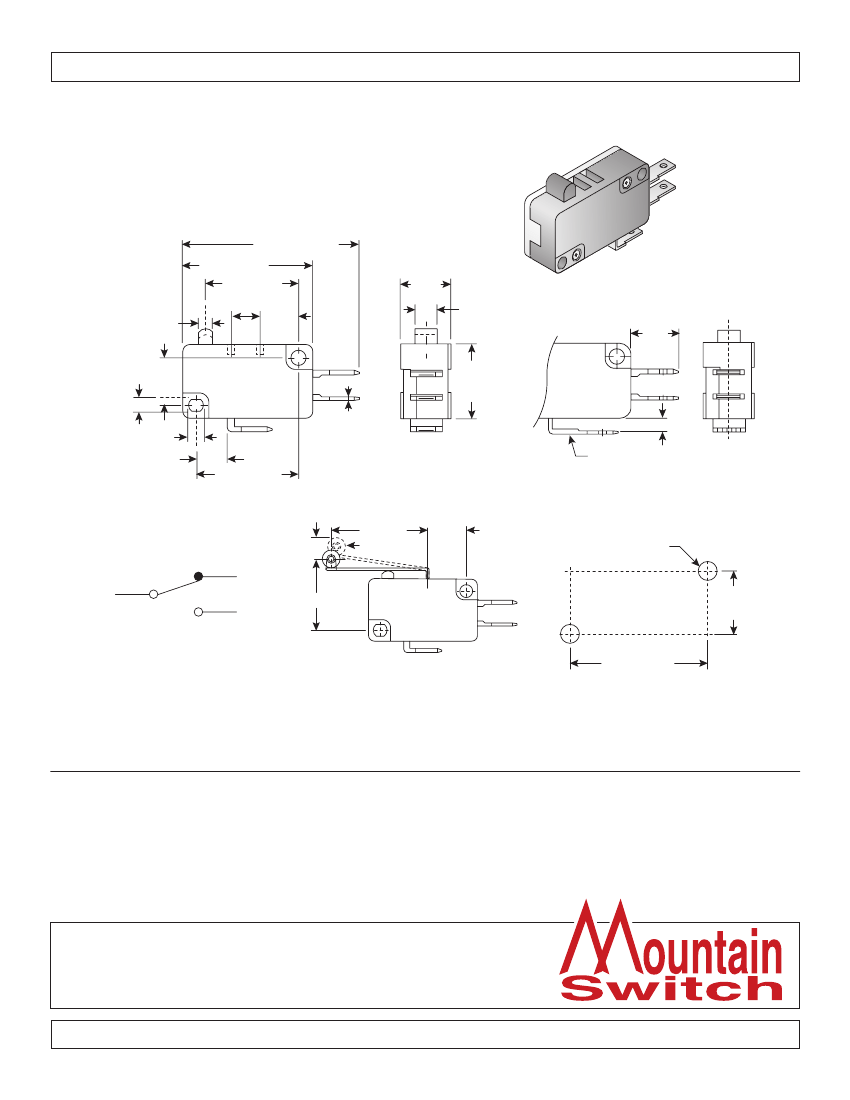

Dimensions: mm (In.)
Ref. #:
MS-100065
39 max. (1.53)
27.8 (1.09)
20.2 (.795)
5.9 (.232)
2.8
(.11)
8.4
(.331)
K
G
L
H
NO
ø3.4
(ø.133)
COM
7.7
(.303)
22.2 (.874)
.50
(.02)
COM
2.65 (.104)
†=.50 (.02)
3-#187 quick
connect terminal
10.3
(.405)
4.2
(.165)
10
(.393)
NC
15.9
(.626)
NC
NO
10.3
(.405)
3.1
(.122)
PT
N.C.
COM.
N.O.
OP
25.6 (1)
4.75 Roller
8.4
(.33)
2-ø3.1 (ø.122) mounting holes
or M3 screw holes
10.3
(.405)
SPDT
22.2 (.874)
Contact Configuration
Operating Characteristics
Mounting Holes
Mechanical Specifications:
•
Operating Frequency: 300 operations/min
•
Life: 5,000,000~ 10,000,000 operations
Electrical Specifications:
•
Rating: 10A/125/250VAC
•
Insulation Resistance (at 500VDC): 100MΩ min.
•
Dielectric Strength: 1,000VAC RMS (50-60HZ)
•
Contact Resistance (initial): 30mΩ, 100mΩ max.
•
Operating Frequency: 10~30 operations/min
•
Life: 6,000~100,000 operations
Operating Characteristics:
•
OF Max. (g): 100
•
OP (mm): 20.7±1.5
•
PT Max. (mm): 3.18
•
OT Min. (mm): 1.60
•
MD Max. (mm): 0.76
Miniature Snap Switch
SNS21-06-100RR-Q21
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
