Last Update:
5-6-05

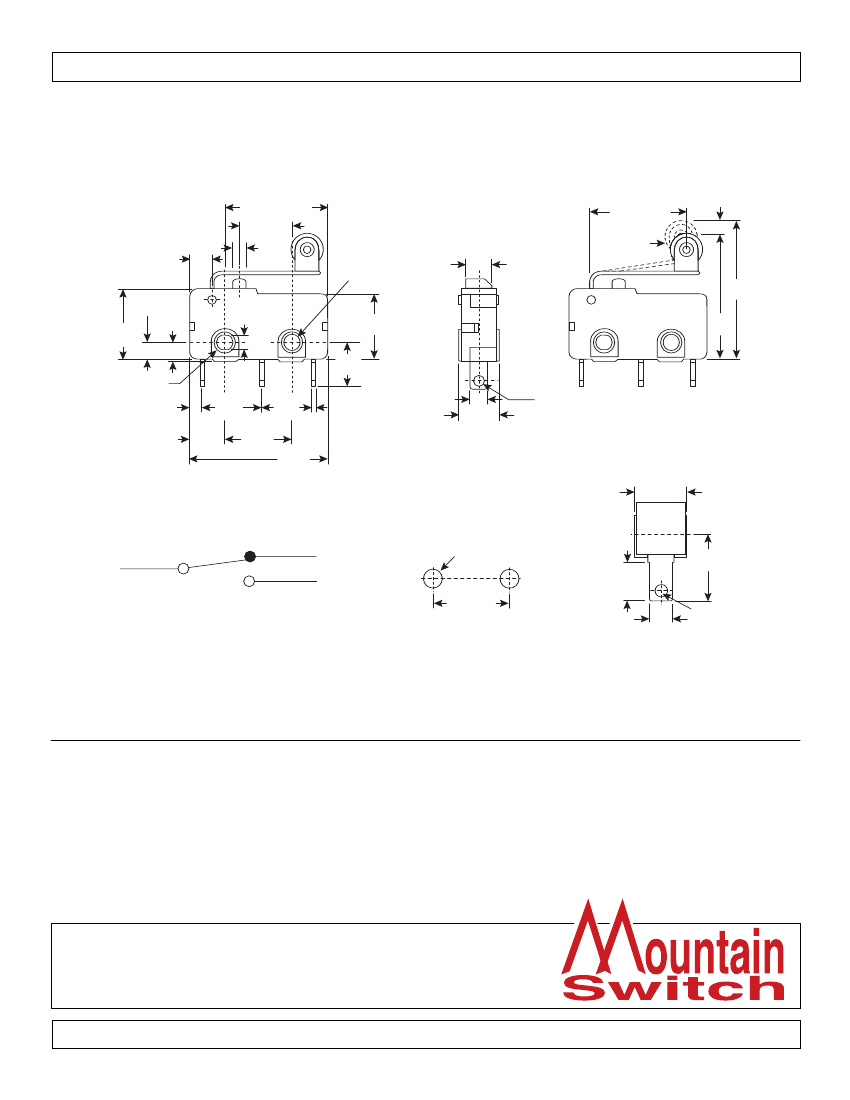

Dimensions: mm (In.)
Ref. #:
MS-100051
14.7 (.578)
3.2
(.126)
7.5 (.295)
2
(.079)
ø2.4±.10
(ø.09±.004)
3.55 (.14)
14.5 (.571)
ø4.8
(ø.189)
Roller
PT
2.5
(.098) 2.9
(.114)
10.2
(.401)
ø2.5
(ø.098)
1.6
(.062)
FP
2.4
(.09)
C
NO
NC
9.5
(.374)
6.4
(.252)
3.2
(.126)
6.4
(.252)
ø1.6
(ø.06)
OP
8.8
(.346)
5.1
(.20)
7.3
(.287)
9.5
(.374)
.60
(.023)
19.8
(.779)
6.4 (.252)
2-ø2.4 (ø.09)
mounting holes
or M2.3 screw holes
7.1
(279)
9.5±.10
(.374±.004)
3.2
(.126)
N.C.
COM.
N.O.
10.6
(.417)
ø1.2
(ø.047)
Holes
Contact Configuration
Mounting Holes
Quick Connect Terminal
Mechanical Specifications:
•
Operating Frequency: 120 operations/min
•
Life: 10,000,000 operation min.
Electrical Specifications:
•
Operating Frequency: 10~30 operations/min
•
Life: 6,000~100,000 operations
•
Rating: 10.1A/125VAC/250VAC
•
Contact Resistance: 30mΩ max.
•
Insulation Resistance: 100mΩ min. @ 500VDC
•
Dielectric Strength: 1,000VAC RMS (50-60HZ)
Operating
Characteristics:
•
OF Max. (g): 60
•
Op (mm): 17.5 ±0.8
•
PT Max. (mm): 3.8
•
OT Min. (mm): 0.8
•
MD Max. (mm): 0.8
•
FP Max. (mm): 20.5
•
RF Min. (g): 15
Sub-Miniature Snap Switch
SNS61-10-060RR-Q11
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
