SPECIFICATION
Part No.
:
AP.10E.07.0039B
Product Name
:

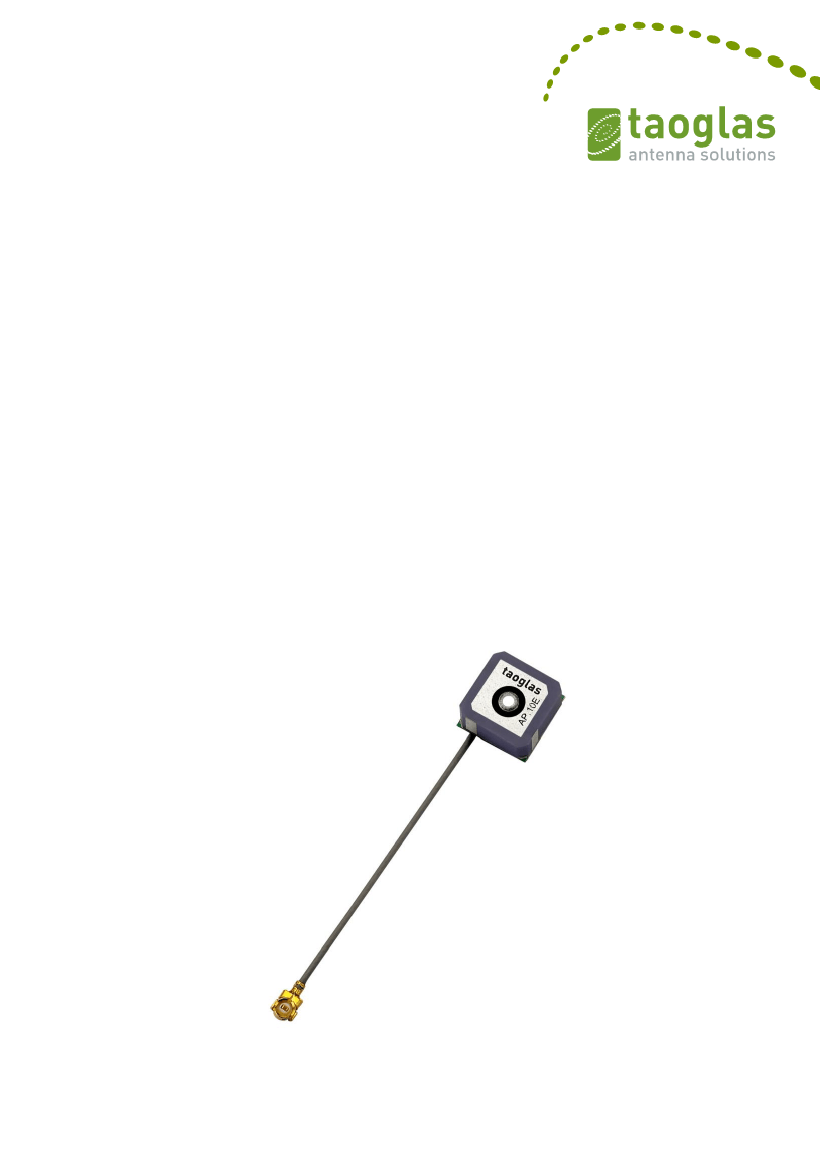

AP.10E - 1 Stage 15dB 39mm 0.81 with IPEX
MHFI (U.FL compatible)
Feature
:
World smallest GPS/GALILEO active patch
High performance
Ultra low power consumption
RoHS Compliant
SPE-12-8-003/B/SS
Page 1 of 9
1. Introduction
AP.10E active GPS/GALILEO patch antenna is the smallest GPS high performance
antenna currently available in the world. Using extremely sensitive high dielectric
constant powder formulation and tight process control the 10*10*4mm patch antenna
is accurately tuned to have its frequency band right at 1575.42MHz for GPS systems.
With an ultra low power consumption one stage LNA, this small active patch has the
performance of an ordinary active patch, but at only a quarter of the size.
This product is suited to small form factor mobile devices such as GPS Smartphones,
Personal Location, Medical devices, Telematic devices and Automotive navigation and
tracking. Custom gain, connector and cable versions are available. The AP.10E
consists of 2 functional blocks
–
the LNA and also the patch antenna.
SPE-12-8-003/B/SS
Page 2 of 9
2. Specification
ELECTRICAL
Frequency
Gain @ Zenith
Polarization
Axial Ratio
Patch Dimension
1575.42 ± 1.023MHz
-10dBic Typ. @ Zenith
RHCP
4.0dB max. @Zenith
10*10*4.0mm
LNA
Frequency
1575.42 ± 1.023MHz
F0=1575.42MHz

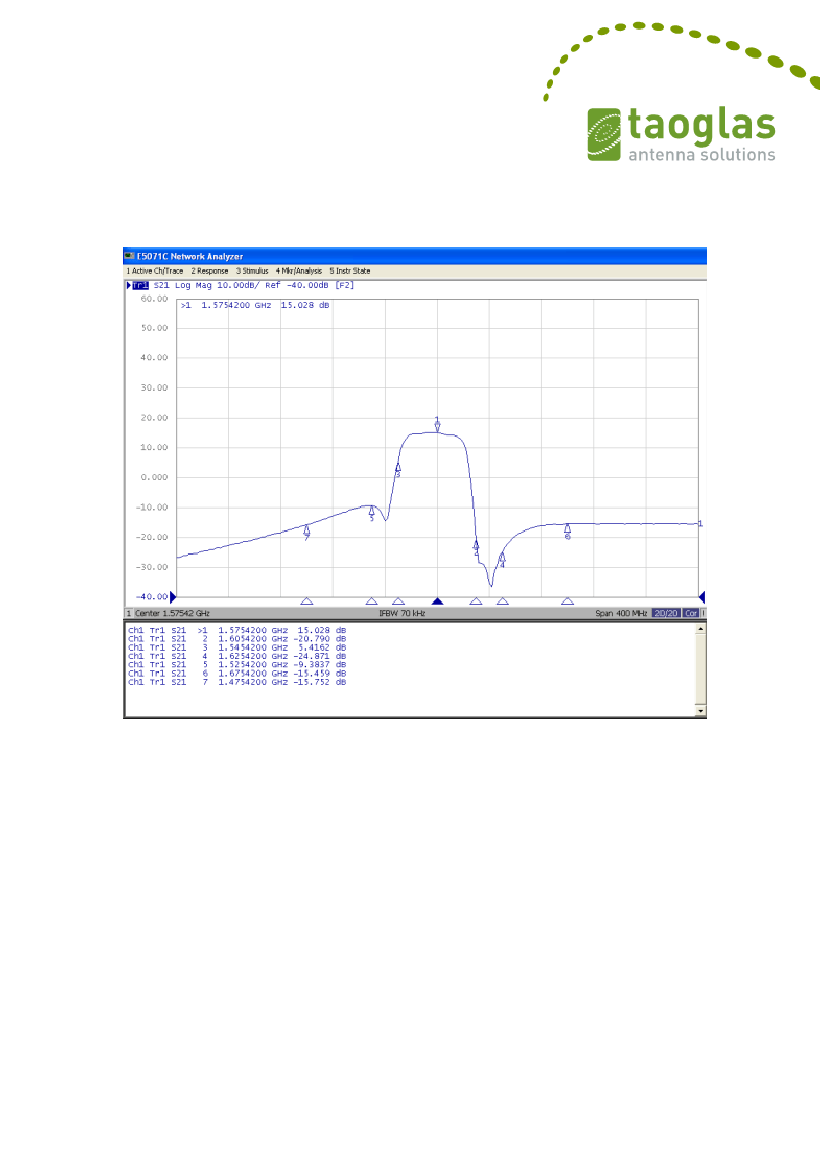

Outer Band Attenuation
F0±30MHz
F0±50MHz
F0±100MHz
Output Impedance
Output VSWR
Pout at 1dB Gain
Compression point
9dB min.
20dB min.
25dB min.
50Ω
2.0 Max
Typ. -2dBm
Min. -6dBm

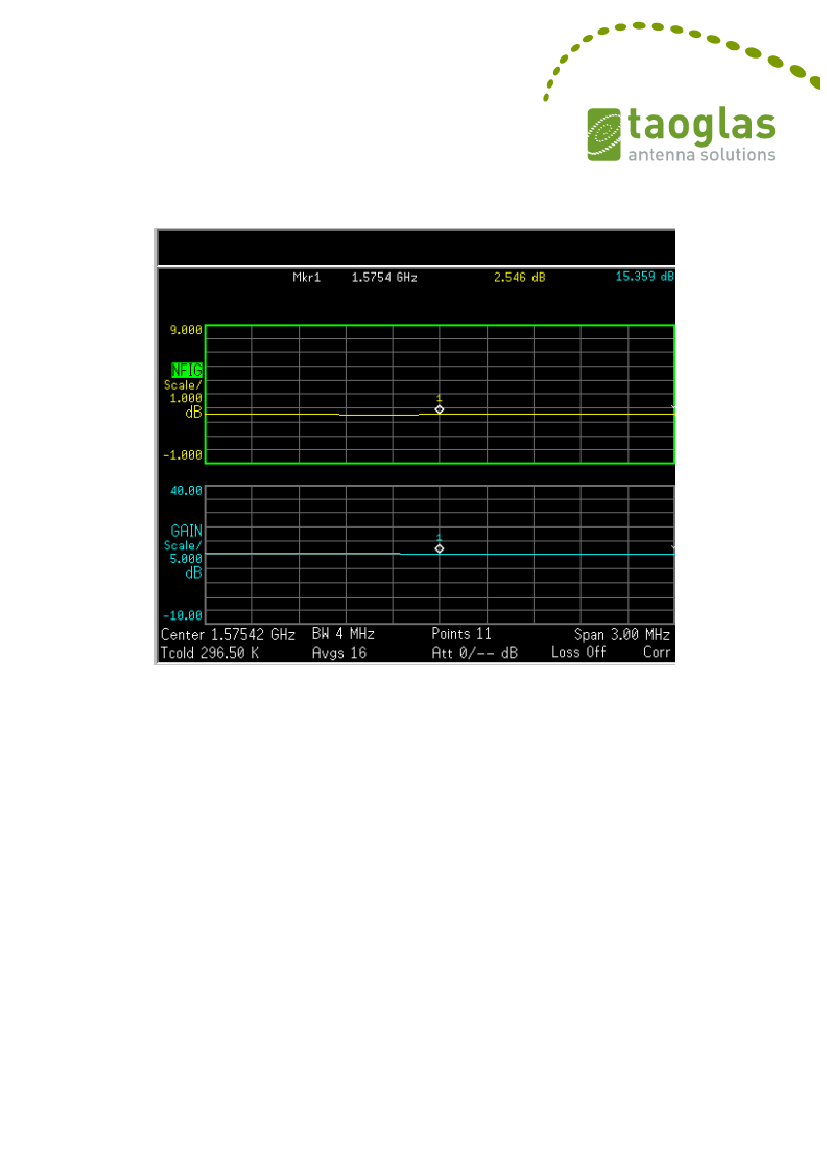

LNA Gain, Power Consumption and Noise Figure
Power
LNA Gain (Typ)
Consumption(mA) Typ
14dB
3mA
15dB
15dB
3mA
3mA
Noise Figure Typ
2.5dB
2.5dB
2.6dB
Voltage
Min. 1.8V
Typ. 3.0V
Max. 5.5V
Dimensions
RF Cable
Connector
Frequency
Gain
Output Impedance
Polarization
Output VSWR
MECHANICAL
10*10*4.0mm
Coaxial Cable Ø0.81 ± 0.1mm, length 39 ± 2.0mm
IPEX MHFI (U.FL)
ANTENNA WITH LNA
1575.42 ± 1.023MHz
At 3V: 5
4dBi@90
50Ω
RHCP
Max 2.0
-40°C to + 85°C
-40°C to + 85°C
40% to 95%
Min:1.8V
Typ. 3.0V
Max:5.5V
10*10*5.9mm
Operation Temperature
Storage Temperature
Relative Humidity
Input Voltage
Antenna
SPE-12-8-003/B/SS
Page 3 of 9
