Last Update:
5-4-05

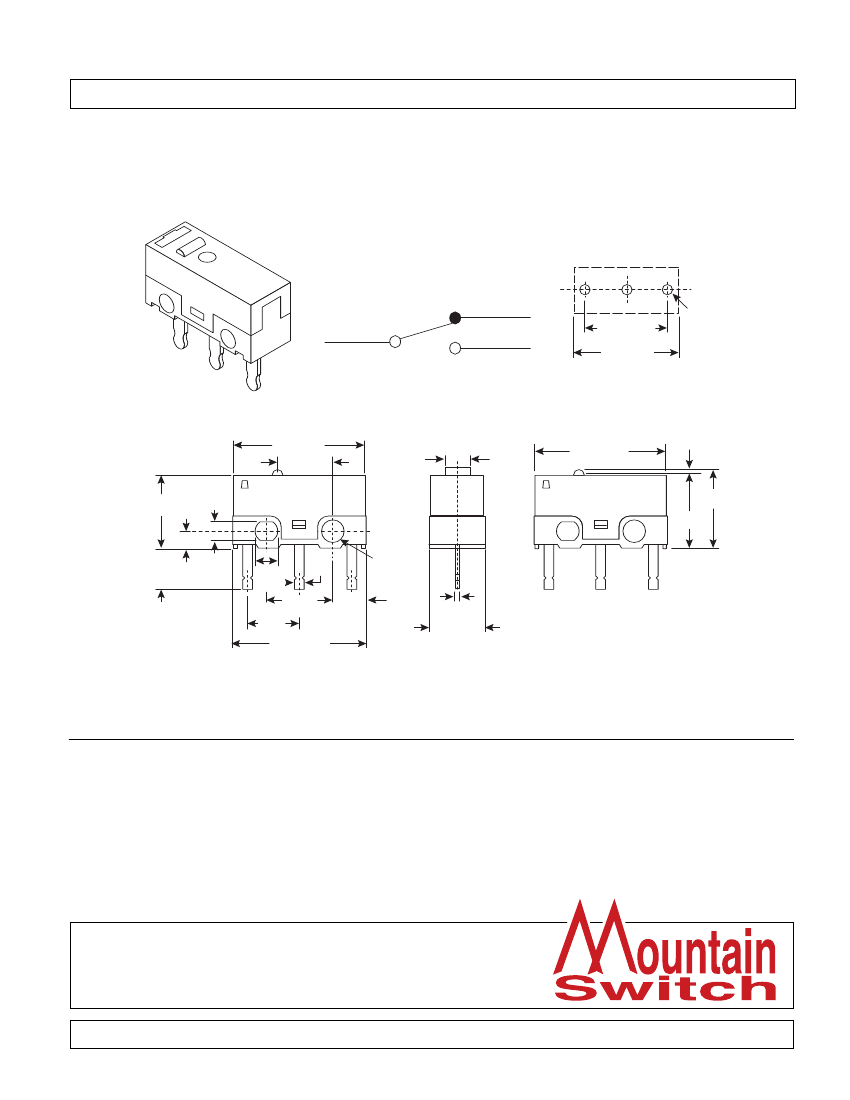

Dimensions: mm (In.)
Ref. #:
MS-100021
Mounting Holes
Contact Configuration
N.C.
COM.
10.16 (.40)
N.O.
12.8 (.50)
3-ø1.2
(ø.047)
Hole
12.7(.50)
5.2 (.204)
6.5
(.256)
2.05
(.08)
Hole
2.9 (.114)
12.7 (.50)
PT
FP
OP
1.5 (.06)
3.5
(.138)
ø2.2
(ø.08)
.90
(.03)
6.5
(.256)
3.15
(.124)
ø2.05
(ø.081)
Hole
.40 (.016)
5.8 (.228)
Operating Characteristics
5.08
(.20)
12.8 (.504)
Mechanical Specifications:
•
Mechanical Operating Frequency: 120 operations
•
Mechanical Life: 1,000,000 operations min.
Electrical Specifications:
•
Rating: 3A/125VAC; 0.2A/60VDC
•
Electrical Operating Frequency: 10~30 operations
•
Contact Resistance (initial): 30~100mΩ max.
•
Insulation Resistance (at 500VDC): 100MΩ min.
•
Dielectric Strength: 1,000VAC RMS (50-60HZ)
•
Electrical Life (at rated load): 6,000~15,000 operations
Operating
Characteristics:
•
OF Max. (g): 150
•
OP (mm): 7.0±0.3
•
PT Max. (mm): 1.3
•
OT Min. (mm): 0.2
•
MD Max. (mm): 0.3
•
FP Max. (mm): 8.0
•
RF Min. (g): 20
Super-Miniature Snap Switch
SNS13-03-150XX-P01
