Last Update:
4-13-05

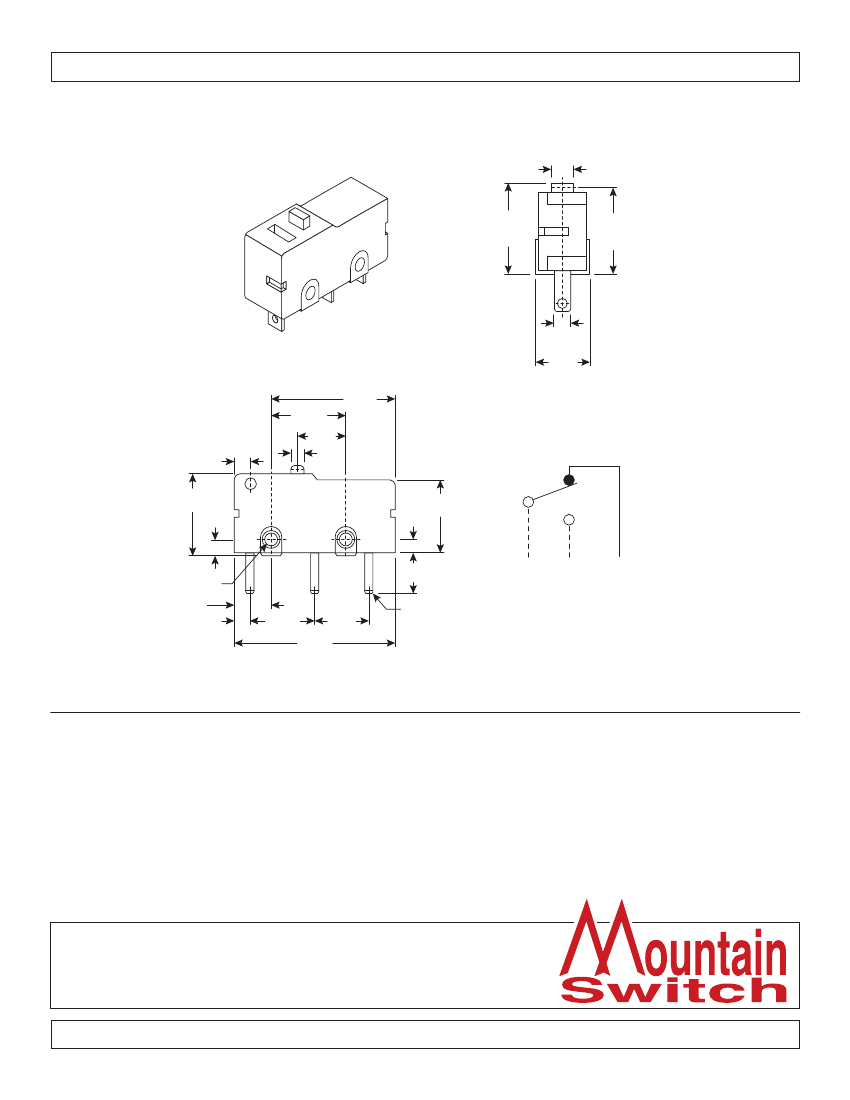

Dimensions: mm (In.)
3.61
(.142)
Ref. #:
MS-100117
11.91±.305
(.469±.012)
11.40±.305
(.449±.012)
3.2
(.126)
6.4
(.252)
14.73
(.580)
9.5
(.374)
7.49
(.295)
2.01
(.079)
9.5
2.49 (.374)
(.098)
1
2.36
(ø.093)
5.08
(.200)
1.9
(.075)
3
2
3.91
(.154)
.61
(.024)
COM
NO
NC
3±.102
(.118±.004)
10.59
(.417)
2.89
(.114)
8.79
(.346)
7.29
(.287)
19.81
(.780)
Electrical Specifications:
•
Rating: 5A/125VAC
•
Insulation resistance: 100MΩ min. @ 500VDC
•
Dielectric strength: 500VAC for 1 minute
•
Contact resistance: <50mΩ
•
Life cycling (full load): 200,000 cycles
Mechanical Specifications:
•
Switching timing: non-shorting
•
Operating Temperature: -25°~+80°C
•
Ambient humidity used: <85% RH
•
Operating force: 115±10g
•
Life cycling (no load): 1,000,000 cycles
Materials:
•
Housing, button: 30% glass fiber reinforced PBT, black
•
Switch lever: stainless steel
•
Switch terminals: brass
•
Spring: steel
•
Contacts: silver
•
Metal contact: phosphor bronze
Miniature Snap Switch
101-1200
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
