1055-TA1160

Description
toggle switch 6 sldr tab dpdt blu
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size61KB,1 Pages
ManufacturerMountain Switch
Download Datasheet Parametric View All

1055-TA1160 Overview

toggle switch 6 sldr tab dpdt blu

1055-TA1160 Parametric

Parameter NameAttribute value
MakerMountain Switch
Product CategoryToggle Switches
RoHSno
Contact formDPDT
switch functionON - NONE - ON
Contact current rating6 Amps at 125 Volts
Termination typeSolder Lug
Installation stylePanel
Terminal sealEpoxy
ActuatorLever, Standard
lighting colorBlue
Voltage ratingAC125 Volts
Last Update:
4-22-05

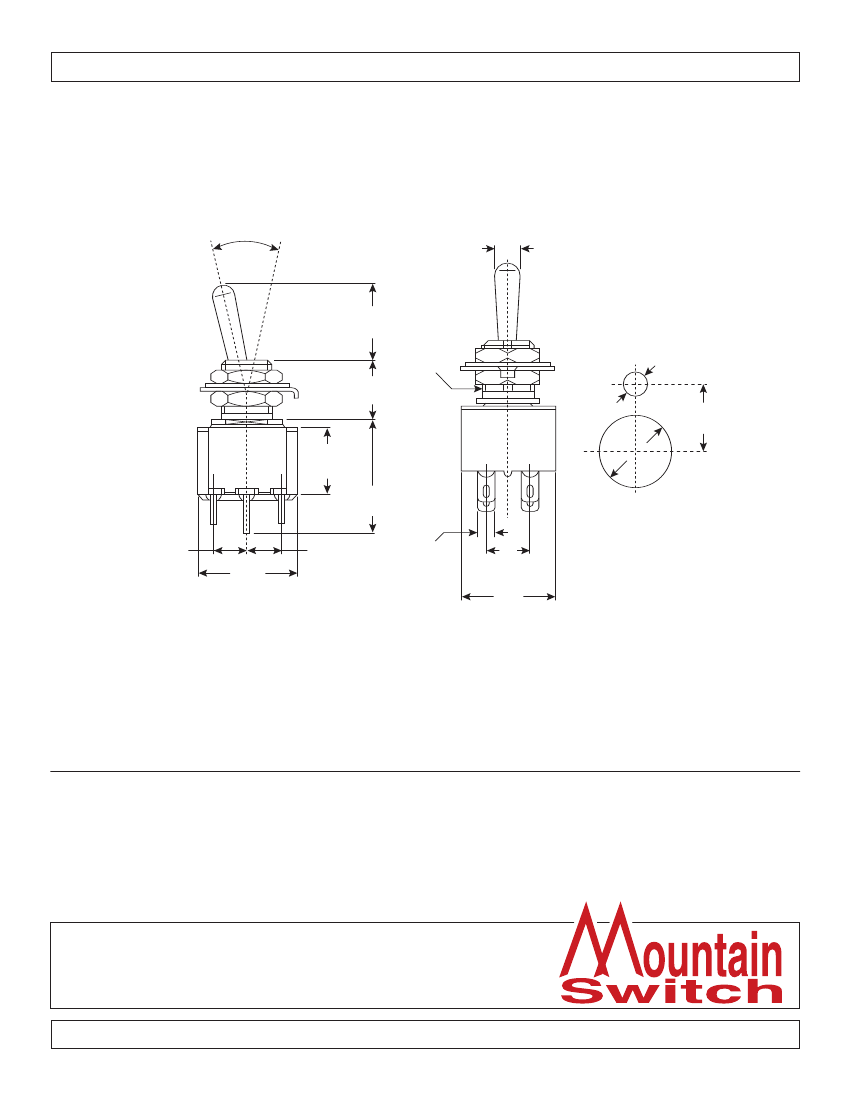

Dimensions: mm (In)
Ref. #:
MS-100233
24°±6°
ø2.5±.5
(ø.098±.02)
10.5±1
(.413±.039)
ø2.5
(ø.098)
6.3
(.248)
9.2±.5
(.362±.02)
15.8±1
(.622±.039)
4.7±.5
(.185±.02)
13.2±1
(.52±.039)
4.7±.5
(.185±.02)
ø6.2
(ø.244)
M6x0.75mm
7.5±.5
(.295±.02)
2±.3
(.079±.012)
4.8±.5
(.189±.02)
12.1±1
(.476±.039)
Electrical Specifications:
Rating: 6A/125VAC, 3A/250VAC
Contact resistance: 20m
max
Insulation resistance: 100M
min. 500VDC
Dielectric strength: 1000VAC 1 min
Electrical life: 10,000 cycles
Mechanical Specifications:
Mechanical life: 100,000 cycles
Operating temperature: -20°C to +65°C
Circuit: 6P DPDT On-On
Miniature Toggle Switch
1055-TA1160
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
