0901430026 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0901430026

0901430026: Description2.54mm (.100) pitch C-grid iii? modular crimp housing, dual row, 26 circuits; CategoryThe connector The connector; File Size254KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0901430026 Overview

2.54mm (.100) pitch C-grid iii? modular crimp housing, dual row, 26 circuits

0901430026 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	13 weeks
Is Samacsys	N
Other features	STACKABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	90143
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	26
Base Number Matches	1

Preview

Download Datasheet

View All

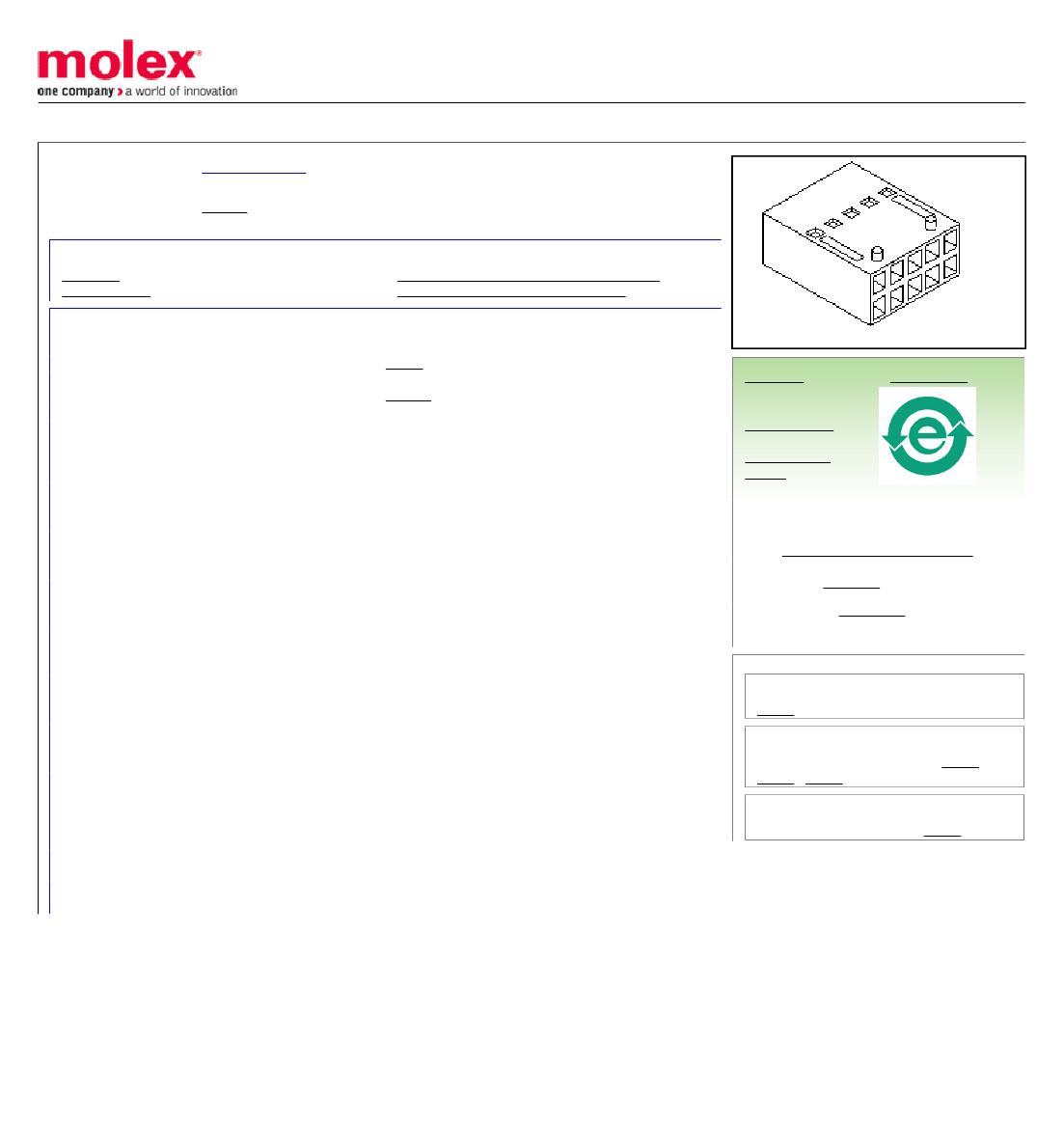

This document was generated on 05/28/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

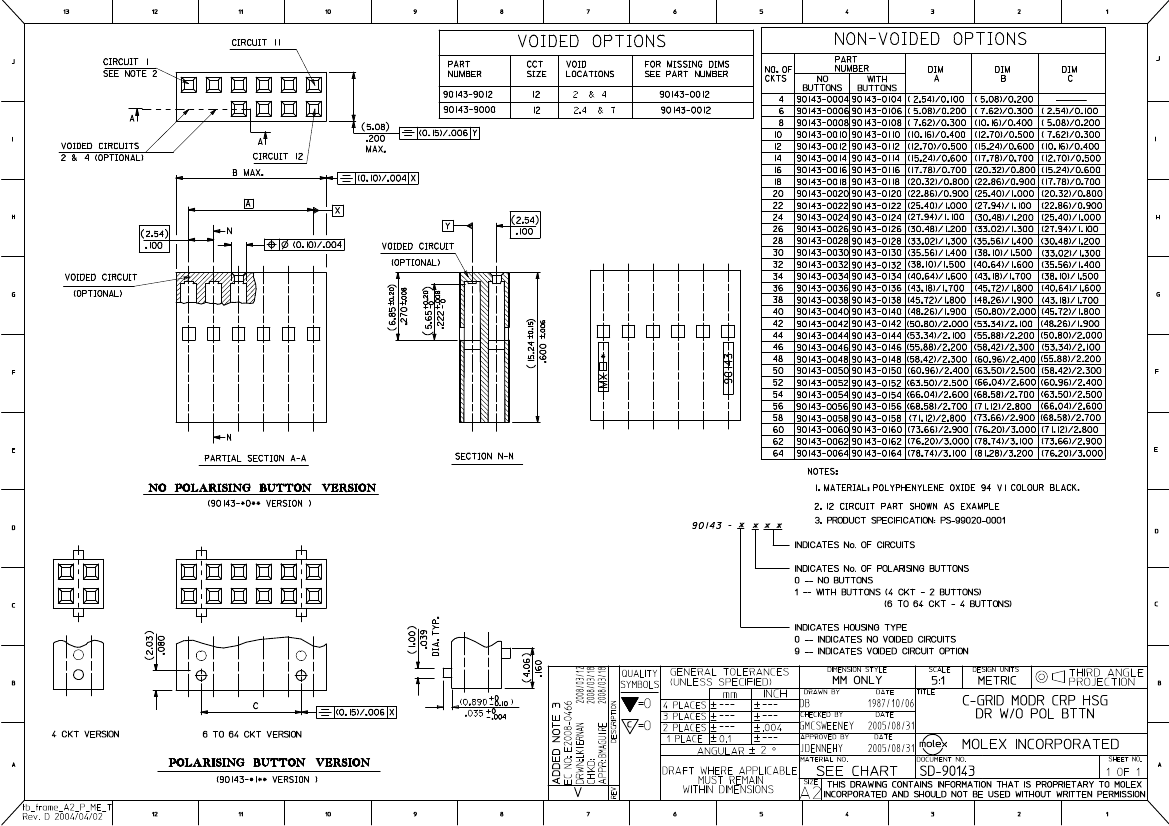

Drawing (PDF)

0901430022

Active

cgrid_iii

2.54mm (.100") Pitch C-Grid III™ Modular Crimp Housing, Dual Row, 22 Circuits

Product Specification PS-99020-0001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Crimp Housings

90143

No Buttons

cgrid_iii

C-Grid III™

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Overview

Product Name

Physical

Breakaway

Circuits (maximum)

Circuits Detail

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Ports

Stackable

Temperature Range - Operating

No Voided Circuits

Black

Female

None

PPO

Bag

0.100 In

2.54 mm

0.100 In

2.54 mm

Yes

-55°C to +105°C

Search Parts in this Series

90143Series

Mates With

C-Grid III™ Header, Dual Row 90122 ,

90130 , 90131

Use With

C-Grid III™ Crimp Terminal 90119

Electrical

Current - Maximum per Contact

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-99020-0001

SD-90143

This document was generated on 05/28/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

0901430026 Related Products

	0901430026	90143-0022	0901430022	90143-0024	90143-0028	90143-0032	90143-0056	0901430032
Description	2.54mm (.100) pitch C-grid iii? modular crimp housing, dual row, 26 circuits	22 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, CRIMP	22 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP	2.54mm (.100) pitch C-grid iii? modular crimp housing, dual row, 24 circuits	2.54mm (.100) pitch C-grid iii? modular crimp housing, dual row, 28 circuits	2.54mm (.100) pitch C-grid iii? modular crimp housing, dual row, 32 circuits	2.54mm (.100) pitch C-grid iii? modular crimp housing, dual row, 56 circuits	2.54mm (.100) pitch C-grid iii? modular crimp housing, dual row, 32 circuits
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	compliant	compli	compliant	compli	compli	compli	compli	unknown
Other features	STACKABLE	C-GRID III, POLARIZED	STACKABLE	C-GRID III, POLARIZED	C-GRID III, POLARIZED	C-GRID III, POLARIZED	C-GRID III, POLARIZED	STACKABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	26	22	22	24	28	32	56	32
Manufacturer's serial number	90143	90143	-	90143	90143	90143	90143	90143
body width	-	0.2 inch	-	0.2 inch	0.2 inch	0.2 inch	0.2 inch	-
subject depth	-	0.6 inch	-	0.6 inch	0.6 inch	0.6 inch	0.6 inch	-
body length	-	1.1 inch	-	1.2 inch	1.4 inch	1.6 inch	2.8 inch	-
contact mode	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Contact resistance	-	20 mΩ	-	20 mΩ	20 mΩ	20 mΩ	20 mΩ	-
Contact style	-	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-
Dielectric withstand voltage	-	1000VDC V	-	1000VDC V	1000VDC V	1000VDC V	1000VDC V	-
Insulation resistance	-	1000000000 Ω	-	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	-
Insulator color	-	BLACK	-	BLACK	BLACK	BLACK	BLACK	-
insulator material	-	POLYPHENYLENE OXIDE	-	POLYPHENYLENE OXIDE	POLYPHENYLENE OXIDE	POLYPHENYLENE OXIDE	POLYPHENYLENE OXIDE	-
Plug contact pitch	-	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-
Installation option 1	-	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING	-
Installation method	-	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-
Maximum operating temperature	-	105 °C	-	105 °C	105 °C	105 °C	105 °C	-
Minimum operating temperature	-	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-
Rated current (signal)	-	3 A	-	3 A	3 A	3 A	3 A	-
reliability	-	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal pitch	-	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-
UL Flammability Code	-	94V-1	-	94V-1	94V-1	94V-1	94V-1	-
