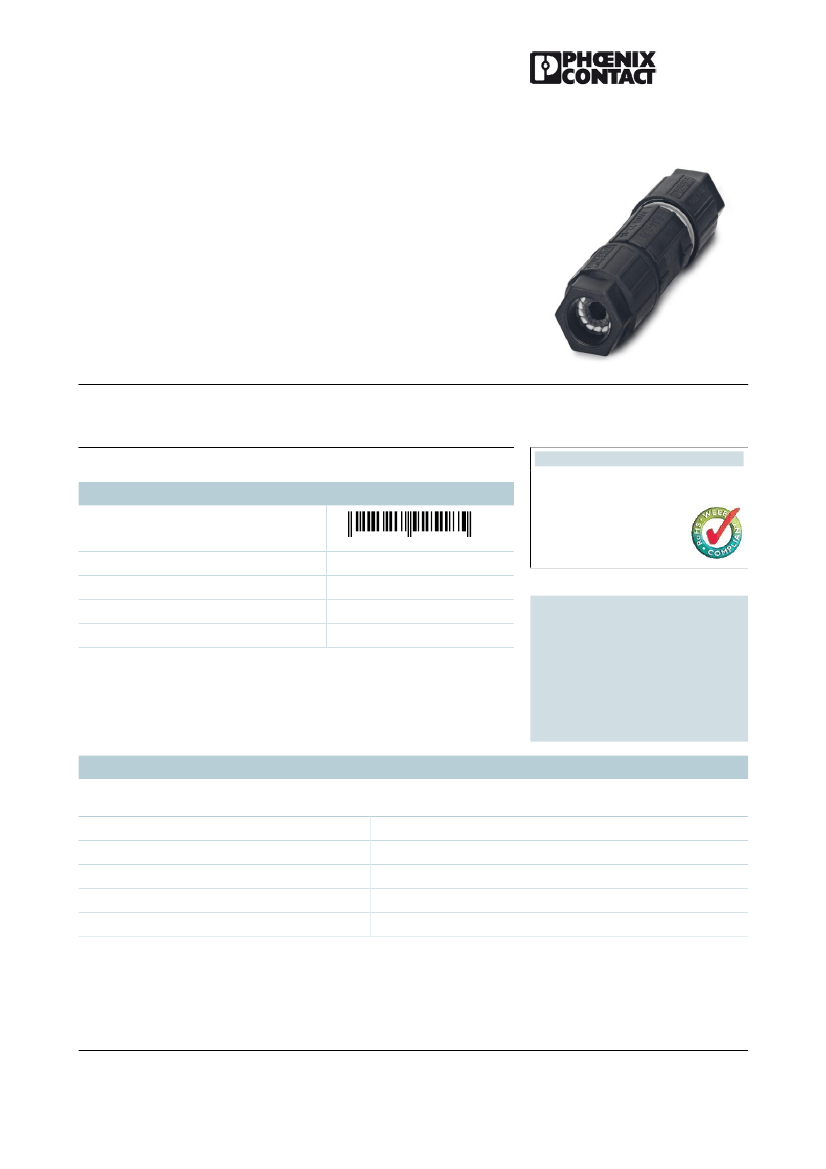

Extract from the online
catalog
Q 0,34/4IDC/16-16KU-KU BK
Order No.: 1641879
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1641879
QUICKON conductor connector, 4-pos., connection cross section
0.14-0.34 mm²
Product notes
Commercial data
GTIN (EAN)
4
017918
925185
WEEE/RoHS-compliant since:
12/01/2005
sales group
Pack
Customs tariff
Catalog page information
D430
1 pcs.
85369010
Page 49 (PC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General characteristics
Color
Connection method
Type of connection
Number of positions
Tightening torque, union nut
black
QUICKON connection
IDC connection
4
0.8 Nm
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 4
Jan 31, 2011
Q 0,34/4IDC/16-16KU-KU BK
Order No.: 1641879
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1641879
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor data
Structure of individual litz in acc. with VDE 0295 /
smallest wire diameter
Wire insulation material
Wire diameter including insulation
External cable diameter
Environmental conditions
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
Temperature when conductor connected
0.14 mm²
0.34 mm²
0.14 mm²
0.25 mm²
26
22
VDE 0295 class 1 to 6 / min. 0.10 mm
PVC/PE
0.7 mm ... 1.6 mm
3.5 mm ... 6 mm
IP65/67
-40 °C ... 80 °C (specifications of the cable manufacturer must
also be observed)
-40 °C ... 80 °C
-5 °C ... 50 °C (specifications of the cable manufacturer must also
be observed)
Electrical characteristics
Nominal current I
N
Rated current
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Mechanical characteristics
QUICKON connectability
Material data
Contact material
Contact surface material
Contact carrier material
Steel
Tin-plated
PA
max. 10
5A
5A
125 V
200 V
320 V
2.5 kV
2.5 kV
2.5 kV
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 4
Jan 31, 2011
Q 0,34/4IDC/16-16KU-KU BK
Order No.: 1641879
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1641879
Insulating material
Inflammability class acc. to UL 94
Surge voltage category
Pollution degree
Accessories
Item
Designation
PA
V0
III
3
Description
Protection and sealing elements
1400254
SEALING PLUG 6X16 RD
Closing cap, for closing unused bore holes in multiple seals and
cable glands, diameter 6 mm
Tools
1205862
MICROFOX SC
Diagonal cutter for Cu wire up to 1.5 mm diameter
Diagrams/Drawings
Dimensioned drawing
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 4
Jan 31, 2011
Q 0,34/4IDC/16-16KU-KU BK
Order No.: 1641879
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1641879
Address
PHOENIX CONTACT Inc., USA
586 Fulling Mill Road
Middletown, PA 17057,USA
Phone (800) 888-7388
Fax (717) 944-1625
http://www.phoenixcon.com
© 2010 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 4
Jan 31, 2011
