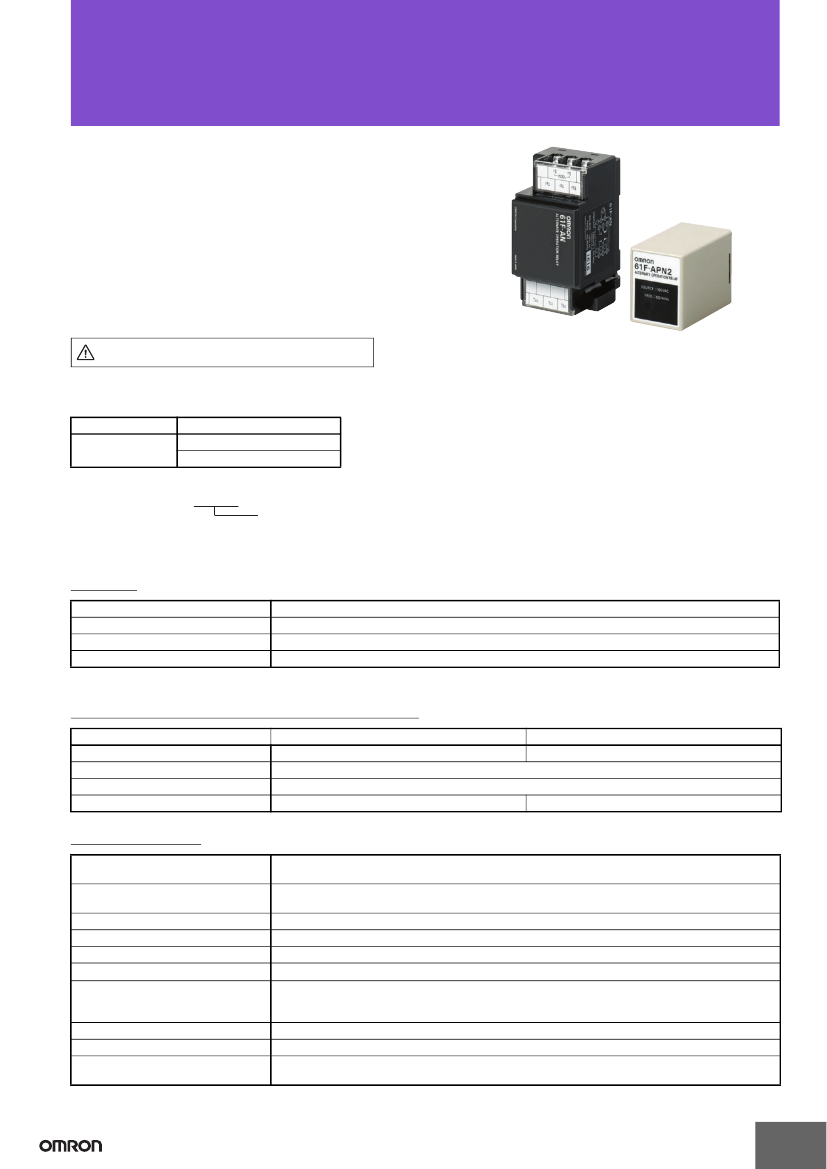

Alternate Operation Relay
61F-AN/-APN2
CSM_61F-AN_-APN2_DS_E_3_1
Increases Motor Life and Enables Operating
Only One Pump When Cleaning Tanks or as
an Emergency Measure for Pump Failures.
• Electronic Relay with the same operation as the G4Q Latching
Relay. Compared with the G4Q, the 61F-AN/-APN2 has a
shorter power supply application time and no restrictions on
mounting direction.
• Compact Models (61F-AN) and Compact Plug-in Models (61F-
APN2) available.
Note:
A changeover switch must be included in the sequence to enable
operating only one pump.
Refer to
Safety Precautions for Floatless Level
Controllers.
■
Ordering Information
Type
Alternate Operation 61F-AN
Relay
61F-APN2
Note:
When ordering, specify the desired operating voltage at the end of the model number.
Example: 61F-AN [220VAC]
Model
Desired supply
voltage
■
Specifications
Ratings
Supply voltage
Operating voltage range
Power consumption
Accessories
100, 110, 200, 220 VAC; 50/60 Hz
85% to 110% of rated voltage
3 VA
Hold-down clip PFC-N8 *
* Hold-down clip PFC-N8 is attached only 61F-APN2.
Contact Ratings (with G2RK Keep Relay)
Item
Max. load
Carry contact
Max. operating current
Max. switching capacity
3A
3A
750 VA
375 VA
Resistive load (cosφ = 1)
3 A at 250 VAC
Inductive load (cosφ = 0.4, L/R = 7 ms)
1.5 A at 250 VAC
Characteristics
Response time
Minimum pulse width
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Life expectancy
Operate: 25 ms max.
Release: 30 ms max.
Min. ON time: 40 ms min.
Min. OFF time: 200 ms min.
100 MΩ min. at 500 VDC (between each terminal and power supply)
2,000 VAC, 50/60 Hz for 1 min (between each terminal and power supply)
10 to 55 Hz, 1-mm double amplitude
10 G (approx. 98 m/s
2
)
Mechanical: 1,000,000 operations (at operating frequency of 1,800 operations/hour)
Electrical: 100,000 operations min.
(rated load)
Operating: –10 to 55°C
Operating: 45% to 85% RH
61F-AN: Approx. 215 g
61F-APN2: Approx. 190 g
Ambient temperature
Ambient humidity
Weight
1
61F-AN/-APN2
Time Chart for Alternate Operation of Water Supply
When the 61F-A@ Alternate Operation Relay is combined with a
Floatless Level Switch, the Relay output contacts switch (break)
while the contactor is engaged. The Relay output contacts will not
switch simultaneously with engaging the contactor. In other words,
the contactor or other load is switched with the output contacts from
the Floatless Level Switch, not directly with the output contacts from
the 61F-A@ Alternate Operation Relay. Using water supply as an
example, after the control level is reached and the 61F Controllers’
NC contacts turn OFF (break), the Relay’s output contacts switch.
The next time the 61F Controller’s NC contacts turn ON, the output
contacts have already switched. Thus, only the continuous carry
current needs to be considered for the load capacity of the 61F-
APN2, enabling application to the rated carry current of 3 A.
Ta
61F
Tb
Power
61F-AN,
-APN2
Output
Tc1-Ta1
Output
Tc1-Tb1
Contactor 1
Contactor 2
61F-AN (Compact Model)
Used in combination with a 61F-G@N Floatless Level Switch.
Operation
•
The 61F-AN is used in combination with a Floatless Level Switch
for alternate operation when using two pumps for level control in
one location.
•
When power is applied to the input terminals S
0
and S
2
, NO
contacts Tc
1
and Ta
1
, and NO contacts Ta
2
and Tc
2
are turned ON
via the alternate operation control circuit and the output circuit. This
state is held with a magnetic lock even if the power supply is turned
OFF.
•
When power is applied to the input terminals again, the NO
contacts are turned OFF and the NC contacts Tc
1
and Tb
1
and NC
contacts Ta
2
and Tc
2
are turned ON. This state is held with a
magnetic lock even if the power supply is turned OFF.
•
The above operation is repeated each time the power supply is
turned ON.
(Power Supply Pulse Response Method)
Xc
1
Tb
1
Ta
1
S
0
Power circuit
Alternate operation
control circuit
Output circuit
Tc
1
X
Xc
2
G2RK
(61F-AN)
Tb
2
Ta
2
Tc
2
S
2
(See note.)
Note:
The above diagram is for a rated voltage of 200 or 220 VAC.
Power is supplied to S
0
and S
1
for 100 or 110 VAC.
Connections (Refer to connection diagram.)
61F-APN2 (Compact Plug-in Model)
Used in combination with a Floatless Level Switch.
Operation
•
The 61F-APN2 is used in combination with a Floatless Level Switch
for alternate operation when using two pumps for level control in
one location.
•
When power is applied to the input terminals 2 and 7, NO contacts
1 and 3, and NO contacts 6 and 8 are turned ON via the alternate
operation control circuit and the output circuit. This state is held
with a magnetic lock even if the power supply is turned OFF.
•
When power is applied to the input terminals again, the NO
contacts are turned OFF and the NC contacts 1 and 4 and NC
contacts 5 and 8 are turned ON. This state is held with a magnetic
lock even if the power supply is turned OFF.
•
The above operation is repeated each time the power supply is
turned ON.
(Power Supply Pulse Response Method)
Xc
1
4
3
2
Power circuit
Alternate operation
control circuit
Output circuit
1
X
Xc
2
G2RK
(61F-APN2)
5
6
8
7
Note:
Refer to
Connecting Sockets, Mounting Brackets, DIN Rails
for
the applicable Sockets.
2
61F-AN/-APN2
Connections (Refer to connection diagram.)
•
Connect output terminal Ta in the 61F-G example (page 5) to input
terminal 2 on the 61F-APN2.
•
Connect coil terminal A on each of the two contactors to the
switching contact terminals 3 and 4 on the 61F-APN2.
•
Use the switching contact terminals 5 and 6 on the 61F-APN2 to
control the operation of the two pumps.
•
The power supply of the 61F-APN2 is 100, 110, 200, or 220 VAC.
Be sure to use the correct power supply.
Output contact between
1-3 and 6-8
Output contact between
1-4 and 5-8
Power supply voltage
between 2-7
40 ms min.
200 ms min.
3
61F-AN/-APN2
■

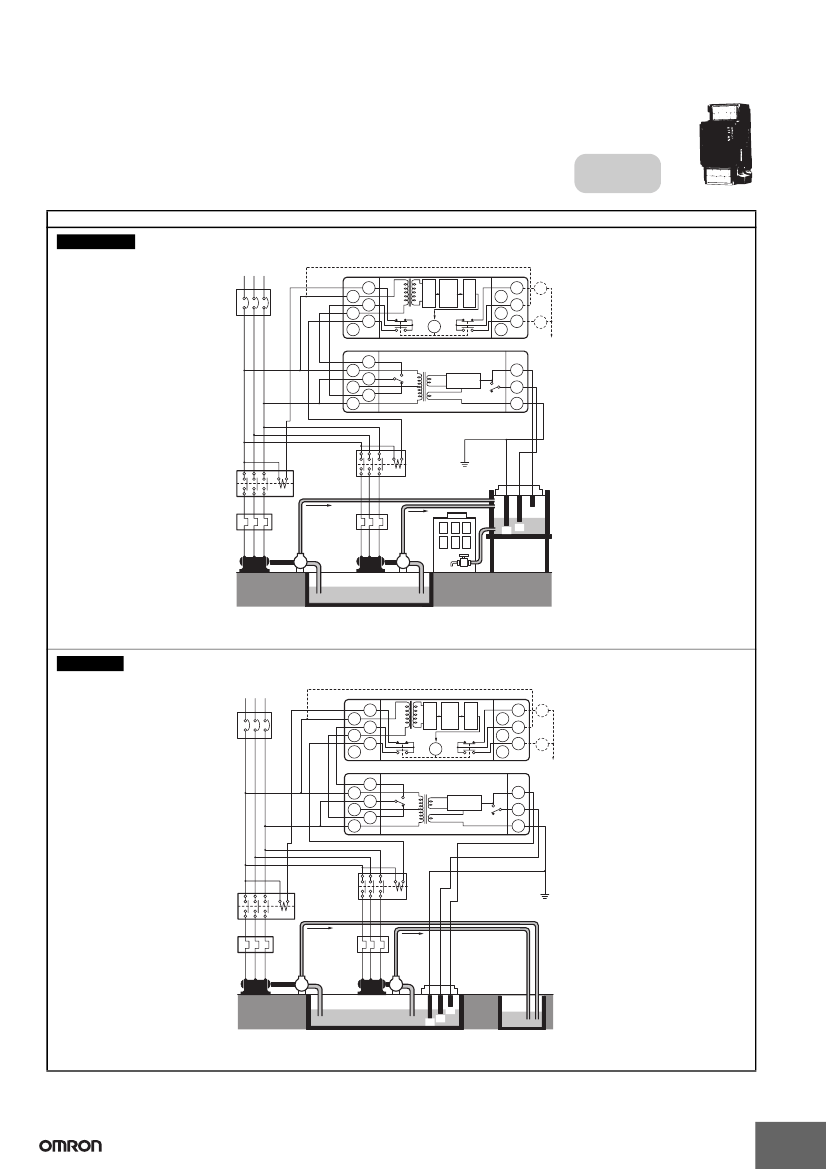

Connections
Combining with the 61F-GN
61F-AN
Dimensions:
page 17
Combining with the 61F-GN
Water Supply
Commercial
voltage 220 VAC
The relay operation can be monitored if indicators are
connected as shown by the dotted line.
61F-AN
Output
circuit
Power
circuit
Alternate
operation
control circuit
R S T
T
b1
S
0
T
c1
S
2
MCCB
T
b1
T
c1
T
a1
L
1
T
a1
X
L
2
To power
source T
61F-GN
T
a
S
0
T
c
S
1
S
2
T
b
U
110 V
220 V
0V
Transformer
24 V
8V
61F-11N U
Relay Unit
U
E
1
E
2
E
3
A
A
Contactor 1
PS-3S
E
1
E
3
E
2
P2
(See note.)
Contactor 2
Motor
protec-
tion relay
Motor
protection
relay
Water
tank
M1
P1
M2
Water supply source
Note:
Be sure to ground the common Electrode E
3
(the longest Electrode).
Drainage
Commercial
voltage 220 VAC
The relay operation can be monitored if indicators are
connected as shown by the dotted line.
61F-AN
Power
circuit
Output
circuit
Alternate
operation
control circuit
R S
T
T
b1
S
0
T
c1
S
2
MCCB
T
b1
T
c1
T
a1
L
1
T
a1
61F-GN
X
L
2
To power
source T
T
a
S
0
T
c
S
1
S
2
T
b
U
110 V
220 V
0V
Transformer
61F-11N U
24 V
Relay Unit
8V
U
E
1
E
2
E
3
A
A
Contactor 1
Contactor 2
(See note.)
Motor
protec-
tion relay
Motor
protection
relay
M1
P1
M2
Wastewater tank
P2
PS-3S
Reservoir
E
1
E
3
E
2
Note:
Be sure to ground the common Electrode E
3
(the longest Electrode).
4
61F-AN/-APN2

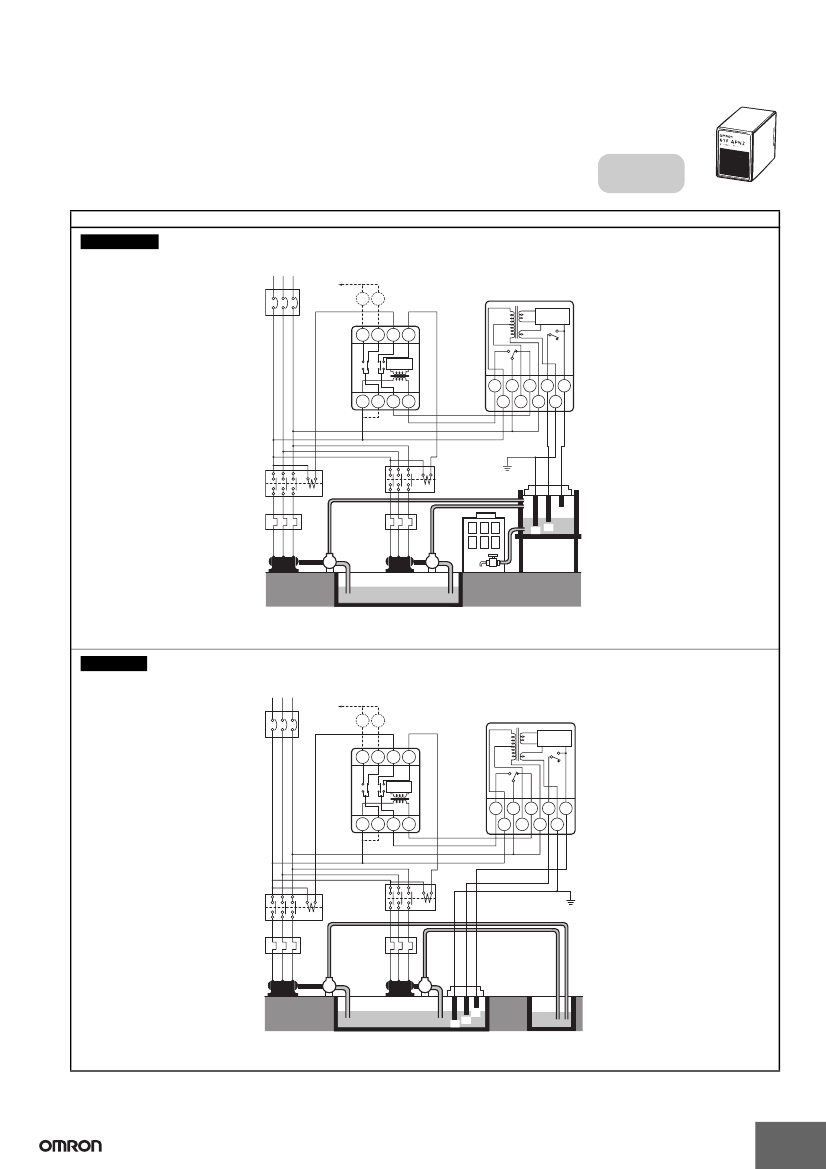

Combining with the 61F-G
61F-APN2
Dimensions:
page 17
Combining with the 61F-G
Water Supply
Commercial voltage
220 VAC
R S T
To power source T
The relay operation can be monitored
if indicators are connected as shown
by the dotted line.
MCCB
61F-APN2
L
2
L
1
61F-G
0V
110 V
U
61F-11
24 V Relay Unit
8V
U
6
5
4
3
220 V
U
Electronic
circuit
T
a
7
8
1
2
S
0
T
c
S
1
T
b
S
2
E
2
E
1
E
3
Connection Sockets
PF083A (Front-connecting)
PL08 (Rear-connecting)
(See note.)
Contactor 1
Contactor 2
PS-3S
E
1
E
3
E
2
P2
Motor
protec-
tion relay
Motor
protection
relay
Water
tank
M1
P1
M2
Water supply source
Note:
Be sure to ground the common Electrode E
3
(the longest Electrode).
Drainage
Commercial voltage
220 VAC
R S T
To power source T
The relay operation can be monitored
if indicators are connected as shown
by the dotted line.
MCCB
61F-APN2
L
2
L
1
61F-G
0V
110 V
24 V
8V
U
61F-11
Relay Unit
6
5
4
3
220 V
U
U
Electronic
circuit
T
a
7
8
1
2
S
0
T
c
S
1
T
b
S
2
E
2
E
1
E
3
Connection Sockets
PF083A (Front-connecting)
PL08 (Rear-connecting)
Contactor 1
Contactor 2
Motor
protec-
tion relay
(See note.)
Motor
protection
relay
M1
P1
M2
Wastewater tank
P2
PS-3S
Reservoir
E
1
E
3
E
2
Note:
Be sure to ground the common Electrode E
3
(the longest Electrode).
5
