Last Update:
6-11-10

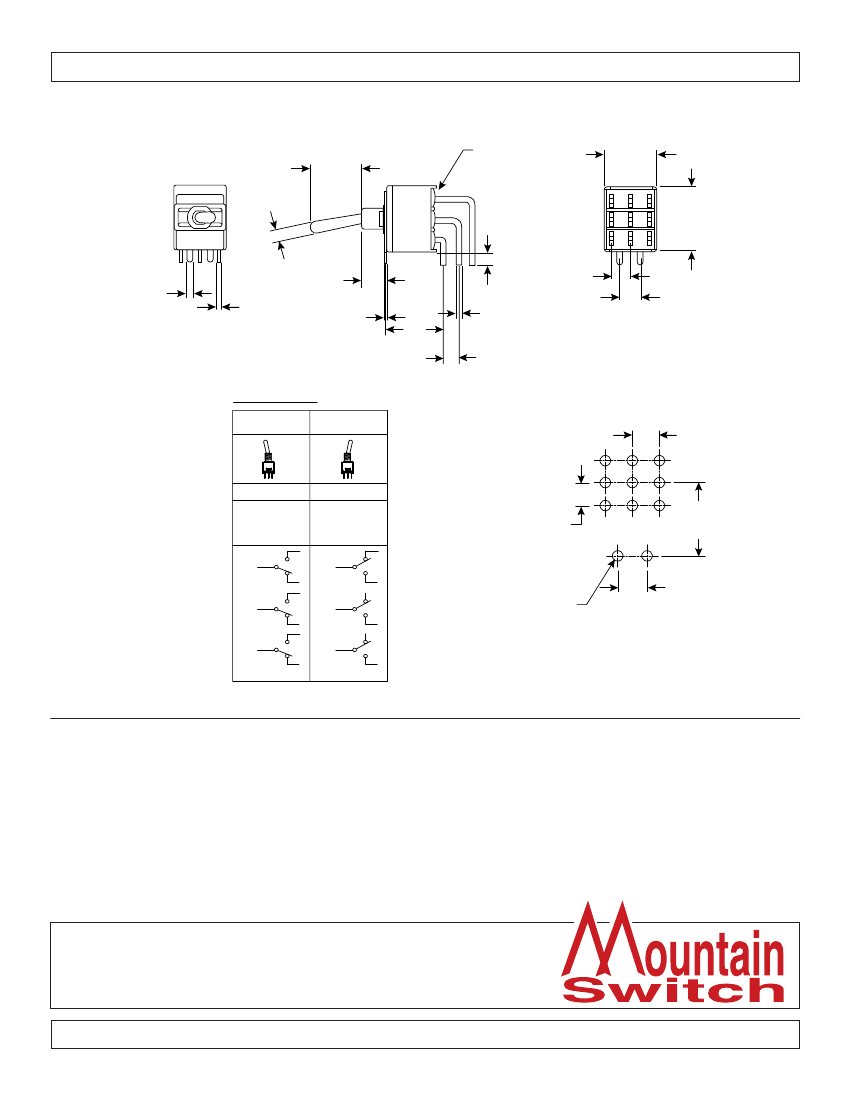

Dimensions: mm (in.)
Epoxy Seal
(.50)
12.70
(ø.115)
ø2.92
(.50)
12.70
Ref. #:
MS-101009
(.646)
16.42
(.125)
3.18
(.048)
1.22
(.232)
5.90
(.03)
.76
(.016)
.40
(.565)
14.35
(.15)
3.81
Switch Function
POS.1
POS.2
(.185)
4.70
(.20)
5.08
(.05)
1.27
P.C. Mounting
(.185)
4.70
ON
2-3, 5-6, 8-9
1
2 Comm.
3
4
5 Comm.
6
7
8 Comm.
9
(ON)
2-1, 5-4, 8-7
1
2 Comm.
3
4
5 Comm.
6
7
8 Comm.
9
(.15)
3.81
(.565)
14.35
(ø.073)
ø1.85
(.20)
5.08
Electrical Specifications:
•
Rating: 2A / 250VAC, 5A / 120 VAC or 28 VDC
•
Contact Resistance: 10mΩ max. initial @ 2-4VDC 100mA
•
Insulation Resistance: 1,000MΩ min.
•
Dieletric Strength: 1,000 V RMS@sea level
Mechanical Specifications:
•
Mechanical Life: 30,000 make-and-break cycles
•
Operating Temperature: -30°C to 85°C
Soldering Process:
•
Manual Soldering: Use a soldering iron of 30 watts, controlled
•
Note:
•
RoHS Compliant by Exemption
at 350°C approximately 5 sec. while applying Solder.
Wave Soldering: Recommended soldering temperature: 260±5°C
Duration of solder immersion: 5±1 sec.
(PCB is 1.6mm in thickness)
Sealed Miniature Toggle Switch
108-1A32T1603-EVX
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
