5223524-6 datasheet, PDF - EEWORLD Datasheet

5223524-6: Description2mmfb,5R,asy,180,sig,hdr,EN; CategoryThe connector; File Size186KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5223524-6 Overview

2mmfb,5R,asy,180,sig,hdr,EN

Parameter Name	Attribute value
Datasheets
5223524
3D Model

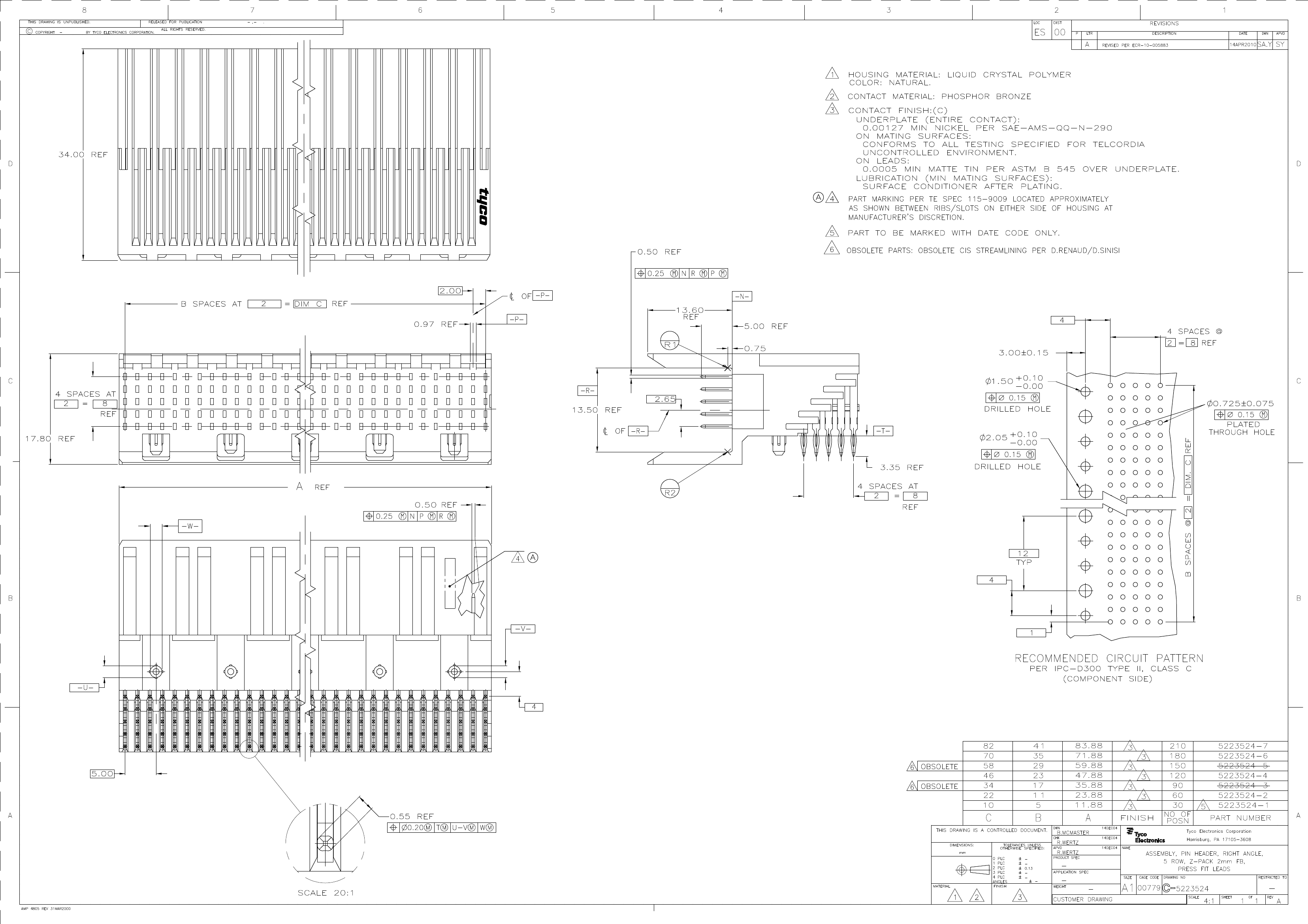

5223524-6.pdf
Standard Package	80
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	-
Connector Type	Header, Male Pins
Connector Style	Futurebus
Number of Positions	180
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	5
Number of Columns	-
Mounting Type	Board Edge, Through Hole, Right Angle
Terminati	Press-Fi
Contact Layout, Typical	-
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	-
Col	Natural
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-55°C ~ 125°C
Voltage Rating	30V
Mating Products	5223008-6-ND - FB-5R,ASY,180,SIG,REC,EN,3.55223008-6-ND - CONN 2MM FB RCPT 180POS R/A GOLD

	5223524-6	5223524-7	5223524-1
Description	2mmfb,5R,asy,180,sig,hdr,EN	2mmfb,5R,asy,210,sig,hdr,EN	2mmfb,5R,asy,030,sig,hdr,EN
Standard Package	80	560	48
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tube	Tube	Tube
Connector Type	Header, Male Pins	Header, Male Pins	Header, Male Pins
Connector Style	Futurebus	Futurebus	Futurebus
Number of Positions	180	210	30
Number of Positions Loaded	All	All	All
Pitch	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	5	5	5
Mounting Type	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle
Terminati	Press-Fi	Press-Fi	Press-Fi
Features	Board Guide	Board Guide	Board Guide
Contact Finish	Gold	Gold	Gold
Col	Natural	Natural	Natural
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Voltage Rating	30V	30V	30V
Mating Products	5223008-6-ND - FB-5R,ASY,180,SIG,REC,EN,3.55223008-6-ND - CONN 2MM FB RCPT 180POS R/A GOLD	5223652-7-ND - 2MM FB,5RV,REC,ASY,210,PF,4.255223008-7-ND - FB-5R,ASY,210,SIG,REC,EN,3.55	5223668-1-ND - 2MM FB,5RV,REC,ASY,030,PF,3.205223652-1-ND - 2MM FB,5RV,REC,ASY,030,PF,4.25A97842-ND - CONN RCPT 30POS R/A 2MM PRESSFITA97840-ND - CONN RCPT 30POS R/A 2MM SOLDERA97838-ND - CONN RCPT 30POS R/A 2MM SOLDER223008-1-ND - CONN 2MM FB RCPT 30POS R/A GOLD
