THE FASTEST WAY
TO WIRELESS.
Industrial
Dimensions:
4.75 x 2.75 x 1.17 inches (121 x 70 x 30 mm)
Weight:
ConnexModem

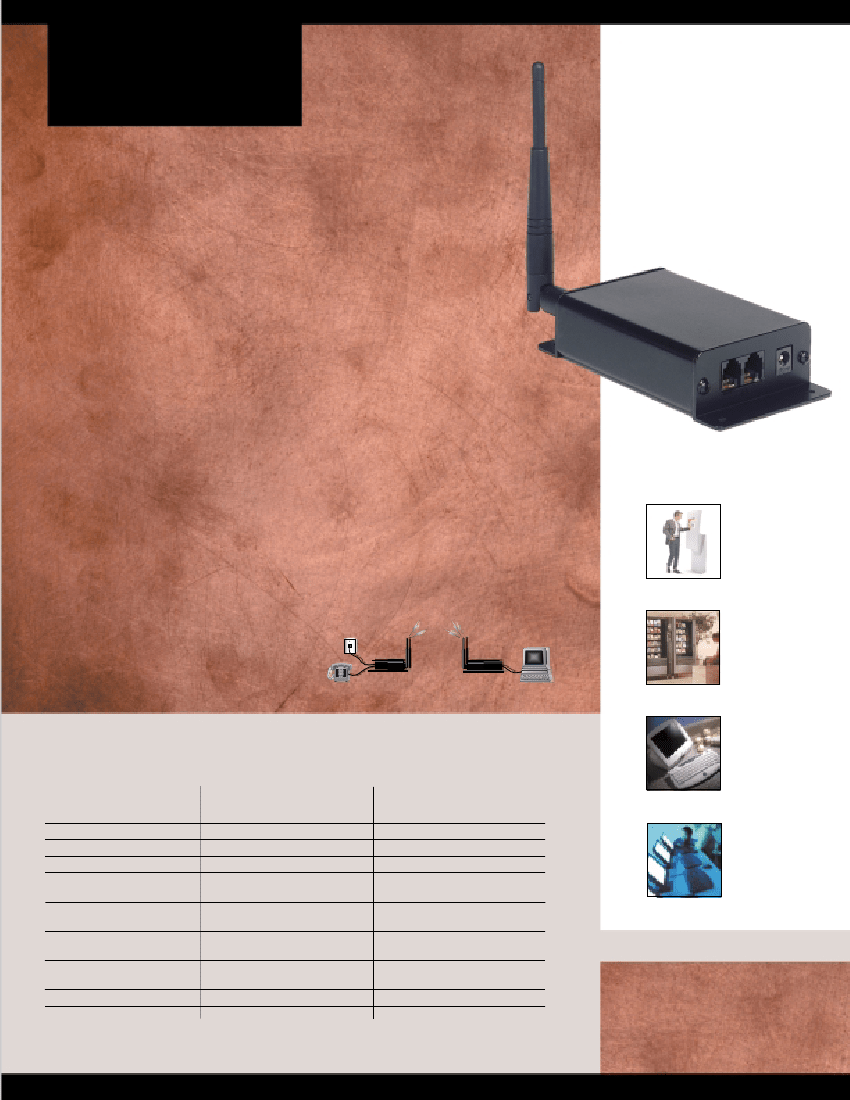

PRODUCT OVERVIEW
AeroComm’s wireless
ConnexModem
data
comm system cuts the cord between com-
puter and phone jack. The combination
transceiver/modem device enables dial-up
networking from remote areas where phone
connections aren’t convenient.
Systems integrators and end users alike can
set up RS232/RS485/RS422 terminals with-
out wires, making
ConnexModem
suitable
for both stationary and mobile communica-
tions. The system can be set up in minutes
to provide communication over distances of
up to 20 miles line-of-sight (900MHz).
AeroComm’s proprietary protocol guaran-
tees secure transmissions. And because
ConnexModem
uses FHSS technology, it
resists interference even in RF-hostile envi-
ronments. Use of the license-free 2.4GHz or
900MHz band ensures that no additional
agency certification is required.
For volume commercial applications, RF
engineering support helps OEMs reduce
R&D costs and speed time to market.
™
6.5 ounces (186 g)
Frequency Band:
2.4GHz or 900MHz; FHSS
Interface:
ConnexModem = dual RJ11
ConnexLink = RS232, RS485, or RS422
•
Simple cable replacement
for retro-fits & new installs
•
Transmits around corners,
through walls & obstructions
•
Reliable communication at
data rates up to 56 Kbps
SETUP & OPERATION
The complete system is comprised of a
remote node (ConnexLink), which enables
local wireless data transmissions, and a
telecom node (ConnexModem), which
bridges the local wireless link to a telecom
system for longer range communication.
Each device utilizes an industry-standard
interface:
ConnexModem
attaches to a
standard phone jack while
ConnexLink
connects to a serial port. Both support a
point-to-point configuration; multiple sets
can be used in the same area.
APPLICATION IDEAS
Kiosks & ATMs
When kiosks don’t have
convenient local access
to telecom connections,
ConnexModem enables
communication to lines
thousands of feet away.
Vending Machines
Check on the status of
vending merchandise or
money without getting up
from your chair! Connex-
Modem enables machine
monitoring via telephone.
Home Gateways
PARAMETERS:
Standard Interface
2.4GHz MODEL
ConnexModem:
dual RJ11
ConnexLink:
RS232 (DB9 male);
RS485 or RS422 (RJ11)
Up to 56 Kbps
200mW
6Vdc to 18Vdc
ConnexModem:
600mA
ConnexLink:
400mA
AC transformer to 6Vdc via
6-foot cable (183 cm)
Line voltage 100–120V (240V
outside U.S.); Frequency 50–60 Hz
Up to 500 feet (152 m) indoors;
Up to 3 (5 km) miles line of sight
–40º to +80º C; 10% to 90% humidity
Optional for ConnexLink; Windows OS
900MHz MODEL
ConnexModem:
dual RJ11
ConnexLink:
RS232 (DB9 male);
RS485 or RS422 (DB( female)
Up to 56 Kbps
1000mW
6Vdc to 18Vdc
ConnexModem:
900mA
ConnexLink:
700mA
AC transformer to 6Vdc via
6-foot cable (183 cm)
Line voltage 100–120V (240V
outside U.S.); Frequency 50–60 Hz
Up to 1500 feet (450 m) indoors;
Up to 20 miles (32 km) line of sight
–40º to +80º C; 10% to 90% humidity
Optional for ConnexLink; Windows OS
Wirelessly connect your
residential internet appli-
ances to unobtrusive
phone jacks. Connex-
Modem talks around cor-
ners and through walls!
Interface Data Rate
Output Power
Input Power
Power Consumption
(typical)
Power Supply
Electrical Requirements
Transmission Range
(typical;
actual depends on environment)
Operating Environment
Configuration Software
Mobile Internet
Easily connect mobile
devices such as email
terminals and web café
PCs without stringing
phone lines. No holes to
drill, no wires to hide.
w w w . a e r o c o m m . c o m
Ordering information is listed on the
back of this page. Call AeroComm
Sales for pricing & volume discounts.
1 0 9 8 1
E i c h e r
D r i v e
•
L e n e x a ,
K a n s a s
6 6 2 1 9
•
P h o n e
9 1 3 . 4 9 2 . 2 3 2 0
•
F a x
9 1 3 . 4 9 2 . 1 2 4 3

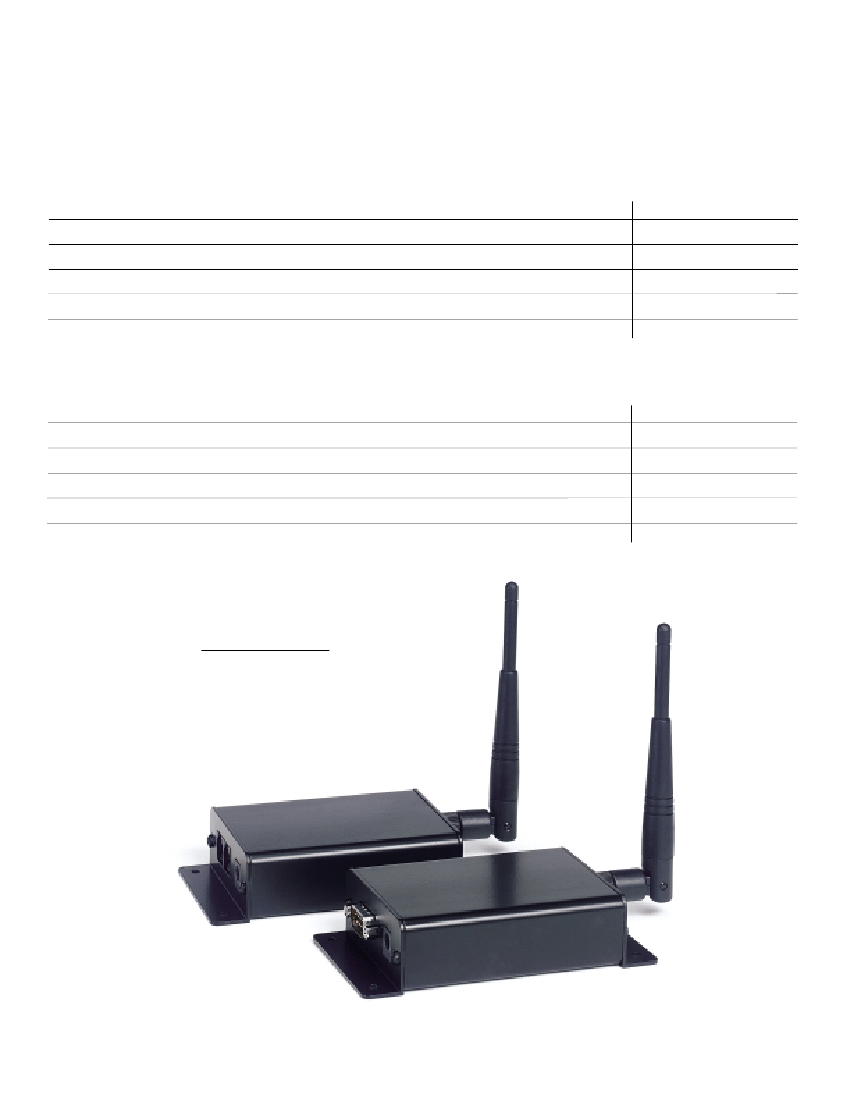

ConnexModem Industrial
™
2.4GHz MODEL:
ConnexLink stand-alone 200mW transceiver unit with standard RS232 (DB9 male) interface
ConnexLink stand-alone 200mW transceiver unit with standard RS485 (RJ11) interface
ConnexLink stand-alone 200mW transceiver unit with standard RS422 (RJ11) interface
ConnexModem “Starter Pack” includes one (1) ConnexModem unit and one (1) ConnexLink RS232 unit
ConnexModem “Starter Pack” includes one (1) ConnexModem unit and one (1) ConnexLink RS485 unit
ConnexModem “Starter Pack” includes one (1) ConnexModem unit and one (1) ConnexLink RS422 unit
PART NUMBER:
CL5124–200–232
CL5124–200–485
CL5124–200–422
CM5124–200–232–SP
CM5124–200–485–SP
CM5124–200–422–SP
900MHz MODEL:
ConnexLink stand-alone 1000mW transceiver unit with standard RS232 (DB9 male) interface
ConnexLink stand-alone 1000mW transceiver unit with standard RS485 (DB9 female) interface
ConnexLink stand-alone 1000mW transceiver unit with standard RS422 (DB9 female) interface
ConnexModem “Starter Pack” includes one (1) ConnexModem unit and one (1) ConnexLink RS232 unit
ConnexModem “Starter Pack” includes one (1) ConnexModem unit and one (1) ConnexLink RS485 unit
ConnexModem “Starter Pack” includes one (1) ConnexModem unit and one (1) ConnexLink RS422 unit
CL4490–1000–232
CL4490–1000–485
CL4490–1000–422
CM4490–1000–232–SP
CM4490–1000–485–SP
CM4490–1000–422–SP
Additional ConnexRF product lines for OEMs and
end-users are available. Contact your AeroComm
Representative for deatils, sales@aerocomm.com.
1 0 9 8 1
E i c h e r
D r i v e
•
L e n e x a ,
K a n s a s
6 6 2 1 9
•
P h o n e
9 1 3 . 4 9 2 . 2 3 2 0
•
F a x
9 1 3 . 4 9 2 . 1 2 4 3
