DATA SHEET
PHOTOCOUPLER
PS2534-1,-2,-4,PS2534L-1,-2,-4
PS2535-1,-2,-4,PS2535L-1,-2,-4
HIGH COLLECTOR TO EMITTER VOLTAGE
HIGH ISOLATION VOLTAGE
MULTI PHOTOCOUPLER SERIES
DESCRIPTION
The PS2534-1, -2, -4, PS2534L-1, -2, -4, PS2535-1, -2, -4 and PS2535L-1, -2, -4 are optically coupled isolators
containing a GaAs light emitting diode and an NPN silicon darlington connected phototransistor.
The PS2534-1, -2, -4 and PS2535-1, -2, -4 are in a plastic DIP (Dual In-line Package) and the PS2534L-1, -2, -4
and PS2535L-1, -2, -4 are lead bending type (Gull-wing) for surface mount.
−NEPOC
TM
Series−
FEATURES
• High collector to emitter voltage (V
CEO
= 300 V: PS2534-1, -2, -4, PS2534L-1, -2, -4)
(V
CEO
= 350 V: PS2535-1, -2, -4, PS2535L-1, -2, -4)
• High isolation voltage (BV = 5 000 Vr.m.s.)
• High current transfer ratio (CTR = 1 500 % TYP.)
• Ordering number of taping product:PS2534L-1-E3, E4, F3, F4, PS2534L-2-E3, E4
PS2535L-1-E3, E4, F3, F4, PS2535L-2-E3, E4
APPLICATIONS
• Telephone, Exchange equipment
• FAX/MODEM
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. P14066EJ2V0DS00 (2nd edition)
Date Published June 1999 NS CP(K)
Printed in Japan
The mark
•
shows major revised points.
©
1999
PS2534-1,-2,-4,PS2534L-1,-2,-4,PS2535-1,-2,-4,PS2535L-1,-2,-4

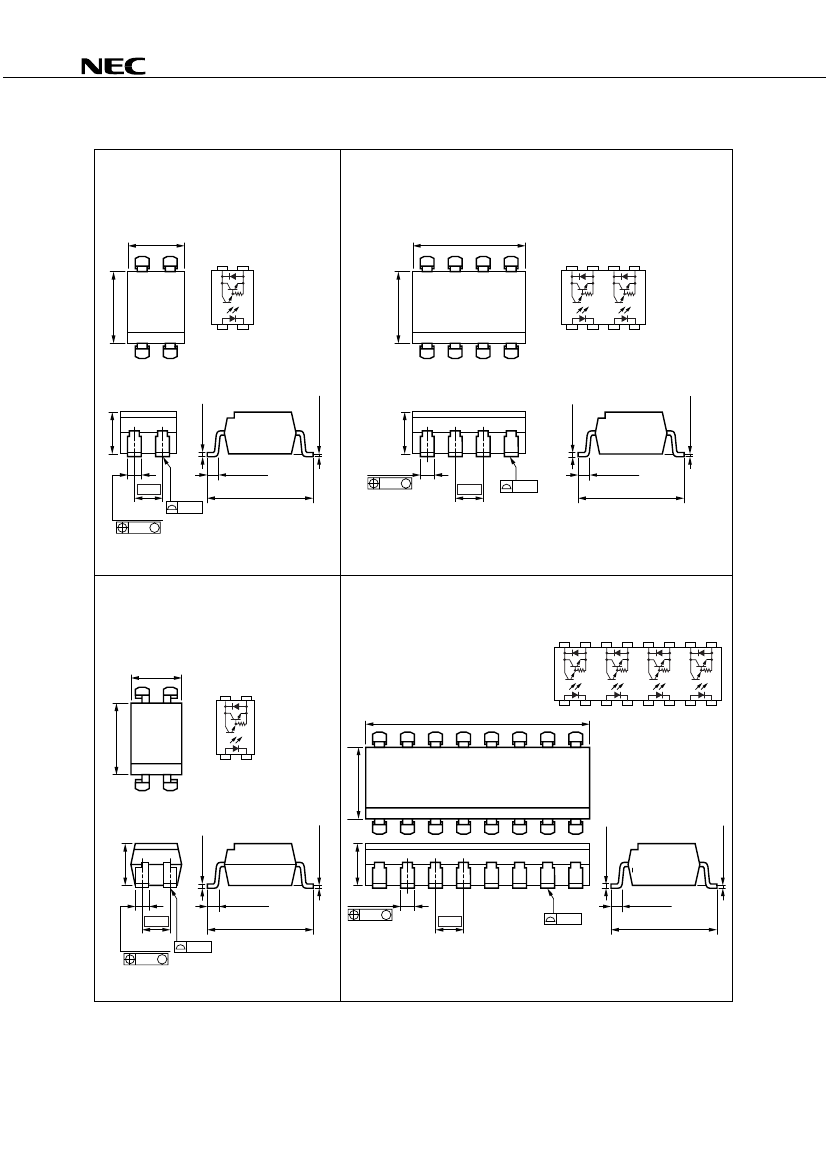

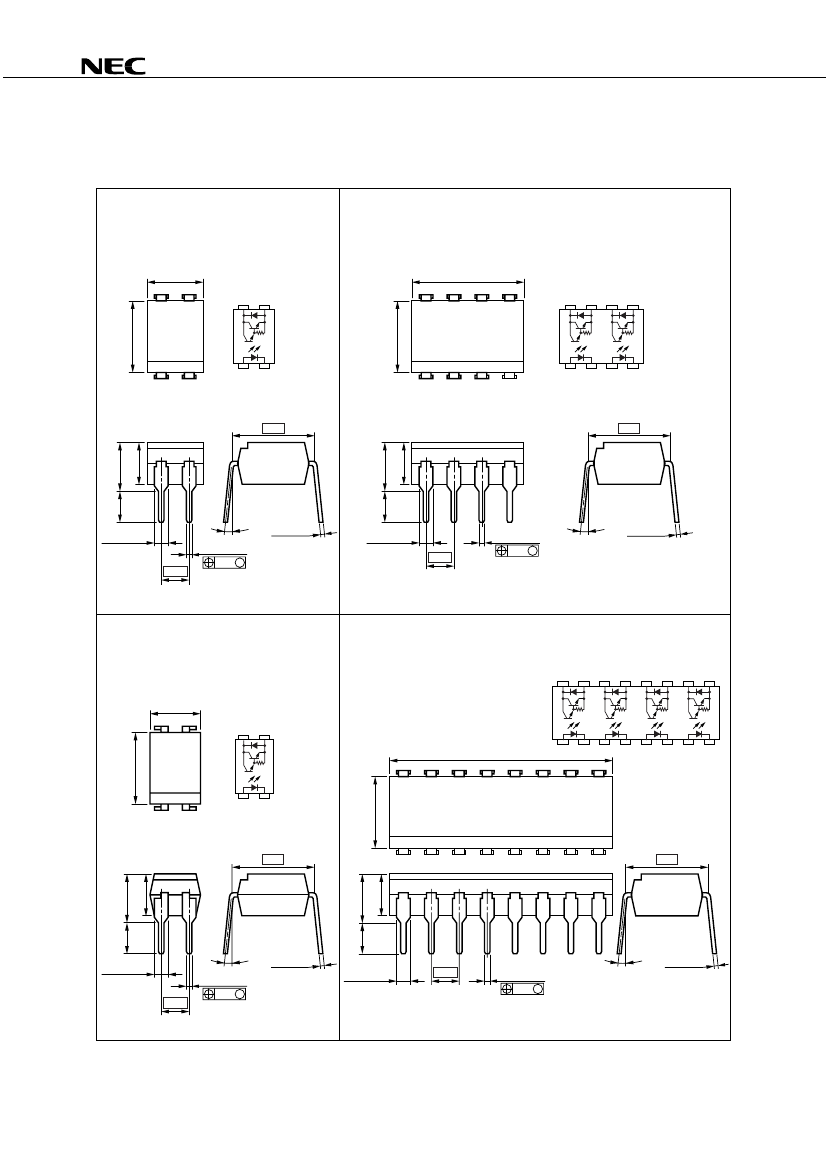

PACKAGE DIMENSIONS (in millimeters)
DIP type
PS2534-1
PS2535-1
PS2534-2
PS2535-2
4.6±0.5
4
6.5
+0.7
–0.5
TOP VIEW
3
1. Anode
2. Cathode
3. Emitter
4. Collector
1
2
6.5
+0.7
–0.5
9.7±0.5
8
7
TOP VIEW
6
5
1, 3. Anode
2, 4. Cathode
5, 7. Emitter
6, 8. Collector
1
2
3
4
7.62
3.3±0.5 4.15±0.4
3.3±0.5 4.15±0.4
3.5±0.3
3.5±0.3
7.62
1.25±0.15
0 to 15˚
+0.1
0.25
–0.05
0.50±0.10
0.25
M
2.54
1.25±0.15
2.54
0.50±0.10
0.25
M
0 to 15˚
0.25
+0.1
–0.05
PS2534-1
PS2535-1
PS2534-4
PS2535-4
16
15
TOP VIEW
14
13
12
11
10
9
4.6±0.35
4
6.5
+0.7
–0.5
TOP VIEW
3
1. Anode
2. Cathode
3. Emitter
4. Collector
1
2
6.5
+0.7
–0.5
19.8±0.5
1
2
3
4
5
6
7
8
1, 3, 5, 7.
2, 4, 6, 8.
9, 11, 13, 15.
10, 12, 14, 16.
Anode
Cathode
Emitter
Collector
7.62
3.2±0.4 4.15±0.4
3.3±0.5 4.15±0.4
3.5±0.3
3.5±0.3
7.62
1.25±0.15
0 to 15˚
0.25
+0.1
–0.05
0.50±0.10
0.25
M
2.54
0 to 15˚
0.25
+0.1
–0.05
2.54
0.50±0.10
0.25
M
1.25±0.15
2
Data Sheet P14066EJ2V0DS00
PS2534-1,-2,-4,PS2534L-1,-2,-4,PS2535-1,-2,-4,PS2535L-1,-2,-4

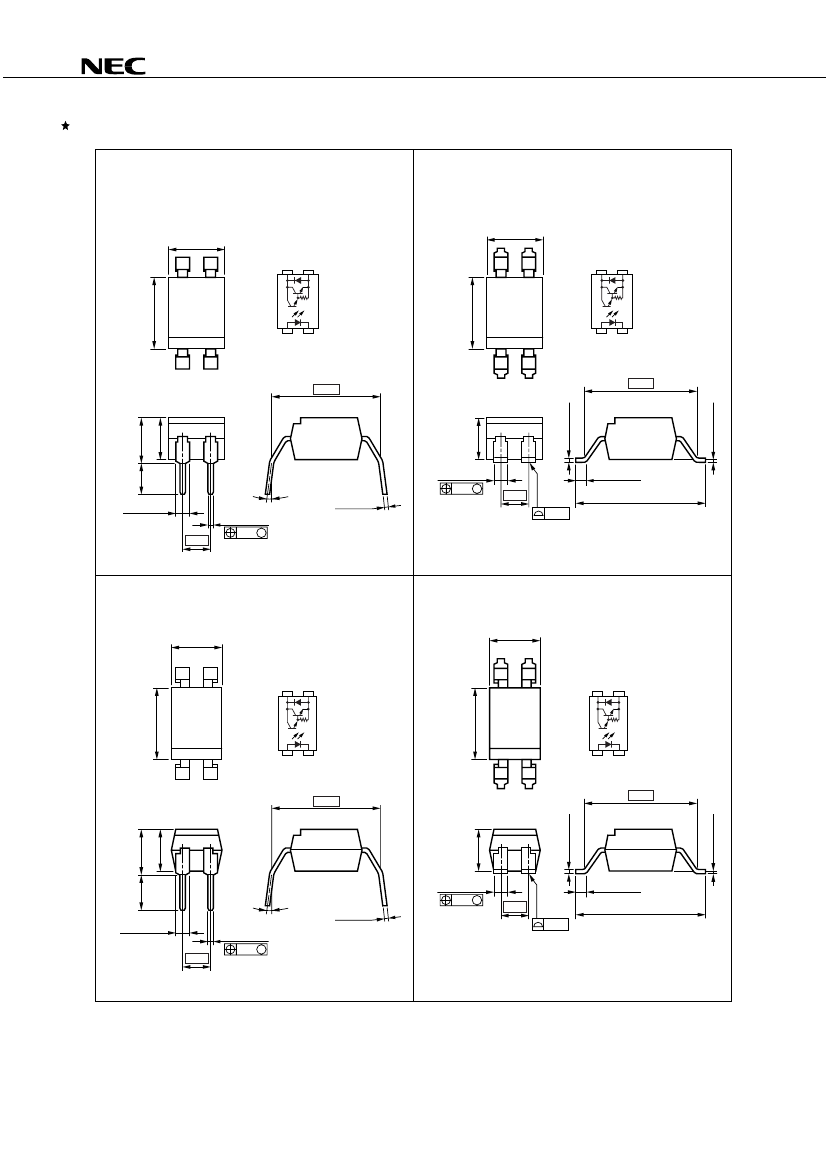

Lead bending type for long distance
PS2534L1-1
PS2535L1-1
4.6±0.5
4.6±0.5
4
PS2534L2-1
PS2535L2-1
TOP VIEW
3
1. Anode
2. Cathode
3. Emitter
4. Collector
1
2
4
TOP VIEW
3
1. Anode
2. Cathode
3. Emitter
4. Collector
1
2
+0.7
6.5
–0.5
6.5
–0.5
+0.7
10.16
0.25
+0.1
–0.05
10.16
0.25±0.2
3.15±0.35 3.85±0.4
3.5±0.3
3.5±0.3
0 to 15˚
0.50±0.10
0.25
M
1.25±0.15
0.25
M
0.25
+0.1
–0.05
0.9±0.25
2.54
0.25
11.8
+0.2
–0.5
1.25±0.15
2.54
PS2534L1-1
PS2535L1-1
4.6±0.35
PS2534L2-1
PS2535L2-1
4.6±0.35
TOP VIEW
4
6.5
+0.7
–0.5
TOP VIEW
4
3
1. Anode
2. Cathode
3. Emitter
4. Collector
1
2
10.16
0.25±0.2
0.25
+0.1
–0.05
6.5
+0.7
–0.5
3.5±0.3
3
1. Anode
2. Cathode
3. Emitter
4. Collector
1
2
10.16
3.15±0.35 3.85±0.4
3.5±0.3
0 to 15˚
0.50±0.10
0.25
M
2.54
1.25±0.15
0.25
M
0.25
+0.1
–0.05
0.9±0.25
2.54
0.25
11.8
+0.2
–0.5
1.25±0.15
4
Data Sheet P14066EJ2V0DS00
PS2534-1,-2,-4,PS2534L-1,-2,-4,PS2535-1,-2,-4,PS2535L-1,-2,-4
ORDERING INFORMATION
Part Number
PS2534-1
PS2534L-1
PS2534L-1-E3
PS2534L-1-E4
PS2534L-1-F3
PS2534L-1-F4
PS2534-2
PS2534L-2
PS2534L-2-E3
PS2534L-2-E4
PS2534-4
PS2534L-4
PS2535-1
PS2535L-1
PS2535L-1-E3
PS2535L-1-E4
PS2535L-1-F3
PS2535L-1-F4
PS2535-2
PS2535L-2
PS2535L-2-E3
PS2535L-2-E4
PS2535-4
PS2535L-4
16-pin DIP
Magazine case 20 pcs
PS2535-4
Embossed Tape 1 000 pcs/reel
8-pin DIP
Magazine case 45 pcs
PS2535-2
Embossed Tape 2 000 pcs/reel
Embossed Tape 1 000 pcs/reel
4-pin DIP
Magazine case 100 pcs
PS2535-1
16-pin DIP
Magazine case 20 pcs
PS2534-4
Embossed Tape 1 000 pcs/reel
8-pin DIP
Magazine case 45 pcs
PS2534-2
Embossed Tape 2 000 pcs/reel
Embossed Tape 1 000 pcs/reel
Package
4-pin DIP
Packing Style
Magazine case 100 pcs
Application Part Number
PS2534-1
*1
*1
For the application of the Safety Standard, following part number should be used.
Data Sheet P14066EJ2V0DS00
5
