EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-026-251
REV.:
1
3.0mm Round Type LED Lamps
PART NO. :
█
Features :
●
●
●
264-7UYOC/S530-A3
█
ECN :
Page:
1/4
Package Dimensions:
Choice of various viewing angles
Available on tape and reel.
Reliable and robust
█
Descriptions :
●
The series is specially designed for
applications requiring higher
brightness
●
The led lamps are available with
different colors, intensities,
epoxy colors, etc.
█
Applications :
●
TV set
●
Monitor
●
Telephone
●
Computer
PART NO.
Material
264-7UYOC/S530-A3
AlGaInP
█
Notes :
1. All dimensions are in millimeters.
2. An epoxy meniscus may extend about
1.5mm(0.059'') down to the lead.
3. Tolerances unless Dimension
±0.25mm.
Chip
Emitted Color
Yellow Orange
Water Clear
Lens Color
OFFICE : NO. 25,Lane 76,Sec.3, Chung Yang Rd., Tucheng 236, Taipei, Taiwan, R.O.C.
TEL
FAX
: 886-2-2267-2000,2267-9936
: 886-2-2267-6244,22676189,22676306
T01456,C90500120
http://www.everlight.com
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-026-251
REV.:
1
3.0mm Round Type LED Lamps
PART NO. :
█
264-7UYOC/S530-A3
ECN :
Page:
2/4
Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge
Power Dissipation
Peak Forward
Current(Duty 1/10 @
1KH
Z
)
Reverse Voltage
Symbol
I
F
Topr
Tstg
Tsol
ESD
Pd
I
F
(Peak)
V
R
Rating
25
-40 to +85
-40 to +100
260
±
5
2000
60
160
5
Unit
mA
℃
℃
℃
V
mW
mA
V
█
Electronic Optical Characteristics :
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
Symbol
Iv
2θ1/2
λp
λd
△λ
V
F
I
R
Min.
110.00
／
／
／
／
1.70
／
Typ.
200.00
40
611
605
17
2.00
／
Max.
／
／
／
／
／
2.40
10
Unit
mcd
deg
nm
nm
nm
V
μA
Condition
I
F=
20 mA
I
F=
20 mA
I
F=
20 mA
I
F=
20 mA
I
F=
20 mA
I
F=
20 mA
V
R
= 5 V
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-026-251 REV.:
1
3.0mm Round Type LED Lamps
PART NO. :
█
264-7UYOC/S530-A3
ECN :
Page:
3/4

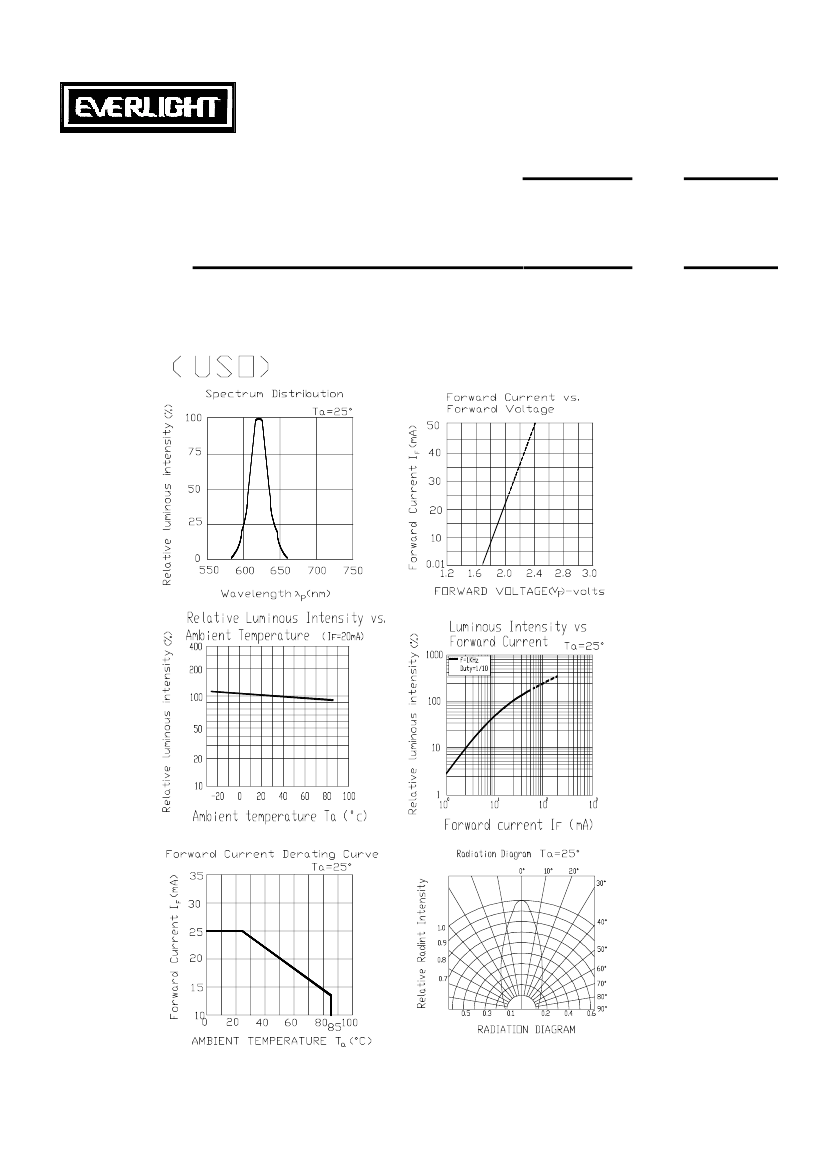

Typical Electro-Optical Characteristic Curves:
P
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-026-251
REV.:
1
3.0mm Round Type LED Lamps
PART NO. :
█
NO
1
264-7UYOC/S530-A3
ECN :
Page:
4/4
Reliability test items and conditions:
Item
Solder Heat
Test Conditions
TEMP : 260℃
±
5
℃
H : +85℃ 30min
∫
5 min
L : -55℃ 30min
H : +100℃ 5min
∫
10 sec
L : -10℃ 5min
TEMP : 100℃
Test
Sample
Ac/Re
Hours/Cycle
Size
5 SEC
76 PCS
0/1
2
Temperature Cycle
50 CYCLES 76 PCS
0/1
3
Thermal Shock
High Temperature
Storage
Low Temperature Storage
50 CYCLES 76 PCS
0/1
4
1000 HRS
76 PCS
0/1
5
TEMP : -55℃
TEMP : 25℃
I
F
= 20 mA
1000 HRS
76 PCS
0/1
6
DC Operating Life
1000 HRS
76 PCS
0/1
7
High Temperature /
High Humidity
85℃ / 85% RH
1000 HRS
76 PCS
0/1
