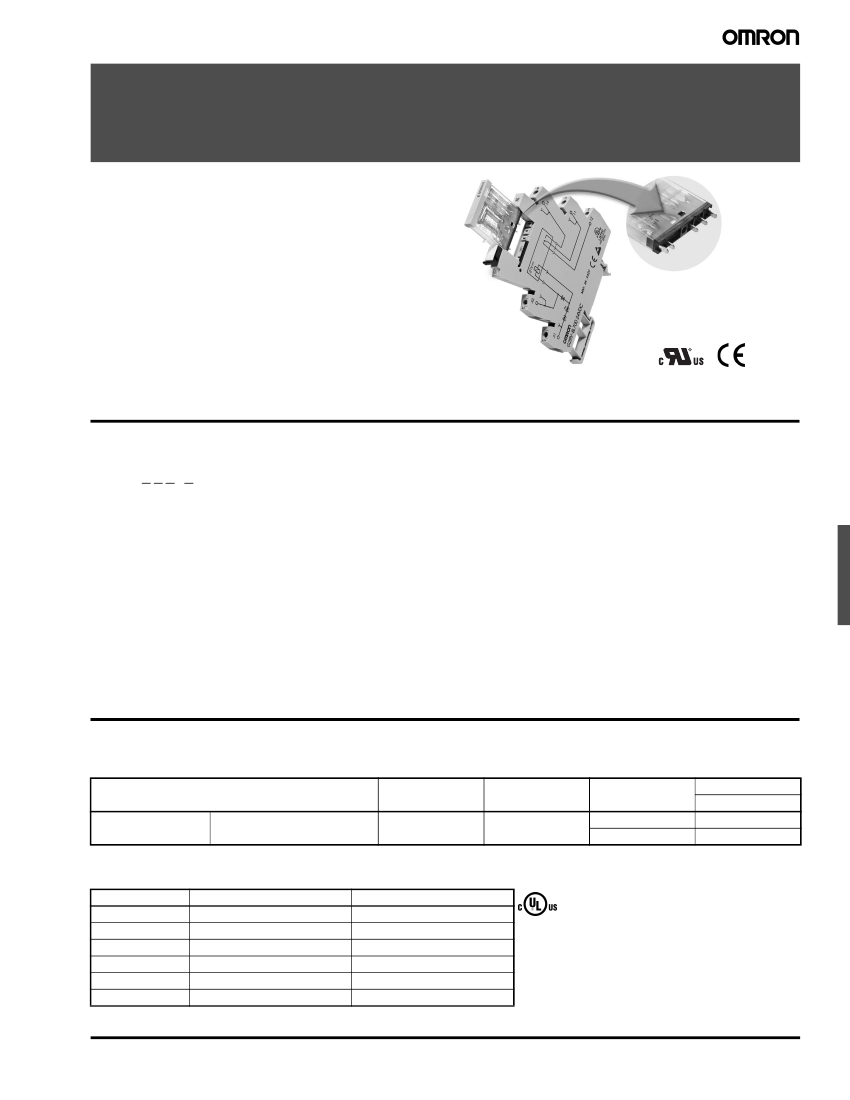

Slim Relay
G2RV
Industrial Slim Relay Rated at 6 Amps
• Large plug-in terminals for reliable connection.
• LED indicator, clear case, and mechanical flag allows easy
and immediate visual operation verification.
• Has a maximum switching voltage of 440 VAC.
• Slim outline to save space in high volume rack and PLC
applications.
• Low power consumption for system energy savings.
X
VDE
Model Number Structure
■
Model Number Legend
G2RV-SL
@ @ @
-
@
1 2 3 4 5
1. Auxiliary Type Designation
SL: Slim relay and socket combination
2. Wire Connection
7: Screw terminals
5: Push-in terminals
3. Relay LED
0: Without LED
4. Relay Pushbutton
0: Without pushbutton
5. Input Voltage
(Complete part numbers listed in the Relay and Socket
Combinations Chart below)
Note:
LED indicator standard feature on Socket.
Ordering Information
■
List of Models
Classification
Plug-in terminals
General-purpose
Enclosure rating
Unsealed
Input voltage
AC/DC
Type of
connection
Screw terminals
Push-in terminals
Contact form
SPDT
G2RV-SL700
G2RV-SL500
■
Relay and Socket Combinations
Input voltage
12 VDC
24 VDC
24 VAC/DC
48 VAC/DC
110 VAC
230 VAC
Screw terminals
G2RV-SL700-DC12(DC11)
G2RV-SL700-DC24(DC21)
G2RV-SL700-AC/DC24
G2RV-SL700-AC/DC48
G2RV-SL700-AC110
G2RV-SL700-AC230
Push-in terminals
G2RV-SL500-DC12(DC11)
G2RV-SL500-DC24(DC21)
G2RV-SL500-AC/DC24
G2RV-SL500-AC/DC48
G2RV-SL500-AC110
G2RV-SL500-AC230
LISTED
Note:
Relay and Socket Combinations
are
c
UL
us
listed.
Slim Relay
G2RV
235
Specifications
■
Coil Ratings @ 23°C
Rated voltage
Rated current
AC
50 Hz
12 VDC
24 VDC
24 VAC/DC
48 VAC/DC
110 VAC
230 VAC
---
---
21.1
8.5
7.1
7.3
---
---
22.5
9.0
7.5
7.9
60 Hz
27.2
13.3
13.0
5.2
---
---
80% max.
10% min.
---
---
0.5 VA
0.4 VA
0.8 VA
1.7 VA
DC
Operate
voltage
Release
voltage
Power consumption
AC (VA)
Approx.
DC (mW)
Approx.
300 mW
300 mW
300 mW
250 mW
---
---
Input voltage
% of rated
voltage
±10%
% of rated voltage
■
Contact Ratings
Number of poles
Load
Rated load
1 pole
Resistive load
(cos
φ
= 1)
2A at 400 VAC;
6 A at 250 VAC;
6 A at 30 VDC
6A
440 VAC, 125 VDC
6A
1,500 VA
180 W
500 VA
60 W
Inductive load
(cos
φ
= 0.4, L/R = 7 ms)
2 A at 250 VAC;
2 A at 30 VDC
Rated carry current
Max. switching voltage
Max. switching current
Max. switching power
Minimum permissible load
10 mA at 5 VDC : P level:
λ
60
= 0.1 x 10
-6
/operation
236
Slim Relay
G2RV
■
Characteristics
Item
Contact resistance
Operate (set) time
Release time
Max. operating frequency
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Life expectancy
100 mΩ max.
20 ms max.
40 ms max.
Mechanical: 18,000 operations/hr
Electrical: 1,800 operations/hr (under rated load)
1,000 MΩ min. (at 500 VDC)
4,000 VAC, 50/60 Hz for 1 min between coil and contacts
1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity
Destruction: 10 to 55 Hz, 1.0 mm double amplitude
Malfunction: 10 to 55 Hz, 1.0 mm double amplitude
Destruction: 1,000 m/s
2
(approx. 100G)
Malfunction: 100 m/s
2
(approx. 10G)
Mechanical: 5,000,000 operations min.
Electrical: 100,000 typical;
NO 70,000 operations min.;
NC 50,000 operations min.
Ambient temperature
Ambient humidity
Weight
Overvoltage category
Pollution degree
Operating: –40°C to 55°C (with no icing or condensation)
Operating: 5% to 85%
Approx. 35 g
III
2
1 pole
Note:
Data shown are of initial values.
Switching Timing
Model number
G2RV-SL7❏❏/5❏❏ DC12
G2RV-SL7❏❏/5❏❏ DC24
G2RV-SL7❏❏/5❏❏ AC/DC24
G2RV-SL7❏❏/5❏❏ AC/DC48
G2RV-SL7❏❏/5❏❏ AC110
G2RV-SL7❏❏/5❏❏ AC230
Operating time (typical)
5 ~ 7 ms
5 ~ 7 ms
5 ~ 7 ms
5 ~ 7 ms
12 ~ 15 ms
12 ~ 15 ms
Release time (typical
5 ~ 8 ms
5 ~ 8 ms
17 ~ 22ms
22 ~ 30 ms
22 ~ 30 ms
22 ~ 30 ms
■
Approved Standards
UL Recognized (File No. E41643) - - Ambient Temp. = 40°C
Model
G2RV-SL Series
Contact form
SPDT
Coil ratings
12 to 48 VDC
24 to 230 VAC
Contact ratings
250 VAC 6 A (Resistive Load)
30 VDC 6 A (Resistive Load)
400 VAC 2 A (Resistive Load)
6,000
Operations
IEC/VDE (EN 61810)
Contact form
1 pole
Coil ratings
12, 24 VDC
24, 48 VAC/DC
110, 230 VAC
Contact ratings
250 VAC 6 A (Res.)
30 VDC 6 A (Res.)
400 VAC 2 A (Res.)
50,000
50,000
6,000
Operations
Slim Relay
G2RV
237

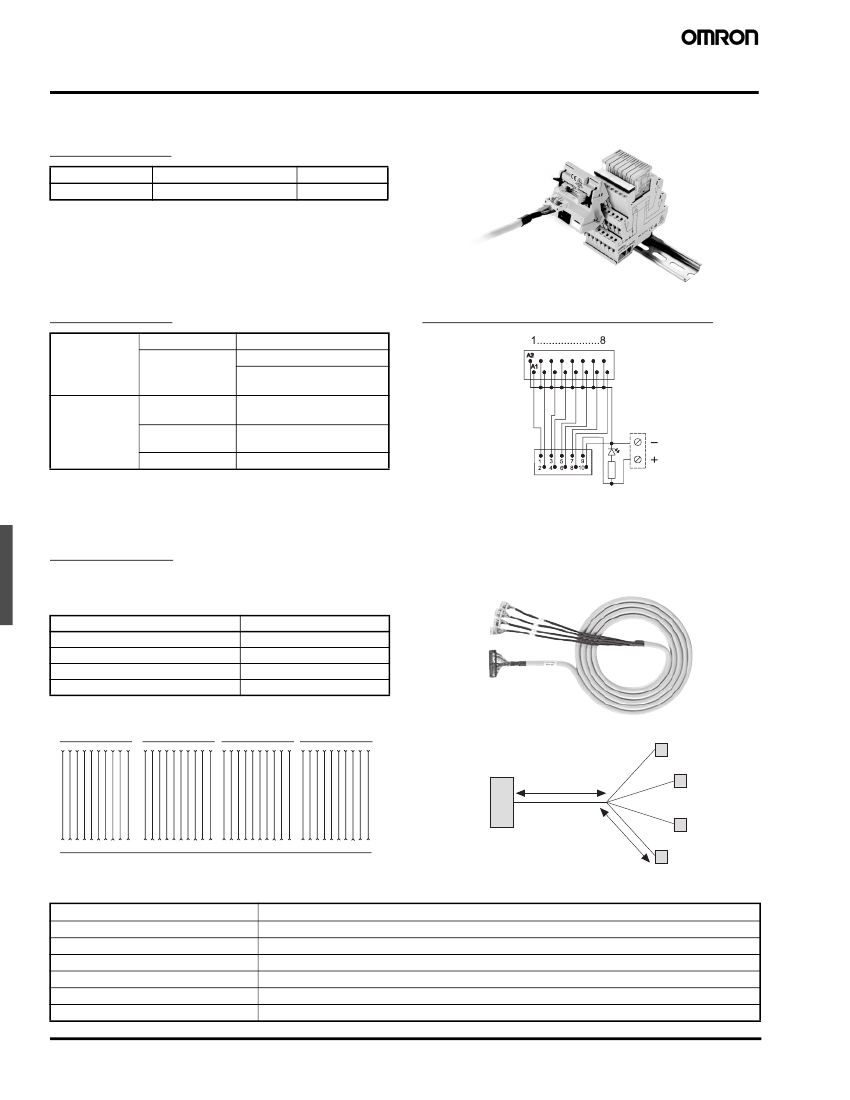

Accessories
■
PLC Interface (for G2RV-SL700 series only)
List of Models
Model number
P2RVC-8-O-F
Description
For output use
Connection
Flat cable
Specifications
Input
Rated voltage
30 VAC/VDC max.
2.0 A total current, power sup-
ply terminal
Characteristics Ambient
temperature
Overvoltage
category
Operating: 0 to 55°C
Storage:
−20
to 85°C
III
Current capacity
0.5 A per channel
Electrical schematic P2RVC-8-O-F
Pollution degree
2
■
Cables for PLC Interface P2RVC-8-O-F
P2RV-4-@@@C
Cable to connect CJ1 to 4 x P2RVC-8-O-F
40 pole IDC mounting to Omron PLC CJ1-OD232
List of Models
Model number
P2RV-4-100C
P2RV-4-200C
P2RV-4-300C
P2RV-4-500C
Cable length
1.0 m
2.0 m
3.0 m
5.0 m
4x10 pole IDC mounting to 4 x P2RVC-8-O-F
A
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10
0
B
B1 B2 B3 B4 B5 B6 B7 B8 B9 B10
0
C
C1 C2 C3 C4 C5 C6 C7 C8 C9 C10
D
D1 D2 D3 D4 D5 D6 D7 D8 D9 D10
A
Cable length as indictad
by model number.
@@@
= length in centimeters
B
40 Wire
C
40 38 36 34 32 30 28 26 22 24
39 37 35 33 31 29 27 25 21 23
20 18 16 14 12 10 8
6
2
4
19 17 15 13 11 9
7
5
1
3
Split into 4 sections
Length = 30 cm
D
Technical data
Control line
Diameter cable
Operating voltage
Continuous current per signal wire
Max. total current, 4 bytes, each
Test voltage
Operating temperature range
AWG26/0.14 mm
2
, tin-plated copper
10.6 mm (one end splits into 4 sections: A, B, C, D
60 VDC
0.5 A
1.0 A
0.5 KV, 50 Hz, 1 min
–20°C to +50°C
238
Slim Relay
G2RV

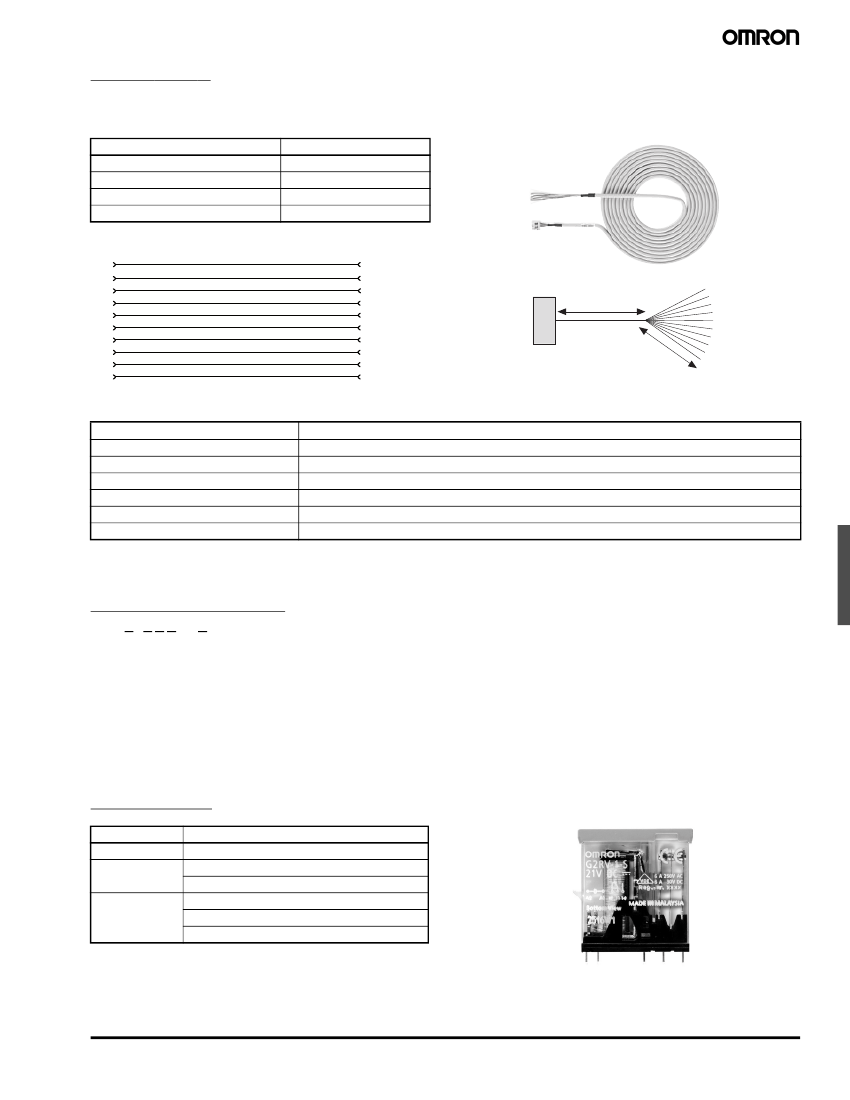

P2RV-A@@@C
Cable, single sided 10 pole IDC connector, to connect to P2RVC-8-O-F
List of Models
Model number
P2RV-A100C
P2RV-A200C
P2RV-A300C
P2RV-A500C
1.0 m
2.0 m
3.0 m
5.0 m
Cable length
10 pole IDC mounting to P2RVC-8-O-F
10
9
8
7
6
5
4
3
2
1
WHITE
GREY
PURPLE
Cable length as indictad
by model number.
@@@
= length in centimeters
Open end
BLUE
GREEN
YELLOW
ORANGE
RED
BROWN
BLACK
10 Wire
Outer isolation removed
Length = 30 cm
Technical data
Control line
Diameter cable
Operating voltage
Continuous current per signal wire
Max. total current
Test voltage
Operating temperature range
AWG26/0.14 mm
2
, tin-plated copper
6.8 mm
60 VDC
0.5 A
1.0 A
0.5 KV, 50 Hz, 1 min
–20°C to +50°C
■
Stand-Alone Relays for MRO and Reference
Model Number Legend
G2RV-@ -
@ @ @
DC@
5
1 2 3 4
1. Number of Poles
1: 1 pole
2. Terminals
S: Plug-In
3. Relay LED
Blank: Without LED
4. Contact Material
Blank: AgSnIn
5. Rated Coil Voltage
11, 21, 48
List of Models
Model number
G2RV-1-S DC11
G2RV-1-S DC21
G2RV-1-S DC48
Replacement for
G2RV-SL7@@/5@@ DC12(DC11)
G2RV-SL7@@/5@@ DC24(DC21)
G2RV-SL7@@/5@@ AC/DC24
G2RV-SL7@@/5@@ AC/DC48
G2RV-SL7@@/5@@ AC110
G2RV-SL7@@/5@@ AC230
Slim Relay
G2RV
239
