PS20341-G
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
Intellimod™ Module
Dual-In-Line Intelligent
Power Module
3 Amperes/500 Volts
A
D
G
J
DUMMY
PINS
28 27 26 25 24 23 22 21 20 19 18 17 16
29
30
15 14 13
12 11 10
9 8 7
6 5 4
3 2 1
H
K
L
Q
R
C
HEATSINK
SIDE
M
E
E
E
F
F
N
35
34
33
32
31
P
35°
B
P
S
AA DEEP
(5 PLACES)
V
X
Y
Z
AB
(2 PLACES)
W
H
Q
U
T
TERMINAL CODE
1 V
UFS
2 NC
3 V
UFB
4 V
P1
5 NC
6 U
P
7 V
VFS
8 NC
9 V
VFB
10 V
P1
11 NC
12 V
P
13 V
WFS
14 NC
15 V
WFB
16 V
P1
17 NC
18 W
P
19 NC
20 NC
21 U
N
22 V
N
23 W
N
24 F
O
25 C
FO
26 C
IN
27 V
NC
28 V
N1
29
30
31
32
33
34
35
NC
NC
P
U
V
W
N
Description:
DIP and mini-DIP IPMs are
intelligent power modules that
integrate power devices, drivers,
and protection circuitry in an ultra
compact dual-in-line transfer-mold
package for use in driving small
three phase motors. Use of 4th
generation IGBTs, DIP packaging,
and application specific HVICs
allow the designer to reduce
inverter size and overall design
time.
Features:
□
Compact Packages
□
Single Power Supply
□
Integrated HVICs
□
Direct Connection to CPU
□
Optimized for 5kHz Operation
Applications:
□
Washing Machines
□
Refrigerators
□
Air Conditioners
□
Small Servo Motors
□
Small Motor Control
Ordering Information:
PS20341-G is a 500V, 3 Ampere
Mini-DIP Intelligent Power
Module.

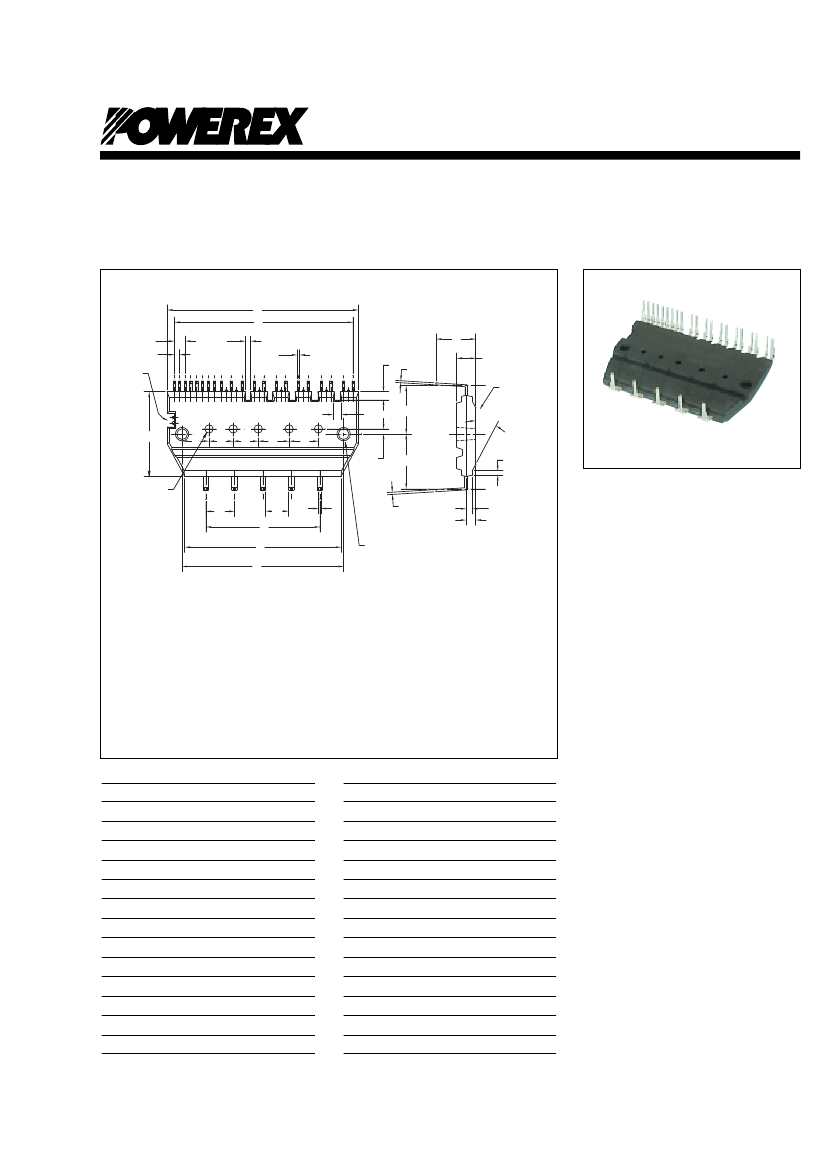

Outline Drawing and Circuit Diagram
Dimensions
A
B
C
D
E
F
G
H
J
K
L
M
N
Inches
1.93
1.20
0.20
1.82
0.25
0.32
0.14
0.04
0.07
0.02
0.06
0.07 Min.
0.30
Millimeters
49.0
30.5
5.0
46.23
6.25
8.0
3.556
1.0
1.778
0.5
1.5
1.8 Min.
0.75
Dimensions
P
Q
R
S
T
U
V
W
X
Y
Z
AA
AB
Inches
0.69
0.02
0.41
0.05
0.05
0.10
0.30
0.16 Min.
1.20
1.61
1.65
0.08 Dia.
0.13 Dia.
Millimeters
17.4
0.5
10.5
1.2
1.25
2.5
7.62
4.0 Min.
30.48
41.0
42.0
2.0 Dia.
3.3 Dia.
103
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
PS20341-G
Intellimod™ Module
Dual-In-Line Intelligent Power Module
3 Amperes/500 Volts
Absolute Maximum Ratings,
T
j
= 25°C unless otherwise specified
Characteristics
Power Device Junction Temperature*
Storage Temperature
Heatsink Temperature (See T
f
Measure Point Illustration)
Mounting Torque, M3 Mounting Screws
Module Weight (Typical)
Heatsink Flatness
Self-protection Supply Voltage Limit (Short Circuit Protection Capability)**
Isolation Voltage, AC 1 minute, 60Hz Sinusoidal, Connection Pins to Heatsink Plate
Symbol
T
j
T
stg
T
f
—
—
—
V
CC(prot.)
V
ISO
PS20341-G
-20 to 150
-40 to 125
-20 to 100
8.5
20
-50 to 100
330
1500
Units
°C
°C
°C
in-lb
Grams
µm
Volts
Volts
*The maximum junction temperature rating of the power chips integrated within the DIP-IPM is 150°C (@T
f
≤
100°C). However, to ensure safe operation of the DIP-IPM,
the average junction temperature should be limited to T
j(avg)
≤
125°C (@T
f
≤
100°C).
**V
D
= 13.5 ~ 16.5V, Inverter Part, T
j
= 125°C, Non-repetitive, Less than 2µs
IGBT Inverter Sector
Collector-Emitter Voltage
Collector Current,
±
(T
C
= 25°C)
Peak Collector Current,
±
(T
C
= 25°C, Instantaneous Value (Pulse))
Supply Voltage (Applied between P - N)
Supply Voltage, Surge (Applied between P - N)
Collector Dissipation (T
C
= 25°C, per 1 Chip)
V
CES
I
C
I
CP
V
CC
V
CC(surge)
P
C
500
3
6
350
400
17.8
Volts
Amperes
Amperes
Volts
Volts
Watts
Control Sector
Supply Voltage (Applied between V
P1
-V
NC
, V
N1
-V
NC
)
Supply Voltage (Applied between V
UFB
-V
UFS
, V
VFB
-V
VFS
, V
WFB
-V
WFS
)
Input Voltage (Applied between U
P
, V
P
, W
P
-V
NC
, U
N
, V
N
, W
N
-V
NC
)
Fault Output Supply Voltage (Applied between F
O
-V
NC
)
Fault Output Current (Sink Current at F
O
Terminal)
Current Sensing Input Voltage (Applied between C
IN
-V
NC
)
V
D
V
DB
V
CIN
V
FO
I
FO
V
SC
20
20
-0.5 ~ 5.5
-0.5 ~ V
D
+0.5
15
-0.5 ~ V
D
+0.5
Volts
Volts
Volts
Volts
mA
Volts
104
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
PS20341-G
Intellimod™ Module
Dual-In-Line Intelligent Power Module
3 Amperes/500 Volts
Electrical and Mechanical Characteristics,
T
j
= 25°C unless otherwise specified
Characteristics
Symbol
Test Conditions
Min.
Typ.
Max.
Units
IGBT Inverter Sector
Collector Cutoff Current
I
CES
V
EC
V
CE(sat)
t
on
t
rr
t
C(on)
t
off
t
C(off)
V
CE
= V
CES
, T
j
= 25°C
V
CE
= V
CES
, T
j
= 125°C
Diode Forward Voltage
Collector-Emitter Saturation Voltage
T
j
= 25°C, -I
C
= 3A, V
CIN
= 5V
I
C
= 3A, T
j
= 25°C, V
D
= V
DB
= 15V, V
CIN
= 0V
I
C
= 3A, T
j
= 125°C , V
D
= V
DB
= 15V, V
CIN
= 0V
Inductive Load Switching Times
V
CC
= 280V, V
D
= 15V,
I
C
= 3A,
T
j
= 125°C,
Inductive Load (Upper-Lower Arm),
V
CIN
= 5V(off), 0V(on)
—
—
—
—
—
0.10
—
—
—
—
—
—
1.90
1.40
1.50
0.55
0.10
0.15
1.10
0.65
1.0
10
2.60
1.90
2.05
1.05
—
0.55
2.40
1.55
mA
mA
Volts
Volts
Volts
µS
µS
µS
µS
µS
T
f
Measure Point
Al BOARD
CONTROL TERMINALS
18 mm
16 mm
GROOVE
Tf MEASURE
POINT
(INSIDE THE
Al BOARD)
N
FWDi CHIP
W
V
POWER
TERMINALS
U
P
IGBT CHIP
105
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
PS20341-G
Intellimod™ Module
Dual-In-Line Intelligent Power Module
3 Amperes/500 Volts
Electrical and Mechanical Characteristics,
T
j
= 25°C unless otherwise specified
Characteristics
Symbol
Test Conditions
Min.
Typ.
Max.
Units
Control Sector
Supply Voltage
V
D
V
DB
Circuit Current
I
D
Applied between V
P1
-V
NC
, V
N1
-V
NC
Applied between V
UFB
-V
UFS
,
V
VFB
-V
VFS
, V
WFB
-V
WFS
V
D
= 15V, V
CIN
= 5V, V
DB
= 15V,
Total of V
P1
-V
NC
, V
N1
-V
NC
V
D
= 15V, V
CIN
= 0V, V
DB
= 15V,
Total of V
P1
-V
NC
, V
N1
-V
NC
V
D
= 15V, V
CIN
= 5V, V
DB
= 15V,
V
UFB
-V
UFS
, V
VFB
-V
VFS
, V
WFB
-V
WFS
V
D
= 15V, V
CIN
= 0V, V
DB
= 15V,
V
UFB
-V
UFS
, V
VFB
-V
VFS
, V
WFB
-V
WFS
Fault Output Voltage
V
FOH
V
FOL
V
FO(sat)
PWM Input Frequency
Allowable Dead Time
f
PWM
t
DEAD
V
SC(ref)
UV
DBt
UV
DBr
UV
Dt
UV
Dr
Fault Output Pulse Width**
ON Threshold Voltage (H-side)
OFF Threshold Voltage (H-side)
ON Threshold Voltage (L-side)
OFF Threshold Voltage (L-side)
t
FO
V
th(on)
V
th(off)
V
th(on)
V
th(off)
Applied between U
N
, V
N
, W
N
-V
NC
V
SC
= 0V, F
O
Circuit: 10k
Ω
to 5V Pull-up
V
SC
= 1V, F
O
Circuit: 10k
Ω
to 5V Pull-up
V
SC
= 1V, I
FO
= 15mA
T
j
≤
125°C, T
f
≤
100°C
Relates to Corresponding Input Signal for
Blocking Arm Shoot-through (T
f
≤
100°C)
Short Circuit Trip Level*
Supply Circuit Under-voltage
T
j
= 25°C, V
D
= 15V*
Trip Level, T
j
≤
125°C
Reset Level, T
j
≤
125°C
Trip Level, T
j
≤
125°C
Reset Level, T
j
≤
125°C
C
FO
= 22nF
Applied between U
P
, V
P
, W
P
-V
NC
0.45
10.0
10.5
10.3
10.8
1.0
0.8
2.5
0.8
2.5
0.5
—
—
—
—
1.8
1.4
3.0
1.4
3.0
0.55
12.0
12.5
12.5
13.0
—
2.0
4.0
2.0
4.0
Volts
Volts
Volts
Volts
Volts
mS
Volts
Volts
Volts
Volts
4.9
—
0.8
—
3
—
0.8
1.2
5
—
—
1.2
1.8
—
—
Volts
Volts
Volts
kHz
µS
—
0.50
1.00
mA
—
0.50
1.00
mA
—
4.95
9.70
mA
—
4.25
8.50
mA
13.5
13.5
15.0
15.0
16.5
16.5
Volts
Volts
* Short Circuit protection operates only at the low-arms. Please select the value of the external shunt resistor such that the SC trip level is less than 5.1A.
**Fault signal is asserted when the low-arm short circuit or control supply under-voltage protective functions operate. The fault output pulse-width t
FO
depends on the capacitance value of
C
FO
according to the following approximate equation: C
FO
= (12.2 x 10
-6
) x t
FO
{F} .
106
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
PS20341-G
Intellimod™ Module
Dual-In-Line Intelligent Power Module
3 Amperes/500 Volts
Thermal Characteristics
Characteristic
Junction to Heatsink
Symbol
R
th(j-f)Q
R
th(j-f)D
Condition
Each IGBT
Each FWDi
Min.
—
—
Typ.
—
—
Max.
7.0
8.0
Units
°C/Watt
°C/Watt
Recommended Conditions for Use
Characteristic
Supply Voltage
Control Supply Voltage
Symbol
V
CC
V
D
V
DB
Control Supply dv/dt
Input ON Voltage
Input OFF Voltage
PWM Input Frequency
Arm Shoot-through Blocking Time
dV
D
/dt, dV
DB
/dt
V
CIN(on)
V
CIN(off)
f
PWM
t
DEAD
Applied between U
P
, V
P
, W
P
-V
NC
Applied between U
N
, V
N
, W
N
-V
NC
T
j
≤
125°C, T
f
≤
100°C
For Each Input Signal
—
3
5
—
Condition
Applied between P-N Terminals
Applied between V
P1
-V
NC
, V
N1
-V
NC
Applied between V
UFB
-V
UFS
,
V
VFB
-V
VFS
, V
WFB
-V
WFS
-1
—
1
0 ~ 0.65
4.0 ~ 5.5
—
—
V/µs
Volts
Volts
kHz
µS
Min.
0
13.5
13.5
Typ.
280
15.0
15.0
Value
330
16.5
16.5
Units
Volts
Volts
Volts
107
