MATRIX TRANSCEIVER MODULES
ZMXM-400 Series

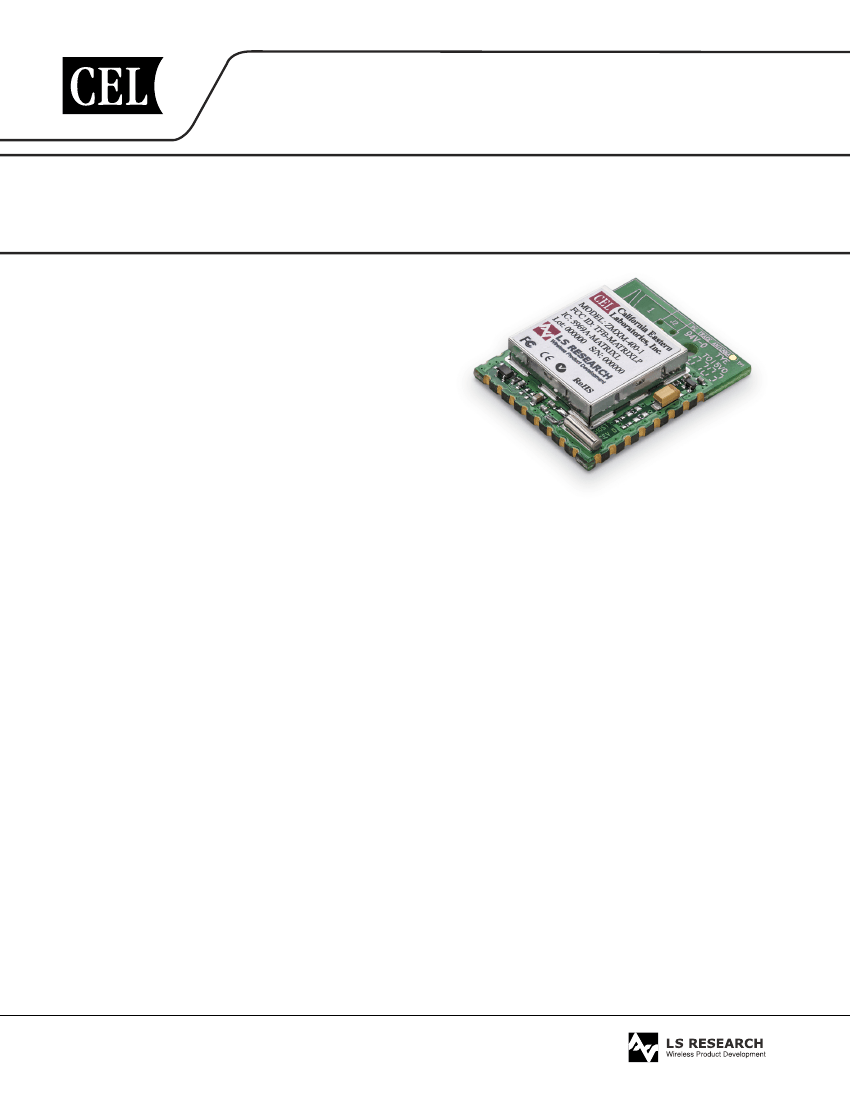

Integrated Transceiver Module for ZigBee / IEEE 802.15.4
Evaluation Kits available
DESCRIPTION
effective solution for data links and wireless networks. The module design is
based on the IEEE 802.15.4 standard and supports peer-to-peer, star,
and mesh networking. The Matrix module is offered with two trans-
mitter output power options, either 10mW or 100mW, providing for
The Matrix module is a 2.4 GHz IEEE 802.15.4 RF transceiver providing a cost-
enhanced range performance over standard IEEE 802.15.4/ZigBee
implementations with the integrated power amplifier. Additionally, each
module offers a Dynamic Power Configuration capability giving the ability to
imperative.
bypass the power amplifier for a 1mW power output when low power operation is
The Matrix module consists of the Texas Instruments CC2430, 10mW or 100mW Power Amplifier, and integrated PCB
trace antenna. The module has the option to be populated with a MMCX connector for use with an external cabled
ules provide the lowest cost, best in class performance, in a compact form factor.
antenna. The module is FCC, IC, and CE certified for fast and simple integration into end applications. The Matrix mod-
FEATURES
•
Supports LS Research or Z-Stack™ protocols
•
Miniature Footprint:
10mW ( 23.4 x 28.7 mm)
100mW (23.4 x 31.2 mm)
•
Integrated certified PCB trace antenna
•
Optional MMCX connector for external antenna
•
16 RF channels
(Channel 16 operates at reduced power levels)
•
Long Range:
10mW - up to 2000 feet
100mW - up to 4000 feet
•
Output power software controlled:
1mW - 10mW or
1mW - 100mW
•
17 General Purpose I/O ports
•
Windows® Based Test Tools
•
Serial UART interface
•
Lowest Power Consumption
•
Compliance Certification:
10mW - FCC (USA), IC (Canada), and CE (Europe) certification
100mW - FCC (USA) and IC (Canada) certification
•
RoHS compliant
The information in this document is subject to change without notice, please confirm data is current
Document No: 0004-00-07-00-000 (Issue C)
Date Published: December 4, 2009
ZMXM-400 Series
MATRIX MODULES ORDERING INFORMATION
Part Number
Order Number
Supplying Form
ZMXM-400 Series
ZMXM-400-1
ZMXM-400-1C
ZMXM-400-KIT-2
Matrix Module (10mW) with PCB Trace Antenna
Matrix Module (10mW) with optional MMCX Connector installed @ J2
Matrix Module (10mW) Evaluation Kit
Matrix Module (100mW) with PCB Trace Antenna
Matrix Module (100mW) with optional MMCX Connector installed @ J2
Matrix Module (100mW) Evaluation Kit
ZMXM-401 Series
ZMXM-401-1
ZMXM-401-1C
ZMXM-401-KIT-1
ABSOLUTE MAXIMUM RATINGS
Rating
Power Supply Voltage
Voltage on Any Digital Pin
RF Input Power
Storage Temperature Range
Value
3.6
V
DD
+ 0.3,
Max 3.6
+10
-45 to 125
Unit
Vdc
Vdc
dBm
ºC
Note:
Exceeding the maximum ratings may cause permanent damage to the module or devices.
Caution:
Matrix modules are sensitive to electrostatic discharge, observe precautions when handling.
OPERATING CONDITIONS
Characteristic
Power Supply Voltage (Vdd)
10mW
100mW
Input Frequency
Ambient Temperature Range
Logic Input Low Voltage
Logic Input High Voltage
2.1
2.4
2405
-40
0
70%
Vdd
25
3.3
3.3
3.6
3.6
2480
85
30% Vdd
Vdd
Vdc
Vdc
MHz
ºC
V
V
Min
Typ
Max
Unit
ZMXM-400 Series
ELECTRICAL SPECIFICATIONS
(@ 25 ºC, Vdd = 3.3V, unless otherwise noted)
Parameter
General Charcteristics
RF Frequency Range
RF Data Rate
Host Data Rate
Min
2400
Typ
Max
2483.5
Unit
MHz
kbps
kbps
kbps
kB
kB
250
10 mW
100 mW
Flash Memory
RAM
128
8
115.2
115.2
Power Consumption
Transmit Mode
10mW
100mW
10mW
100mW
10mW
100mW
50
130
33
33
5
5
mA
mA
mA
mA
μA
μA
Receive Mode
Standby Mode
Transmitter
Nominal Output Power
10mW
100mW
Nominal Output Power (DPS)
Programmable Output Power range
Error Vector Magnitude
10
20
-1
24
12
35
dBm
dBm
dBm
dB
%
Receiver
Module Sensitivity (1% PER)
Receiver Sensitivity (1% PER)
Saturation (Maximum Input Level) (1% PER)
0
-89
-92
10
dBm
dBm
dBm
Control AC Characteristics
RESET_N low pulse width
Interrupt request pulse width
2.5
31.25
ns
ns
Control DC Characteristics
Logic Input Low
Logic Input High
Logic Output Low
Logic Output High
I/O pin pull-up and pull-down resistor
0
VDD-0.25
0
VDD-0.25
17
0.7
VDD
0
VDD
20
0.9
VDD
0.25
VDD
23
V
V
V
V
kΩ
Note:
Please refer to the Texas Instruments CC2430 datasheet for further information and details regarding the
configuration of the I/O ports.
ZMXM-400 Series
PIN SIGNALS I/O PORT CONFIGURATION
PIN 1
PIN 24
Matrix modules have 24 edge I/O interfaces for connection to the host board.
Figure 1 shows the layout of the 24 edge castellations.
PIN 8
PIN 9
PIN 16
PIN 17
Figure 1
I/O PIN ASSIGNMENTS
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Name
GROUND
P0_2
P0_3
P0_4
P0_5
P0_6
P0_7
GROUND
MODE0
MODE1
MODE2
P1_7
P1_6
TXD
RXD
P1_3
GROUND
P1_1
P1_0
RESET
P0_0
P0_1
VDD
GROUND
Type
GND
DI/DO/AI
DI/DO/AI
DI/DO/AI
DI/DO/AI
DI/DO/AI
DI/DO/AI
GND
DI/DO
DI/DO
DI/DO
DI/DO
DI/DO
DI/DO
DI/DO
DI/DO
GND
DI/DO
DI/DO
DI
DI/DO/AI
DI/DO/AI
PI
GND
Ground
General Purpose Digital I/0 Port 0_2 or ADC input 2
General Purpose Digital I/0 Port 0_3 or ADC input 3
General Purpose Digital I/0 Port 0_4 or ADC input 4
General Purpose Digital I/0 Port 0_5 or ADC input 5
General Purpose Digital I/0 Port 0_6 or ADC input 6
General Purpose Digital I/0 Port 0_7 or ADC input 7
Ground
General Purpose Digital I/O Port 2_2 or Debug CLK
General Purpose Digital I/O Port 2_1 or Debug DATA (DD)
General Purpose Digital I/O Port 2_0
General Purpose Digital I/O Port 1_7
General Purpose Digital I/O Port 1_6
General Purpose Digital I/O Port 1_5 or Application Transmit Data Output
General Purpose Digital I/O Port 1_4 or Application Receive Data Input
General Purpose Digital I/O Port 1_3
Ground
General Purpose Digital I/O Port 1_1, 20mA drive capability
General Purpose Digital I/O Port 1_0, 20mA drive capability
Reset, active low
General Purpose Digital I/0 Port 0_0 or ADC input 0
Optional on-board Green LED
General Purpose Digital I/0 Port 0_1 or ADC input 1Optional on-board Red LED
Power Supply Input
Ground
Description
Unused I/O pins should be left unconnected and the pin state set via the Host Protocol.
DI = Digital Input
DO = Digital Output
AI = Analog Input
AO = Analog Output
PI = Power Input
GND = Ground
ZMXM-400 Series
ANTENNA
The Matrix module includes an integrated PCB trace antenna. An optional configuration with a MMCX connector is also
available. The module regulatory certification has been completed with the PCB trace antenna and also with a Nearson
(part# S131CL-5-RMM-2450S) dipole antenna on a 5 inch cable using the MMCX connection.
The integrated PCB antenna topology is an F-antenna. This antenna is used because it is reasonably compact, has a
fairly omni-directional radiation pattern, good efficiency, and is very simple. An adequate ground plane directly beneath the
module but not under the antenna is necessary to provide good efficiency.
The antenna radiation patterns are dependent upon the carrier board the Matrix module is placed upon. Measured
radiation patterns of the module alone are available by contacting LS Research.
The environment the module is placed in will dictate the range performance. The non-ideal characteristics of the
transmission channel result in the transmitted signal producing reflection, diffraction, and/or scattering. All of these factors
randomly combine to create extremely complex scenarios.
It is also best to keep some clearance between the antenna and nearby objects. This includes how the module is mounted
in the product enclosure. Unless the items on the following list of recommendations are met, the radiation pattern can be
heavily distorted.
• Never place ground plane or copper trace routing underneath the antenna.
• Never place the antenna very close to metallic objects.
• In the final product, ensure that any wiring or other components do not get too close to the antenna.
• The antenna will need a reasonable ground plane area on the mother board area to be efficient.
• Do not use a metallic enclosure or metallized plastic for the antenna.
• Try to keep any plastic enclosure greater than 1 cm from the antenna in any orientation.
POWER AMPLIFIER
Both variants of the Matrix modules contain a Power Amplifier. The Matrix 10 mW (ZMXM-400) has a maximum Power Out
of 10 mW, while the Matrix 100 mW has a maximum Power Out of 100 mW.
The Power Amplifier is controlled via the P1_2 General Purpose I/O (GPIO) of the Texas Instruments CC2430. As such, the
P1_2 GPIO needs to be configured as an output in the application source code to enable control the Power Amplifier.
When P1_2 drives LOW (i.e. logic level ‘0’) the Power Amplifier is disabled and maximum Power Out is 1 mW regardless
of module in use. When P1_2 drives HIGH (i.e. logic level ‘1’) the Power Amplifier is enabled and maximum Power Out is
either 10 mW or 100 mW depending upon which variant of the Matrix module is in use. Intermediate power level settings
(i.e. between 1 mW and 10 or 100 mW) may be achieved by enabling the power amplifier and then varying the Power Out
of the CC2430.
