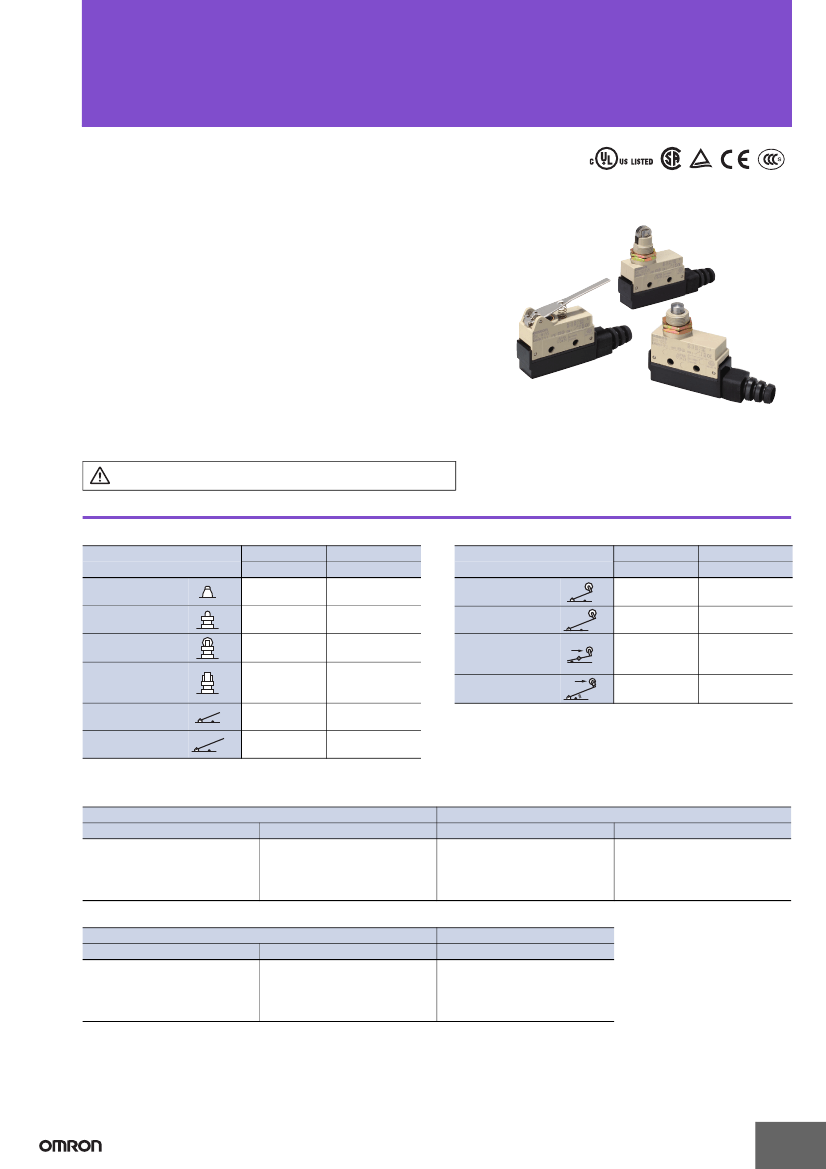

Enclosed Switch
SHL
Compact, General-purpose Horizontal
Switches.
Models for Microloads Added to Series
•
Approved by EN, UL, CSA, and CCC (Chinese standard).
(Ask your OMRON representative for information on approved
models.)
•
Incorporates a switch with a durable coil spring in a tough, high-
precision case.
•
Compact and uses a single basic switch for applications where
strength is required.
•
Models for microloads and models with operation indicators
added to series.
•
Terminal protective cover can be switched to wire cable from
either the left or right.
•
Sealing characteristics that meet IEC IP67 degree of protection.
Be sure to read
Safety Precautions
on page 7 and
Safety Precautions for All
Limit Switches.
CSM_SHL_DS_E_2_1
Ordering Information
Switches
Type
Actuator
Plunger
Panel mount
plunger
Panel mount roller
plunger
Panel mount
crossroller
plunger
Short hinge lever
Hinge lever
Standard
Model
SHL-D55
SHL-Q55
SHL-Q2255
Micro load
Model
SHL-D55-01
SHL-Q55-01
SHL-Q2255-01
Type
Actuator
Short hinge roller
lever
Hinge roller lever
One-way action
short hinge roller
lever
One-way action
hinge roller lever
Standard
Model
SHL-W255
SHL-W2155
Micro load
Model
SHL-W255-01
SHL-W2155-01
SHL-W355
SHL-W355-01
SHL-Q2155
SHL-Q2155-01
SHL-W3155
SHL-W3155-01
SHL-W55
SHL-W155
SHL-W55-01
SHL-W155-01
Note: Models are also available with molded terminals and with molded
terminals and operation indicators. Refer to page 6.
Switches (Molded Terminal Models)
Without Operation Indicator, Lead Wired on Right
Standard
Model
SHL-D55-MR
SHL-Q55-MR
SHL-Q2155-MR
SHL-Q2255-MR
SHL-W55-MR
Micro load
Model
Model
SHL-D55-01MR
SHL-Q55-01MR
SHL-Q2155-01MR
SHL-Q2255-01MR
SHL-W55-01MR
Model
SHL-W255-01MR
SHL-W2155-01MR
SHL-W155-MR
SHL-W255-MR
SHL-W2155-MR
SHL-W355-MR
Without Operation Indicator, Lead Wired on Left
Standard
Model
SHL-D55-ML
SHL-Q2155-ML
SHL-Q2255-ML
SHL-W55-ML
SHL-W155-ML
Model
SHL-W255-ML
SHL-W2155-ML
Micro load
Model
SHL-Q2255-01ML
SHL-W2155-01ML
1
SHL
Without Operation Indicator, Lead Wired from Bottom
Standard
Model
SHL-D55-MD
SHL-Q55-MD
SHL-Q2155-MD
SHL-Q2255-MD
SHL-W55-MD
Model
SHL-W155-MD
SHL-W255-MD
SHL-W2155-MD
SHL-W355-MD
Micro load
Model
SHL-Q2255-01MD
Operation Indicator, Lead Wired on Right
Standard
Model
SHL-D55-LMR
SHL-Q55-LMR
SHL-Q2155-LMR
SHL-Q2255-LMR
SHL-W155-LMR
SHL-W255-LMR
SHL-W2155-LMR
SHL-D55-L2MR
SHL-Q2255-L2MR
SHL-D55-L3MR
SHL-Q55-L3MR
SHL-Q2155-L3MR
Model
SHL-Q2255-L3MR
SHL-W155-L3MR
SHL-W255-L3MR
SHL-W2155-L3MR
SHL-D55-L4MR
SHL-Q55-L4MR
SHL-Q2155-L4MR
SHL-Q2255-L4MR
SHL-W255-L4MR
SHL-W2155-L4MR
SHL-W355-L4MR
Micro load
Model
SHL-Q2255-01LMR
SHL-W255-01LMR
SHL-D55-01L3MR
SHL-Q2155-01L3MR
SHL-Q2255-01L3MR
SHL-Q2155-01L4MR
SHL-Q2255-01L4MR
SHL-W255-01L4MR
SHL-W2155-01L4MR
Operation Indicator, Lead Wired on Left
Standard
Model
SHL-Q55-LML
SHL-Q2255-LML
SHL-W155-LML
SHL-W255-LML
SHL-W2155-LML
SHL-Q55-L2ML
SHL-Q2255-L3ML
Model
SHL-W55-L3ML
SHL-W155-L3ML
SHL-W255-L3ML
SHL-Q2255-L4ML
SHL-W155-L4ML
Micro load
Model
SHL-W255-01LML
SHL-W2155-01LML
SHL-Q2255-01L3ML
SHL-W255-01L4ML
Operation Indicator, Lead Wired from Bottom
Standard
Model
SHL-Q2255-LMD
SHL-W255-LMD
SHL-Q55-L3MD
Model
SHL-Q2255-L4MD
SHL-W255-L4MD
SHL-W2155-L4MD
Micro load
Model
SHL-Q55-01LMD
SHL-Q2255-01L4MD
Specifications
Approved Standards
Agency
UL
CSA
T
Ü
V Rheinland
CCC (CQC)
Standard
UL508
CSA C22.2
No. 14
EN60947-5-1
GB14048.5
File No.
E76675
LR45746
J50062486
2003010305072162
Approved models
General-purpose models listed on
page 1.
All SHL models listed in this
datasheet.
Ask your OMRON representative for
information on approved models.
2
SHL
Ratings
Rated
voltage
125 VAC
250 VAC
480 VAC
8 VDC
14 VDC
30 VDC
125 VDC
250 VDC
Inrush
current
Non-inductive load (A)
Resistive
Lamp load
load
NC
NO
NC
NO
10
1.5
10
1.5
2
−
10
2
10
2
5
1.5
0.4
0.4
0.2
0.2
NC
NO
15 A max.
15 A max.
Inductive load (A)
Inductive
Motor load
load
NC
NO
NC
NO
3
2.5
2
1.5
−
−
5
2
5
2
1.5
1.5
0.05
0.05
0.03
0.03
Approved Standard Ratings
TÜV (EN60947-5-1), CCC (GB14048.5)
Model
SHL-@55
SHL-@55-01
SHL-@55-L
SHL-@55-01L
SHL-@55-01L2
SHL-@55-L3
SHL-@55-01L3
SHL-@55-L4
SHL-@55-01L4
SHL-@55-L5
Category and rating
AC-15 2 A/125 V
DC-12 2 A/48 V
AC-14 0.1 A/125 V
DC-12 0.1 A/48 V
AC-15 2 A/125 V
AC-14 0.1 A/125 V
DC-12 0.1 A/12 V
DC-12 2 A/24 V
DC-12 0.1 A/24 V
DC-12 2 A/24 V
DC-12 0.1 A/24 V
DC-12 2 A/48 V
I the
5A
5A
0.5 A
0.5 A
5A
0.5 A
0.5 A
5A
0.5 A
5A
0.5 A
5A
0.5 A
Note: 1. The above figures are for steady-state currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time
constant of 7 ms max. (DC).
3. Lamp load has an inrush current of 10 times the steady-state current.
4. Motor load has an inrush current of 6 times the steady-state current.
Micro load models
Rated
voltage
125 VAC
8 VDC
14 VDC
30 VDC
Non-inductive load (A)
Resistive load
NC
NO
0.1
0.1
0.1
0.1
SHL-@55-01L5
DC-12 0.1 A/48 V
Note: "AC-15 2 A/125 V" indicates the following.
Application category: AC-16
Rated operating current (Ie): 2 A
Rated operating voltage (Ue): 125 V
UL/CSA
A300
Rated
voltage
120 VAC
240 VAC
Carry
current
10 A
Current (A)
Make
Break
60
6
30
3
Volt-amperes (V)
Make
Break
7,200
720
Characteristics
(For SHL-W155)
Degree of protections
Mechanical
Durability
Electrical
Operating speed
Mechanical
Operating
frequency
Electrical
Rated frequency
Insulation resistance
Contact resistance
Between terminals of the
same polarity
Dielectric strength Between each terminal and
non-current-carrying metal
part
Rated insulation voltage (Ui)
Pollution degree (operating environment)
Short-circuit protective device (SCPD)
Conditional short-circuit current
Conventional enclosed thermal current (I
the
)
Protection against electric shock
OFF reverse voltage
Vibration resistance Malfunction
Destruction
Shock
resistance
Malfunction
Ambient operating temperature
Ambient operating humidity
Weight
IP67 (EN60947-5-1)
10,000,000 operations min.
500,000 operations min.
0.1 mm/s to 0.5 m/s (hinge lever models)
120 operations/min
30 operations/min
50/60 Hz
100 MΩ min. (at 500 VDC)
15 mΩ max. (initial value for the built-in switch when
tested alone)
1,000 VAC, 50/60 Hz for 1 min
2,000 VAC, 50/60 Hz for 1 min/Uimp at 2.5 kV
(EN60947-5-1)
150 V (EN60947-5-1)
3 (EN60947-5-1)
10 A fuse type gI or gG (IEC60269)
100 A (EN60947-5-1)
5 A (EN60947-5-1)
Class II (grounding not required with double insulation)
1,000 VAC max., 300 VDC max. (EN60947-5-1)
10 to 55 Hz, 1.5-mm double amplitude
1,000 m/s
2
min.
300 m/s
2
min.
−10°C
to +80°C (with no icing)
35% to 95%RH
Approx. 62 to 72 g
Engineering Data
Electrical Durability
(Ambient temperature: +5°C to +35°C,
Ambient humidity: 40% to 50%RH)
Durability (x 10
4
operations)
1,000
700
500
300
Operating frequency:
30 operations/min.
(cos dia. = 1)
250 VAC
100
70
50
30
10
7
5
3
1
0
1
2
3
4
5
6
7
8
9
10
Switching current (A)
Structure and Nomenclature
Structure
Movable plunger
Note: 1. The figures at the left are initial values.
2. The ratings at the left may vary depending on
the model. Contact your OMRON
representative for further details.
*1. The head section of the plunger type SHL-D(Q)@@ is
excluded.
*2. Durability values are calculated at an operating
temperature of +5°C to +35°C, and an operating
humidity of 40% to 70%RH.
*3. The values are for the plunger-type models.
Contact Form
(COM) 1
2 (NC)
4 (NO)
Rubber cap (NBR)
Die-cast case
(zinc die-cast)
Seal rubber (NBR)
Terminal protection cover
Screw terminal
Seal packing (NBR)
3
SHL

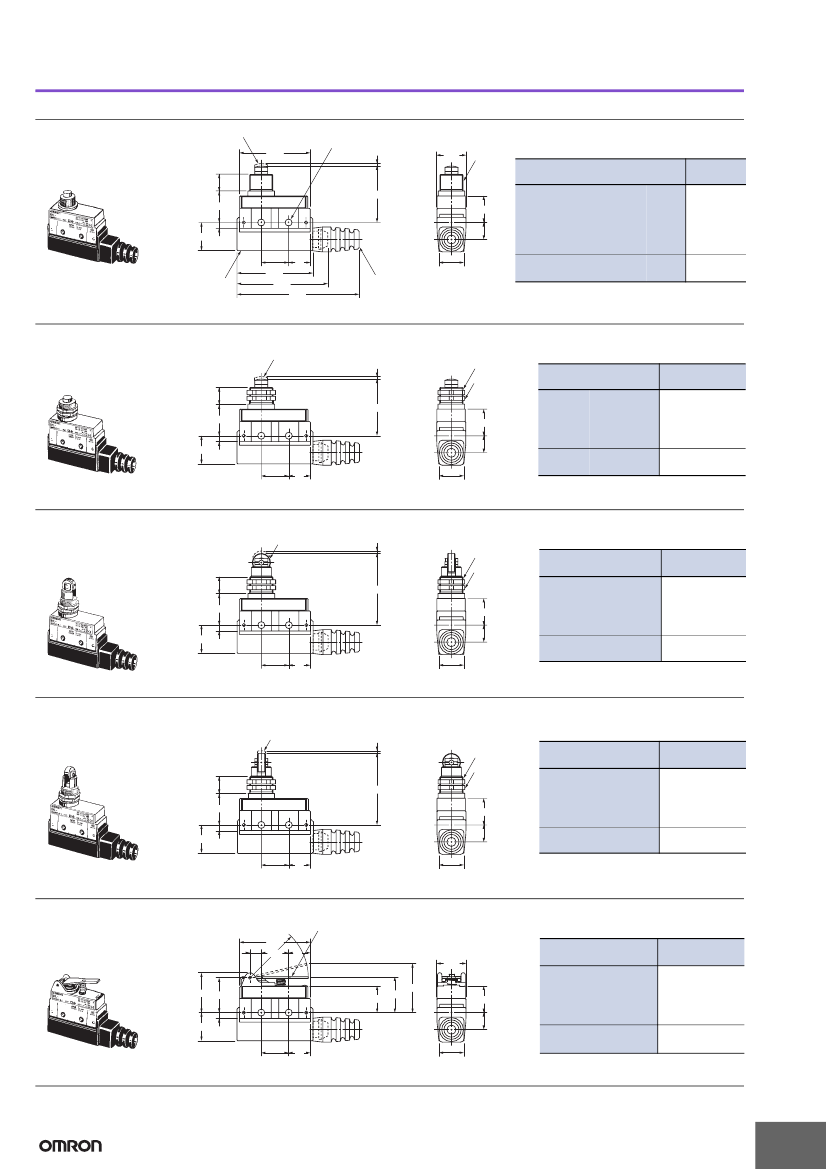

Dimensions and Operating Characteristics
Switches
Plunger
SHL-D55
SHL-D55-01
10
OP
19
16
9.6
3.5
16.5
±
0.2
45.6
54.6
73.5
* Stainless steel pin plunger
13
Rubber seal
(Unit: mm)
(Note: Omitted dimensions are the same as those of the plunger models.)
7.8 dia. *
42.5
Two, 4.2 dia.
holes
PT
17.5
M14
×
1
Operating Characteristics
Operating force
Release force
Pretravel
Overtravel
Movement
Differential
Free Position
Operating Position
OF
RF
PT
OT
MD
FP
OP
Model SHL-D55
SHL-D55-01
max.
min.
max.
min.
max.
max.
9.81 N
1.96 N
1.5 mm
2 mm
0.5 mm
−
34±0.8 mm
16.9
15
×
15
Terminal
protective
cover
Panel Mount Plunger
SHL-Q55
SHL-Q55-01
10
7.8 dia. *
PT
M14
×
1
Two hexagon
nut
(thickness: 2.5,
width: 17)
OP
19
16
9.6
3.5
13
* Stainless steel pin plunger
Model SHL-Q55
Operating Characteristics SHL-Q55-01
OF
RF
PT
OT
MD
FP
OP
max.
min.
max.
min.
max.
max.
9.81 N
1.96 N
1.5 mm
2 mm
0.5 mm
−
34±0.8 mm
16.9
16.5
±
0.2
15
×
15
Panel Mount Roller Plunger
SHL-Q2255
SHL-Q2255-01
10
19
11 dia.
×
4.7 *
PT
M14
×
1
Two hexagon
nut
(thickness: 2.5
width: 17)
16
9.6
Model SHL-Q2255
Operating Characteristics SHL-Q2255-01
OF
RF
PT
OT
MD
FP
OP
max.
min.
max.
min.
max.
max.
9.81 N
1.96 N
1.5 mm
2 mm
0.5 mm
−
43±0.8 mm
OP
16.9
3.5
13
* Stainless sintered alloy roller
16.5
±
0.2
15
×
15
Panel Mount Crossroller Plunger
SHL-Q2155
SHL-Q2155-01
10
19
11 dia.
×
4.7 *
PT
M14
×
1
Two hexagon
nut
(thickness: 2.5
width: 17)
16
9.6
Model SHL-Q2155
Operating Characteristics SHL-Q2155-01
OF
RF
PT
OT
MD
FP
OP
max.
min.
max.
min.
max.
max.
9.81 N
1.96 N
1.5 mm
2 mm
0.5 mm
−
43±0.8 mm
OP
16.9
3.5
13
* Stainless sintered alloy roller
16.5
±
0.2
15
×
15
Short Hinge Lever
SHL-W55
SHL-W55-01
35R
6.8
42.5
16.5
13
t=1*
17.5
Model SHL-W55
Operating Characteristics SHL-W55-01
OF
RF
PT
OT
MD
max.
min.
max.
min.
max.
max.
3.14 N
0.78 N
8 mm
3 mm
2.5 mm
29.5 mm
21.5±1 mm
24
FP
21
16
OP
16
9.6
3.5
13
* Stainless steel lever
16.9
FP
OP
16.5
±
0.2
15
×
15
Note: Unless otherwise specified, a tolerance of
±0.4
mm applies to all dimensions.
4
SHL

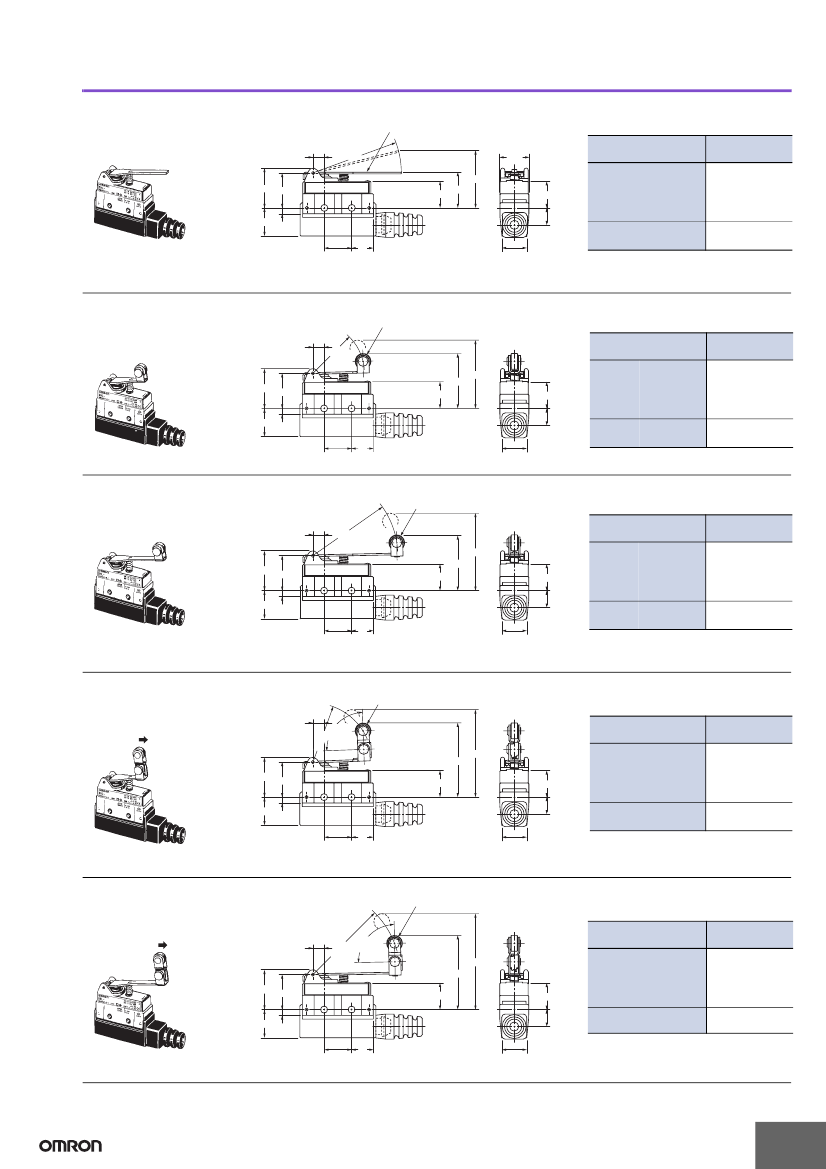

Hinge Lever
SHL-W155
SHL-W155-01
t=1*
6.8
53R
17.5
FP
Model HL-W155
Operating Characteristics SHL-W155-01
OF
RF
PT
OT
MD
max.
min.
max.
min.
max.
max.
2.35 N
0.44 N
13 mm
5 mm
4 mm
34.5 mm
21.5±1 mm
24
21
16
OP
16
9.6
16.9
3.5
13
* Stainless steel lever
FP
OP
15
×
15
16.5
±
0.2
Short Hinge Roller Lever
SHL-W255
SHL-W255-01
9.5 dia.
×
4.8 *
6.8
31
R
Model SHL-W255
Operating Characteristics SHL-W255-01
FP
OP
24
21
16
16
9.6
OF
RF
PT
OT
MD
max.
min.
max.
min.
max.
max.
3.92 N
0.78 N
8 mm
3 mm
2.5 mm
41 mm
33±1 mm
16.9
3.5
13
* Sintered stainless roller
FP
OP
16.5
±
0.2
15
×
15
Hinge Roller Lever
SHL-W2155
SHL-W2155-01
9.5 dia.
×
4.0 *
6.8
51
R
Model SHL-W2155
Operating Characteristics SHL-W2155-01
FP
OP
24
21
16
16
9.6
OF
RF
PT
OT
MD
max.
min.
max.
min.
max.
max.
2.55 N
0.49 N
13 mm
5.5 mm
4 mm
46.5 mm
33.5±1 mm
16.9
3.5
13
* Sintered stainless roller
FP
OP
16.5
±
0.2
15
×
15
One-way Action Short Hinge Roller Lever
SHL-W355
6.8
SHL-W355-01
35.5
9.5 dia.
×
4.0 *
Operating direction
R
90°
Model SHL-W355
Operating Characteristics SHL-W355-01
FP
OP
24
21
16
16
9.6
OF
RF
PT
OT
MD
max.
min.
max.
min.
max.
max.
3.92 N
0.78 N
8 mm
3 mm
2.5 mm
52.5 mm
44.5± 1 mm
16.9
3.5
13
* Stainless sintered roller
FP
OP
16.5
±
0.2
15
×
15
One-way Action Hinge Roller Lever
SHL-W3155
SHL-W3155-01
.5
9.5 dia.
×
4.0 *
Operating direction
R
6.8
52
90
°
FP
OP
Model SHL-W3155
Operating Characteristics SHL-W3155-01
OF
RF
PT
OT
MD
FP
OP
max.
min.
max.
min.
max.
max.
2.55 N
0.49 N
13 mm
5.5 mm
4 mm
57.5 mm
44.5±1 mm
24
21
16
16
9.6
16.9
3.5
13
* Stainless sintered roller
16.5
±
0.2
15
×
15
Note: Unless otherwise specified, a tolerance of
±0.4
mm applies to all dimensions.
5
京公网安备 11010802033920号
EEWORLD
