Solid State Relays
G3R/G3RD
Refer to
Warranty and Application Considerations
(page 1),
Safety
Precautions
(page 4), and
Technical and Safety Information
(page 6).
Compact SSRs Ideal for Built-in Applications
• Vertical, compact SSRs with an operation indicator offered in
versatile variations.
• High dielectric strength of 2,500 VAC for 2-A models.
• High-voltage DC version also available.
• Certified by UL and CSA.
Model Number Structure
■
Model Number Legend
G3R-@@@@@-@
1
2 3 4 5 6
7
5. Isolation Method
Blank:
Phototriac/photocoupler isolation with zero cross
function
L:
Phototriac/photocoupler isolation without zero cross
function
6. Operation Indicator
N:
Equipped with operation indicator
7. Certification
US:
Certified by UL and CSA
1. Basic Model Name
G3R:
Solid State Relay
2. Rated Load Power Supply Voltage
1:
100 VAC
2:
200 VAC
3. Rated Load Current
02:
2A
4. Terminal Type
P:
PCB terminals
G3RD-@@@@-@
1
2
3 4 5 6
7
5. Terminal Type
P:
PCB terminals
6. Operation Indicator
N:
Equipped with operation indicator
7. Certification
US:
Certified by UL and CSA
1. Basic Model Name
G3R:
Solid State Relay
2. Rated Output Load
D:
Switches DC loads
3. Rated Load Power Supply Voltage
1:
100 VDC
X:
50 VDC
4. Rated Load Current
01:
1.5 A
02:
2A
Solid State Relays
G3R/G3RD
245
Ordering Information
■
List of Models
Terminals
PCB
Isolation
Phototriac
Zero cross
function
Yes
No
Yes
No
Photocoupler
---
Yes
Indicator
Yes
Rated output load
2 A at 100 to 120 VDC
(See note 1.)
2 A at 100 to 240 VAC
(See note 2.)
1.5 A at 5 to 110 VDC
2 A at 4 to 48 VDC
(See note 3.)
Note: 1.
2.
3.
4.
Product is labelled “125 VAC”.
Product is labelled “250 VAC”.
Product is labelled “50 VDC”.
When ordering, specify the rated input voltage.
Rated input voltage
5, 12, 24 VDC
Model
G3R-102PN-US
G3R-102PLN-US
G3R-202PN-US
G3R-202PLN-US
G3RD-101PN-US
G3RD-X02PN-US
Specifications
■
Ratings (at an Ambient Temperature of 25°C)
Input (AC Output With Zero Cross Function)
Model
G3R-102PN-US
G3R-202PN-US
Rated voltage
5 VDC
12 VDC
24 VDC
Operating voltage
4 to 6 VDC
9.6 to 14.4 VDC
19.2 to 28.8 VDC
Impedance
250
Ω±
20%
600
Ω±
20%
1.5 k
Ω±
20%
3.5 VDC max.
8.4 VDC max.
16.8 VDC max.
Voltage level
Must operate voltage
Must release voltage
0.375 VDC min.
0.9 VDC min.
1.8 VDC min.
Input (AC Output Without Zero Cross Function, DC Output)
Model
G3R-102PLN-US
G3R-202PLN-US
G3RD-X02PN-US
G3RD-101PN-US
Rated voltage
5 VDC
12 VDC
24 VDC
Operating voltage
4 to 6 VDC
9.6 to 14.4 VDC
19.2 to 28.8 VDC
Impedance
300
Ω±
20%
750
Ω±
20%
1.5 k
Ω±
20%
3.5 VDC max.
8.4 VDC max.
16.8 VDC max.
Voltage level
Must operate voltage
Must release voltage
0.375 VDC min.
0.9 VDC min.
1.8 VDC min.
Output
Model
G3R-102PN-US
G3R-102PLN-US
G3R-202PN-US
G3R-202PLN-US
G3RD-X02PN-US
G3RD-101PN-US
Rated load voltage
Load voltage range
100 to 120 VAC
100 to 240 VAC
4 to 48 VDC
5 to 110 VDC
75 to 132 VAC
75 to 264 VAC
3 to 52.8 VDC
3 to 125 VDC
Applicable load
Load current
0.1 to 2 A
0.1 to 2 A
0.01 to 2 A
0.01 to 1.5 A
8 A (10 ms)
2.5 A (10 ms)
Inrush current
30 A (60 Hz, 1 cycle)
246
Solid State Relays
G3R/G3RD
■
Characteristics
Item
Operate time
G3R-102PLN-US
1 ms max.
G3R-102PN-US
G3R-202PLN-US
G3R-202PN-US
1/2 of load power
source cycle + 1 ms
max.
G3RD-X02PN/-101PN-US
1 ms max.
1 ms max.
1/2 of load power
source cycle + 1 ms
max.
Release time
Output ON voltage
drop
Leakage current
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Ambient temperature
Certified standards
Ambient humidity
Weight
1/2 of load power source cycle + 1 ms max.
1.6 V (RMS) max.
2 mA max. (at 100 VAC)
100 M
Ω
min. (at 500 VDC)
2,500 VAC, 50/60 Hz for 1 min
Malfunction: 10 to 55 to 10 Hz, 0.75-mm single amplitude
Malfunction: 1,000 m/s
2
Operating: –30
°
C to 80
°
C (with no icing or condensation)
Storage: –30
°
C to 100
°
C (with no icing or condensation)
UL508 File No. E64562, CSA C22.2 (No. 14) File No. 35535
Operating: 45% to 85%
Approx. 18 g
2 mA max. (at 100 VAC)
5 mA max. (at 200 VAC)
1 ms max.
1.5 V max.
0.1 mA max. (at 50 VDC)
0.1 mA max. (at 125 VDC)
2,500 VAC, 50/60 Hz
for 1 min

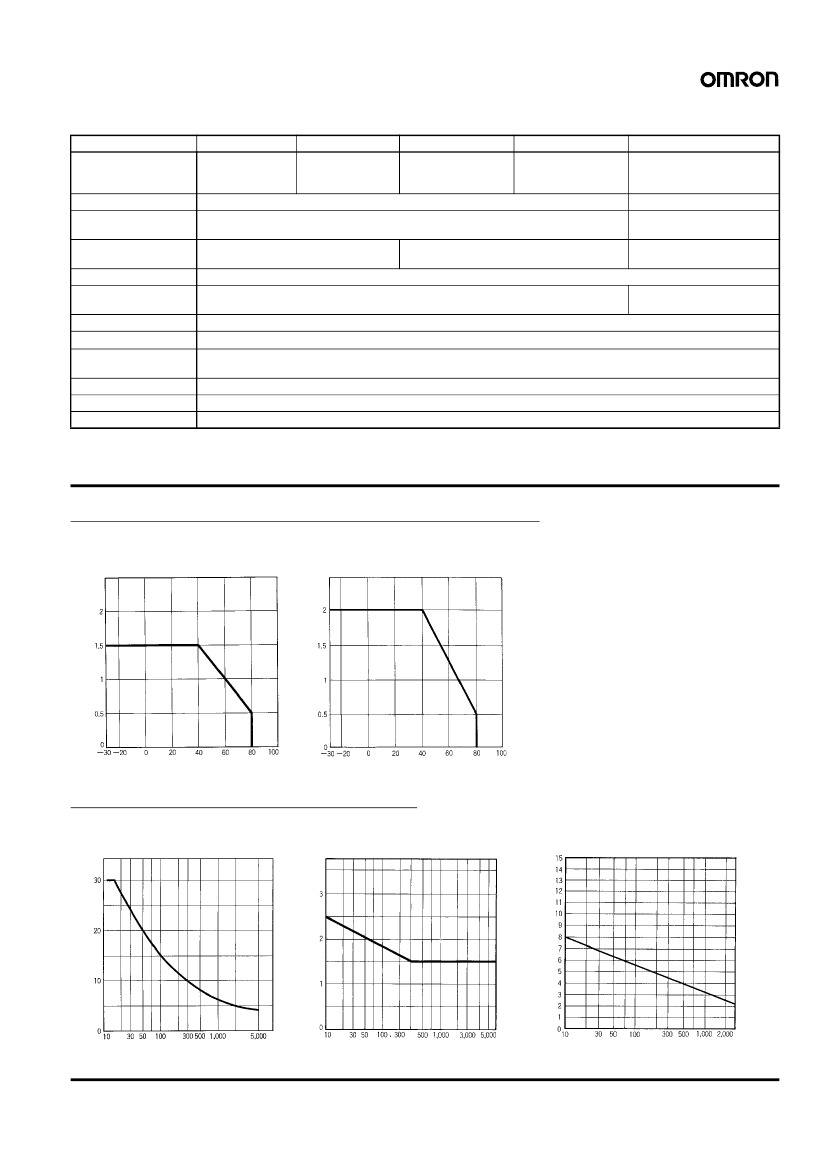

Engineering Data
Load Current vs. Ambient Temperature Characteristics
1-A Load Model
G3RD-101PN-US
2-A Load Model
G3R-102@-US, G3RD-X02@-US, G3R-202@-US
Load current (A)
Load current (A)
Ambient temperature (°C)
Ambient temperature (°C)
One Cycle Surge Current: Non-repetitive
Non-repetitive (Keep the inrush current to half the rated value if it occurs repetitively.)
G3R-102@-US/-202@-US
Inrush current (A. Peak)
Inrush current (A. Peak)
G3RD-101PN-US
G3RD-X02@-US
Energized time (ms)
Energized time (ms)
Inrush current (A)
Energized time (ms)
Solid State Relays
G3R/G3RD
247

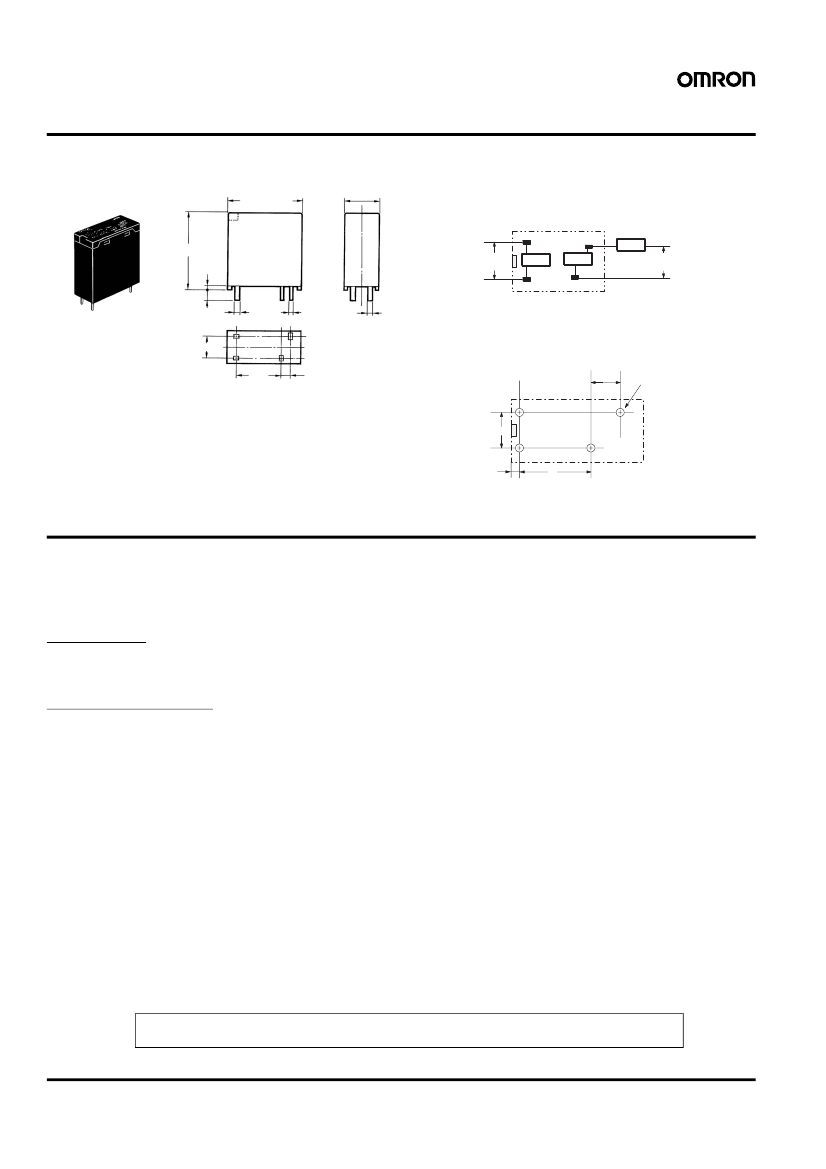

Dimensions
Note:
All units are in millimeters unless otherwise indicated.
G3R-102P@-US/-202P@-US
G3RD-101PN-US/-X02PN-US
29mm max.
13mm max.
Terminal Arrangement/
Internal Connections
(Bottom View)
−
−
1
Input
+
5
3
+
Load
Load power
supply
−
29mm max.
(0.3)
Input
voltage
+
+
Load
−
4
4
1
0.5
1
Note:
The plus and minus symbols shown in
the parentheses are for DC loads.
Mounting Holes
7.5
20.0
3.5
3.5
Four 1.3-dia. holes
7.5
(2.1)
20
Safety Precautions
■
Precautions for Correct Use
Please observe the following precautions to prevent failure to
operate, malfunction, or undesirable effect on product performance.
Connection
The SSR for DC switching a surge can connect to a load regardless
of the polarity of the positive and negative output terminals.
Protective Terminal
For AC inductive loads, connect the load terminals of the SSR to a
surge absorber (varistor).
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. K059-E1-05
In the interest of product improvement, specifications are subject to change without notice.
