MGN2C-DC48

Description
General/industrial relay power relay (deltrol #23627-73)
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size400KB,6 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

MGN2C-DC48 Online Shopping

Suppliers Part Number Price MOQ In stock
MGN2C-DC48 - - View Buy Now

MGN2C-DC48 Overview

General/industrial relay power relay (deltrol #23627-73)

MGN2C-DC48 Parametric

Parameter NameAttribute value
MakerAll Sensors
Product CategoryGeneral/Industrial Relays
RoHSyes
Contact form2 Form C
coil voltage48 VDC
Contact rating30 A at 28 VDC / 240 VAC
Contact terminationScrew
Power consumption2 W
Coil typeNon-Latching

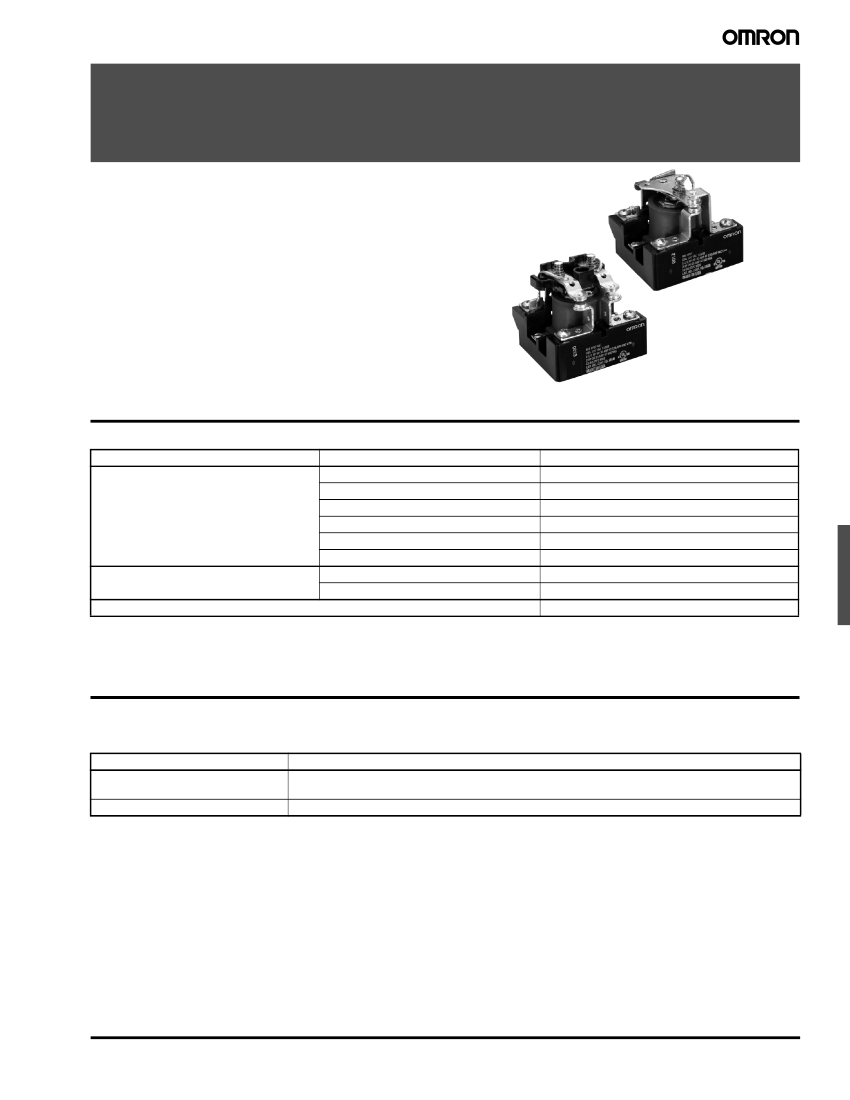

Heavy Duty Power Relay
MGN
30 Amp Heavy Duty Relay
• Class F coil insulation system for 155°C (311°F)
®
• Coil molded in DuPont Rynite for environmental
protection
• Rugged construction rivets terminals to base
C
UL
US
Listed
• Short Circuit Current Rating (SCCR) of 5kA, 600VAC
u u
c
Ordering Information
To Order: Select part number and add the desired coil voltage rating (e.g. MGN1C-AC24)
Base size
Short
Contact Form
SPDT
SPST-NO
SPST-NO-DM
SPST-NO
SPST-NC
DPST-NO
Long

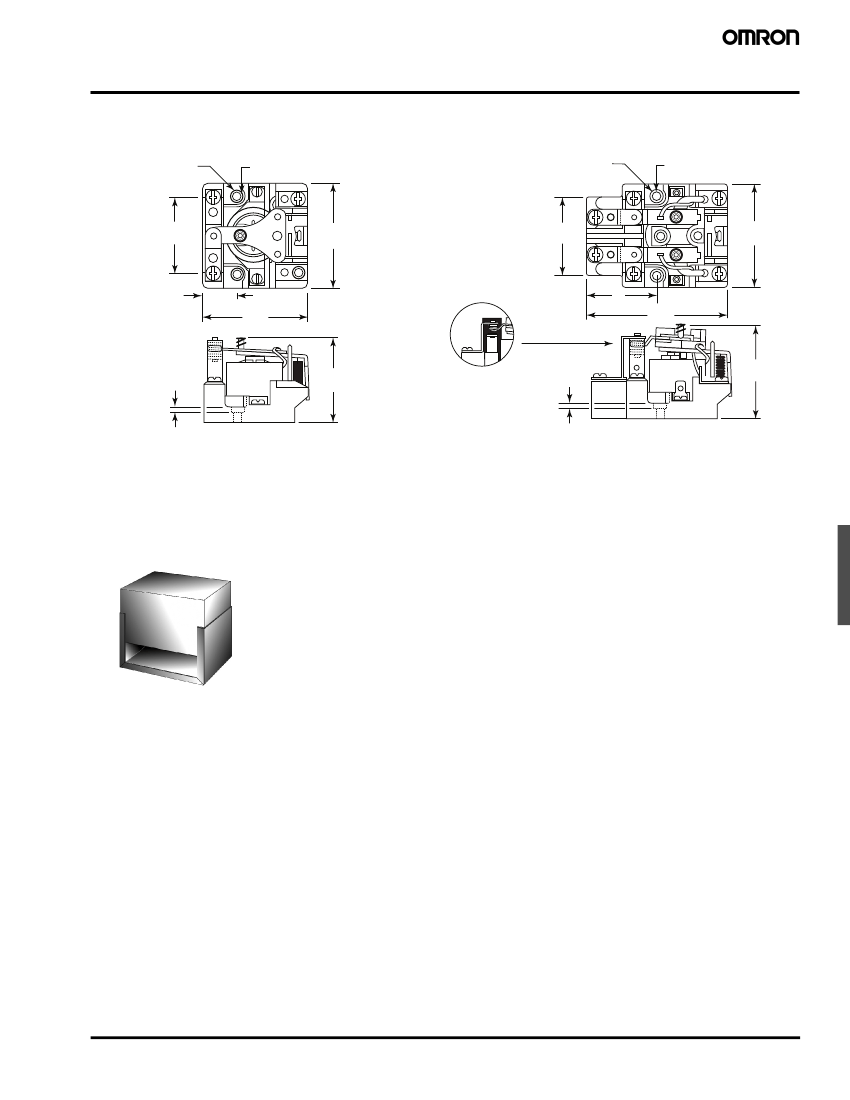

MG series dust cover
Note:
Magnetic blow-out version
DPDT
DPDT
Model
MGN1C
MGN1A
MGN1X
MGN1AM
(see note)
MGN1B
MGN2A
MGN2C
MGN2CM
(see note)
MGCOV
Specifications
Contact Data
Materials
Contact UL ratings
UL file number
All versions 5/16” diameter Ag-Alloy
30 amp or 1-1/2 hp @ 120 or 240 VAC, 2 hp @ 240 VAC, 3,600w @ 120 or 240 VAC (ballast),
30 amp @ 240 VAC, 100,000 cycle (resistive), 20 amp @ 600 VAC, 30 amp @ 28 VDC
E41643
Note:
Magnetic Blow-out versions also have a 20 amp @ 125 VDC (resistive) load rating.
Heavy Duty Power Relay
MGN
325
