This document was generated on 05/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0311000041
Active
hdac_64_single_row
H-DAC 64™ 2.54mm (.100") 4 Way Right Angle Header Assembly, Polarization B
Documents:
Drawing (PDF)
Application Specification (PDF)
Product Specification PS-31100-0001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
PCB Headers
31100
Wire-to-Board
Polarization Option B, Gray
hdac_64_single_row
H-DAC 64™
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Overview
Product Name
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
4
4
Gray
10
No
No
No
None
Yes
Brass
Tin
Nickel
Modified Polystyrene
1
Right Angle
0.139 In
3.52 mm
Yes
Yes
0.062 In
1.57 mm
Tray
0.100 In
2.54 mm
0.100 In
2.54 mm
60
1.50
60
1.50
Yes
Yes
Closed Ends
No
No
-40°C to +100°C
Through Hole
Search Parts in this Series
31100Series
Mates With
H-DAC 64™, 4 Way Receptacle Assembly
310681011
Electrical
Current - Maximum per Contact
Voltage - Maximum
5A, 7A
500V DC
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
40
SMC & Wave Capable (TH only)
3
260
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification

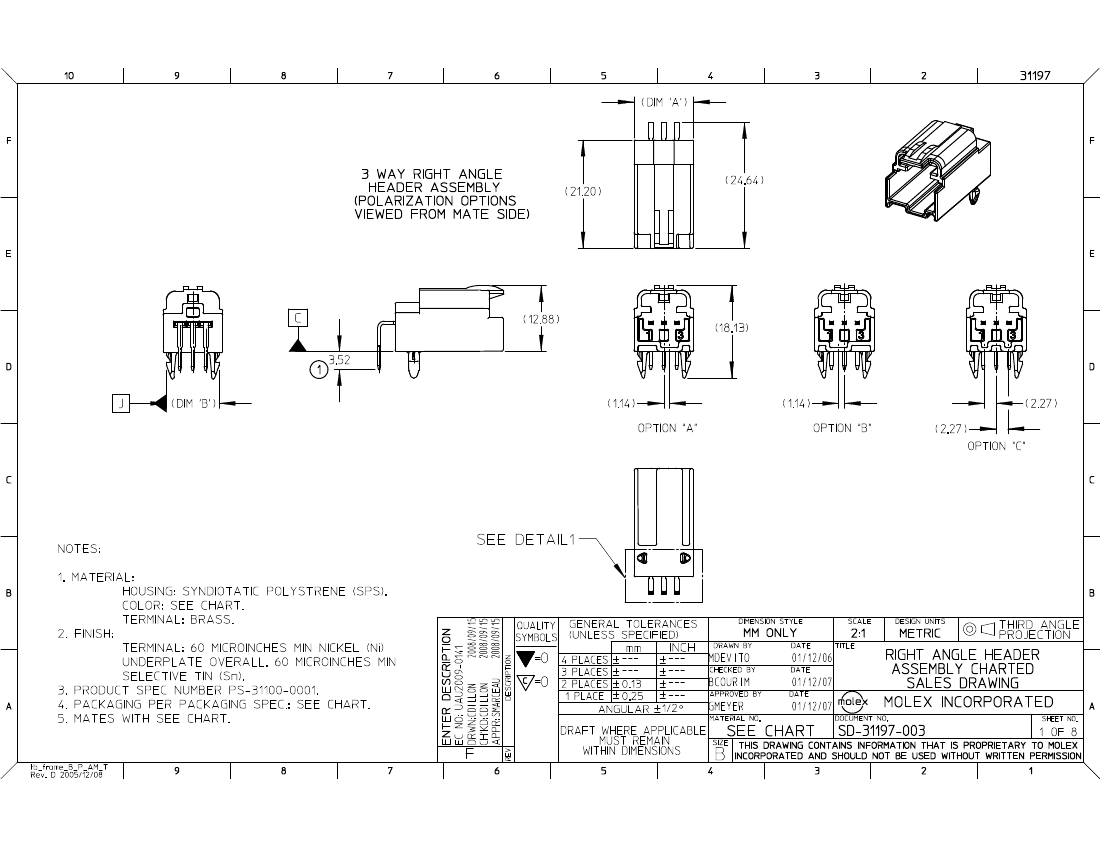

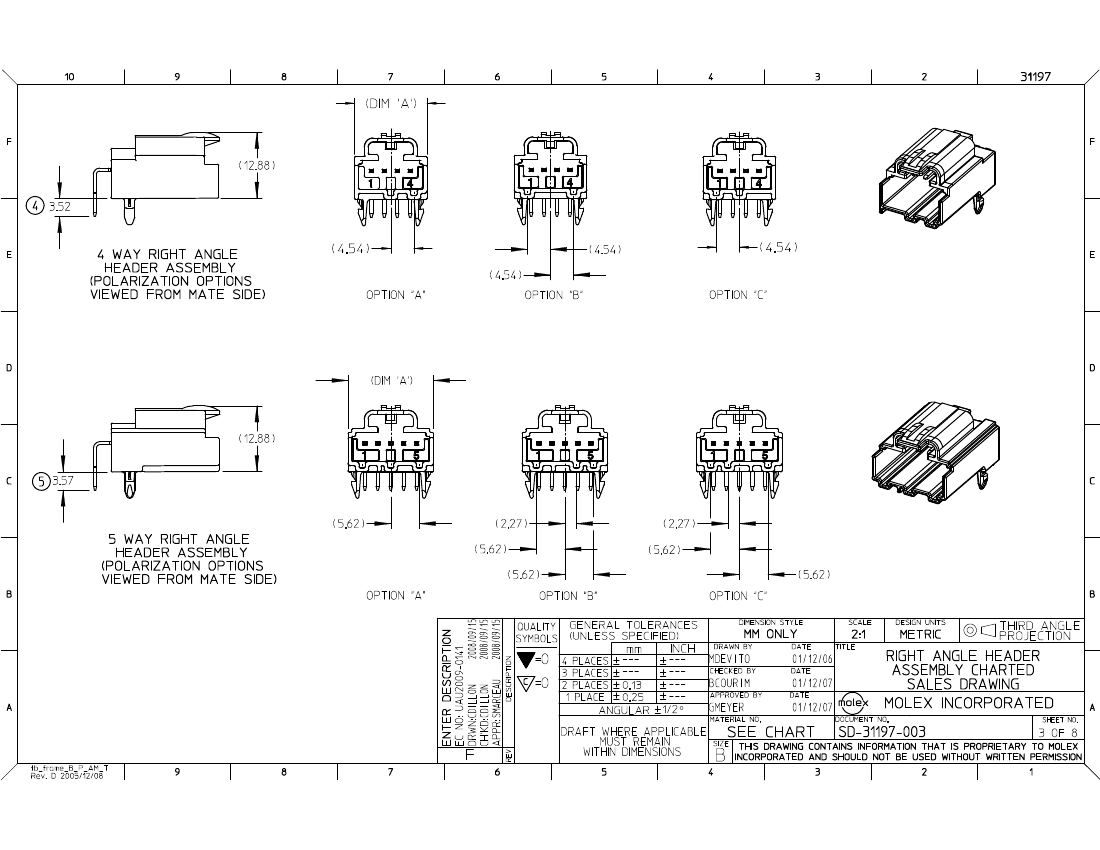

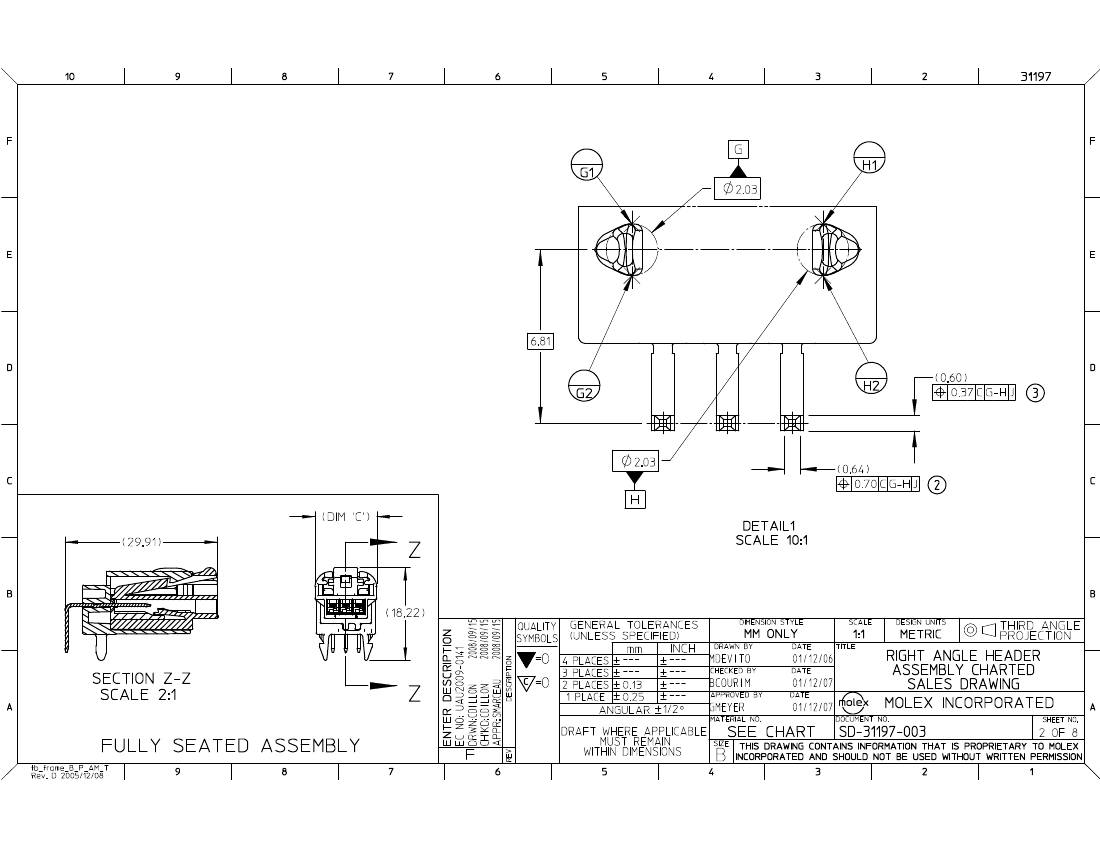

Sales Drawing
AS-31067-100
PK-31300-577
PS-31100-0001
SD-31197-003
