Technical Data Sheet
333/R2C1-ATWB

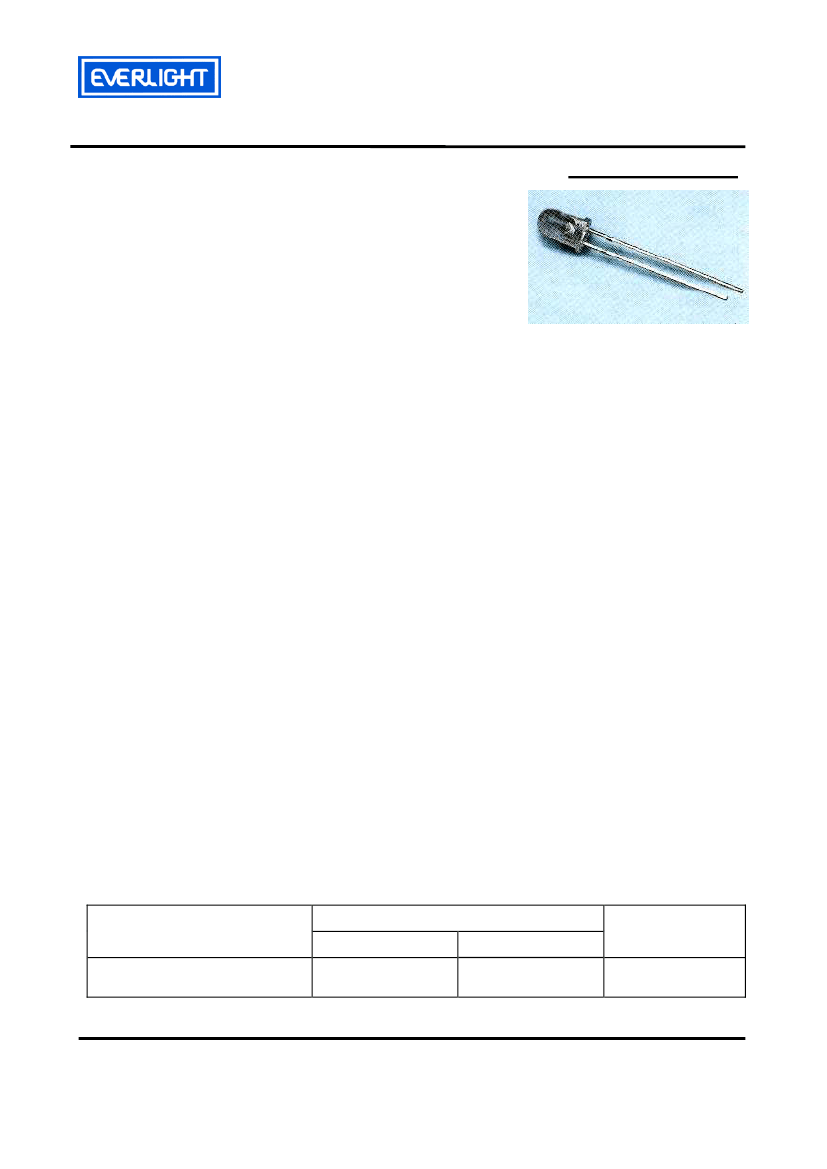

Features
․Popular
T-1 3/4package.
․High
efficiency.
․General
purpose leads.
․Selected
minimum intensities
․Available
on tape and reel.
․ESD-withstand
voltage: up to 4KV
․The
product itself will remain within RoHS compliant version.
Descriptions
․The
series is specially designed for
applications requiring higher
brightness.
․The
LED lamps are available with
different colors, intensities, epoxy
colors, etc.
Applications
․Status
indicators.
․Commercial
use.
․Advertising
Signs.
․Back
lighting.
Device Selection Guide
LED Part No.
333/R2C1-ATWB
Chip
Material
AlGaInP
Emitted Color
Hyper Red
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device Number : DLE-033-B22
http\\:www.everlight.com
Prepared date:05-11-2006
Rev 1
Page: 1 of 7
Prepared by: Grace Shen
Technical Data Sheet
333/R2C1-ATWB

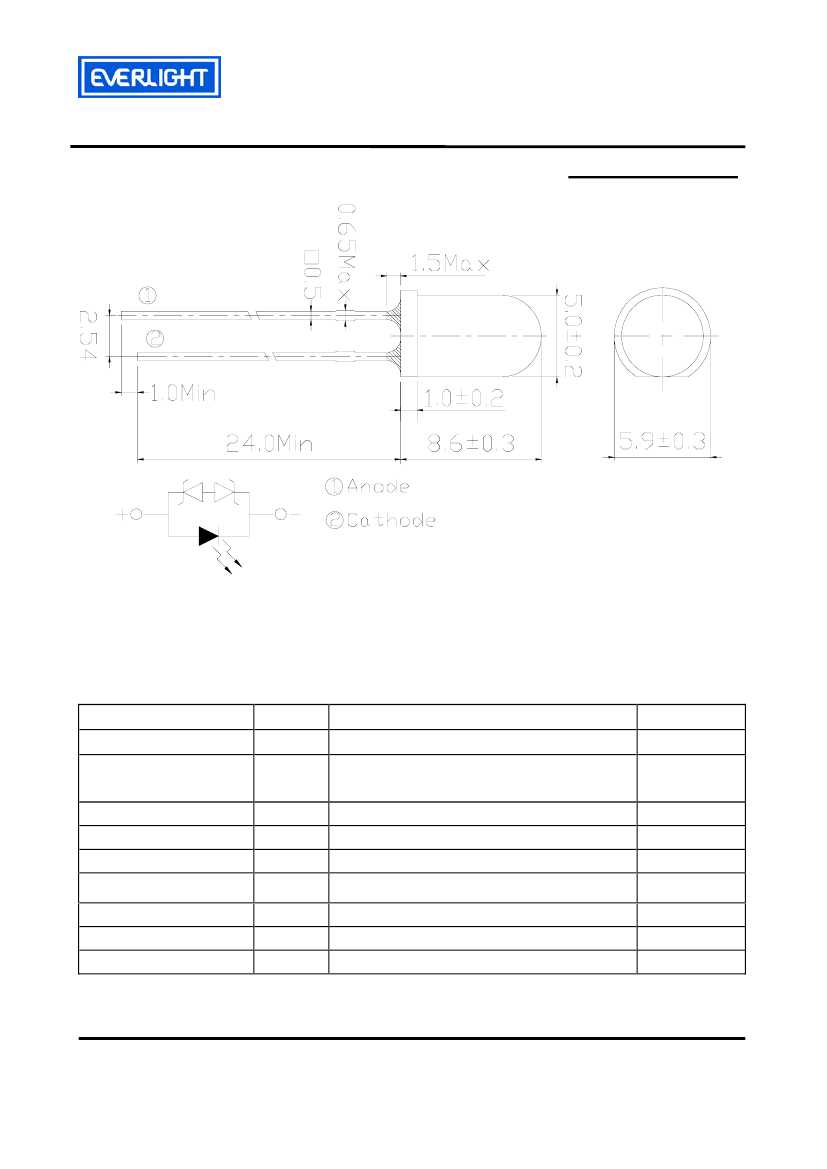

Package Dimensions
Notes:
․Other
dimensions are in millimeters, tolerance is 0.25mm except being specified.
․Protruded
resin under flange is 1.5mm Max LED.
․Bare
copper alloy is exposed at tie-bar portion after cutting.
Absolute Maximum Rating (T
a
=25℃)
Parameter
Forward Current
Pulse Forward Current
(Duty1/10@ 1KHz)
Operating Temperature
Storage Temperature
Electrostatic Discharge
Soldering Temperature
Power Dissipation
Zener Reverse Current
Reverse Voltage
Symbol
I
F
I
FP
T
opr
T
stg
ESD
T
sol
P
d
Iz
V
R
Absolute Maximum Rating
50
100
-40 ~ +85
-40 ~ +100
4K
260
±5
130
100
5
Unit
mA
mA
℃
℃
V
℃
mW
mA
V
Notes: Soldering time≦5 seconds.
Everlight Electronics Co., Ltd.
Device Number : DLE-033-B22
http\\:www.everlight.com
Prepared date:05-11-2006
Rev 1
Page: 2 of 7
Prepared by: Grace Shen
Technical Data Sheet
333/R2C1-ATWB
Electro-Optical Characteristics (T
a
=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Half width
Forward Voltage
Zener Reverse Voltage
Reverse Current
Symbol
I
V
2θ
1/2
λ
p
λ
d
Δλ
V
F
Vz
I
R
Min.
7150
--
--
--
--
1.8
5.2
--
Typ.
--
15
632
624
20
--
--
--
Max.
18000
--
--
I
F
=20mA
--
--
2.6
--
50
V
V
μA
Iz=5mA
V
R
=5V
nm
Unit
mcd
deg
Condition
Rank Combination (I
F
=20mA)
Rank
Luminous Intensity
T
7150~9000
U
9000~11250
V
11250~14250
W
14250~18000
Unit:mcd
*Measurement Uncertainty of Luminous Intensity:
±15%
Rank
Forward Voltage
1
1.8~2.0
2
2.0~2.2
3
2.2~2.4
4
2.4~2.6
Unit:V
*Measurement Uncertainty of Forward Voltage:
±0.1V
Rank
Dominant Wavelength
1
2
3
624~628
Unit:nm
618~620
620~624
*Measurement Uncertainty of
Dominant Wavelength
±1.0nm
*The quantity ratio of the ranks is decided by EVERLIGHT.
Everlight Electronics Co., Ltd.
Device Number : DLE-033-B22
http\\:www.everlight.com
Prepared date:05-11-2006
Rev 1
Page: 3 of 7
Prepared by: Grace Shen
Technical Data Sheet
333/R2C1-ATWB

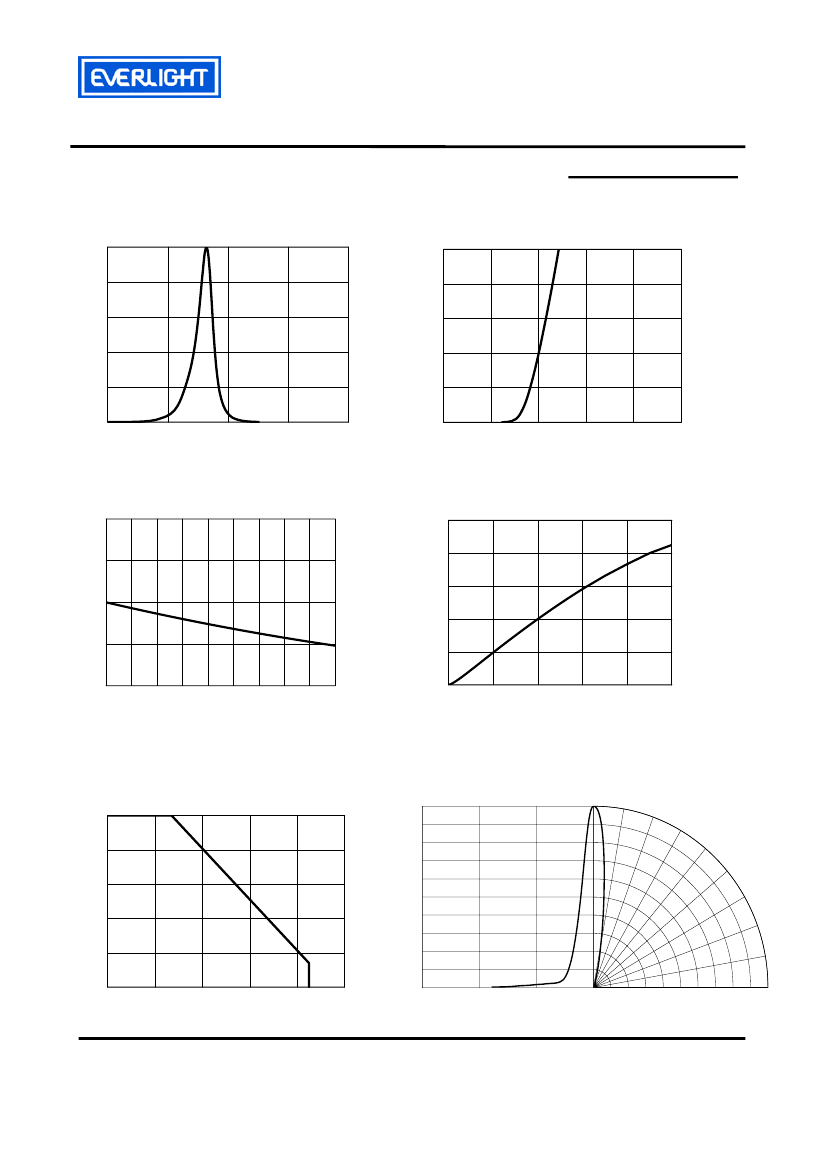

Typical Electro-Optical Characteristics Curves
Relative Intensity vs. Wavelength
1.0
0.8
0.6
0.4
0.2
0.0
550
Forward Current vs. Forward Voltage
50
Forward Current(mA)
600
650
700
750
Relative Intensity
40
30
20
10
0
1.0
1.5
2.0
2.5
3.0
3.5
Wavelength(nm)
Forward Voltage(V)
Relative Intensity vs. Ambient Temp
Relative Luminous Intensity(%)
Forward Current vs. Relative Intensity
2.5
2.0
1.5
1.0
0.5
0.0
Relative Luminous Intensitu(%)
2.0
1.5
1.0
0.5
0.0
25
30
35
40
45
50
55
60
O
65
70
0
10
20
30
40
50
Ambient Temperature Ta( C)
Forward Current(mA)
Forward Current vs. Ambient Temp.
90
O
Radiation Characteristics
60
O
30
O
0
O
10
O
Relative Intensity(a.u.)
50
1.0
20
O
30
O
O
Forward Current(mA)
40
40
30
20
10
0
50
O
0.5
60
O
70
O
80
O
0
20
40
60
80
O
100
0
0
0.5
90
1.0
O
Ambient Temperature Ta( C)
Radiation Angle
Everlight Electronics Co., Ltd.
Device Number : DLE-033-B22
http\\:www.everlight.com
Prepared date:05-11-2006
Rev 1
Page: 4 of 7
Prepared by: Grace Shen
Technical Data Sheet
333/R2C1-ATWB
Packing Quantity Specification
1.500PCS/1Bag，5Bags/1Box
2.10Boxes/1Carton
Label Form Specification
EVERLIGHT
CPN:
P/N:
333/R2C1-ATWB
QTY：
LOT NO：
CPN: Customer’s Production Number
P/N : Production Number
QTY: Packing Quantity
CAT: Ranks of Luminous Intensity and Forward
Voltage
HUE: Ranks of Dominant Wavelength
REF: Reference
LOT No: Lot Number
MADE IN TAIWAN: Production Place
CAT:
HUE:
REF:
MADE IN TAIWAN
Everlight Electronics Co., Ltd.
Device Number : DLE-033-B22
http\\:www.everlight.com
Prepared date:05-11-2006
Rev 1
Page: 5 of 7
Prepared by: Grace Shen
