0878343492 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0878343492

0878343492: Description2.54mm (.100) pitch C-grid? header, dual row, low profile, vertical, shrouded, lead-free, 34 circuits, 0.13??m (5??) gold (Au) plating, end windows, with pin 5 voided; CategoryThe connector The connector; File Size102KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0878343492 Overview

2.54mm (.100) pitch C-grid? header, dual row, low profile, vertical, shrouded, lead-free, 34 circuits, 0.13??m (5??) gold (Au) plating, end windows, with pin 5 voided

0878343492 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Other features	LOW PROFILE, SHROUDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	87834
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	33
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0878343492

Active

cgrid__sl_products

2.54mm (.100") Pitch C-Grid® Header, Dual Row, Low Profile, Vertical, Shrouded,

Lead-free, 34 Circuits, 0.13µm (5µ") Gold (Au) Plating, End Windows, with Pin 5 Voided

Documents:

3D Model

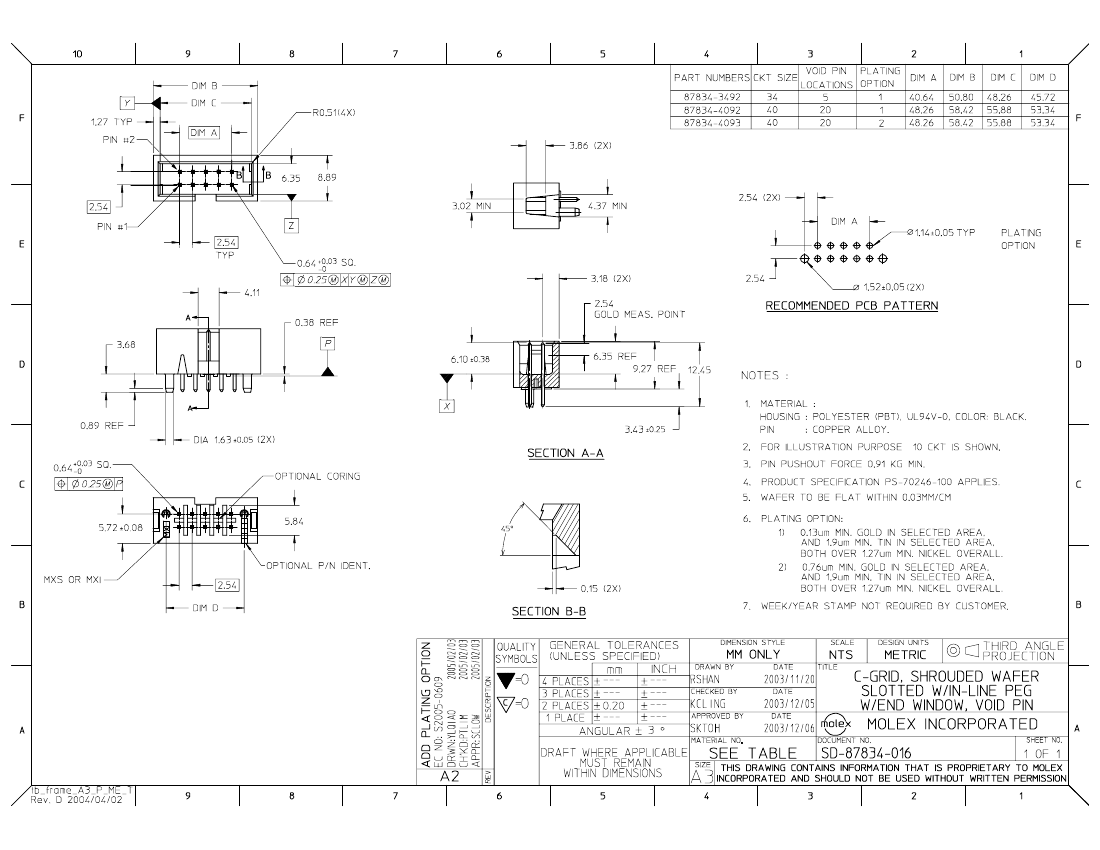

Drawing (PDF)

Product Specification PS-70246-100 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

General

Product Family

Series

Application

Comments

Overview

Product Name

PCB Headers

87834

Wire-to-Board

Void Pin Location: 5|Contact Molex for application in

automotive industry

cgrid__sl_products

C-Grid®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Black

94V-0

None

Gold

Tin

Polyester

Vertical

0.135 In

3.43 mm

Yes

Tray

0.100 In

2.54 mm

0.100 In

2.54 mm

5.2

0.13

75.2

1.88

Center Slot

Yes

Fully

-55°C to +120°C

Search Parts in this Series

87834Series

Mates With

.050" pitch ribbon cable connectors
