35317-1820

Description
4.20mm (.165") pitch mini-fit? header
CategoryThe connector    The connector
File Size132KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

35317-1820 Overview

4.20mm (.165") pitch mini-fit? header

35317-1820 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codeunknow
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationTIN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number35317
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell materialPOLYAMIDE66
Termination typeSOLDER
Total number of contacts18
UL Flammability Code94V-2
Base Number Matches1
This document was generated on 05/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0353171820
Active
minifit_jr
4.20mm (.165") Pitch Mini-Fit® Header, Dual Row, Vertical, 18 Circuits, PA Polyamide
(Nylon) 6/6 94V-2, White
Documents:
3D Model

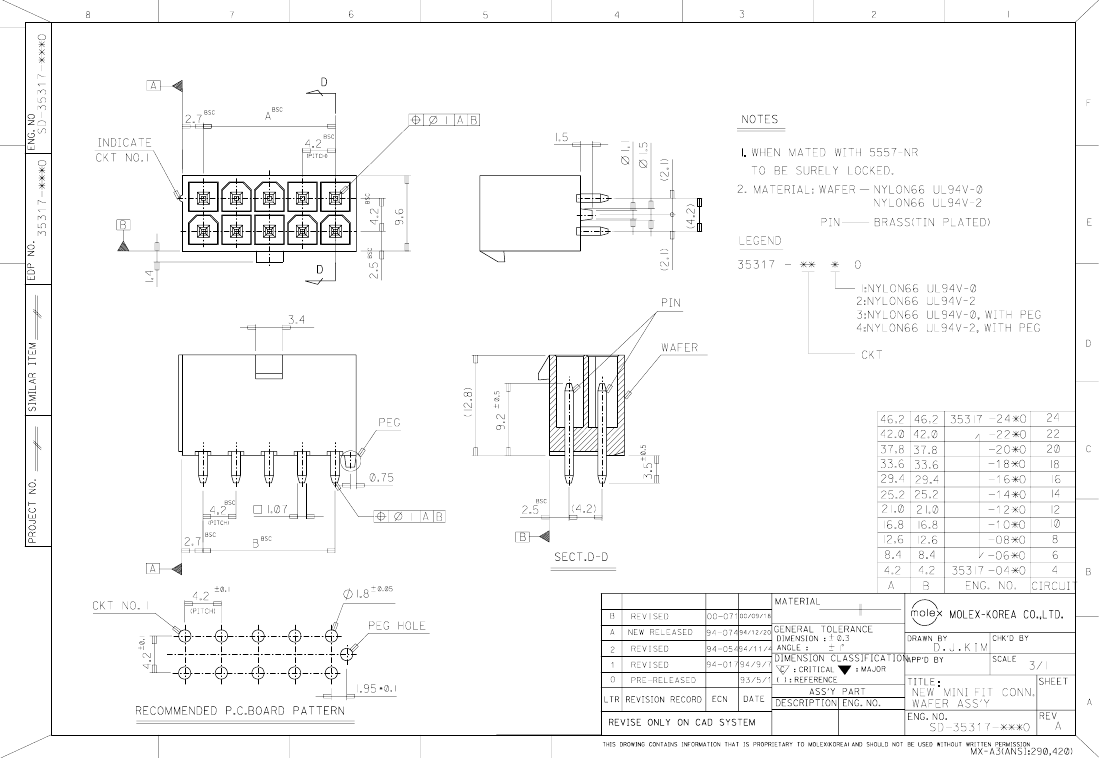

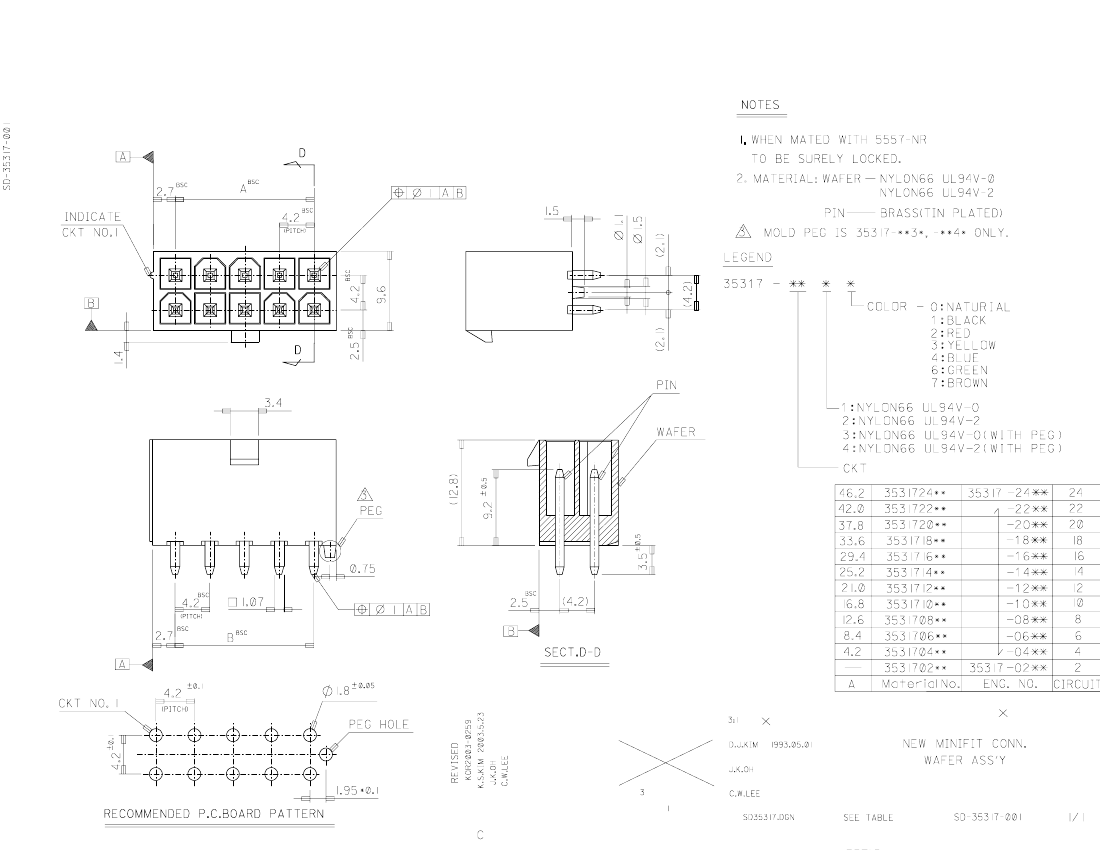

Drawing (PDF)
Product Specification PS-35317-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
PCB Headers
35317
Wire-to-Board
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 Mini-Fit Plus HCS™
Crimp Terminal Crimpted to to 16 AWG wire. . See
Molex product specification PS-45750-001 for additional
current de-rating information.
minifit_jr
Mini-Fit®
Overview
Product Name
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
No
18
18
Natural
30
No
94V-2
No
No
None
Yes
Tin
Tin
Nylon
2
Vertical
0.138 In
3.50 mm
Yes
None
0.062 In
1.60 mm
Bag
0.165 In
4.20 mm
No
Partial
No
No
Search Parts in this Series
35317Series
Mates With
5557 Mini-Fit Jr.™ Receptacle Housing

35317-1820 Related Products
