35WR50KLFTR: DescriptionTrimmer Resistor - Surface Mount 50k ohm 3mm ST cerm; CategoryPassive components; File Size67KB，3 Pages; ManufacturerBITECH; Websitehttp://www.bitechnologies.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

35WR50KLFTR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35WR50KLFTR	-	-	View	Buy Now

35WR50KLFTR Overview

Trimmer Resistor - Surface Mount 50k ohm 3mm ST cerm

35WR50KLFTR Parametric

Parameter Name	Attribute value
Maker	BITECH
Product Category	Trimmer Resistors - Surface Mount
RoHS	yes
resistance	50 KOhms
Tolerance	25 %
Power rating	0.1 Watt (1/10 Watt)
Component type	Cerme
Encapsulation	Reel
product	Trimmer Resistors - SMD
Termination type	SMD/SMT

Preview

Download Datasheet

View All

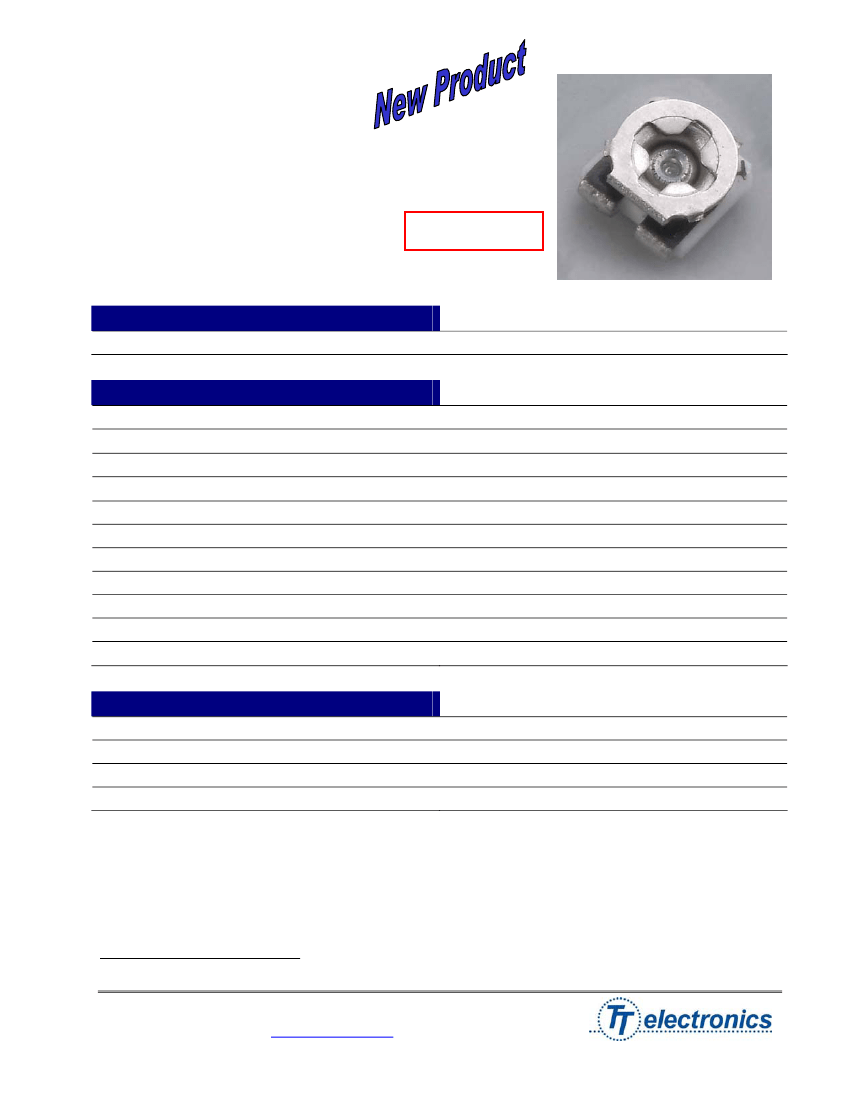

MODEL 35

3 mm Single-Turn

Open Frame Surface Mount

Cermet Trimming

RoHS Compliant

Potentiometer

MODELS AVAILABLE

Top Adjust

35W

ELECTRICAL

1

Resistance Range

Standard Resistance Tolerance

Input Voltage, Maximum

Power rating, Watts

End Resistance, Maximum

Actual Electrical Travel

Mechanical Travel (35E)

Insulation Resistance, Minimum

Resolution

Contact Resistance Variation

Temperature Coefficient of Resistance

100 to 1,000,000 Ohms

±

25%

50 V

0.1 @ 70°C

>1000 Ohms: 20 Ohms Max; > 1000 Ohms: 2% Max.

220° ±20°

280° ±20°

100 Megohms

Essentially infinite

5% Max.

±250 ppm/°C

MECHANICAL

Torque, Maximum (35W, 35C)

Torque, Maximum (35E)

Weight, Approx.

Wiper Position

2.8 in. oz.

1.4 in. oz.

0.01 oz.

Approx. 50%

1

Specifications subject to change without notice.

BI Technologies Corporation

4200 Bonita Place, Fullerton, CA 92835 USA

Phone: 714 447 2345

February 25, 2010

Website:

www.bitechnologies.com

page 1 of

3

BI technologies
