353010452 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 353010452

353010452: Description2.50mm (.098") pitch spox? wire-to-board header, vertical, shrouded, tubepackaged version of 5267, 4 circuits, tin (Sn) Plating, with swaged PC tails, red; CategoryThe connector The connector; File Size228KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

353010452 Overview

2.50mm (.098") pitch spox? wire-to-board header, vertical, shrouded, tubepackaged version of 5267, 4 circuits, tin (Sn) Plating, with swaged PC tails, red

353010452 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER COPPER
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	35301
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/13/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0353010452

Active

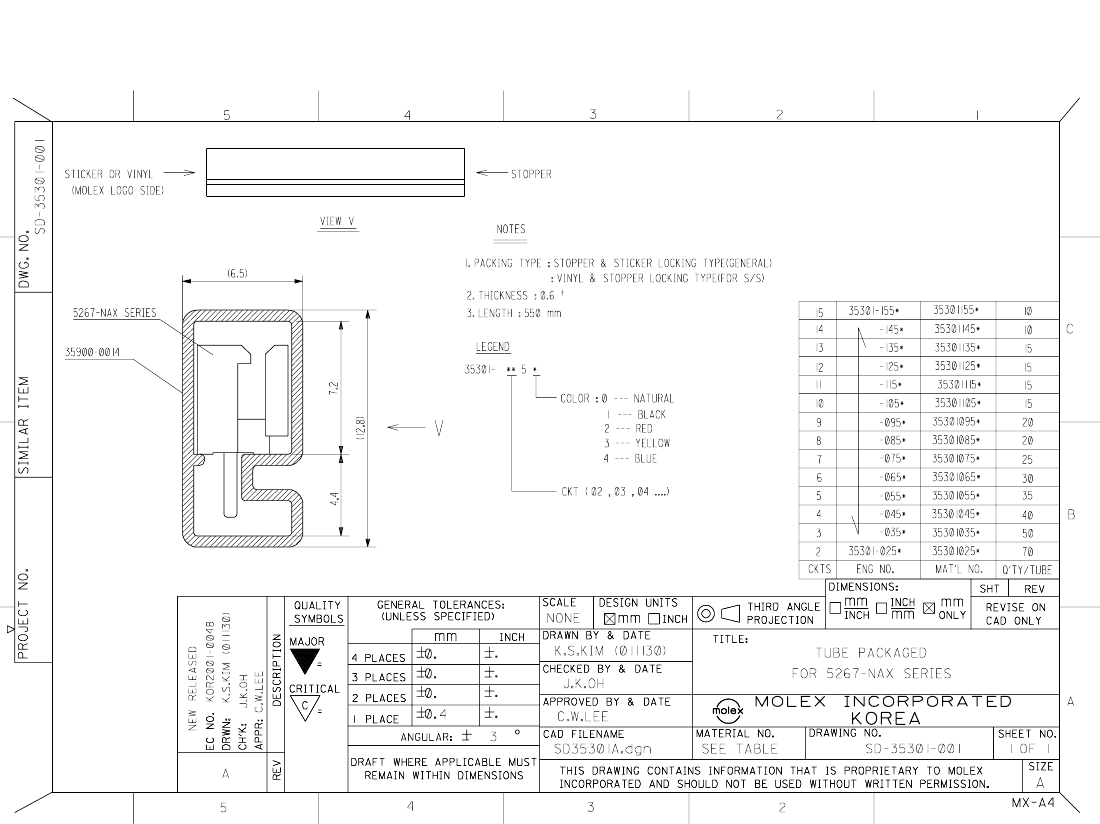

2.50mm (.098") Pitch SPOX™ Wire-to-Board Header, Vertical, Shrouded, Tube

Packaged Version of 5267, 4 Circuits, Tin (Sn) Plating, with Swaged PC Tails, Red

Documents:

3D Model

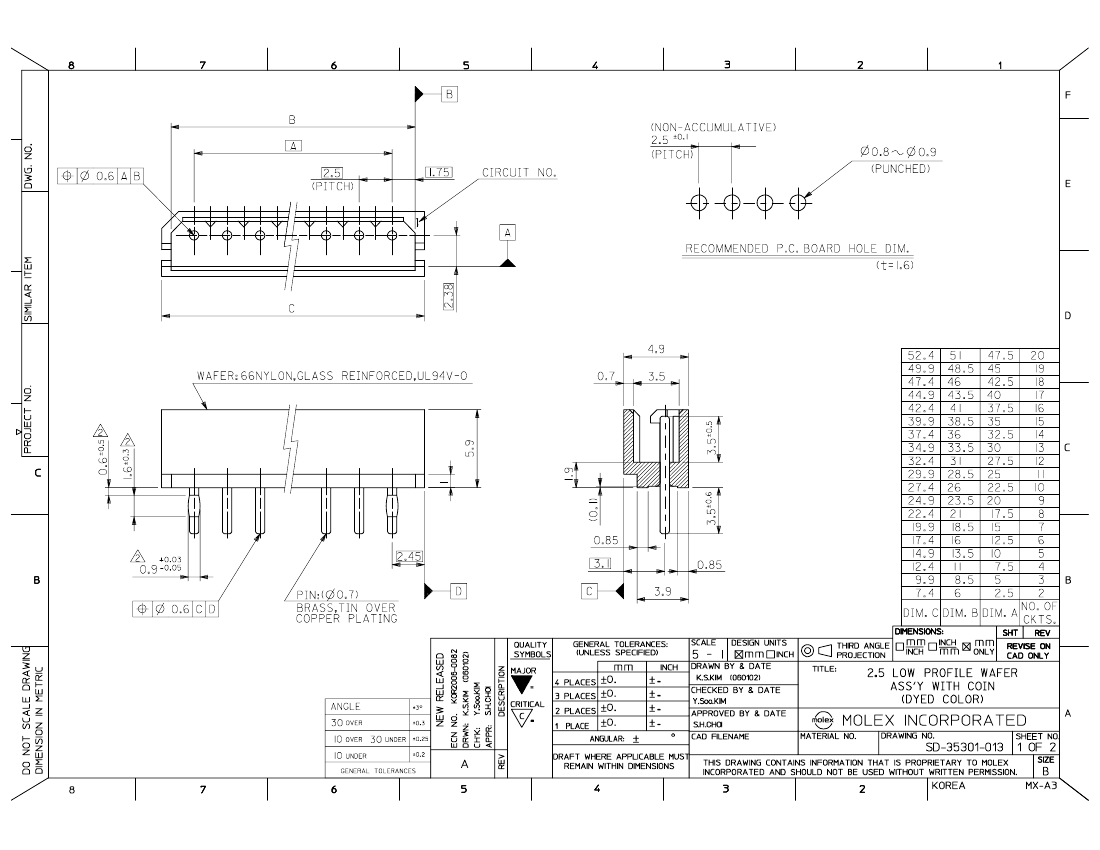

Drawing (PDF)

Product Specification PS-35301-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR 19980

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Application

Product Name

PCB Headers

35301

Wire-to-Board

SPOX™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

None

Yes

Tin

Nylon

Vertical

Yes

0.062 In

1.60 mm

Tube

0.098 In

2.50 mm

160

Yes

Partial

-40°C to +105°C

Through Hole

Search Parts in this Series

35301Series

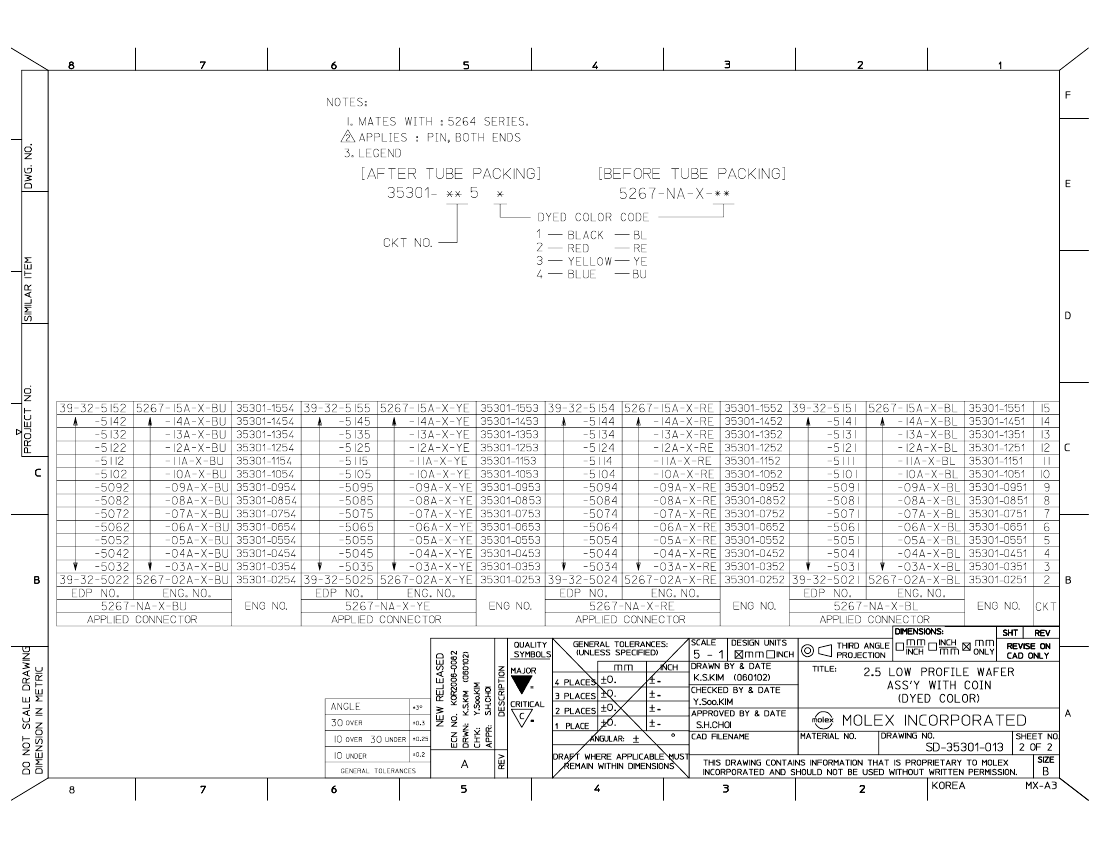

Mates With

5264 SPOX™ Wire-to-Board Crimp

Housing. 42219 SPOX™ IDT Receptacle

Housing

Electrical

353010452 Related Products

	353010452	0353010452	35301-0452
Description	2.50mm (.098") pitch spox? wire-to-board header, vertical, shrouded, tubepackaged version of 5267, 4 circuits, tin (Sn) Plating, with swaged PC tails, red	4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	2.50mm (.098") pitch spox? wire-to-board header, vertical, shrouded, tubepackaged version of 5267, 4 circuits, tin (Sn) Plating, with swaged PC tails, red
Reach Compliance Code	compli	-	unknow
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED
Contact completed and terminated	TIN OVER COPPER	-	NOT SPECIFIED
Contact point gender	MALE	-	MALE
DIN compliance	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
MIL compliance	NO	-	NO
Manufacturer's serial number	35301	-	35301
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO
Installation method	STRAIGHT	-	STRAIGHT
Installation type	BOARD	-	BOARD
Number of rows loaded	1	-	1
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Terminal pitch	2.5 mm	-	2.5 mm
Termination type	SOLDER	-	SOLDER
Total number of contacts	4	-	4
UL Flammability Code	94V-0	-	94V-0
Base Number Matches	1	-	1
