387007505 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 387007505

387007505: Description8.26mm (.325") pitch beau? pcb terminal strip, without mounting ends, 5 circuits; CategoryThe connector terminals; File Size290KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

387007505 Overview

8.26mm (.325") pitch beau? pcb terminal strip, without mounting ends, 5 circuits

387007505 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	THERMOPLASTIC
Fastening method	SCREW
Manufacturer's serial number	38700
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	5
safety certificate	UL; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

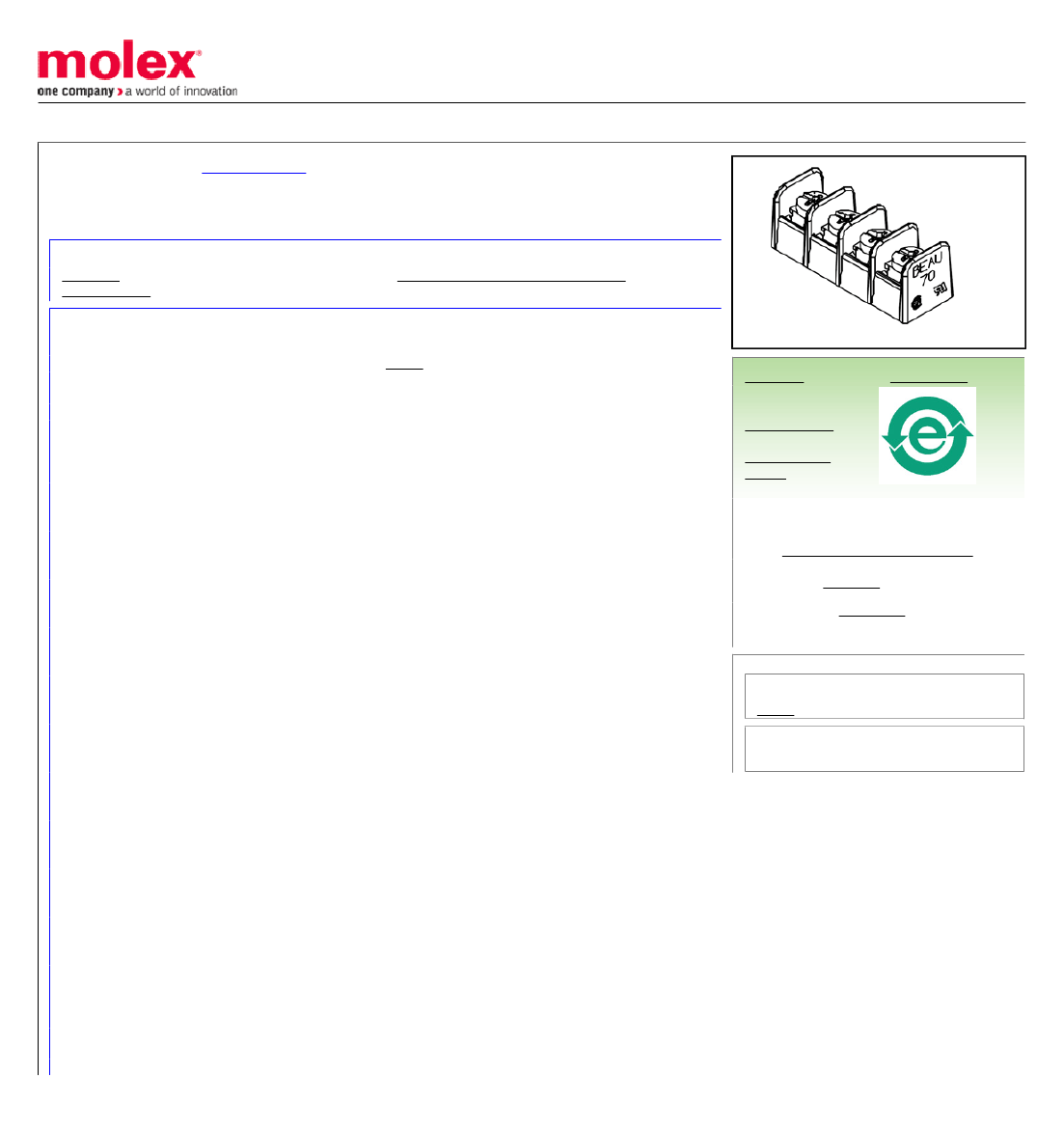

This document was generated on 04/22/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0387007505

Active

8.26mm (.325") Pitch Beau™ PCB Terminal Strip, without Mounting Ends, 5 Circuits,

with Screw Clamp Washer

Documents:

3D Model

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Component Type

Product Name

Type

Terminal Blocks

38700

Wire-to-Board

One Piece

Fixed Mount Barrier

Barrier Strip

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Entry Angle

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Retention

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Wire Size mm²

Black

Horizontal

None

Brass

Tin

Polyester

Horizontal

0.140 In

3.56 mm

None

0.325 In

8.26 mm

0.325 In

8.25 mm

150

3.75

150

3.75

Dual-Barrier

Yes

-40°C to +130°C

Through Hole

12, 14, 16, 18, 20, 22

0.50 - 2.50

Search Parts in this Series

38700Series

Mates With

N/A

Electrical

Current - Maximum per Contact

Voltage - Maximum

20A

300V

Solder Process Data

Lead-free Process Capability

Wave Capable (TH only)

387007505 Related Products

	387007505	387007502	70505-C-50
Description	8.26mm (.325") pitch beau? pcb terminal strip, without mounting ends, 5 circuits	8.26mm (.325") pitch beau? pcb terminal strip, without mounting ends, 2 circuits	8.26mm (.325") pitch beau? pcb terminal strip, without mounting ends, 5 circuits
Is it lead-free?	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	-
Reach Compliance Code	compli	compli	-
ECCN code	EAR99	EAR99	-
Other features	THERMOPLASTIC	THERMOPLASTIC	-
Fastening method	SCREW	SCREW	-
Installation type	BOARD	BOARD	-
Number of layers	1	1	-
Rows	1	1	-
Number of channels	5	2	-
safety certificate	UL; CSA	UL; CSA	-
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	-
Base Number Matches	1	1	-
