Last Update:
8/17/09

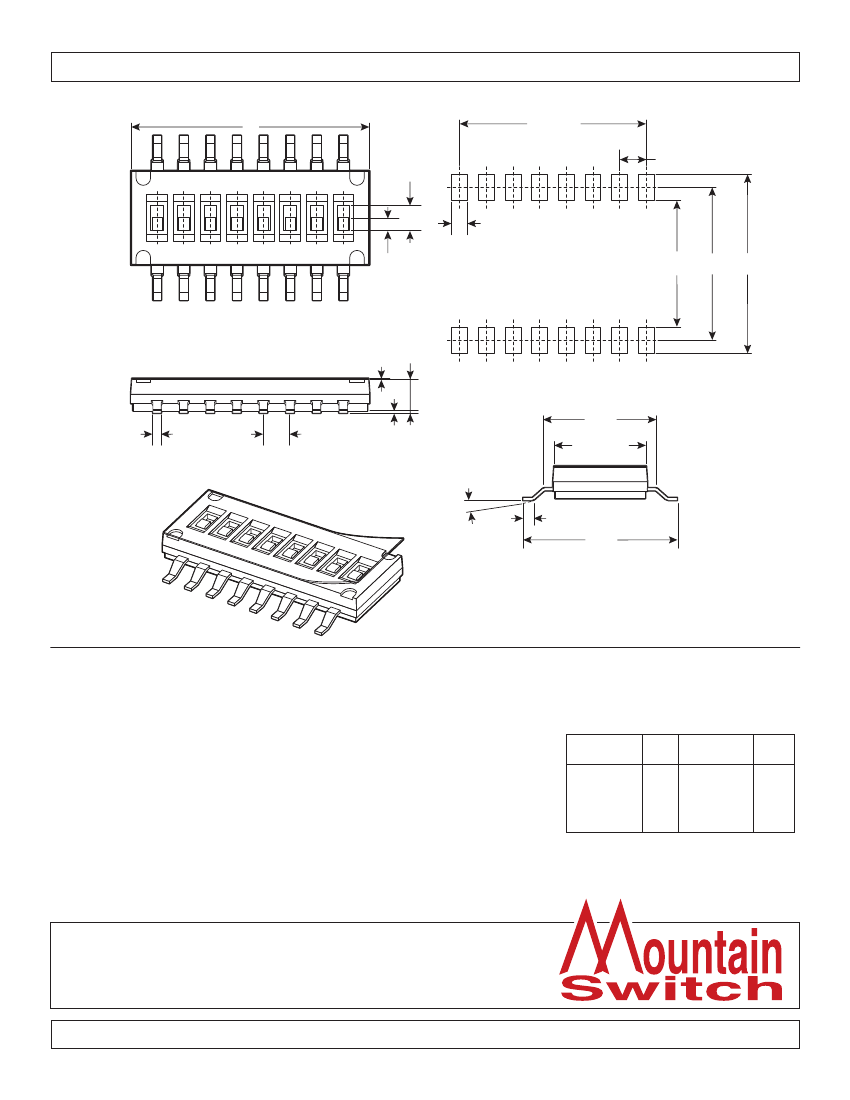

Dimensions: mm (in.)
A
1.20
(0.47)
1.27x(P-1)
(.05x(P-1)
Ref. #:
MS-101318
1.27 Pitch
(.05)
.76
(.03)
.60
(.024)
6.35
(.25)
7.62
(.30)
8.89
(.35)
Tape .05
(.002)
1.50±.03
(.059±.001)
PCB Layout
5.30
(.209)
4.50±.05
(.177±.002)
.10±.10
(.004±.004)
.40
(.016)
1.27 Pitch
(.05)
0°~10°
.60±.10
(.024±.004)
8.10
(.319)
Electrical Specifications:
•
Life: 1000 cycles
•
Non-Switching Rating: 100mA/50VDC
•
Switching Rating: 25mA/24VDC
•
Contact Resistance: 100mΩ max. at initial
•
Insulation Resistance: 100MΩ min. at (500VDC)
•
Dielectric Strength: 300VAC/1minute
Soldering Process:
Mechanical Specifications:
•
Life: 1000 cycles
•
Operation Force: 500gf
•
Stroke: 0.6mm
•
Operating Temperature: -40ºC to +85ºC
•
Storage Temperature: -40ºC to +85ºC
Note:
•
RoHS Compliant and Process
Compatible with 260° solder
Mouser
Stock No.
106-HNF02-EV
106-HNF04-EV
106-HNF06-EV
106-HNF08-EV
106-HNF10-EV
No. of Dimensions A
Pos.
mm (in.)
2
4
6
8
10
3.77 (.148)
6.31 (.248)
8.85 (.348)
11.39 (.448)
13.93 (.548)
Top
Tape
with
with
with
with
with
Cleaning:
•
Only Tape sealed types apply to wash process.
•
Do not remove the tape before wash process.
•
After soldering process, do not continue the wash process immediately. Please wait for at least 3 minutes.
•
Apply alcholic solvents as cleaning agent do not use other solvents or water.
•
Ultrasonic cleaning is not recommended.
•
The cleaning process per stage is max.1 minute and the whole cleaning time are not to exceed 3 minutes.
•
Do not impose any external force on switch while washing.
•
Any flux enters the switch may fail the conductivity.
Dip Switches
106-HNF02-EV, 106-HNF04-EV, 106-HNF06-EV,
106-HNF08-EV, 106-HNF10-EV
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
