450-MPN71: DescriptionKnobs and dials bar natural 1/4 SH; CategoryTopical application Mechanical and electrical/engineering/automation; File Size182KB，1 Pages; ManufacturerEagle Plastic Devices

Download Datasheet Parametric Compare View All

450-MPN71 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	450-MPN71	-	-	View	Buy Now

450-MPN71 Overview

Knobs and dials bar natural 1/4 SH

450-MPN71 Parametric

Parameter Name	Attribute value
Maker	Eagle Plastic Devices
Product Category	Knobs and Dials
RoHS	no
Material	Aluminum
design	Control and Instrume
Shaft size	6.4 mm
diameter	17.7 mm
color	Natural
Indicator type	Line
type	Knobs

Preview

Download Datasheet

View All

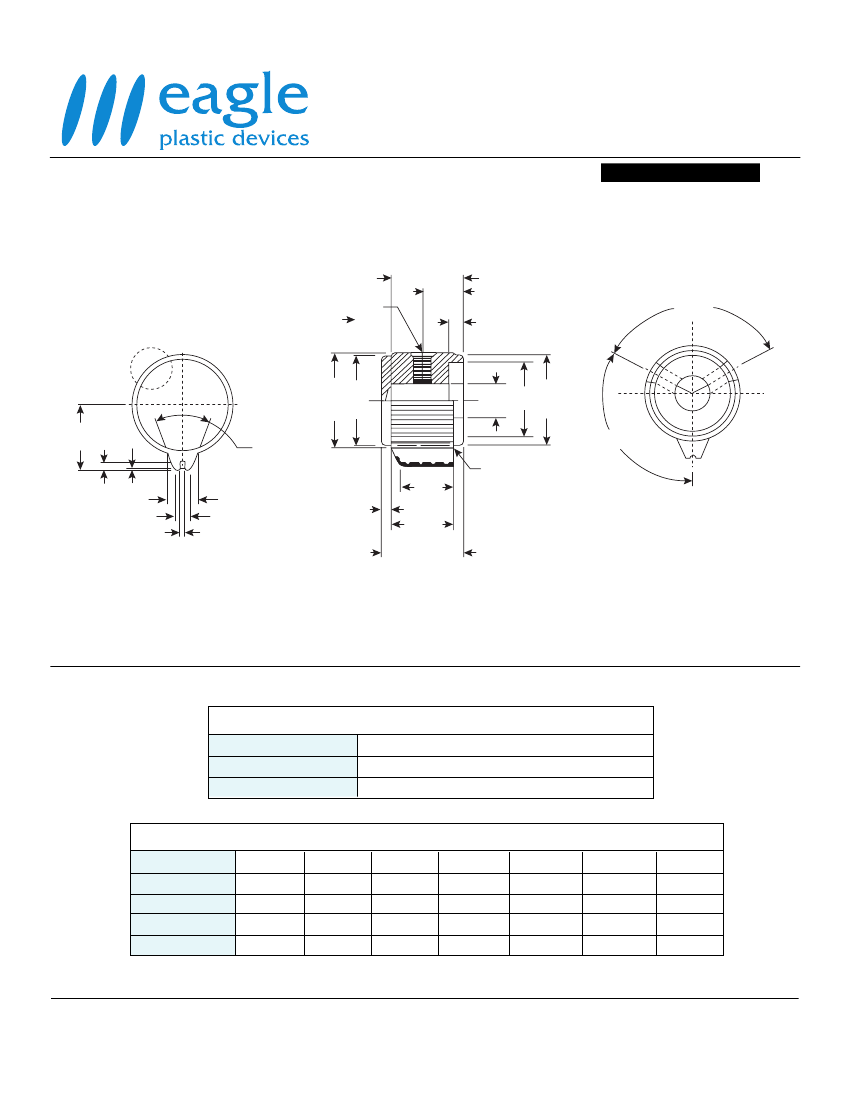

Instrument Control Knobs

450-MPN71, 450-MPN72, 450-MPN91, 450-MPN92

Date Last Revised: 6/30/05

#6 - 32

Set Screw

6 2x2

13.97 (.55)

8 (.314)

3 (.118)

120°

A

1.78

(.07)

B

øE

C

Center

D

F

37°

45 Chamfer

9.50

(.374)

12.20

(.480)

15.88 (.625)

120°

.38 (.015)

7 (.276)

3.51 (.138)

1.78

(.07)

.90±.20

(.035±.007)

Dimensions: mm (In.)

SPECIFICATIONS

Material:

Tolerance:

Finish:

Solid Aluminum

ø0-4±.10mm, ø4.10-16±.25mm, ø16-64±.30mm

Spin

DIMENSIONS MM (IN.)

Mouser Stock No.

450-MPN71

450-MPN91

450-MPN72

450-MPN92

A

19 (.75)

23.80 (.94)

19 (.75)

23.80 (.94)

B

17.70 (.70)

22.40 (.88)

17.70 (.70)

22.40 (.88)

C

15 (.59)

17.60 (.70)

15 (.59)

17.60 (.70)

D

17.70 (.70)

22.40 (.88)

17.70 (.70)

22.40 (.88)

E

6.40 (.25)

F

13 (.51)

16 (.63)

13 (.51)

16 (.63)

Body

Natural

Black

Available from Mouser Electronics

1-800-346-6873

www.mouser.com

EPD-200214

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.

450-MPN71 Related Products

	450-MPN71	450-MPN72	450-MPN92
Description	Knobs and dials bar natural 1/4 SH	Knob and dial bar black 1/4 SH	Knob and turntable bar black1/4 SH
Maker	Eagle Plastic Devices	Eagle Plastic Devices	Eagle Plastic Devices
Product Category	Knobs and Dials	Knobs and Dials	Knobs and Dials
RoHS	no	no	no
Material	Aluminum	Aluminum	Aluminum
design	Control and Instrume	Control and Instrume	Control and Instrume
Shaft size	6.4 mm	6.4 mm	6.4 mm
diameter	17.7 mm	17.7 mm	22.4 mm
color	Natural	Black	Black
Indicator type	Line	Line	Line
type	Knobs	Knobs	Knobs
