6 PIN DIP PHOTOTRANSISTOR
PHOTOCOUPLER
Features:
•
4N2X series: 4N25, 4N26, 4N27, 4N28
•
4N3X series: 4N35, 4N36, 4N37, 4N38
•
H11AX series: H11A1, H11A2, H11A3, H11A4, H11A5
•
High isolation voltage between input and output
(Viso=5000 V rms)
•
Creepage distance >7.6mm
•
Operating temperature up to +110°C
•
Compact dual-in-line package
•
Pb free and RoHS compliant.
•
UL approved (No. E214129)
•
VDE approved (No. 132249)
•
SEMKO approval pending
•
NEMKO approval pending
•
DEMKO approval pending
•
FIMKO approval pending
•
CSA approval pending
4N2X Series
4N3X Series
H11AX Series
Schematic
Description
The 4N2X, 4N3X, H11AX series contains an infrared emitting
diode optically coupled to a phototransistor. It is packaged in a
6-pin DIP package and available in wide-lead spacing and SMD
option.
Applications
•
Power supply regulators
•
Digital logic inputs
•
Microprocessor inputs
1. Anode
2. Cathode
3. No Connection
4. Emitter
5. Collector
6. Base
Everlight Electronics Co., Ltd.
Document No：DPC-717-044 Rev. 0
1
http:\\www.everlight.com
September 12, 2007
6 PIN DIP PHOTOTRANSISTOR
PHOTOCOUPLER
Absolute Maximum Ratings (T
a
=25°C)
Parameter
Forward current
Peak forward current (t = 10µs)
Input
Reverse voltage
Power dissipation (T
A
= 25°C)
Derating factor (above 100°C)
Collector-Emitter voltage
Collector-Base voltage
Output
Emitter-Collector voltage
Emitter-Base voltage
Power dissipation (T
A
= 25°C)
Derating factor (above 100°C)
Total power dissipation
Isolation voltage
*1
Operating temperature
Storage temperature
Soldering temperature
*2
V
ECO
V
EBO
P
C
Symbol
I
F
I
FM
V
R
P
D
4N2X Series
4N3X Series
H11AX Series
Rating
50
1
6
70
3.8
Unit
mA
A
V
mW
mW/°C
V
V
V
V
mW
mW/°C
mW
Vrms
°C
°C
°C
V
CEO
V
CBO
80
80
7
7
150
9.0
P
tot
V
iso
T
opr
T
stg
T
sol
200
5000
-55~+110
-55~+125
260
Notes
*1 AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2 & 3 are shorted together, and pins 4, 5 & 6
are shorted together.
*2 For 10 seconds.
Everlight Electronics Co., Ltd.
Document No：DPC-717-044 Rev. 0
2
http:\\www.everlight.com
September 12, 2007
6 PIN DIP PHOTOTRANSISTOR
PHOTOCOUPLER
Electrical Characteristics (T
a
=25°C unless specified otherwise)
Input
Parameter
Forward voltage
Reverse current
Input capacitance
Symbol
V
F
I
R
C
in
Min.
-
-
-
Typ.*
1.2
-
30
Max.
1.5
10
-
Unit
V
µA
pF
4N2X Series
4N3X Series
H11AX Series
Condition
I
F
= 10mA
V
R
= 6V
V = 0, f = 1MHz
Output
Parameter
Collector-Base dark current
Collector-Emitter dark
current
Collector-Emitter
breakdown voltage
Collector-Base
breakdown voltage
Emitter-Collector
breakdown voltage
Emitter-Base
breakdown voltage
Collector-Emitter
capacitance
* Typical values at T
a
= 25°C
Symbol
I
CBO
I
CEO
BV
CEO
BV
CBO
BV
ECO
BV
EBO
C
CE
Min.
-
-
-
80
80
7
7
-
Typ.*
-
-
-
-
-
-
-
8
-
-
-
Max.
20
50
50
-
Unit
nA
nA
V
V
V
V
pF
Condition
V
CB
= 10V
V
CE
= 10V, IF=0mA
V
CE
= 60V, IF=0mA
I
c
=1mA
I
C
=0.1mA
I
E
=0.1mA
I
E
=0.1mA
VCE=0V, f=1MHz
Everlight Electronics Co., Ltd.
Document No：DPC-717-044 Rev. 0
3
http:\\www.everlight.com
September 12, 2007
6 PIN DIP PHOTOTRANSISTOR
PHOTOCOUPLER
Transfer Characteristics (T
a
=25°C unless specified otherwise)
Parameter
4N35, 4N36,
4N37
H11A1
Current
transfer
ratio
H11A5
4N25, 4N26,
4N38,
H11A2, H11A3
4N27, 4N28,
H11A4
4N25, 4N26,
4N27, 4N28
Collector-Emitter
saturation
voltage
4N35, 4N36,
4N37
H11A1,
H11A2,
H11A3,
H11A4,
H11A5
4N38
V
CE(sat)
-
-
0.4
CTR
20
-
-
Symbol
Min.
100
50
30
Typ.*
-
-
-
Max.
-
-
-
%
Unit
4N2X Series
4N3X Series
H11AX Series
Condition
I
F
= 10mA, V
CE
= 10V
10
-
-
-
-
-
-
0.5
0.3
V
I
F
= 10mA, I
c
= 0.5mA
I
F
= 50mA, I
c
= 2mA
-
R
IO
C
IO
10
11
-
-
-
0.2
1.0
-
-
Ω
pF
I
F
= 20mA, I
c
= 4mA
V
IO
= 500Vdc
V
IO
= 0, f = 1MHz
Isolation resistance
Input-output capacitance
4N25, 4N26,
4N27, 4N28,
H11A1,
H11A2,
H11A3,
Turn-on time
H11A4,
H11A5
4N35, 4N36,
4N37, 4N38
4N25, 4N26,
4N27, 4N28,
H11A1,
H11A2,
H11A3,
H11A4
4N35, 4N36,
4N37, 4N38
* Typical values at T
a
= 25°C
Everlight Electronics Co., Ltd.
Document No：DPC-717-044 Rev. 0
-
Ton
3
10
µs
V
CC
= 10V, I
F
= 10mA,
R
L
= 100Ω
See Fig. 11
-
10
12
V
CC
= 10V, I
C
= 2mA,
R
L
= 100Ω, See Fig. 11
V
CC
= 10V, I
F
= 10mA,
R
L
= 100Ω
See Fig. 11
µs
-
Toff
-
3
10
Turn-off time
9
12
V
CC
= 10V, I
C
= 2mA,
R
L
= 100Ω, See Fig. 11
4
http:\\www.everlight.com
September 12, 2007
6 PIN DIP PHOTOTRANSISTOR
PHOTOCOUPLER

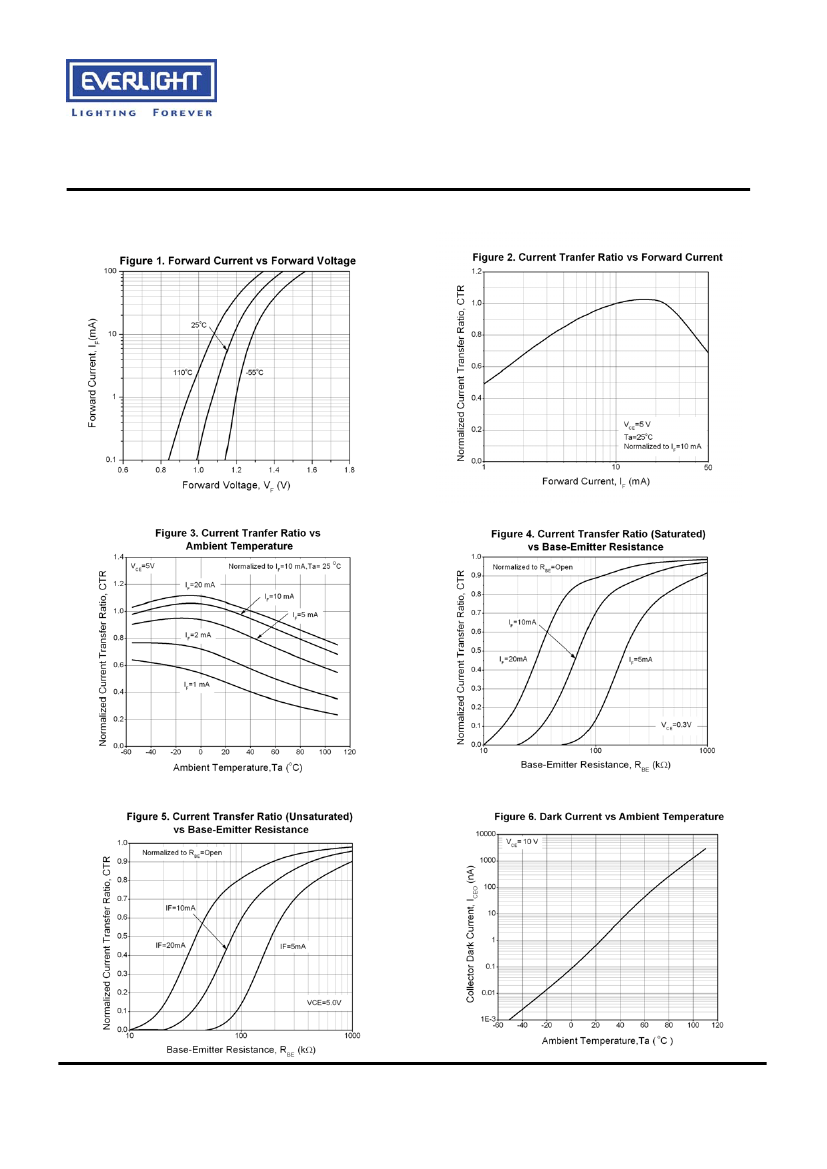

Typical Performance Curves
4N2X Series
4N3X Series
H11AX Series
Everlight Electronics Co., Ltd.
Document No：DPC-717-044 Rev. 0
5
http:\\www.everlight.com
September 12, 2007
