51234-2002: Descriptioncrc? shielded rectangular I/O plug housing, for plug assembly, male terminal,signal, 20 circuits, polarization type A, polarization position B-2; CategoryThe connector The connector; File Size133KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

51234-2002 Overview

crc? shielded rectangular I/O plug housing, for plug assembly, male terminal,signal, 20 circuits, polarization type A, polarization position B-2

51234-2002 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
ECCN code	EAR99
Other features	POLARIZATION AVAILABLE
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Termination type	CRIMP
Total number of contacts	20
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 04/06/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0512342001

Active

CRC™ Shielded Rectangular I/O Plug Housing, For Plug Assembly, Male Terminal,

Signal, 20 Circuits, Polarization Type Standard

Documents:

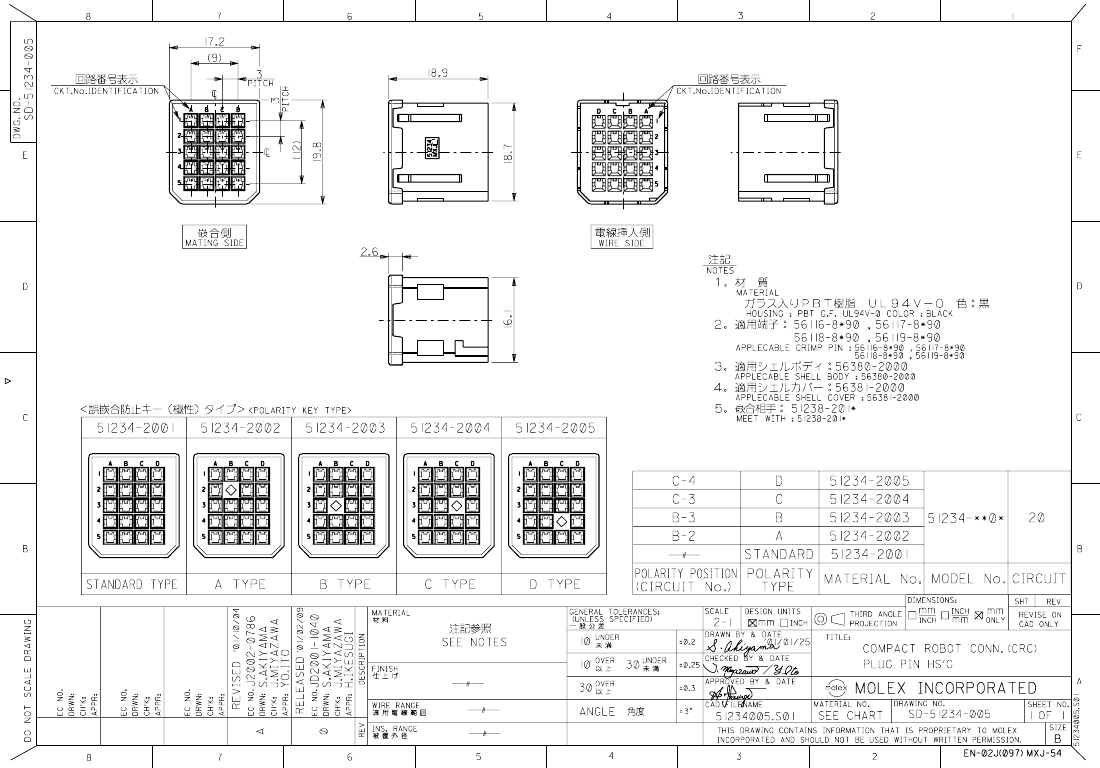

Drawing (PDF)

Product Specification PS-51238-010 (PDF)

Product Specification PS-51238-018 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

R72081037

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

TUV

General

Product Family

Series

Application

Component Type

Product Name

Type

I/O Connectors

51234

N/A

Housing

CRC™

N/A

Physical

Boot Color

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Gender

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Resin

Number of Rows

Orientation

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

N/A

Black

100

94V-0

Male

Yes

n/a

Polyester

Vertical

Tray

N/A

0.118 In

3.00 mm

0.118 In

3.00 mm

Yes

-40°C to +105°C

N/A

Search Parts in this Series

51234Series

Mates With

51238

Use With

56116, 56117, 56118 and 56119 male

terminal, 56380 plug shell body, 56381 plug

shell cover

Electrical

Current - Maximum per Contact

Shield Type

Shielded

Voltage - Maximum

1A, 2A, 3.5A, 3A

Full Shield

Yes

250V AC (RMS)/DC

Material Info

51234-2002 Related Products

	51234-2002	0512342001	51234-2001
Description	crc? shielded rectangular I/O plug housing, for plug assembly, male terminal,signal, 20 circuits, polarization type A, polarization position B-2	20 CONTACT(S), MALE, POWER CONNECTOR, CRIMP, PLUG	crc? shielded rectangular I/O plug housing, for plug assembly, male terminalsignal, 20 circuits, polarization type standard
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	Molex	Molex	Molex
Reach Compliance Code	compli	unknow	unknow
Connector type	RECTANGULAR POWER CONNECTOR	COMBINATION LINE CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
ECCN code	EAR99	-	EAR99
Body/casing type	PLUG	-	PLUG
Contact point gender	MALE	-	MALE
DIN compliance	NO	-	NO
empty shell	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
MIL compliance	NO	-	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO
Installation type	CABLE	-	CABLE
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Termination type	CRIMP	-	CRIMP
Total number of contacts	20	-	20
UL Flammability Code	94V-0	-	94V-0
