This document was generated on 04/02/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0512971501
Active
CRC™ Shielded Rectangular I/O Plug Assembly Set, Female Terminal, Power, 15
Circuits, Polarization Type A
Documents:
Drawing (PDF)
Product Specification PS-51300-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
I/O Connectors
51297
Wire-to-Wire
Kit
CRC™
N/A
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Component Type
Product Name
Type
Physical
Boot Color
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Gender
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Resin
Number of Rows
Orientation
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Polarized to PCB
Ports
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
N/A
N/A
15
Black
100
Female
Yes
Yes
Zinc Alloy
n/a
Polyester
5
Vertical
Bag
No
0.197 In
5.00 mm
0.197 In
5.00 mm
Yes
N/A
1
No
-40°C to +105°C
N/A
No
Search Parts in this Series
51297Series
Mates With
55890 receptacle housing, 55888 receptacle
assembly set, 55889 recetacle assembly set
Electrical
Current - Maximum per Contact
Shield Type
Shielded
Voltage - Maximum
15A
Full Shield
Yes
250V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Product Specification

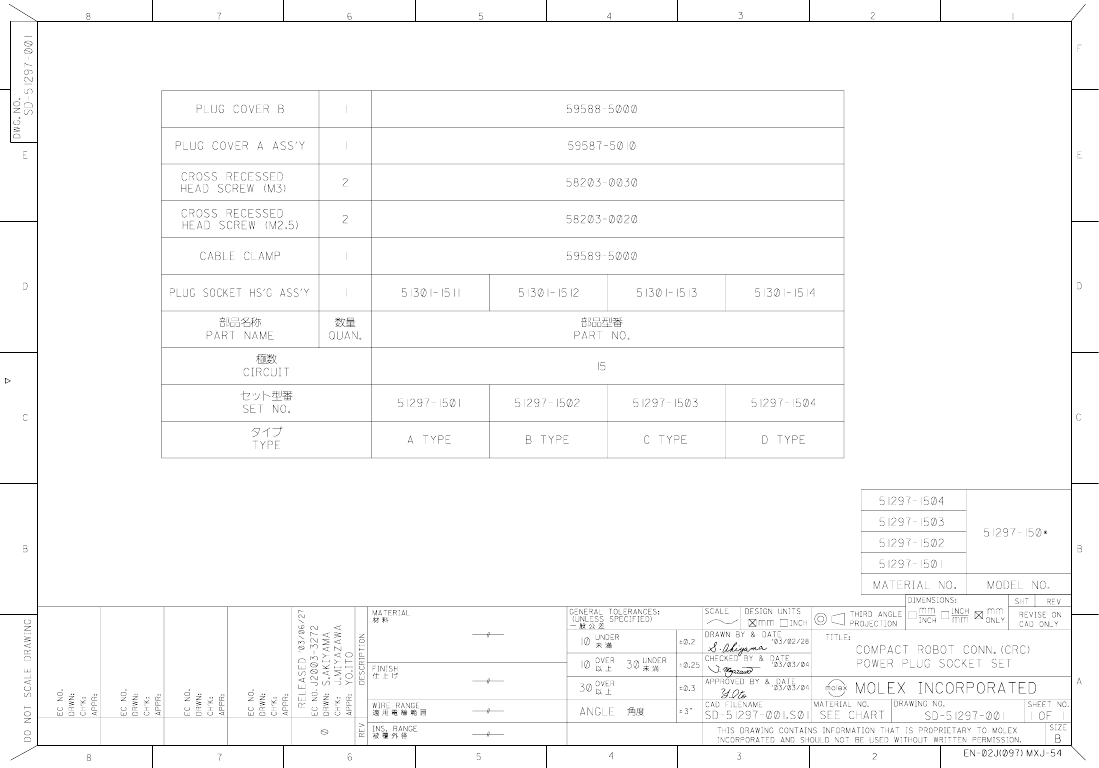

Sales Drawing
PS-51300-001
SD-51297-001
